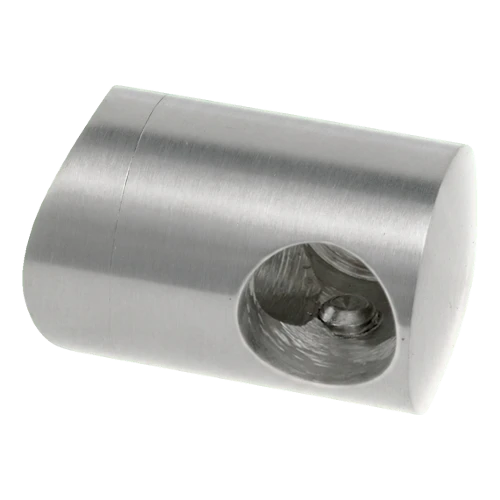

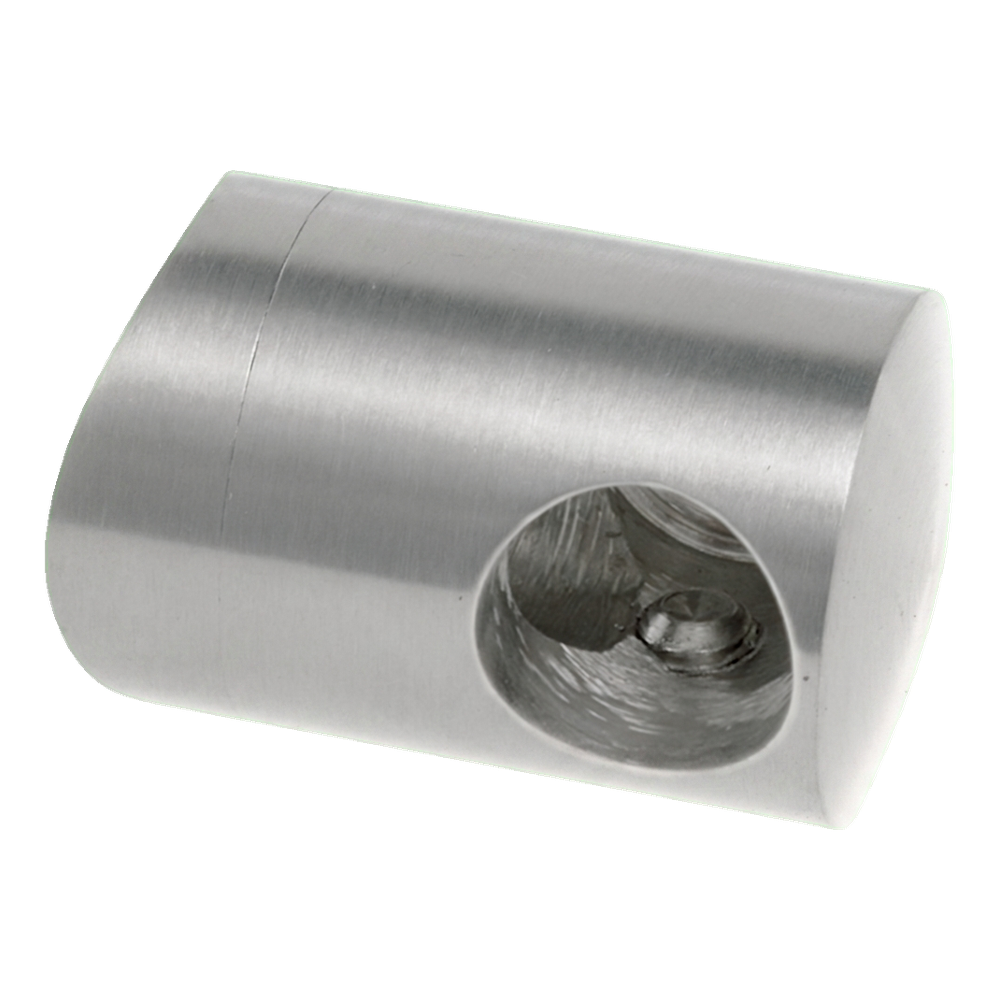

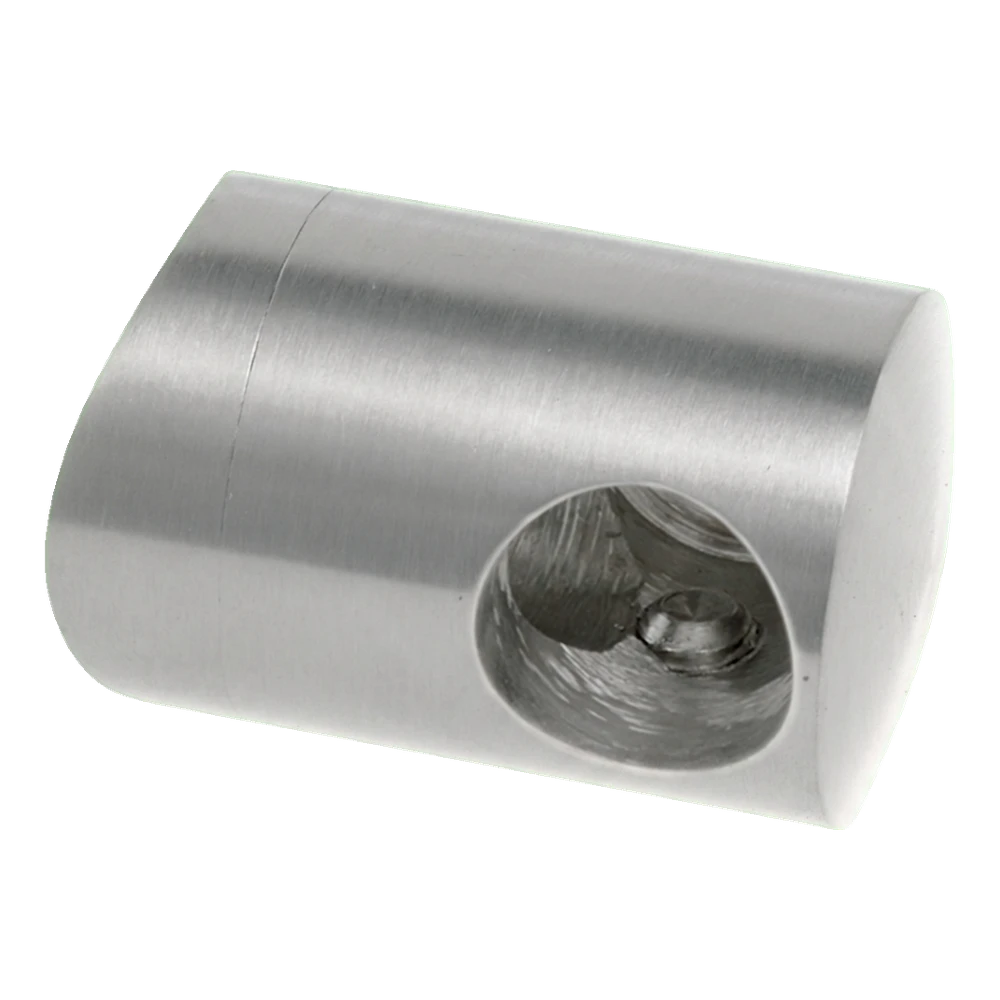

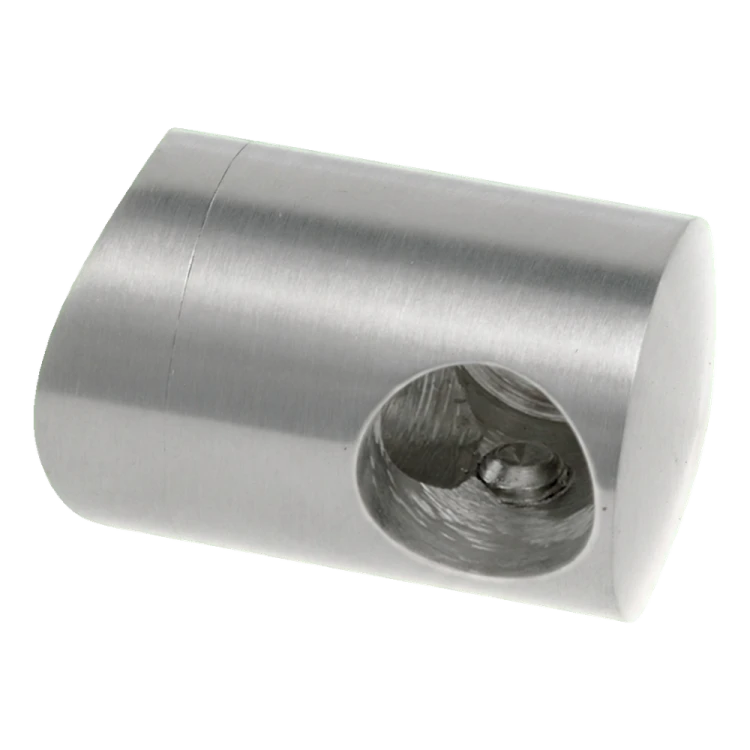

PSG left end bracket for 12 mm diameter rod on 42.4 mm pipe - AISI 304 stainless steel polished
Description
PSG left end bracket for 12 mm diameter rod on 42.4 mm pipe - AISI 304 stainless steel polished
Left end (starting) bracket for rod with diameter of 12 mm, designed for mounting on pipe with diameter of 42.4 mm. Component made from AISI 304 stainless steel with polished finish - ensures aesthetic, durable appearance of the balustrade and corrosion resistance in external and internal conditions.
The bracket serves as starting or end mounting for rod infill in stainless steel balustrades. Left and right elements are mounted in pairs in the construction plane, providing rigidity and stability to the entire infill. The profiled seat perfectly matches the curvature of the 42.4 mm support pipe, which reduces installation time and eliminates the need for additional on-site processing.

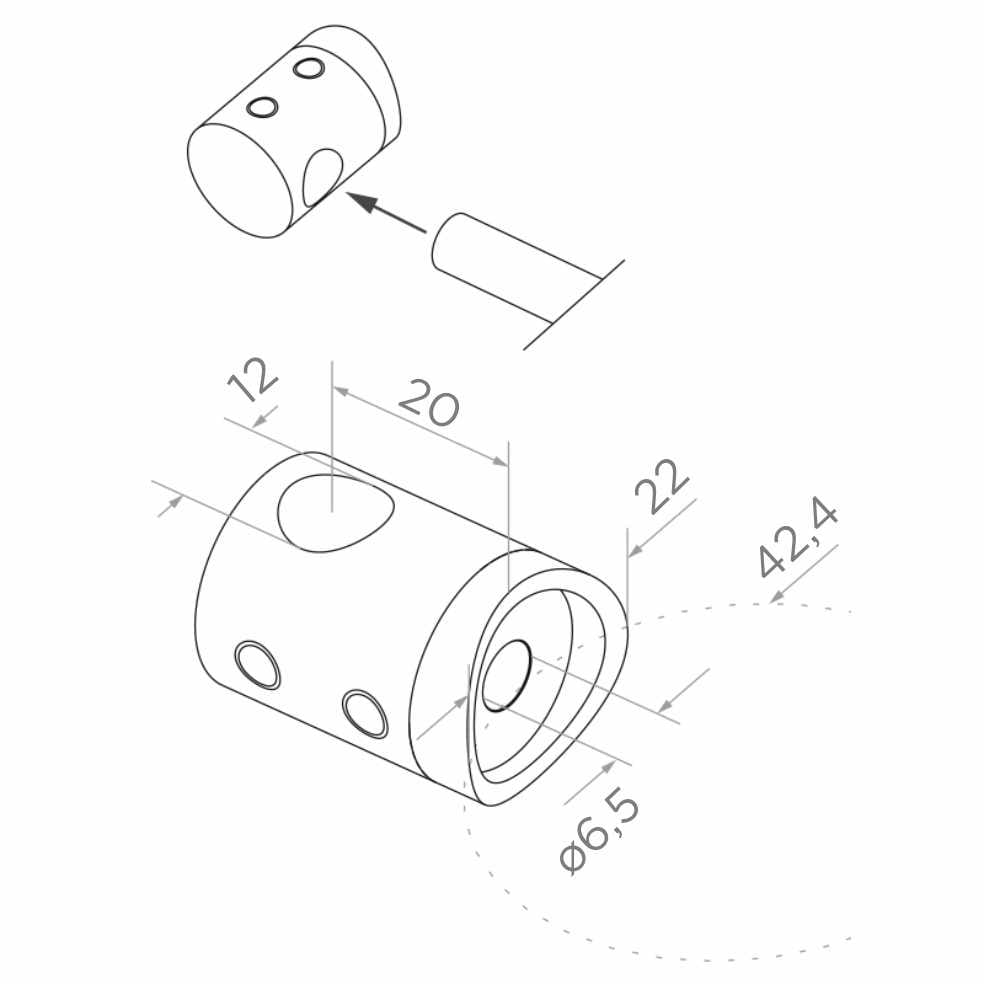

Dimensions and technical data
- Type: left end bracket (starting)
- Rod hole diameter: ø 12 mm
- External body diameter: 22 mm
- Hole centre distance from base: 20 mm
- Mounting pipe diameter: 42.4 mm
- Mounting hole diameter (for screw): ø 6.5 mm
- Material: AISI 304 stainless steel
- Surface finish: polished
- Weight: 0.055 kg
- EAN: 5901289671323
Application
The bracket is designed for mounting rod infills in stainless steel balustrades based on the 42.4 mm pipe system. Used in pairs (left + right) ensures secure mounting of 12 mm diameter rods in the balustrade plane. Two side holes for grub screws allow permanent locking of the rod inside the bracket, whilst the central mounting hole ø 6.5 mm enables attachment of the element to the post using a through bolt.
The polished surface of AISI 304 steel guarantees high resistance to atmospheric conditions and harmonious matching with other elements of stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
