PSG knob-knob set movable stainless steel AISI 304 with oval escutcheons
Leave feedback on the product
PSG knob-knob set made of AISI 304 stainless steel, satin silver. Movable knobs Ø50mm with 135° offset. Oval escutcheons 62×32mm, hole spacing 45mm, total length 95mm. For interior and exterior doors, gates.
Product code: 000-718
Product features
[PIM] klamki-galki-szyldy #118
- Material AISI 304
- Fitting Type Knob Set
- Finish Satin
- Brand PSG
Description

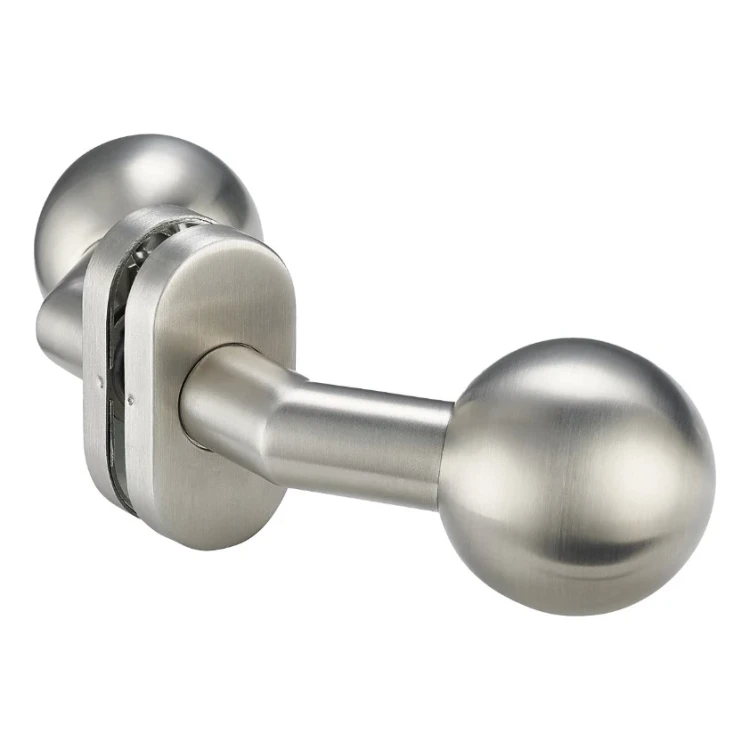

Stainless Steel AISI 304 Movable Door Handle Set with Oval Escutcheons
The movable handle-to-handle set with offset is professional hardware made from AISI 304 stainless steel, designed for mounting on interior doors and gates. The characteristic arm bend at a 135° angle ensures ergonomic grip, and the complete set equipment with oval Euro cylinder escutcheons allows for instant installation — without the need to order additional components.
Complete mounting set

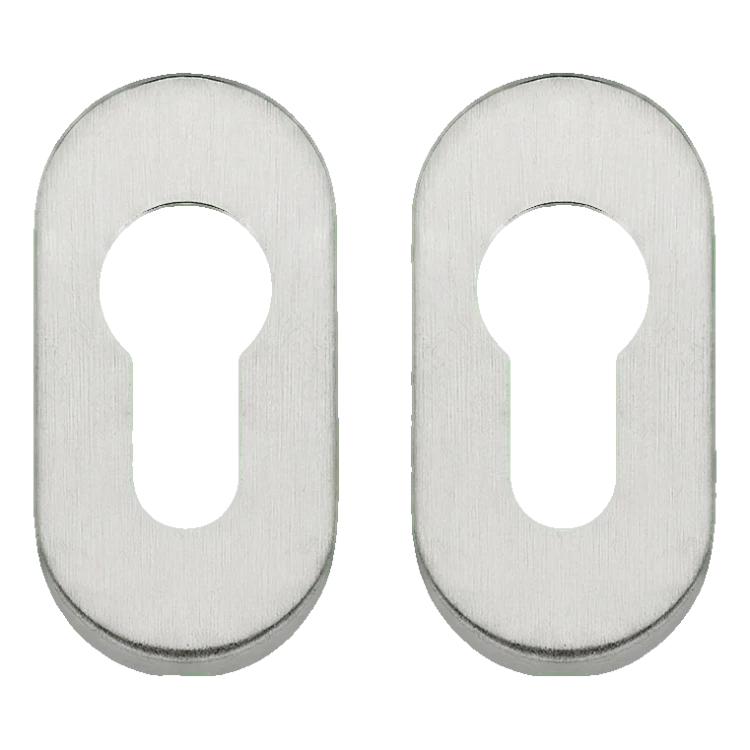

The set includes two movable handles mounted on a common spindle and a pair of oval escutcheons for Euro cylinder PZ. Thanks to the completeness of the set, the installer does not need to separately select accessories — all components are factory-matched and ensure a consistent, aesthetic appearance after installation. The oval escutcheons mask the mounting hole and increase the stability of the entire hardware.
AISI 304 stainless steel — durability for years
The handles and escutcheons are made from AISI 304 stainless steel, which guarantees high resistance to corrosion, moisture and mechanical damage. This material works excellently in both residential and commercial buildings — it maintains its appearance even with intensive, daily use. The satin-finished surface is easy to keep clean — simply wipe it with a damp cloth.
Characteristic 135° angle offset
The handle arm is bent at a 135° angle, which gives a characteristic offset of the grip from the door plane. This solution ensures a comfortable and natural grip, especially for thicker door leaves or garden gates. The arm projection is 57 mm, and the spherical handle diameter is 50 mm — an optimal size guaranteeing user comfort.

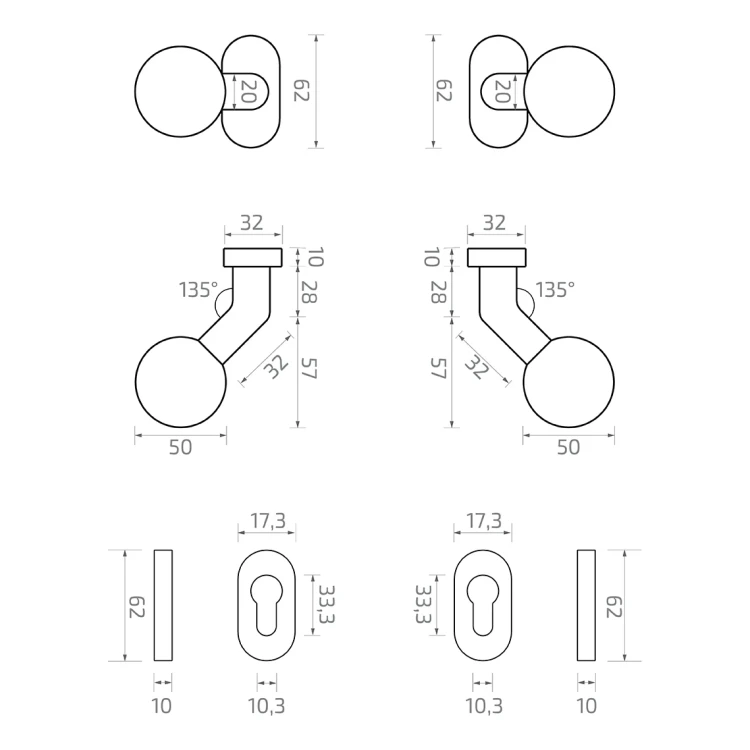

Dimensions and technical parameters
- Type: handle-to-handle set, movable, with offset
- Material: AISI 304 stainless steel
- Colour/finish: silver (satin)
- Handle diameter: 50 mm
- Arm offset angle: 135°
- Arm projection (from escutcheon to handle): 57 mm
- Straight arm section length: 28 mm
- Bent arm section length: 32 mm
- Handle escutcheon thickness: 10 mm
- Handle escutcheon dimensions: 62 × 32 mm
- PZ cylinder escutcheon dimensions: 62 × 32 mm
- Cylinder escutcheon thickness: 10 mm
- Cylinder hole: 17.3 × 33.3 mm
- Mounting hole centres: 45 mm
- Total set length (L): 175 mm
- Height (H): 60 mm
- Weight: 0.51 kg
- EAN: 5903313205191
Set contents
- Stainless steel movable handle — 2 pcs (left + right)
- Oval Euro cylinder PZ escutcheon — 2 pcs
- Mounting elements (spindle, screws)
