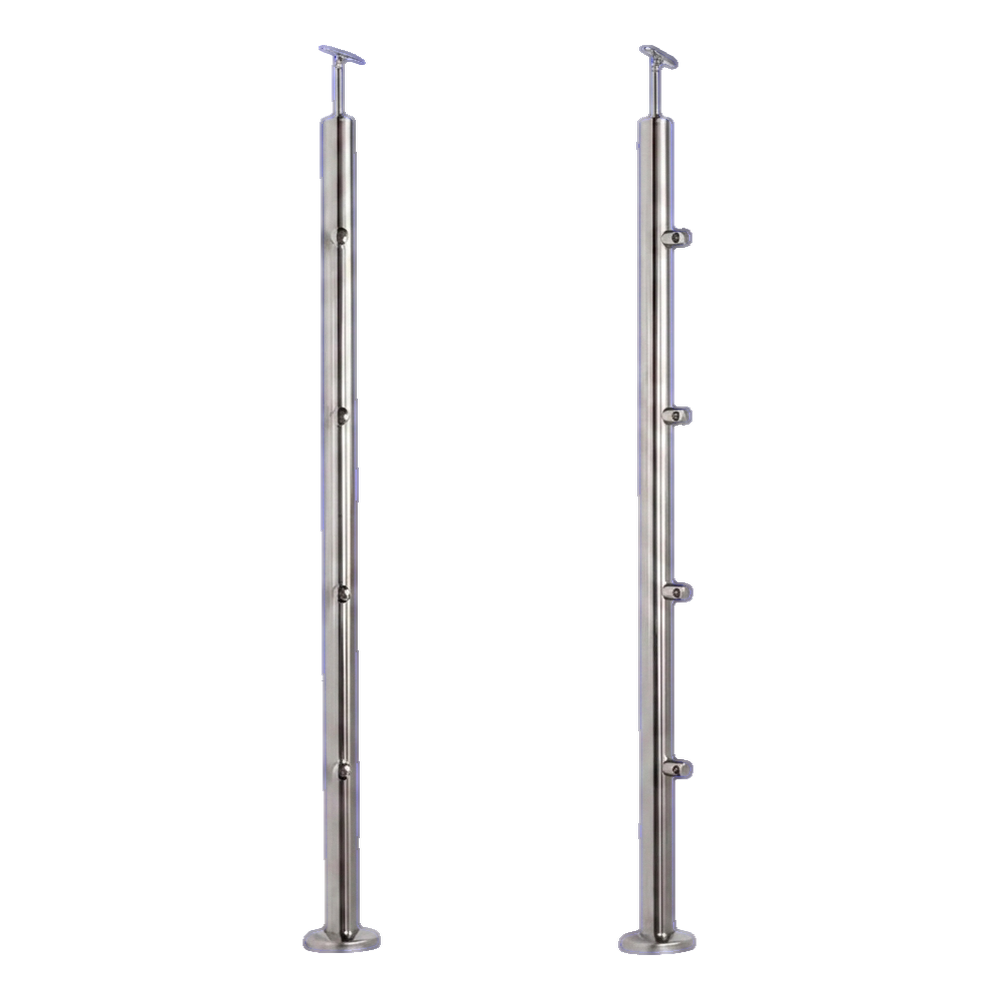

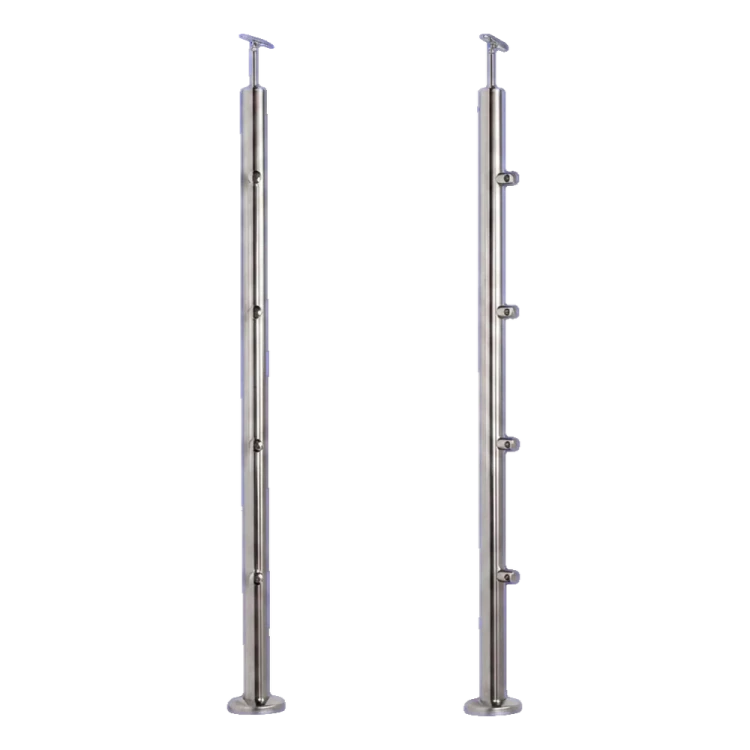

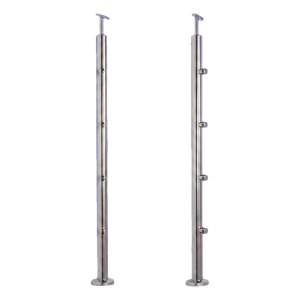

PSG intermediate balustrade post Ø42.4 mm stainless steel AISI 304 – 4 brackets Ø12, floor mounting
Description
PSG intermediate balustrade post Ø42.4 mm stainless steel AISI 304 – 4 brackets Ø12, floor mounting
Intermediate post for interior balustrades — balcony and stair balustrades — made from high-quality AISI 304 stainless steel with satin finish. Equipped with 4 intermediate brackets for Ø 12 mm infill rods, designed for floor mounting. The universal construction allows for use in various architectural projects, and the included accessories (base cover, handrail connector) ensure complete and aesthetic installation.

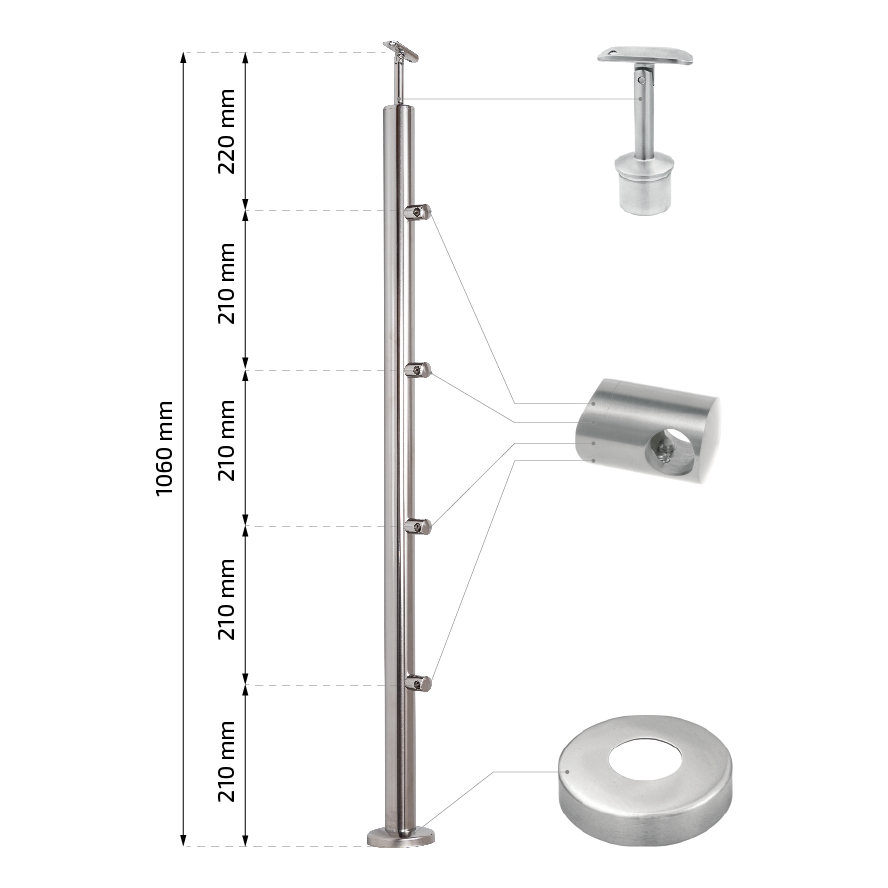

The total height of the post with handrail connector is 1102.4 mm, which combined with a Ø 42.4 mm handrail provides an ergonomic balustrade height compliant with building standards. The brackets are evenly spaced at 210 mm intervals, ensuring aesthetic division of the infill.

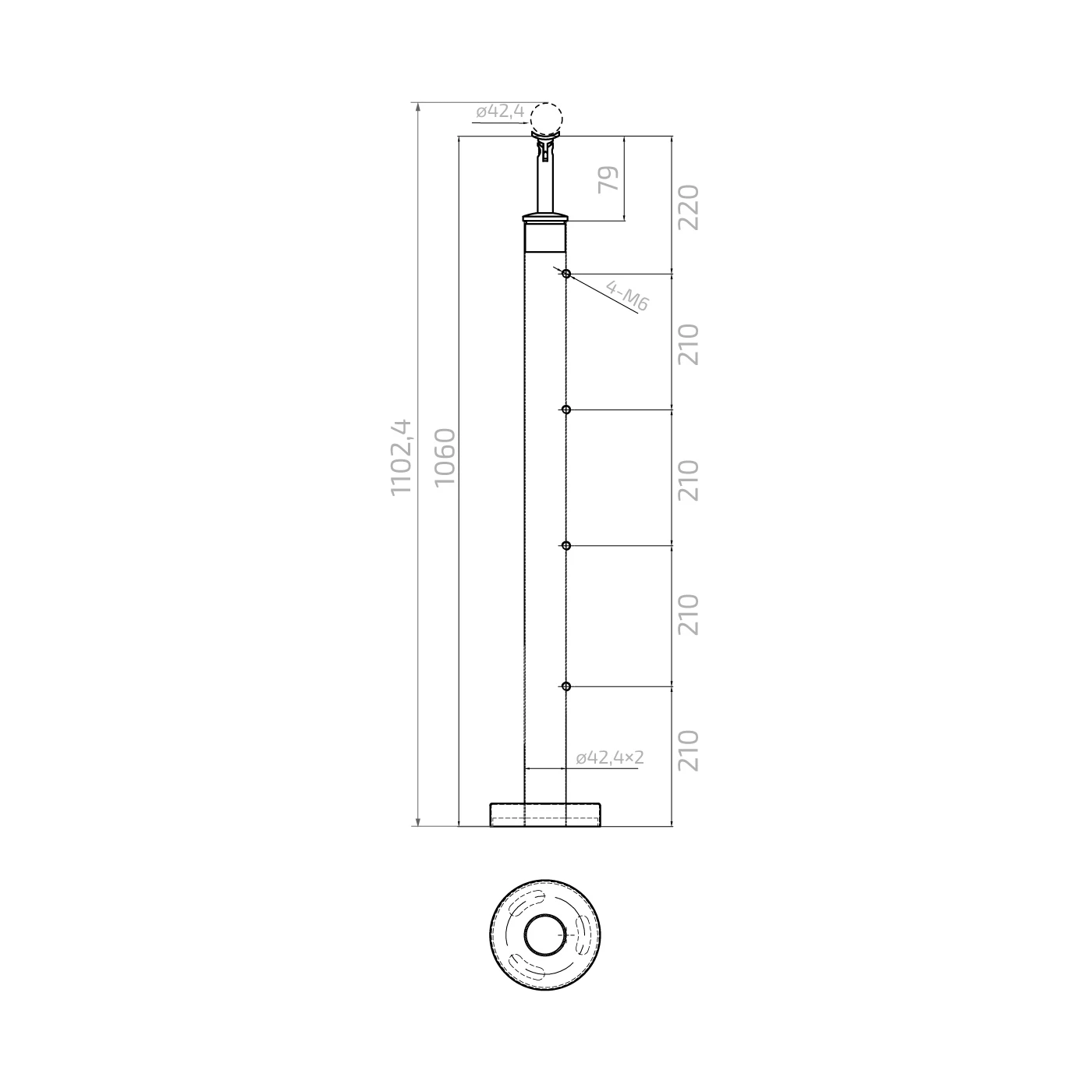

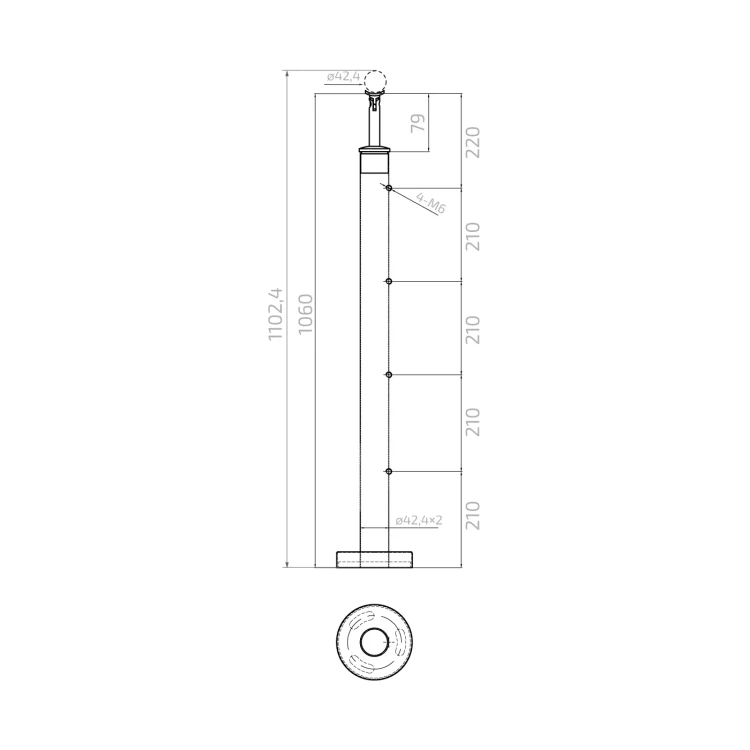

Technical parameters of the post
- Material: AISI 304 stainless steel (satin/brushed)
- Tube diameter: Ø 42.4 mm
- Tube wall thickness: 2 mm
- Post height (tube): 1060 mm
- Total height with handrail connector: 1102.4 mm
- Number of intermediate brackets: 4 pcs
- Rod hole diameter: Ø 12 mm
- Spacing between brackets: 210 mm
- Distance from floor to first bracket: 210 mm
- Distance from last bracket to tube edge: 220 mm
- Bracket mounting thread: M6 (4 pcs)
- Mounting: in floor
- Weight: 3.08 kg
- EAN: 5903313202114

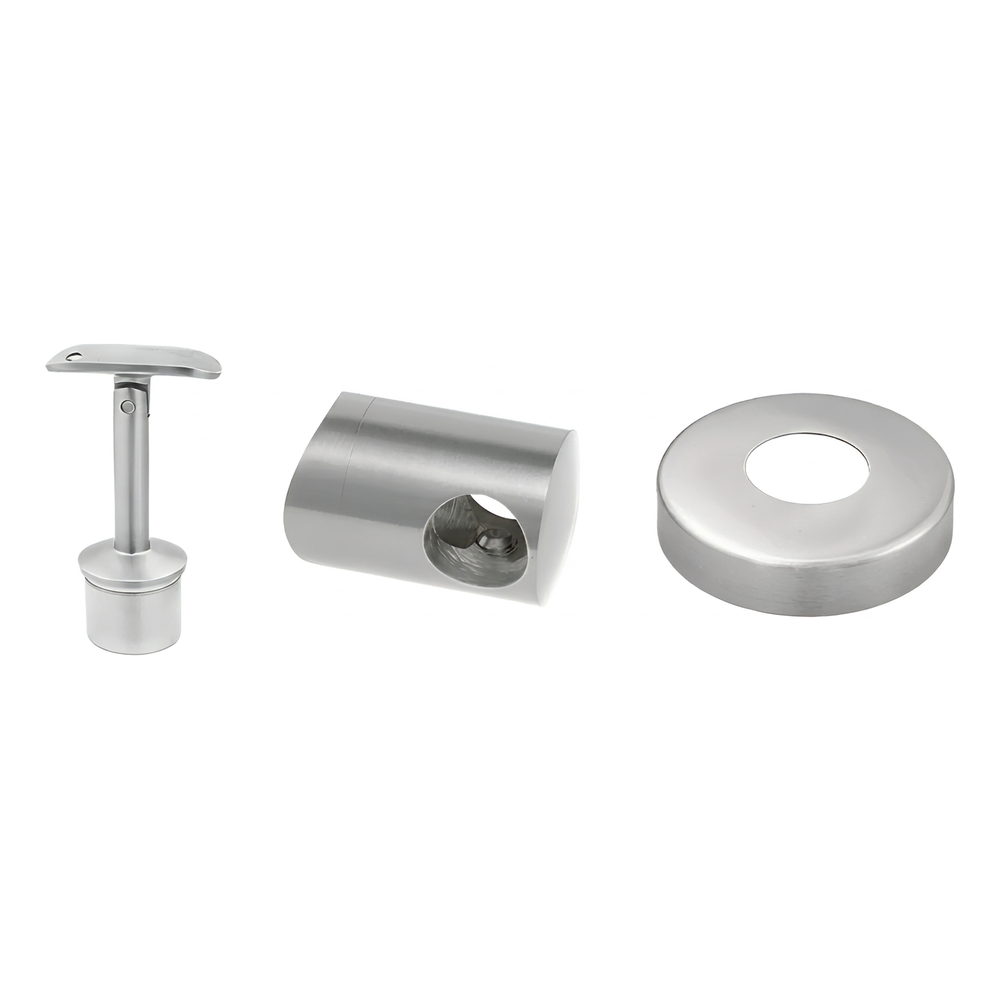

Kit contents
- Balustrade post Ø 42.4 × 1060 mm
- Base cover — 1 pc
- Intermediate rod brackets Ø 12 mm — 4 pcs
- Handrail connector — 1 pc
Kit elements — handrail connector, intermediate rod bracket and base cover are included with the post but are not permanently attached. This allows the installer to freely adjust the position and angle of elements to site conditions. The manufacturer recommends using special anaerobic adhesive designed for stainless steel to achieve a durable and solid connection. This mounting method also allows for possible shortening of the post in case of floor unevenness.
Component dimensions

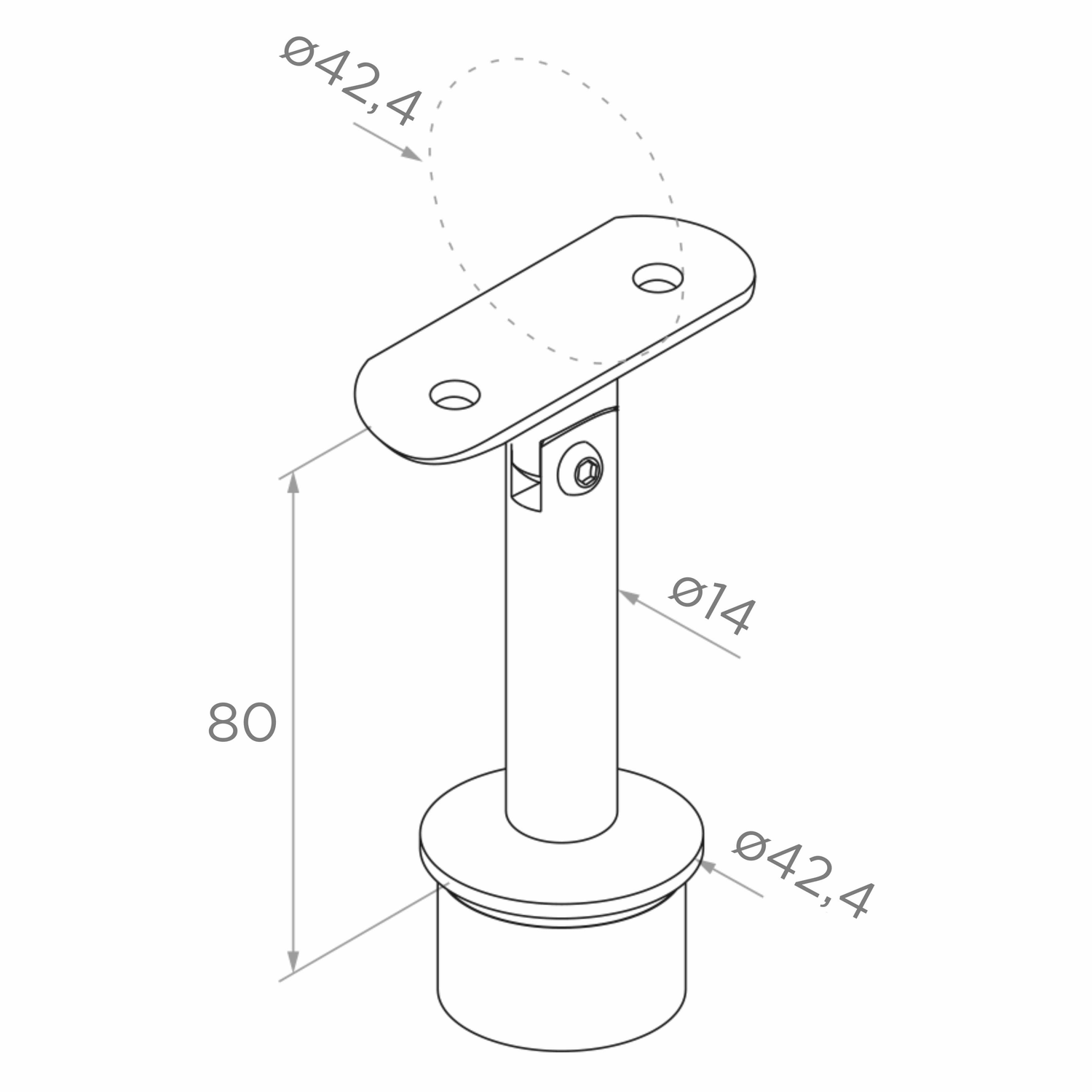

Handrail connector
- Connector height: 80 mm
- Spigot diameter: Ø 14 mm
- Mounting base diameter: Ø 42.4 mm
- Compatible handrail: Ø 42.4 mm

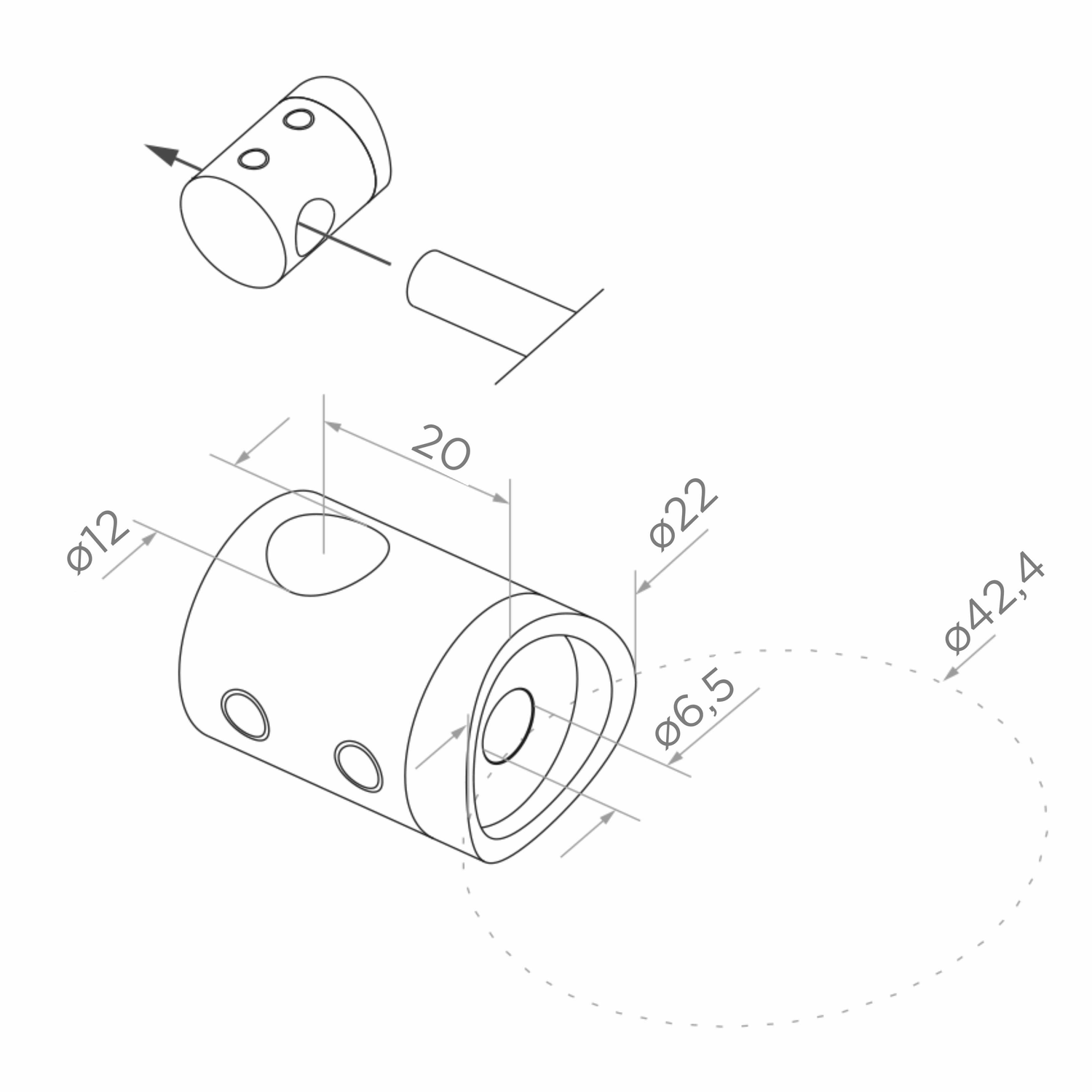

Intermediate rod bracket
- Bracket external diameter: Ø 22 mm
- Rod hole diameter: Ø 12 mm
- Insertion depth (rod axis distance from face): 20 mm
- Mounting hole diameter (for screw): Ø 6.5 mm

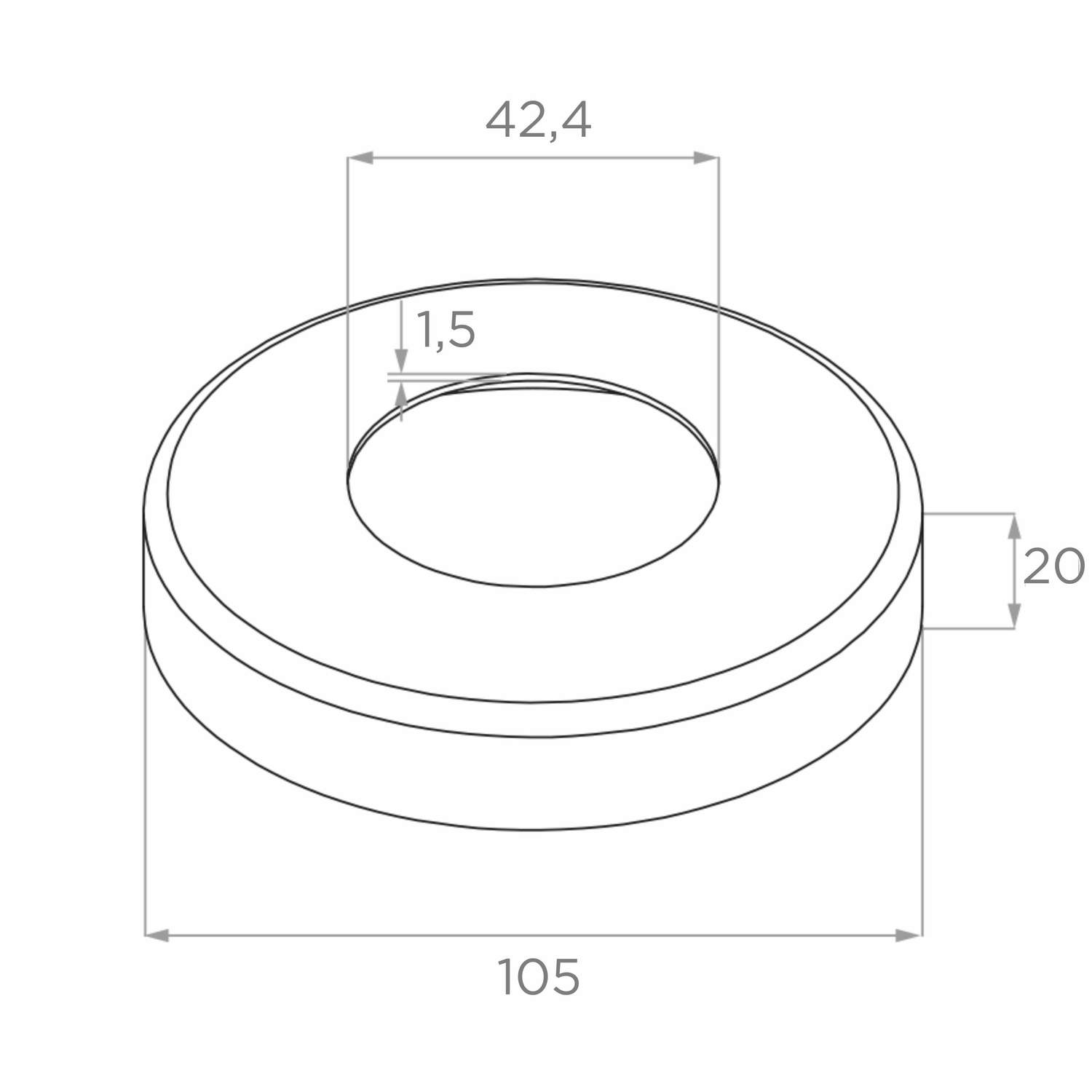

Base cover
- External diameter: Ø 105 mm
- Internal hole diameter: Ø 42.4 mm
- Height: 20 mm
- Material thickness: 1.5 mm
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
