PSG hanger for sliding gate rail 35×32 mm – galvanised 110 mm
Description
PSG hanger for sliding gate rail 35×32 mm – galvanised 110 mm
Galvanised PSG hanger for running rail of suspended sliding gate, designed for C-sections with dimensions 35×32 mm. Robust construction from galvanised steel sheet ensures durable and reliable rail suspension, enabling smooth gate operation for years of service. Product dedicated to professional installation teams implementing suspended gate systems on residential and industrial properties.

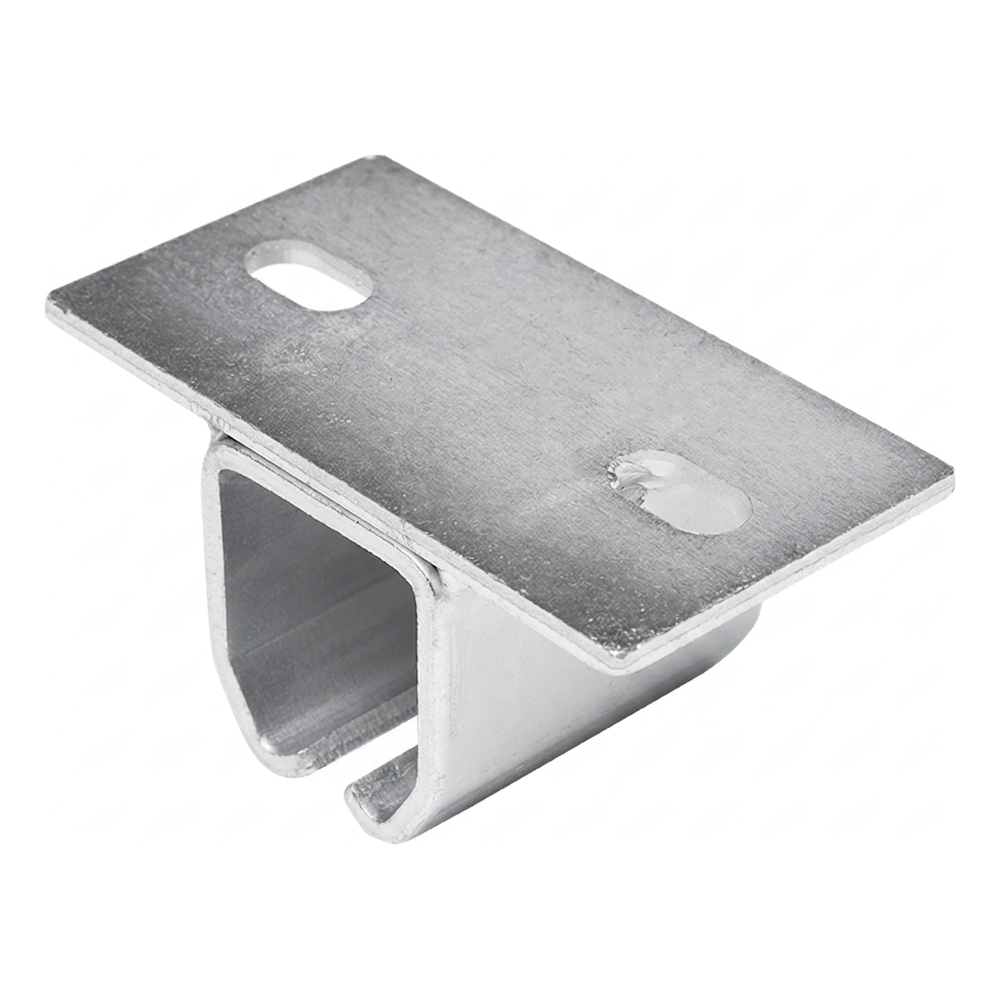

The hanger consists of a wide mounting plate with holes for bolting to the lintel or support structure and a profiled bracket enclosing the rail from above. The profile shape ensures stable seating of the C-section and even load transfer. Mounting holes (including one oval) facilitate position adjustment during installation, which speeds up rail alignment along the entire gate length.

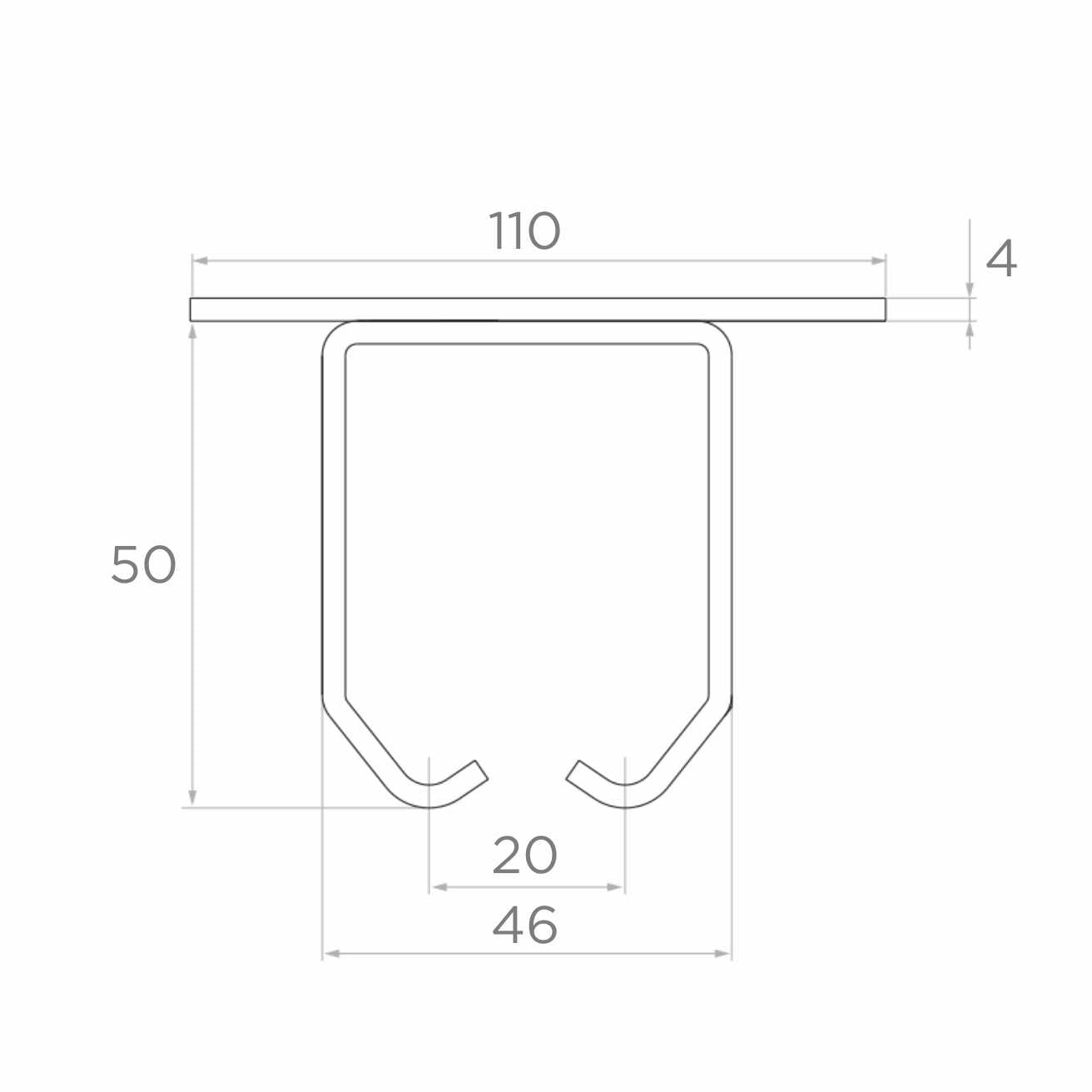

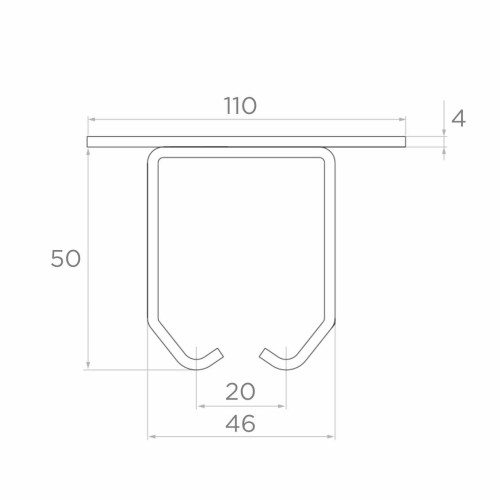

Dimensions and technical parameters
- Mounting plate width: 110 mm
- Mounting plate thickness: 4 mm
- Total hanger height: 50 mm
- External profile width: 46 mm
- Slot width (rail opening): 20 mm
- Fits rail (C-section): 35×32 mm
- Material: galvanised steel
- Weight: 0.48 kg
- EAN: 5901289675642
Application
The hanger is used in suspended sliding gate systems — both in single-track and multi-leaf installations. Mounted to lintel, ceiling or steel structure using bolts passing through holes in the mounting plate. Thanks to galvanising the component is corrosion-resistant and suitable for mounting on building exteriors and in halls with increased humidity.
