PSG handrail bracket for welding ø14 H80 mm – stainless steel AISI 304, system 42.4 mm
Description

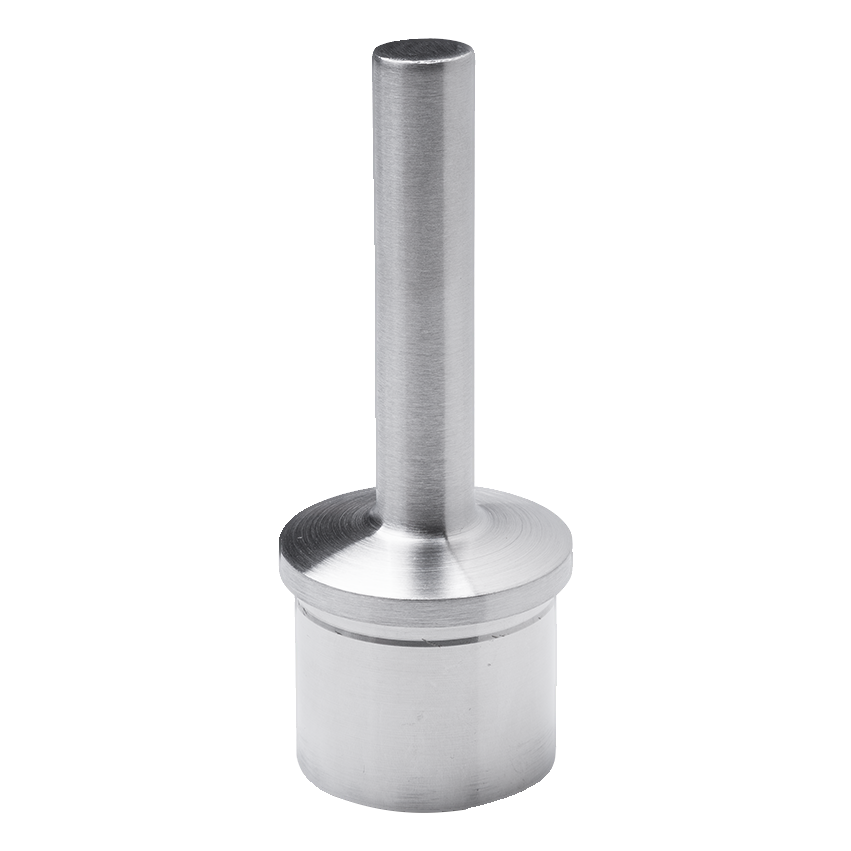

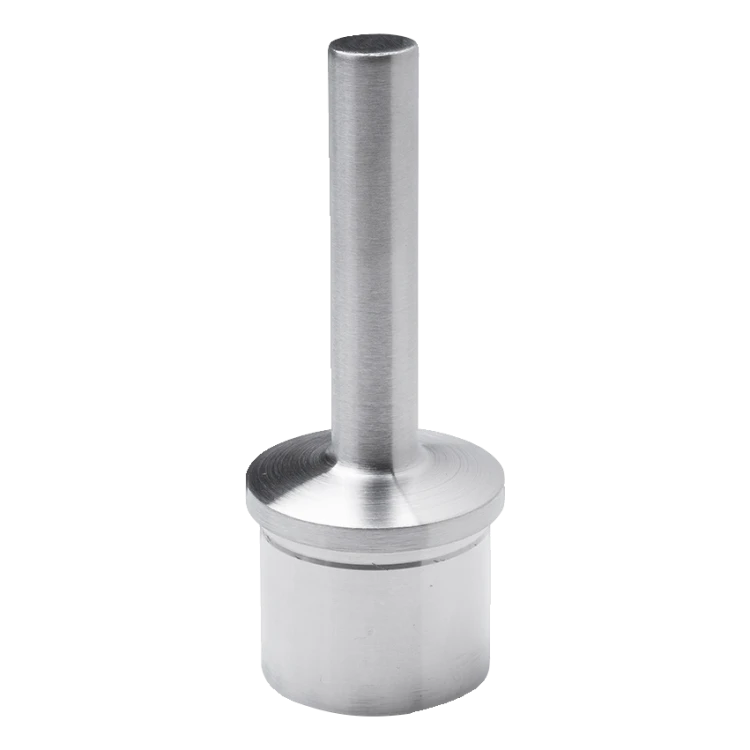

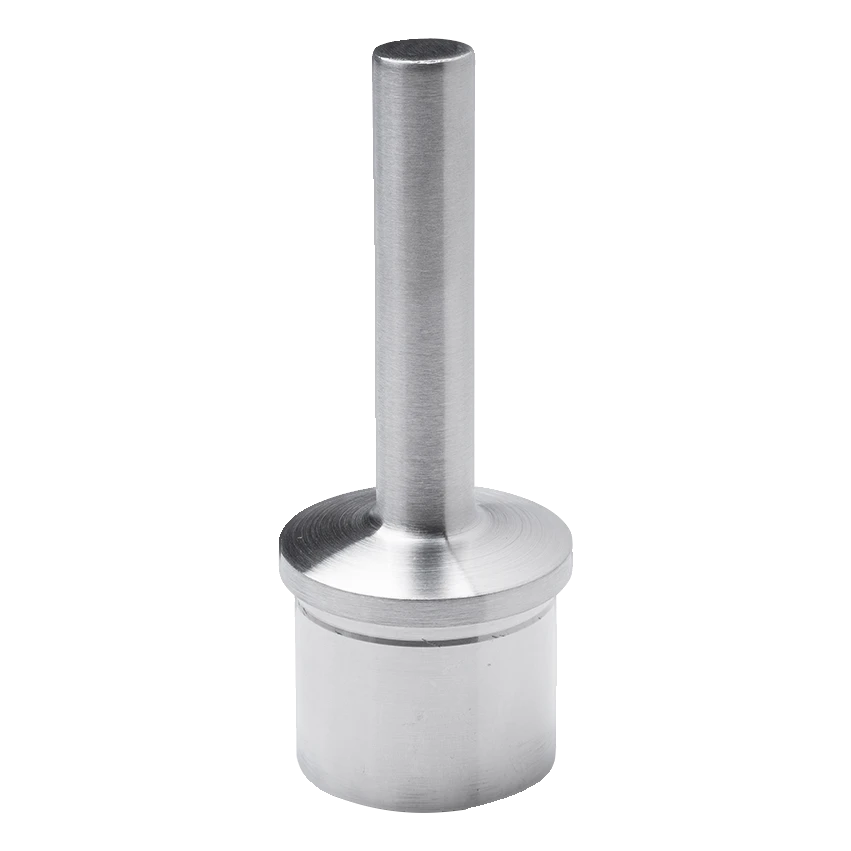

PSG handrail bracket for welding ø14 H80 mm – stainless steel AISI 304, system 42.4 mm
Welding handrail bracket is a robust element connecting the balustrade post with the handrail in the ø 42.4 mm tube system. Made from high-grade stainless steel AISI 304 with satin finish, it provides durable and aesthetic connection in internal and external balustrades. Bonded assembly guarantees clean, seamless finish — ideal solution for installers prioritising precision and speed of installation.
Pin with diameter ø 14 mm and total height 80 mm allows secure mounting of the handrail, whilst compact base fitted to tube 42.4 × 2 mm facilitates centring and assembly. Thanks to the satin finish, the product harmoniously complements other elements of stainless steel balustrade systems.
Technical specification
- Manufacturer: PSG
- Type: welding handrail bracket, bonded
- Material: stainless steel AISI 304
- Surface finish: satin

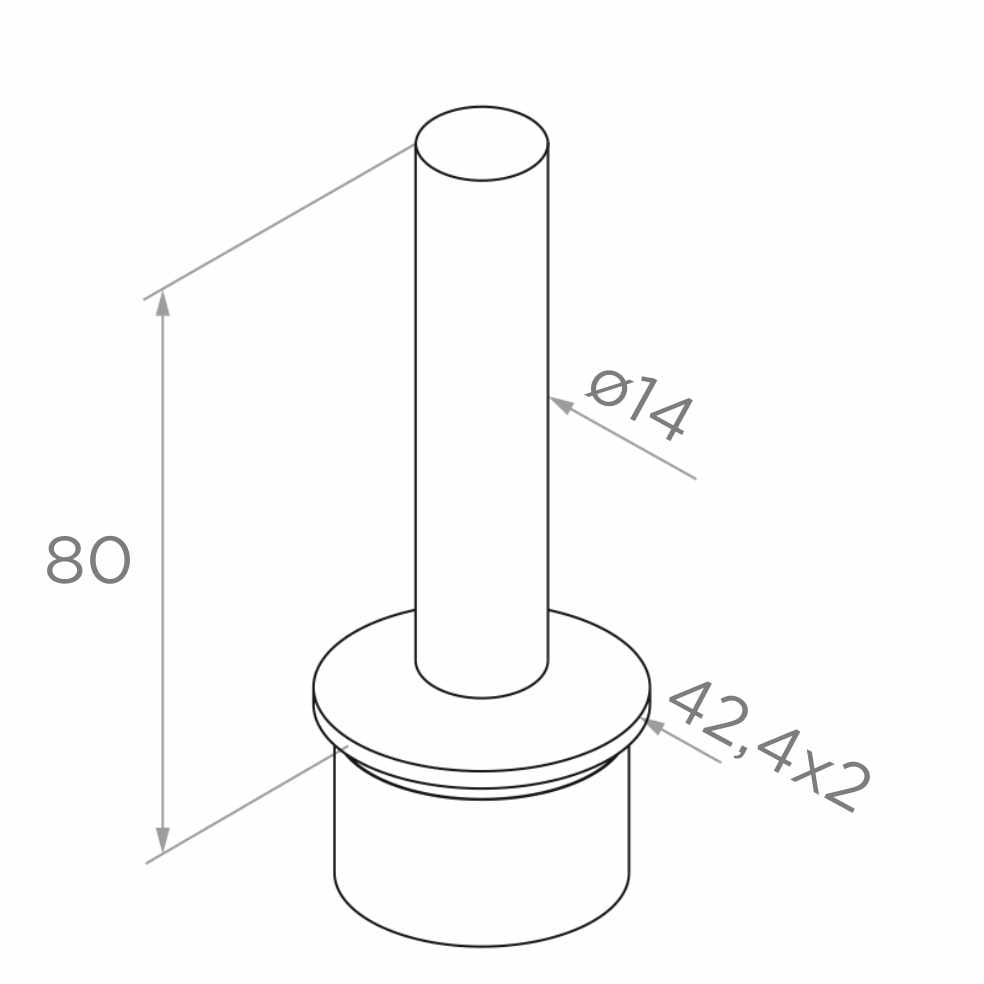

- Pin diameter: ø 14 mm
- Total height: 80 mm
- Tube system: 42.4 × 2 mm (external diameter × wall thickness)
- Weight: 0.18 kg
- EAN: 5901289671965
Application and assembly
The bracket is designed for connecting balustrade posts with handrails in stainless steel balustrade systems. Bonded construction eliminates the need for welding at the installation site, which significantly reduces installation time and allows preserving undamaged surface finish. The element is dedicated for working with tubes of external diameter 42.4 mm and wall thickness 2 mm — the most popular standard in the stainless steel balustrade industry.
Stainless steel AISI 304 provides high corrosion resistance and protection against mechanical damage, whilst satin surface finish facilitates maintenance and gives the balustrade a modern, elegant character. The product will perform well in both internal and external installations — on balconies, terraces, staircases and in public buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
