PSG guide roller for sliding gate FI 30 mm white
Description

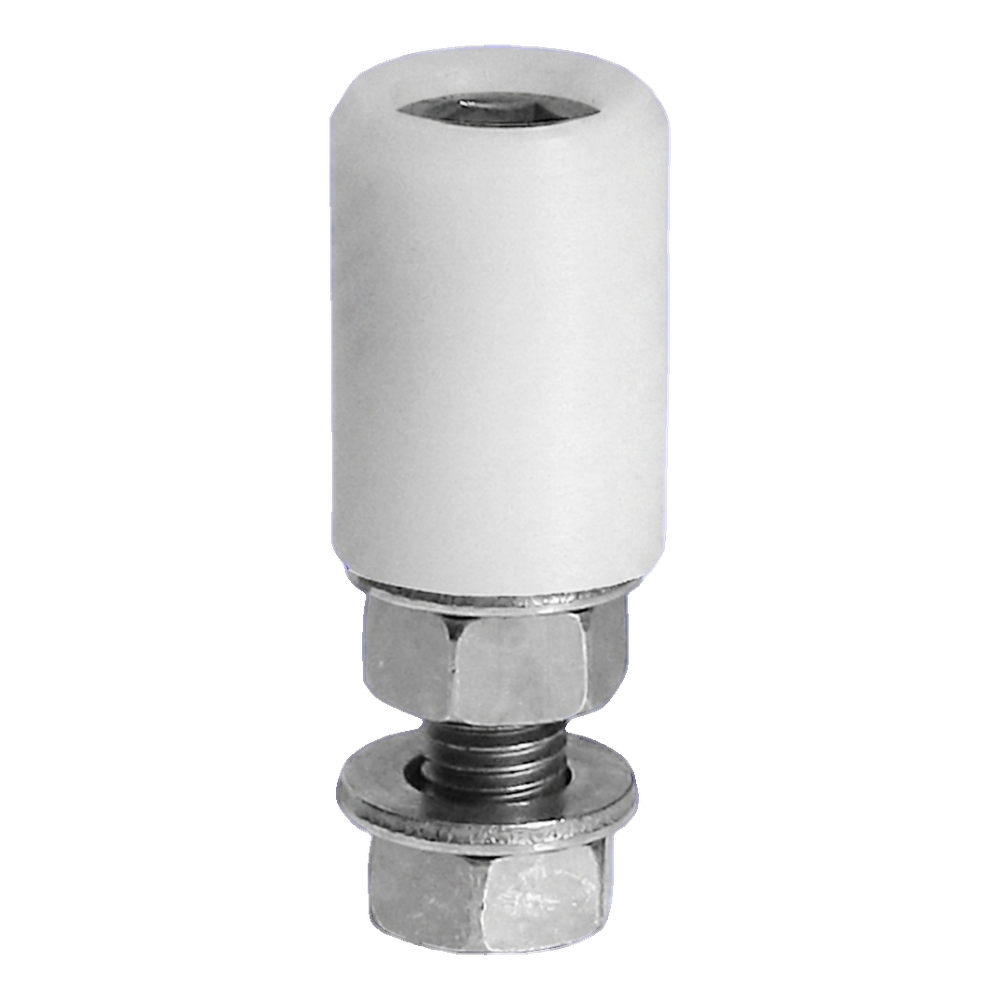

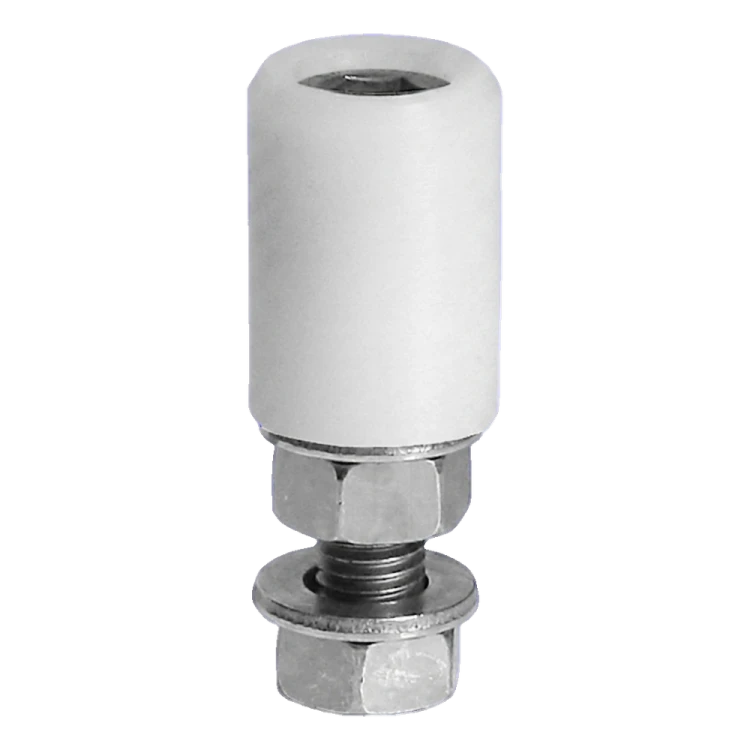

PSG guide roller for sliding gate FI 30 mm white
Guide roller FI 30 mm from PSG brand serves to maintain the rail (channel section) in vertical position during opening and closing of sliding gate. Made of white plastic, it ensures quiet and smooth operation of the guide mechanism, whilst protecting the steel channel section from scratches and excessive wear.
The element is ready for mounting — supplied with spindle, washer and fixing nuts, which allows for quick and trouble-free installation without the need to source additional hardware. The plastic from which the roller is made is resistant to weather conditions and requires no maintenance, which translates to long service life and fault-free operation.

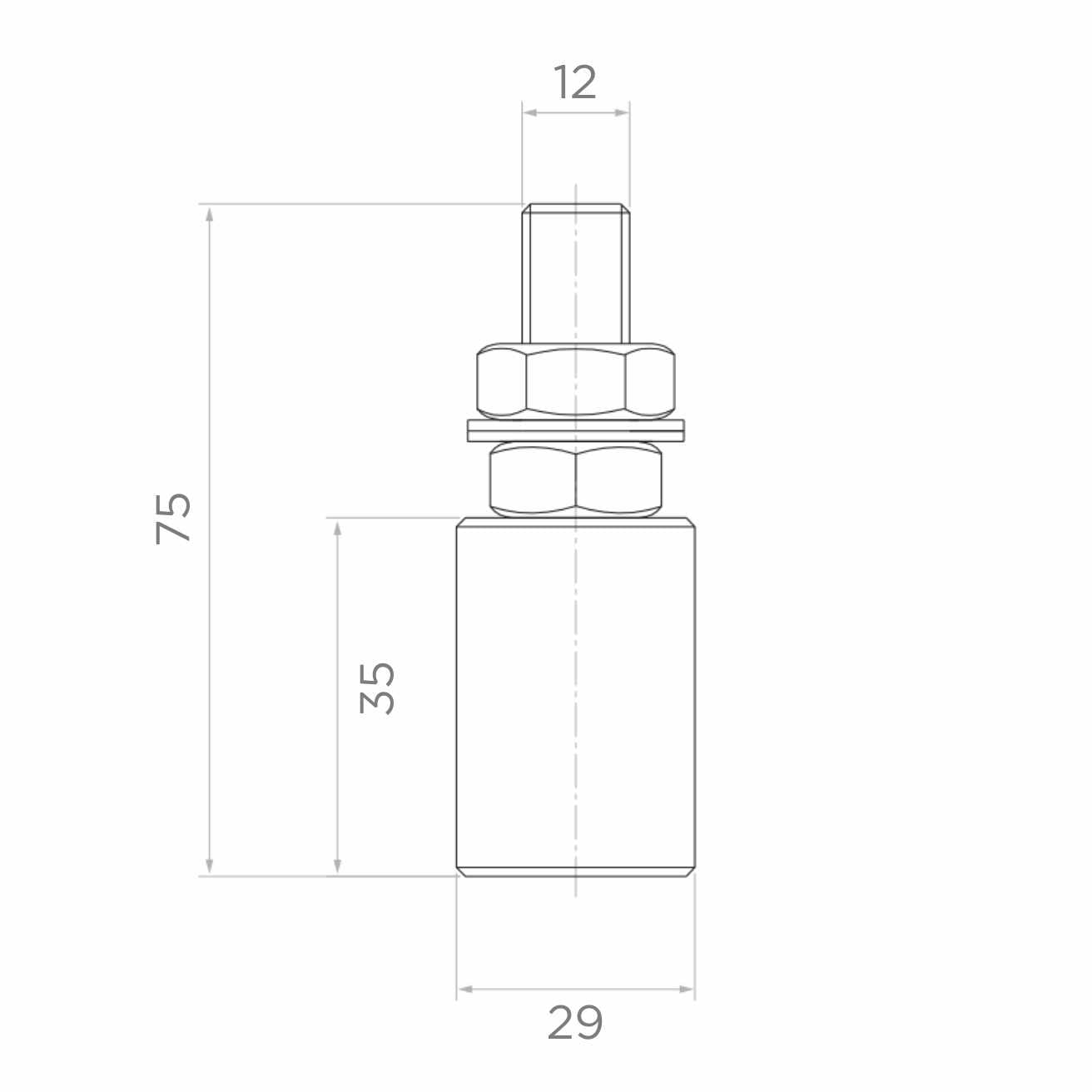

Dimensions and technical data
- Manufacturer: PSG
- Roller diameter (FI): ~30 mm (drawing dimension 29 mm)
- Total height: 75 mm
- Height of guide part (roller): 35 mm
- Fixing spindle diameter: 12 mm (M12 thread)
- Roller material: plastic
- Colour: white
- Weight: 0.12 kg
- EAN: 5901289675048
Application
The roller is intended for sliding gate systems, where it fulfils the function of upper guide — maintains the running rail vertical and prevents its lateral deflections. It works well in both fence gates and industrial gates. Thanks to compact dimensions and universal M12 thread, it can be easily mounted in typical posts and guide brackets.
