PSG guide roller for gates Ø 25 mm white with M12 threaded rod
Leave feedback on the product
PSG guide roller Ø 25 mm made of plastic, white. Height 75 mm, roller diameter 25 mm, threaded rod M12. Weight 0.12 kg. For sliding gates, channel rail guidance.
Product code: 001-265
Description

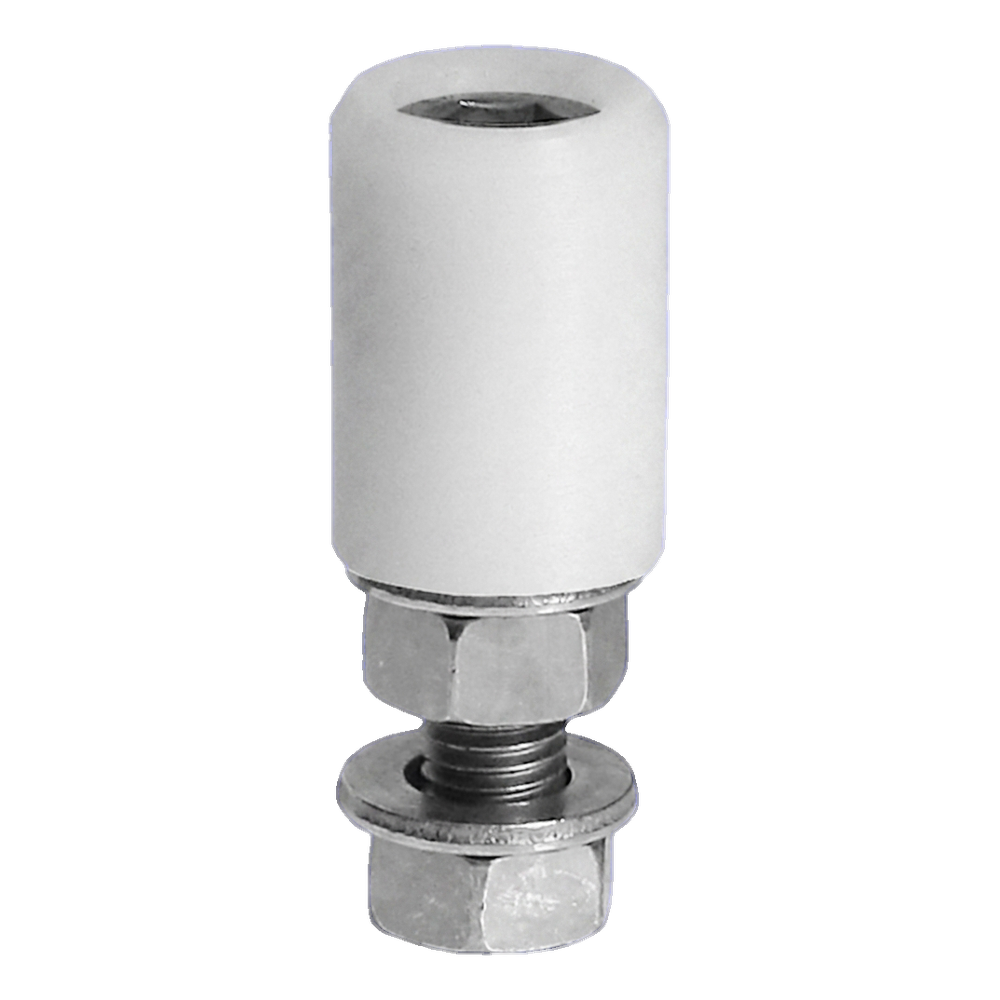

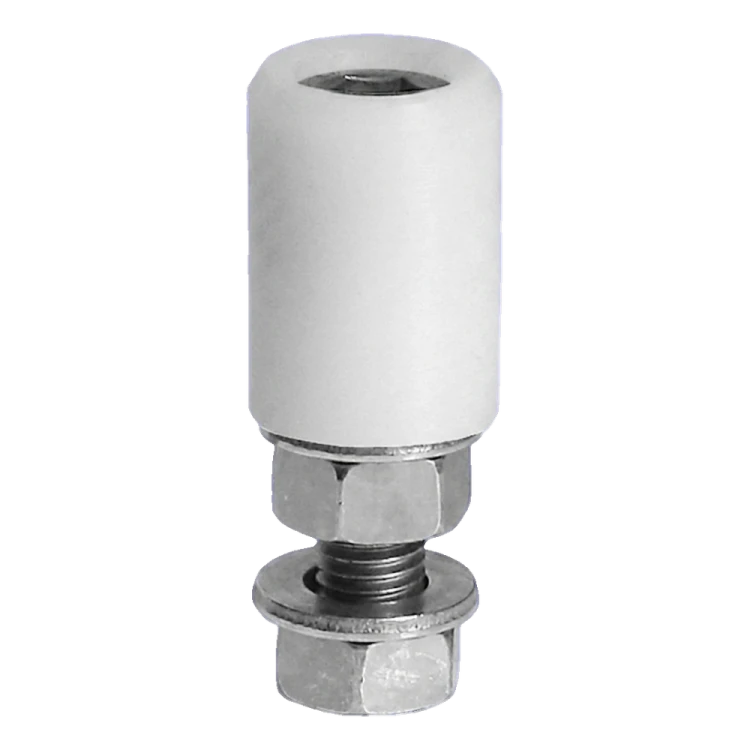

PSG guide roller for gates Ø 25 mm white with M12 threaded rod
Guide roller Ø 25 mm by PSG is a reliable component used in sliding gate systems to keep the rail (channel) vertical during opening and closing. Made from white plastic, it ensures quiet and smooth gate operation, minimising friction and guide wear. The complete set with threaded rod, nuts and washer allows for quick installation without the need to order additional fastening elements.

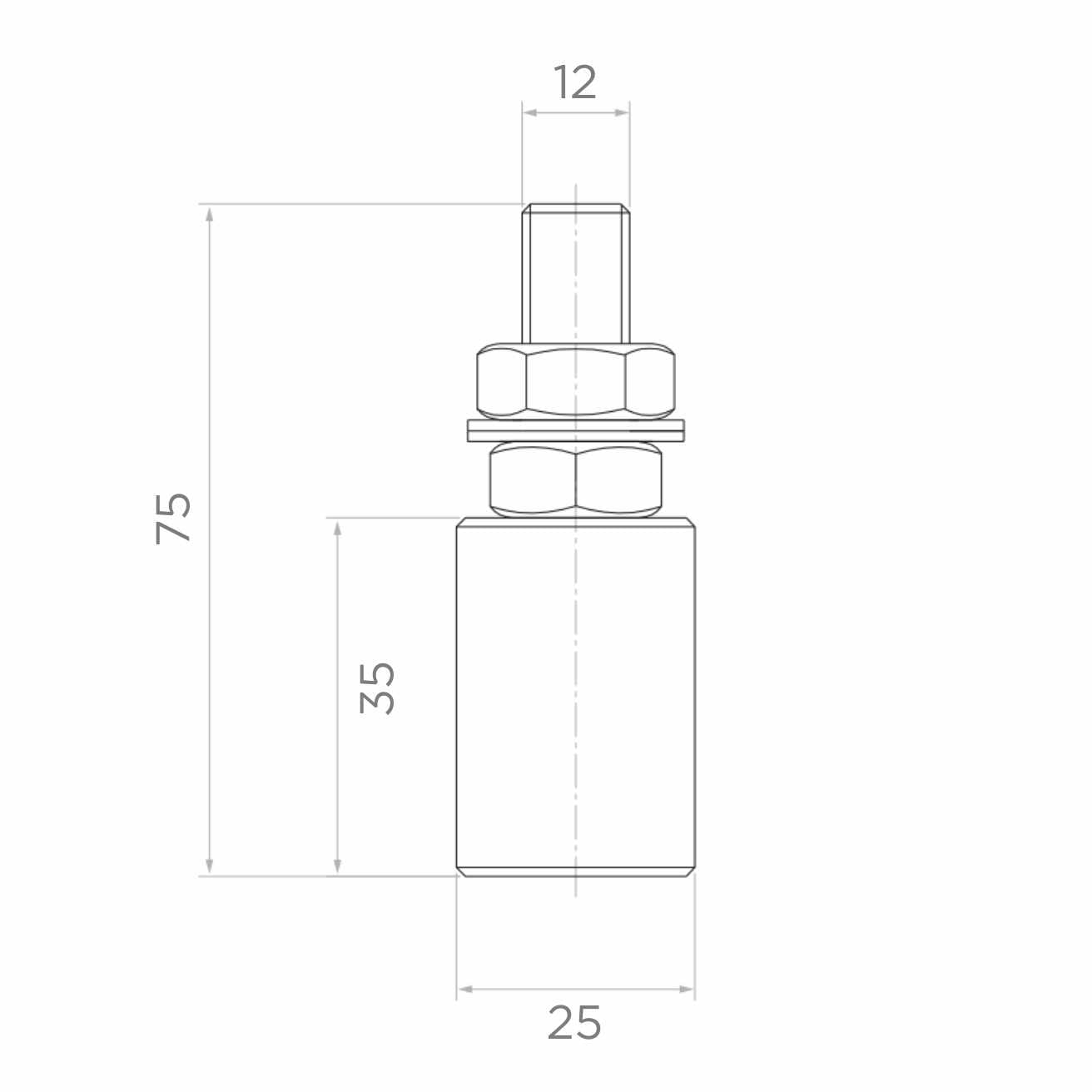

Dimensions and technical data
- Roller diameter: 25 mm
- Roller height (cylindrical part): 35 mm
- Total height (with rod): 75 mm
- Rod diameter: M12
- Roller material: plastic
- Colour: white
- Weight: 0.12 kg
- EAN: 5901289675031
Application and installation
The roller serves to guide the sliding gate's channel rail, keeping it in vertical position throughout the entire operating cycle. The M12 threaded rod with two nuts and washer enables position adjustment of the roller and secure mounting in the post or gate frame structure. The plastic material provides corrosion resistance and weather resistance, ensuring the roller maintains full functionality for years of outdoor operation — without the need for lubrication or maintenance.
