PSG guide roller bracket for sliding gate 100×60 mm
Leave feedback on the product
PSG guide roller bracket made from galvanised steel sheet, 5 mm thickness. Dimensions 100×60×40 mm, weight 0.2 kg. Oval adjustment holes 60×12.5 mm and 34.5×12.5 mm. For mounting guide rollers in cantilever sliding gates.
Product code: 001-271
Description
PSG guide roller bracket for sliding gate 100×60 mm

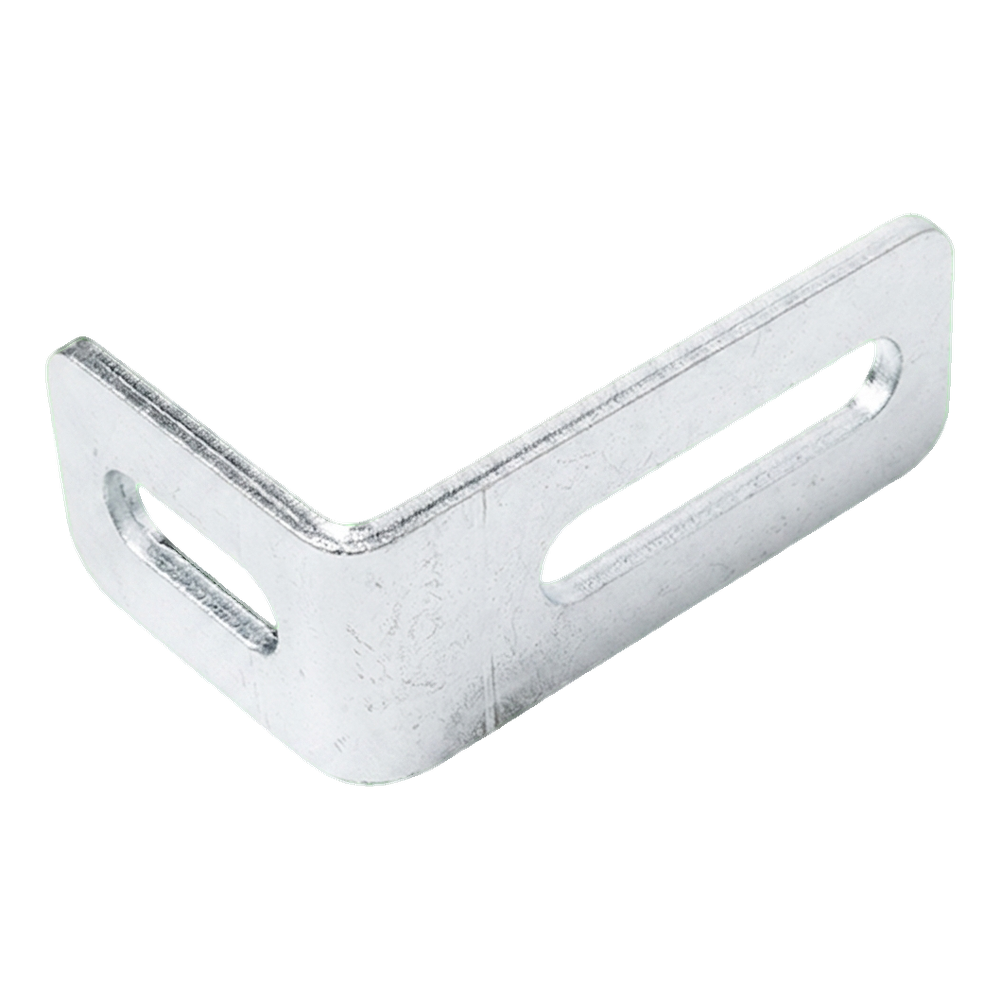

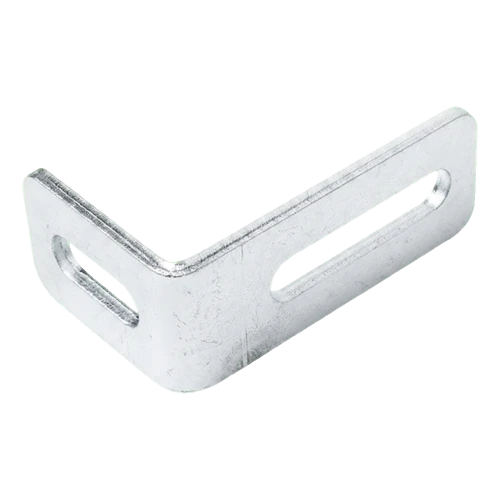

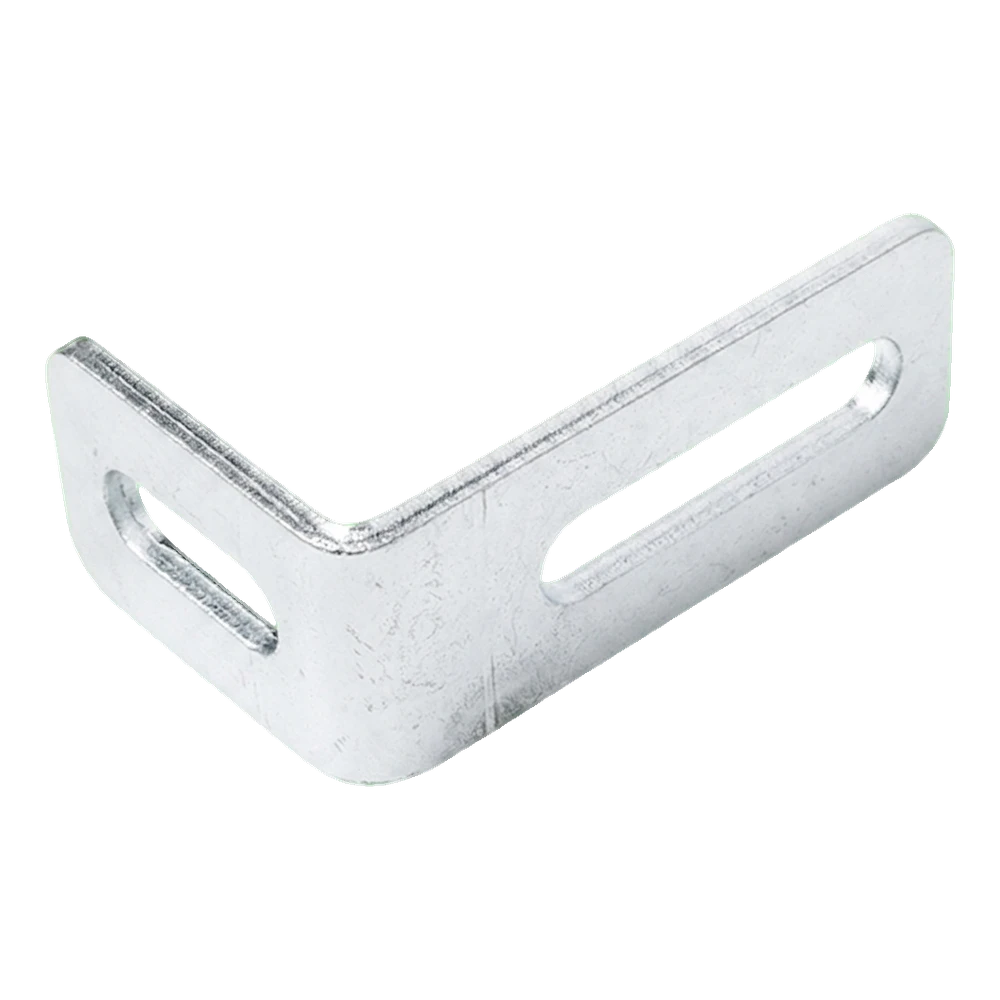

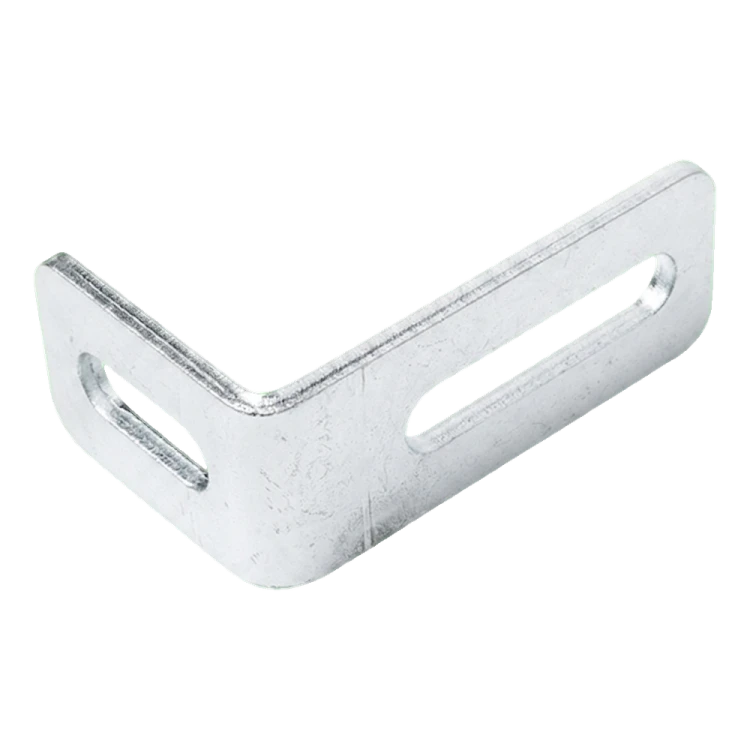

Guide roller bracket 100×60 mm by PSG is a steel mounting component designed for installation of guide rollers in cantilever sliding gates. Thanks to two oval adjustment holes (so-called slots) it enables precise positioning of the roller both vertically and horizontally — which significantly reduces installation time and subsequent gate adjustment.
The bracket is made from 5 mm thick steel sheet, which guarantees high rigidity and durability even with intensive gate operation. The galvanised surface provides corrosion resistance in outdoor conditions. Compact dimensions and low weight (0.2 kg) facilitate logistics and storage.

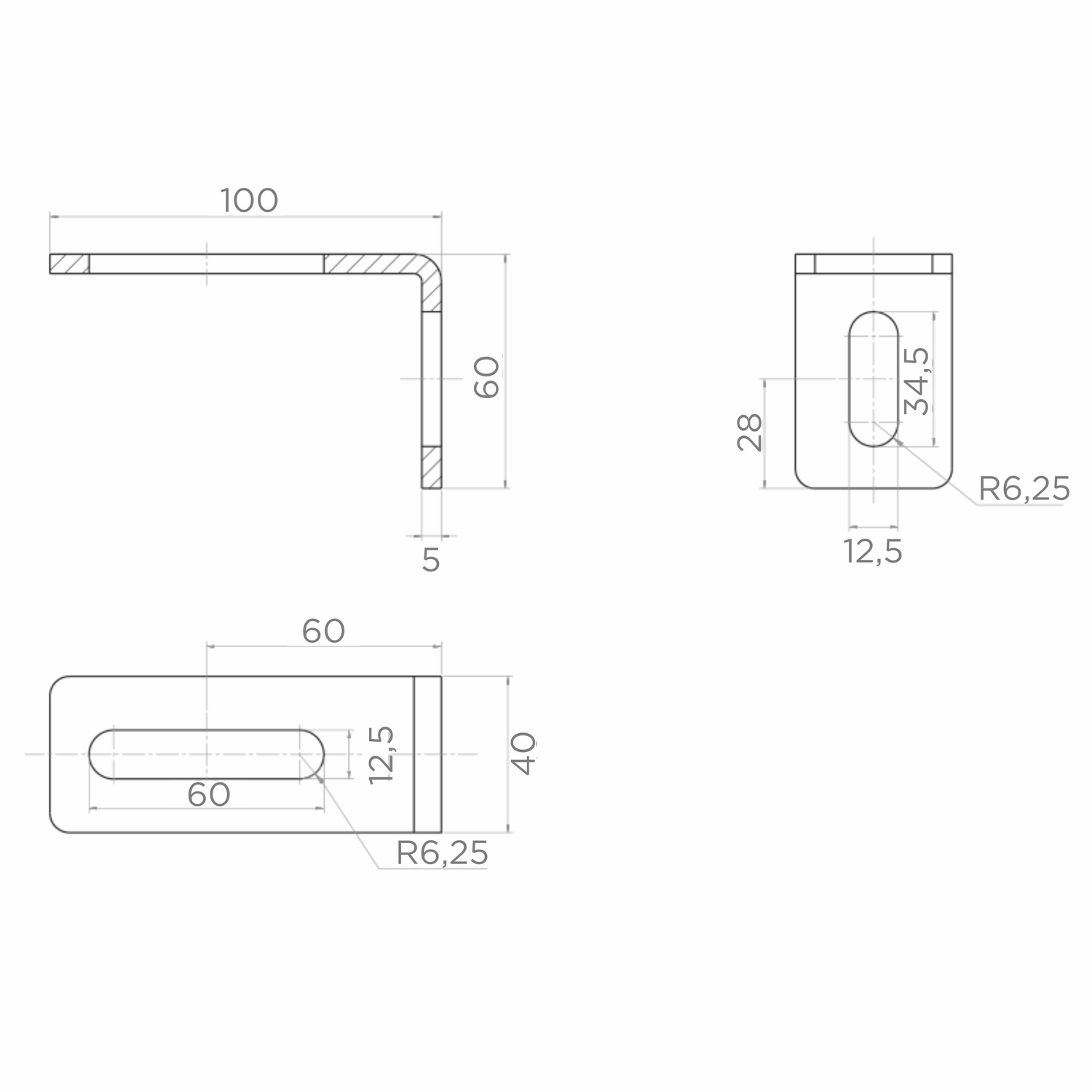

Dimensions and technical specification
- Overall dimensions (L × H × W): 100 × 60 × 40 mm
- Sheet thickness: 5 mm
- Oval hole – horizontal arm: 60 × 12.5 mm (arc radius R 6.25 mm)
- Oval hole – vertical arm: 34.5 × 12.5 mm (arc radius R 6.25 mm)
- Material: galvanised steel
- Weight: 0.2 kg
- Manufacturer: PSG
- EAN: 5901289679398
Application
The bracket serves to mount the guide roller on the post of a cantilever sliding gate. Oval adjustment holes on both arms allow for smooth position correction of the roller relative to the gate's running profile — without the need to drill new holes. This is an important advantage in installations where precise adjustment of gate leaf guidance is required.
