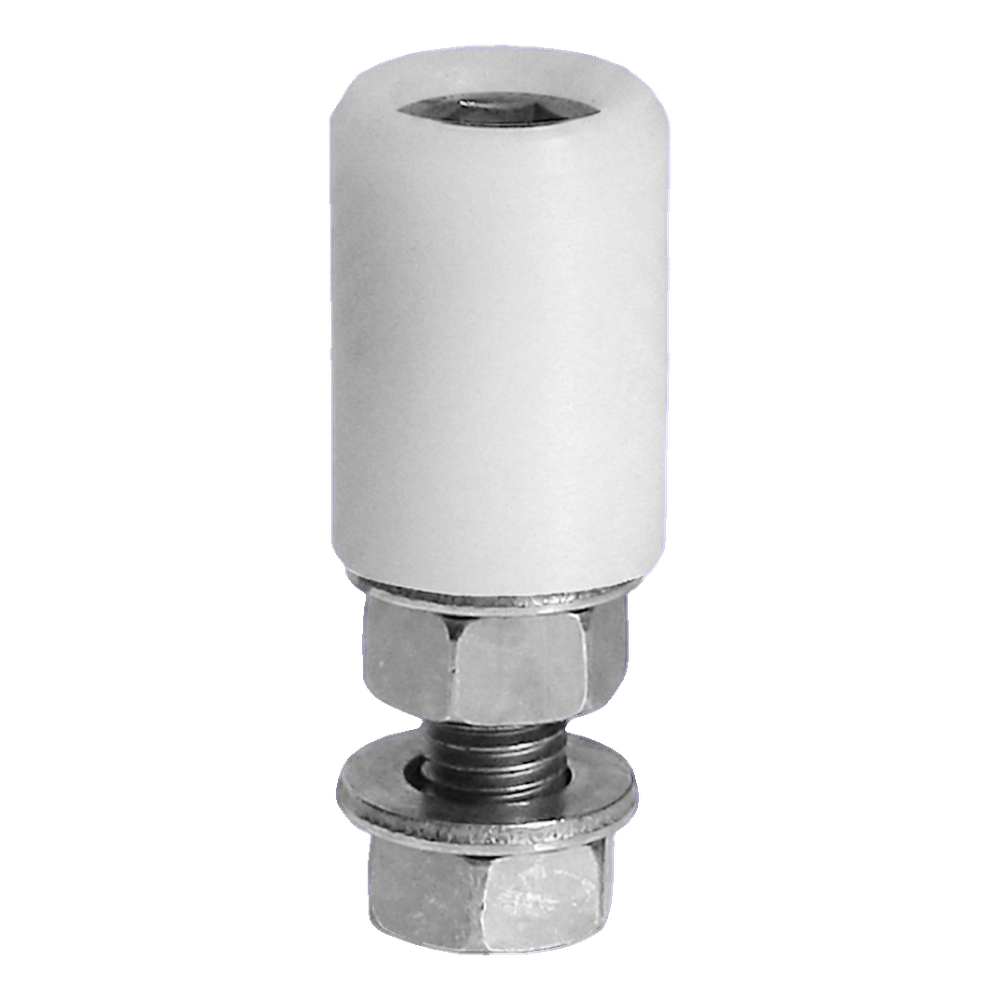

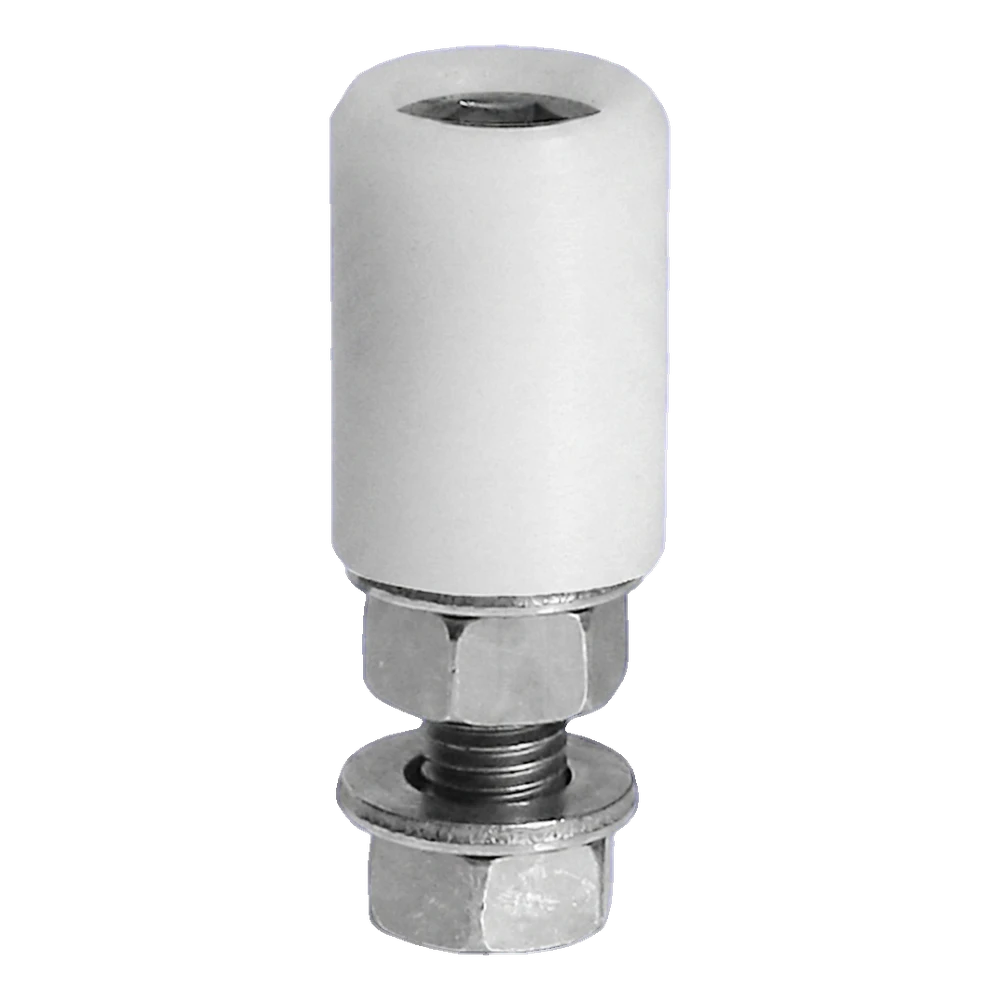

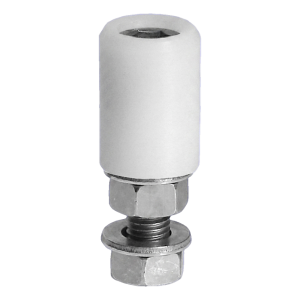

PSG guide roller FI 33 mm white for sliding gates
Leave feedback on the product
PSG guide roller FI 33 mm white made of plastic. Diameter 33 mm, height 35 mm, total height with spindle 75 mm. Threaded spindle M12. Weight 0.14 kg. For guiding sliding gate rails.
Product code: 001-269
Description
PSG guide roller FI 33 mm white for sliding gates
Guide roller FI 33 mm by PSG is a reliable sliding gate guidance element, responsible for maintaining the rail (U-beam) in vertical position during opening and closing. Made of white plastic, it ensures quiet and smooth gate operation, whilst protecting the rail from scratches and excessive wear. Compact construction with threaded spindle enables quick and secure mounting in fence posts.
Thanks to its low weight (0.14 kg) and simple nut mounting, the roller significantly reduces installation time — particularly important for larger projects where repeatability and ease of mounting each component is crucial.

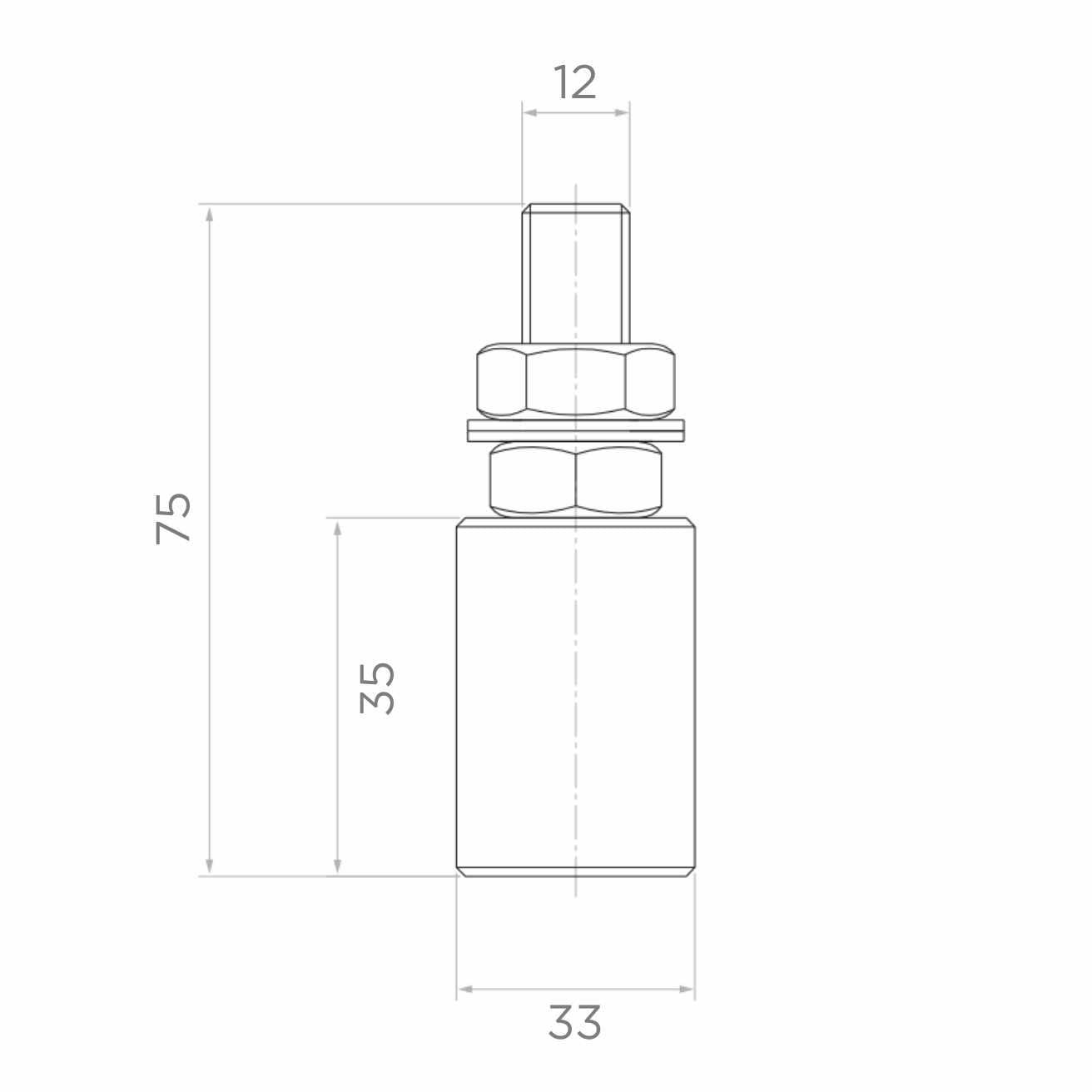

Dimensions and technical data
- Roller diameter: 33 mm
- Roller height (guiding part): 35 mm
- Total height (with spindle): 75 mm
- Spindle diameter: 12 mm (M12 thread)
- Roller material: plastic
- Colour: white
- Weight: 0.14 kg
- Manufacturer: PSG
- EAN: 5903313206815
Application
The guide roller is mounted in sliding gate posts and serves to provide stable guidance for the running rail (U-beam) in vertical position. It prevents lateral deflections of the gate leaf, which translates into smooth and trouble-free operation of the mechanism. Component dedicated to sliding gate systems in residential and industrial fencing.
