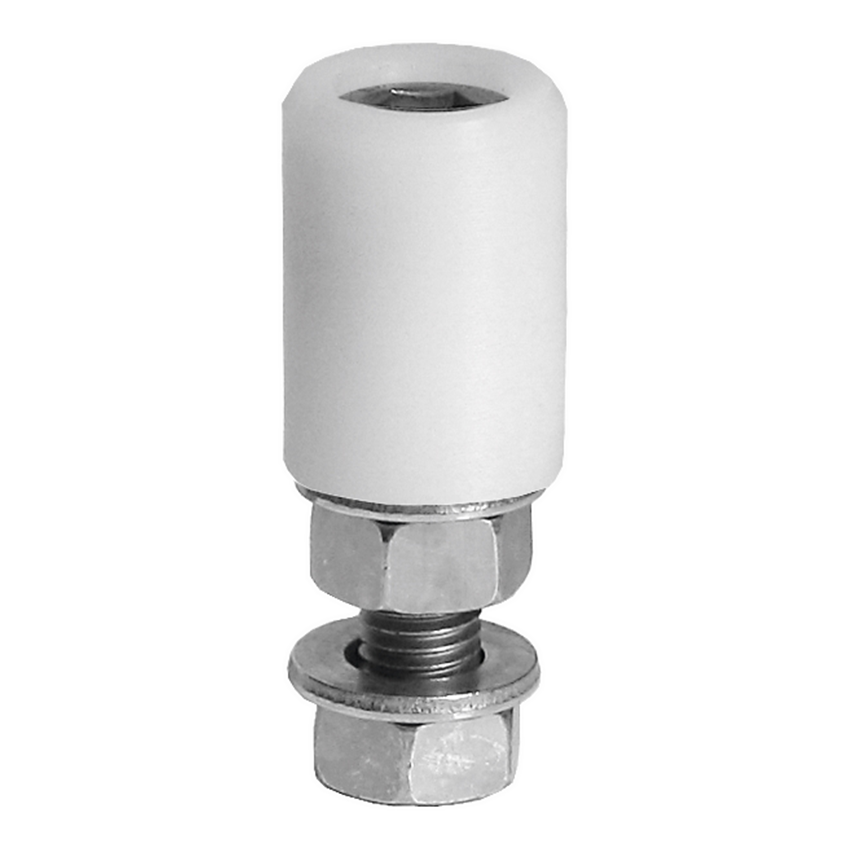

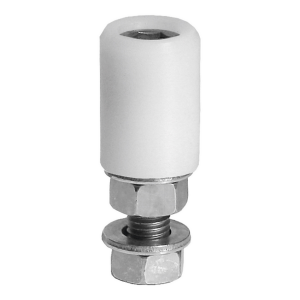

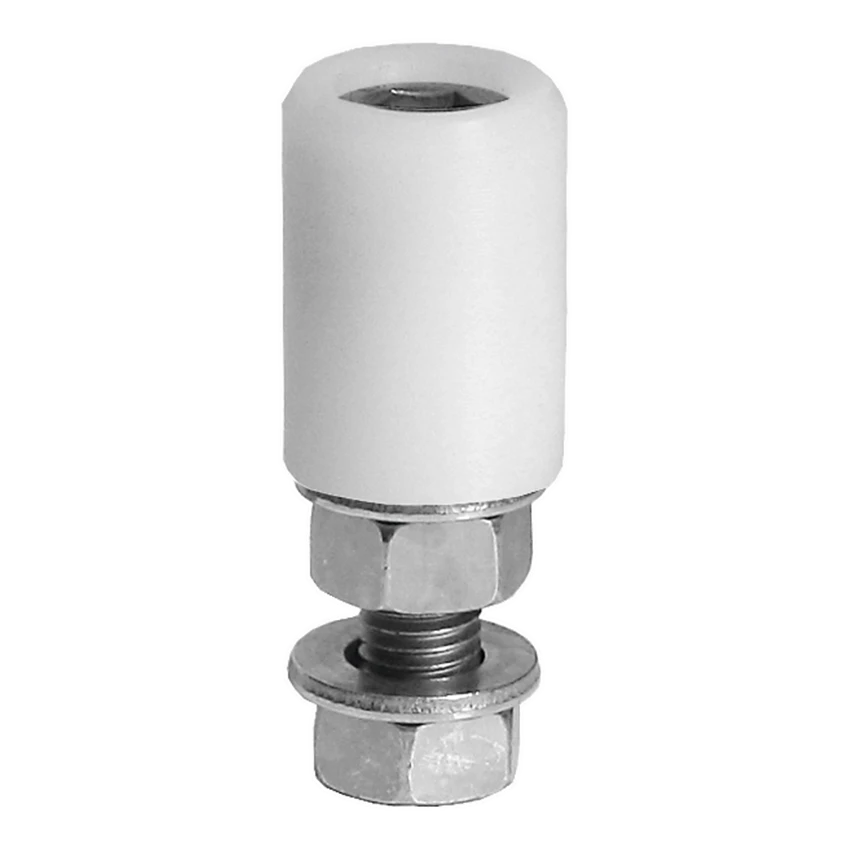

PSG – guide roller 35mm diameter for sliding gate, white
Leave feedback on the product
PSG guide roller 35mm diameter for sliding gate, white. Plastic material with steel pin. Diameter 35mm, total height 75mm, pin 12mm. Weight 0.14kg. For guiding the track rail in sliding gates.
Product code: 001-268
Description
PSG – guide roller 35mm diameter for sliding gate, white
Guide roller 35mm diameter from PSG is a reliable component of sliding gate guidance systems, responsible for maintaining the rail (C-channel) in vertical position during gate opening and closing. Made from white plastic material, it ensures quiet and smooth operation without risk of scratching the guide rail.
Compact construction with threaded pin, washer and two nuts allows for quick and stable mounting on fence posts. Thanks to its low weight (0.14kg) and simple design, installation requires no specialist tools — a spanner for the nuts is sufficient.

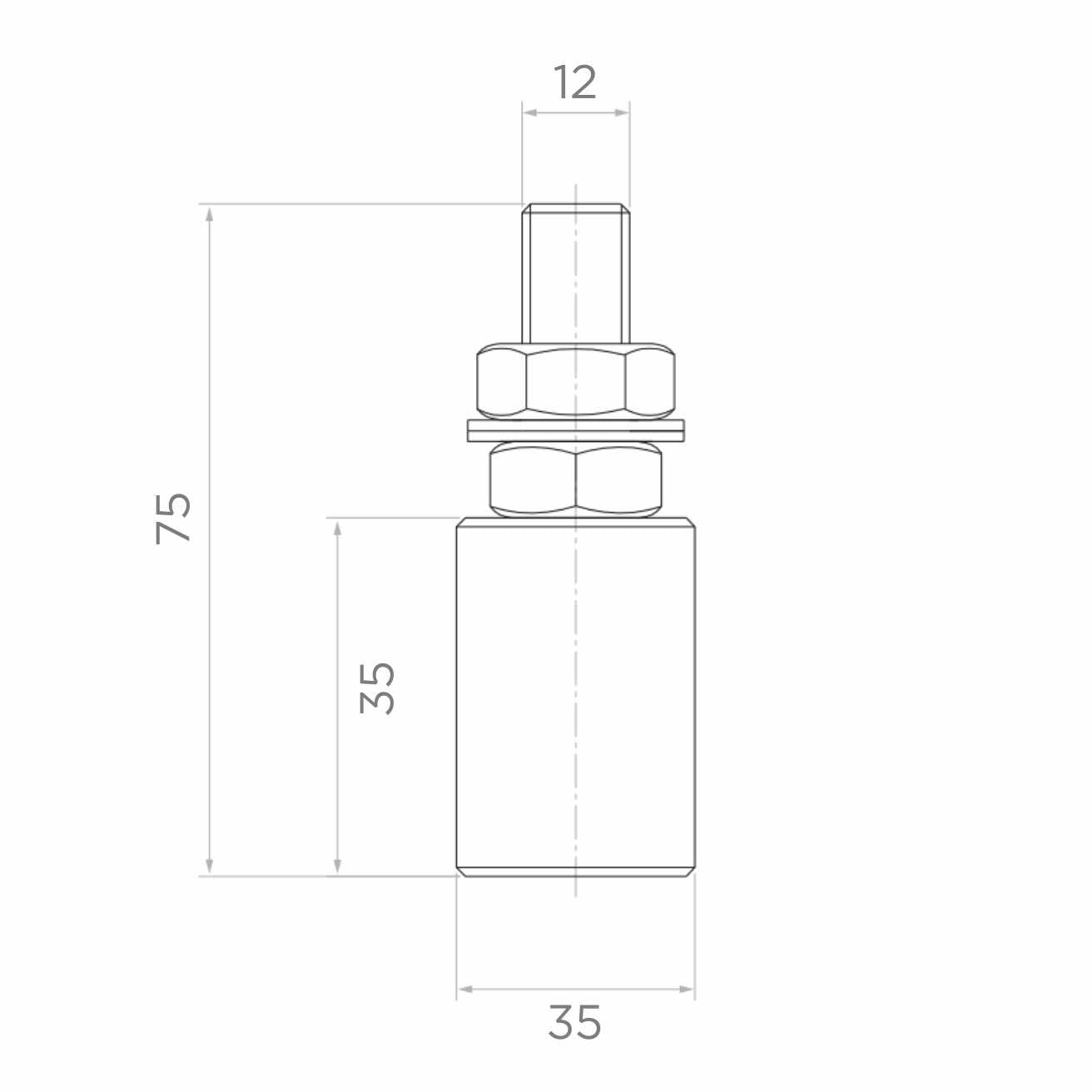

Dimensions and technical data
- Roller diameter: 35mm
- Roller height (working part): 35mm
- Total height (with pin and nuts): 75mm
- Pin diameter: 12mm
- Roller material: plastic material – white
- Pin and nut material: steel
- Weight: 0.14kg
- Manufacturer: PSG
- EAN: 5901289675062
Application
The roller is designed for mounting in sliding gate systems — both in residential fencing and industrial facilities. It guides the gate's track rail (C-channel), preventing lateral deflection and ensuring stable, linear guidance of the gate leaf. The plastic material eliminates metallic sounds during gate operation and requires no lubrication, resulting in maintenance-free operation.
