PSG gate hinge for welding 20×120 mm steel butterfly
Description

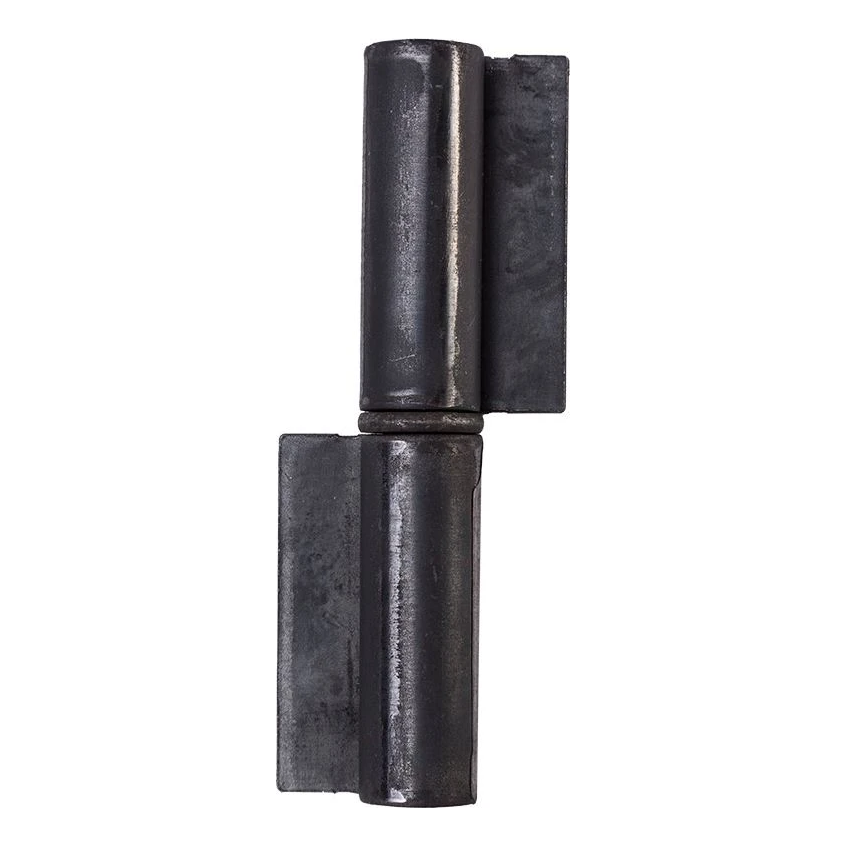

PSG gate hinge for welding 20×120 mm steel butterfly
Butterfly hinge for welding PSG 20×120 mm is a robust hardware element designed for mounting swing gates, garden gates and heavy steel structures. Made from mild steel, it is adapted for permanent welded connection — simply weld the leaves to the frame and gate wing to achieve solid, reliable suspension.
Two-part construction with sleeve and pin ensures smooth operation of opening and closing, whilst leaf thickness of 4 mm guarantees high resistance to deformation even under heavy loads. The hinge is supplied in raw condition — it can be protected against corrosion (painting, galvanising) to match the finish of the entire structure.

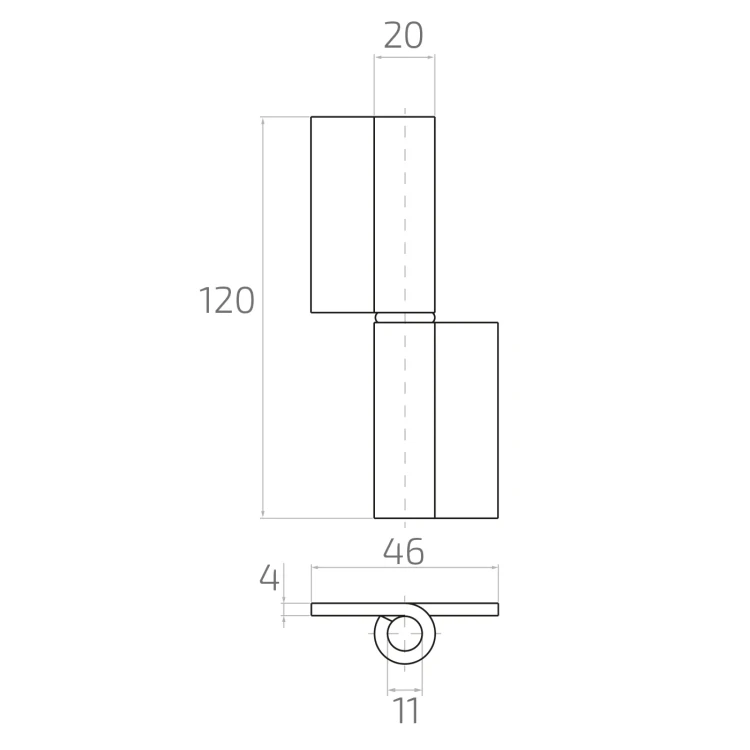

Dimensions and technical parameters
- Total height (L): 120 mm
- Sleeve external diameter: 20 mm
- Width with unfolded leaves: 46 mm
- Leaf thickness: 4 mm
- Pin diameter: 11 mm
- Material: mild steel (for welding)
- Weight: 0.318 kg
- Manufacturer: PSG
- EAN: 5901289676649
Application
The hinge is designed primarily for swing gates and garden gates in fencing systems, but will work well wherever permanent welded connection is required — in steel structures, technical doors or inspection hatches. Thanks to compact dimensions and universal construction, it can be used in both light and medium-loaded structures.
Technical data
| Mounting Method | Weld-On |
| Diameter | 20 |
| Material | Steel |
