PSG gate guide roller FI 32 mm white with M12 spindle
Leave feedback on the product

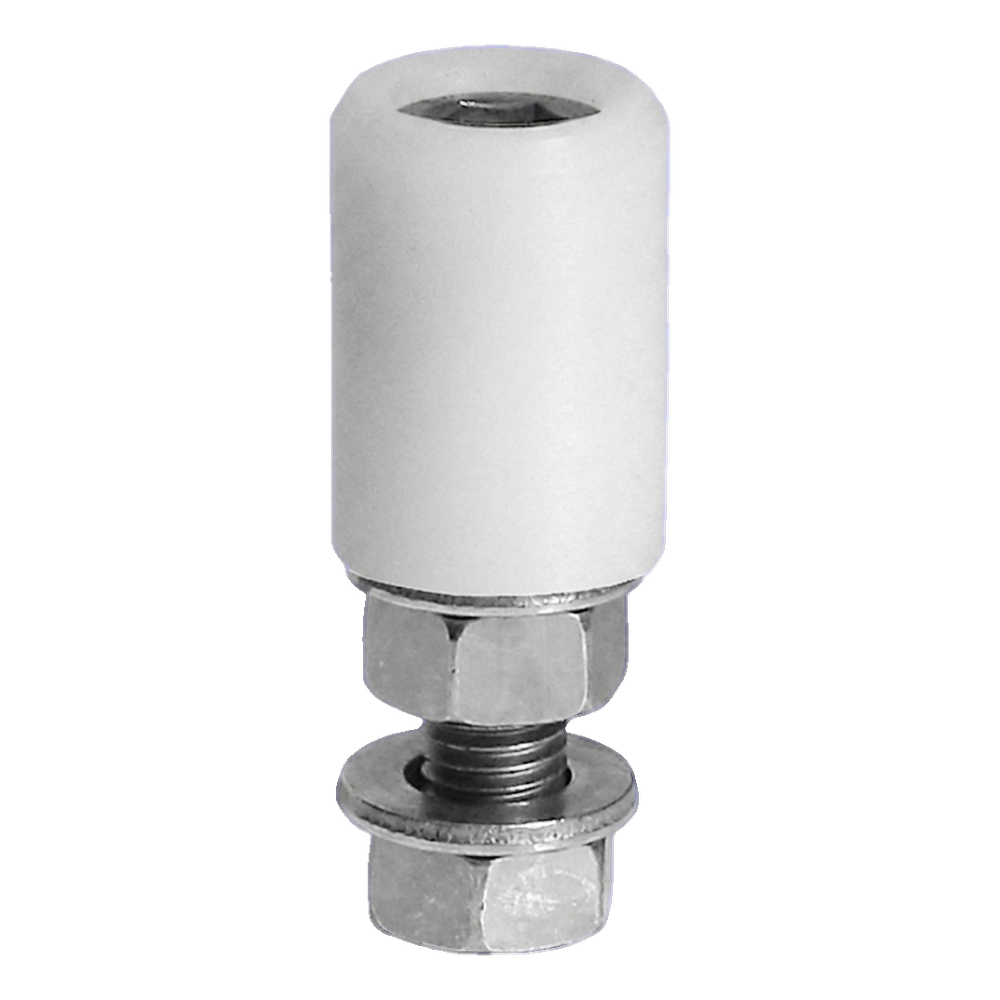

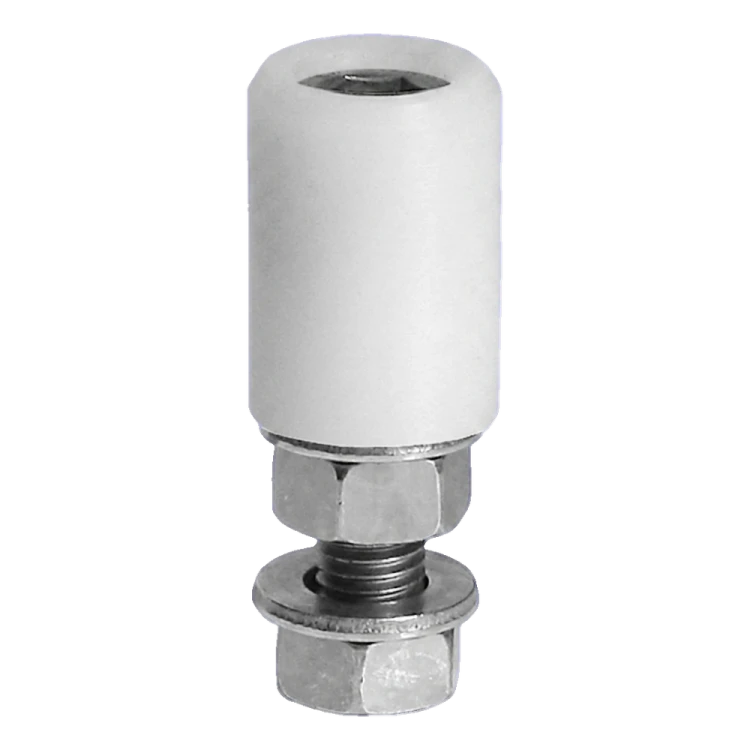

PSG gate guide roller FI 32 mm white with M12 spindle. Plastic material, diameter 32 mm, roller height 35 mm, total height 75 mm. Weight 0.14 kg. For guiding sliding gate rails.
Product code: 001-267
Description
PSG gate guide roller FI 32 mm white with M12 spindle
Guide roller FI 32 mm by PSG is a reliable element of the sliding gate guidance system, responsible for maintaining the rail (channel beam) in a vertical position during gate closing and opening. Made from durable plastic material in white colour, it ensures quiet and smooth gate operation without risk of scratching the guide rail.
The complete mounting set includes a roller mounted on a threaded spindle with nuts and washer, allowing for quick assembly and precise position adjustment in the guide. Thanks to its low weight (0.14 kg) and compact dimensions, the element is easy to transport and store — an ideal solution when handling multiple orders simultaneously.
Features and application
- Purpose: guiding rail (channel beam) of sliding gates
- Maintains rail in vertical position during gate opening and closing
- Roller material: plastic — quiet operation, no risk of rail scratching
- Colour: white
- Threaded spindle with nuts enables adjustment and secure mounting

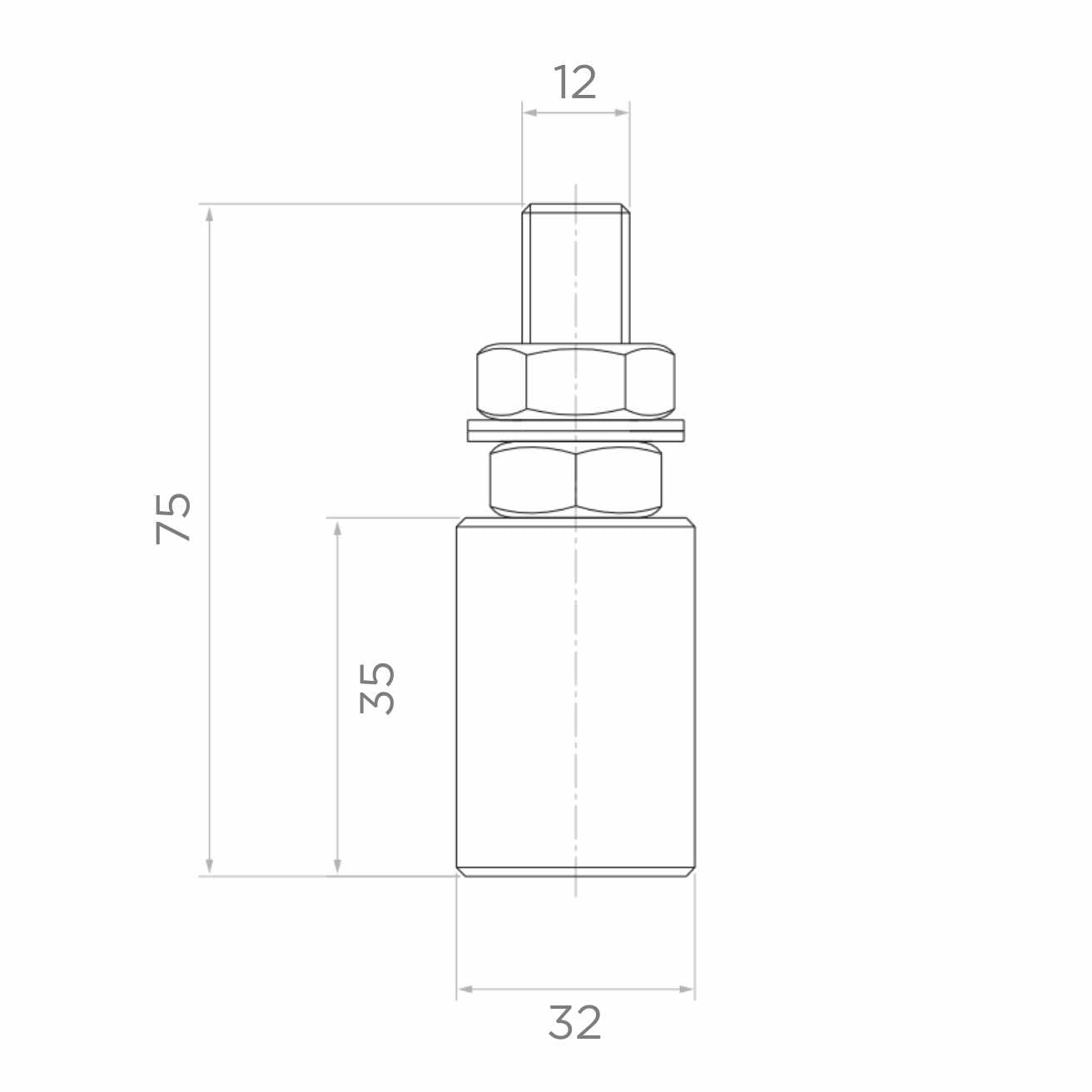

Dimensions and technical parameters
- Roller diameter (D): 32 mm
- Roller height: 35 mm
- Total assembly height (H): 75 mm
- Spindle diameter: 12 mm (M12)
- Weight: 0.14 kg
- EAN: 5901289675055
Manufacturer: PSG
