PSG gate guide roller 43mm diameter white with M16 threaded bracket
Description

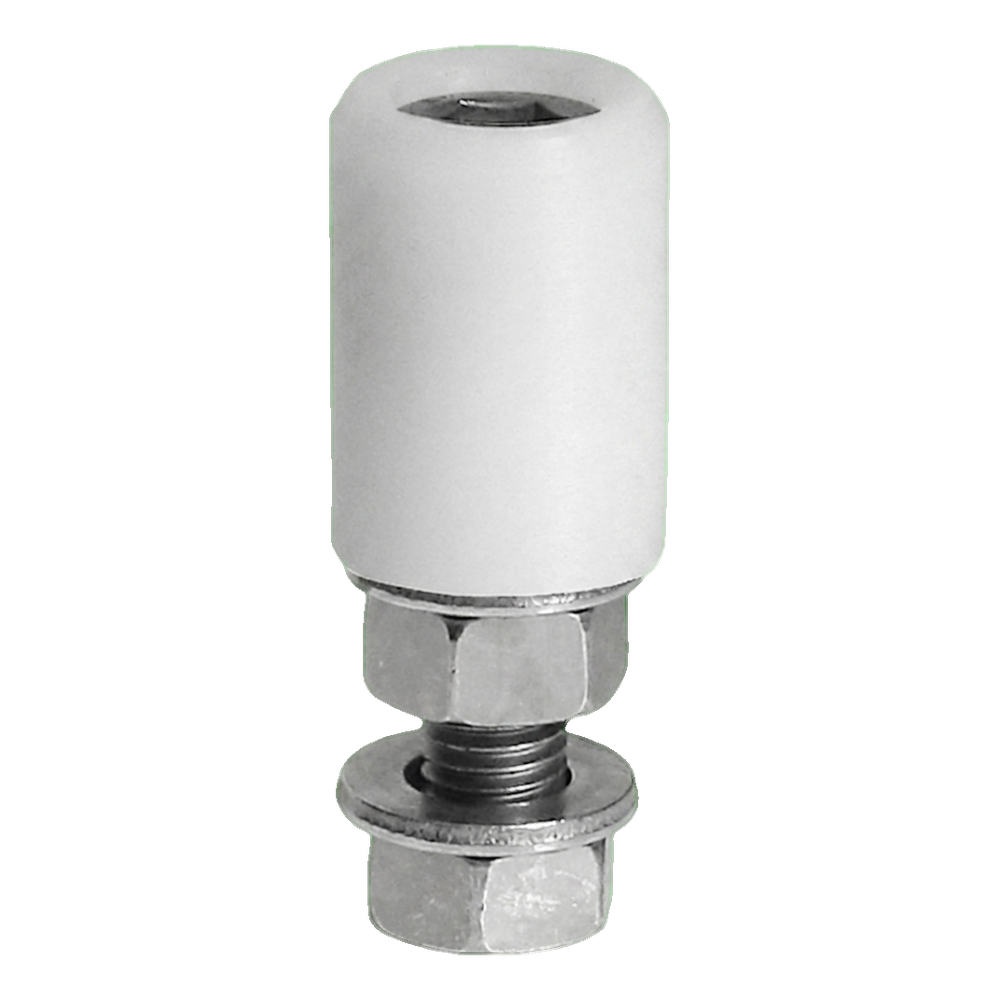

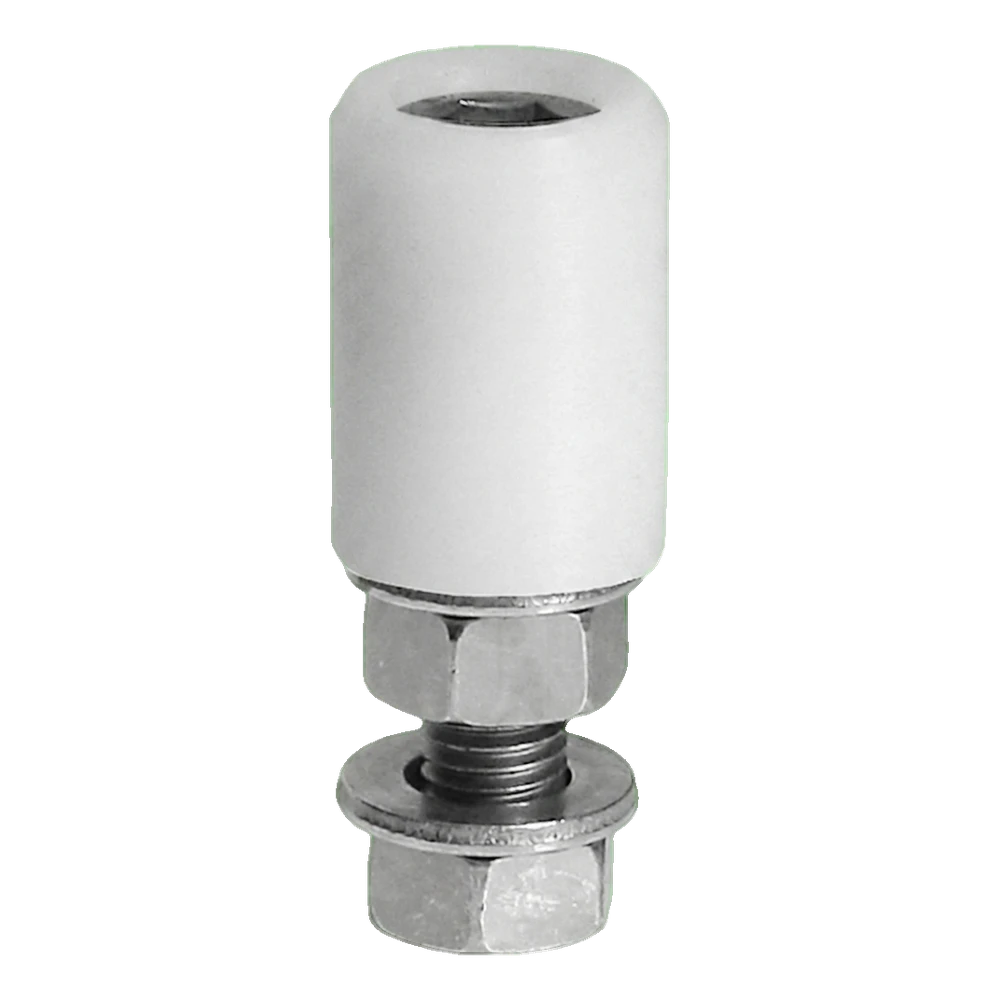

PSG gate guide roller 43mm diameter white with M16 threaded bracket
The 43mm diameter guide roller by PSG is a reliable guiding element for sliding gates, responsible for maintaining the guide rail (C-channel) in a vertical position during gate opening and closing. Made from white plastic material, the roller ensures quiet and smooth operation, whilst the steel threaded bracket guarantees durable and stable mounting in the gate structure.
The compact construction and low weight (0.22kg) facilitate installation — simply pass the spindle through the hole in the post and tighten the nuts. This makes installation quick and requires no specialist tools, resulting in time savings on site.

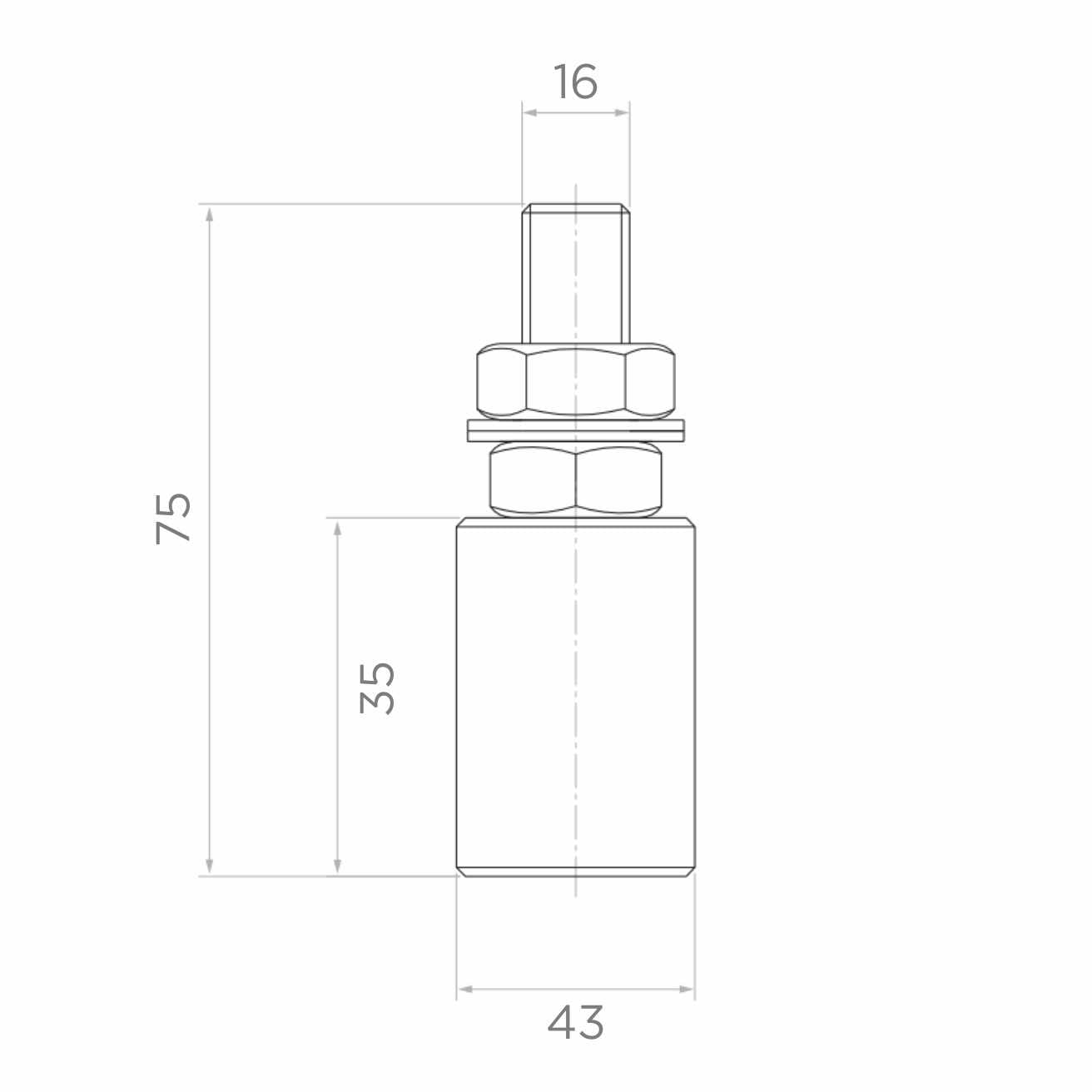

Technical Parameters
- Roller diameter: 43mm
- Roller height (working part): 35mm
- Total height (with bracket): 75mm
- Mounting spindle diameter: 16mm (M16)
- Roller material: plastic
- Roller colour: white
- Bracket material: galvanised steel
- Weight: 0.22kg
- Manufacturer: PSG
- EAN: 5903313206822
Application
The guide roller is designed for mounting in sliding gate posts. Its purpose is to guide the running rail (C-channel) and maintain it vertically, preventing lateral deflections of the gate leaf and ensuring stable, trouble-free operation of the drive mechanism. It performs excellently in both electrically driven gates and manually operated ones.
