PSG – galvanised steel toothed rack for sliding gates 1000 × 8 mm, module 4
Description
PSG – galvanised steel toothed rack for sliding gates 1000 × 8 mm, module 4

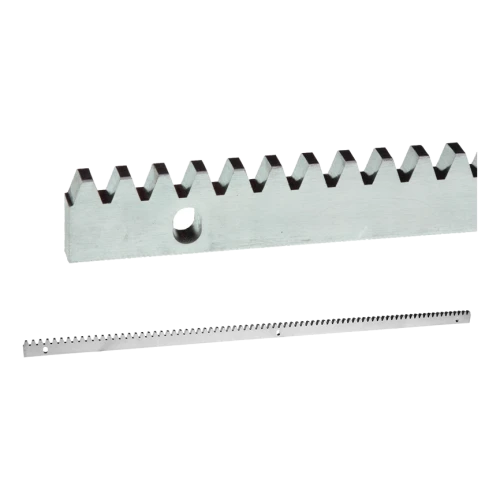

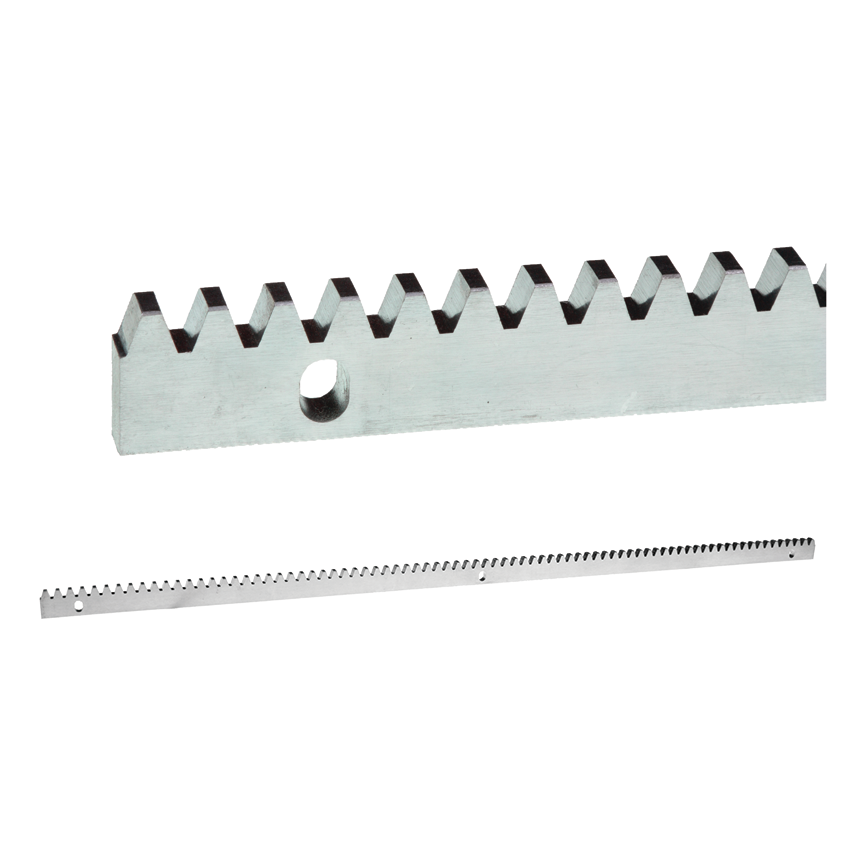

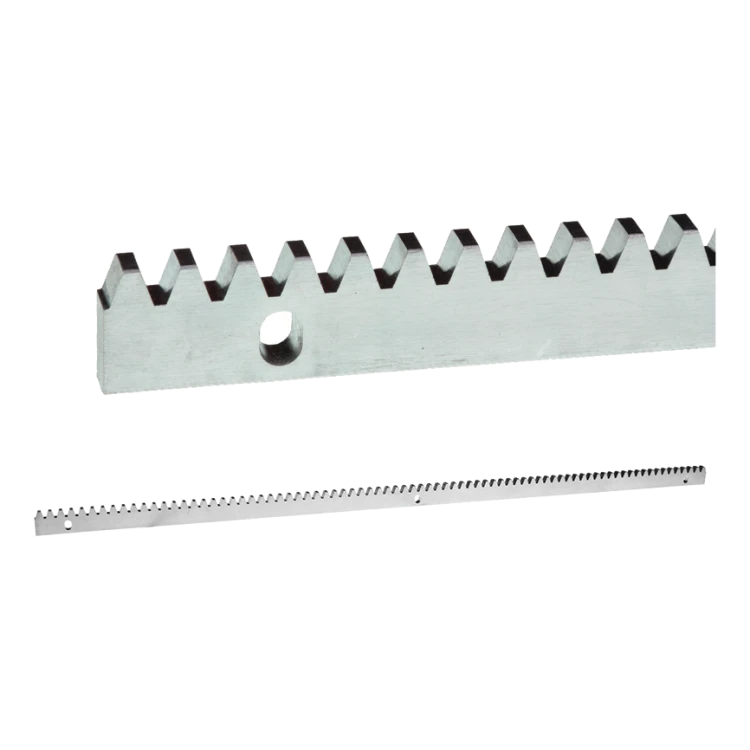

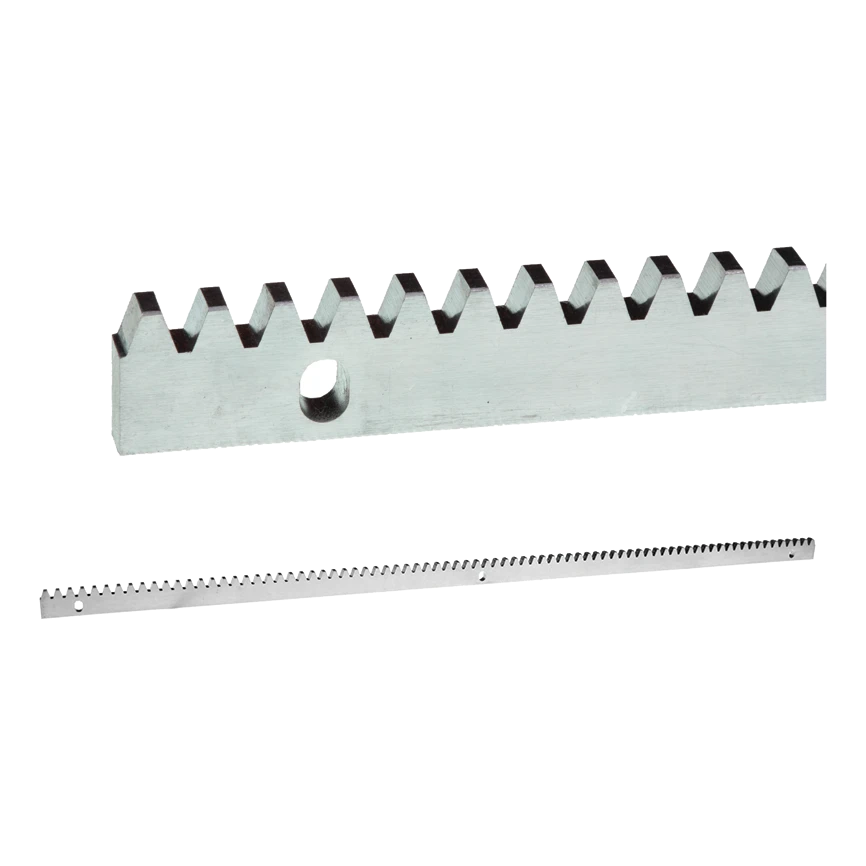

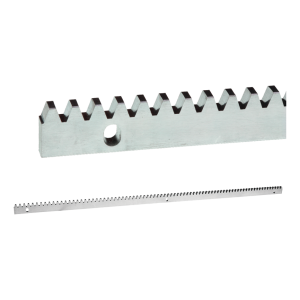

PSG steel toothed rack for self-supporting sliding gates — a reliable drive component that ensures smooth and quiet operation of gate automation. The rack with a length of 1000 mm and thickness of 8 mm is made of galvanised steel, which guarantees high corrosion resistance and years of outdoor operation without the need for additional surface protection.
Thanks to the tooth module 4, the rack is compatible with the most popular sliding gate operators, which eliminates the risk of incompatibility and speeds up installation.
Drive compatibility
The rack works with operators from leading manufacturers:
- FAAC
- CAME
- NICE
- BFT
- BENINCA
- and other drives with tooth module 4
Technical specification
- Manufacturer: PSG
- Material: galvanised steel
- Length (L): 1000 mm

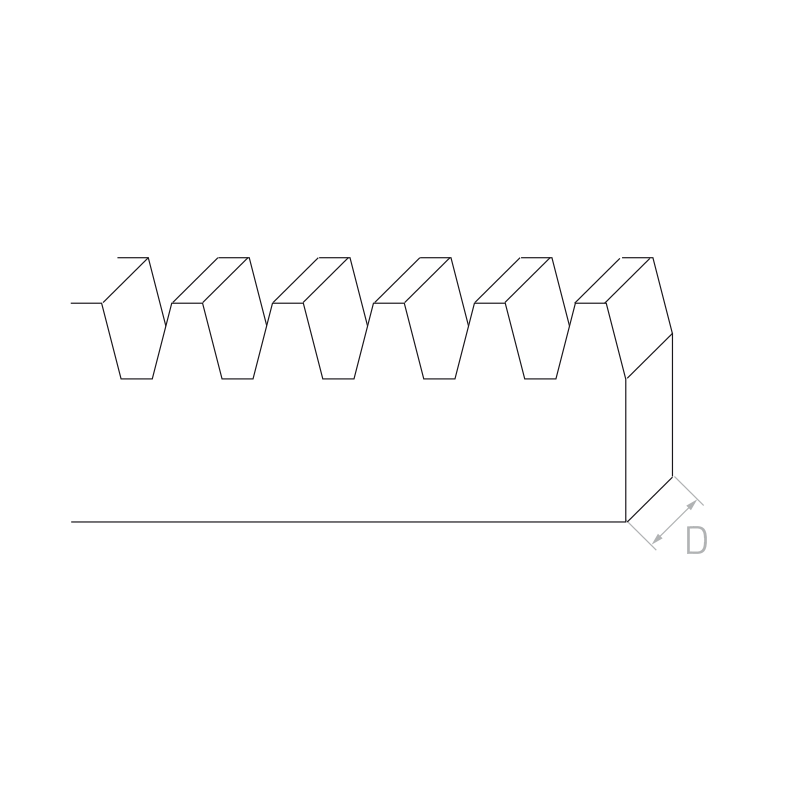

- Thickness (D): 8 mm
- Tooth module: 4
- Weight: 1.58 kg
- EAN: 5903313204217
Construction details
The rack has special levelling holes (so-called beans), which significantly facilitate precise positioning of the rack in the drive axis during installation. This allows the installer to quickly correct the position without the need to drill additional holes. The set does not include mounting sleeves — these must be selected separately, depending on the type of post or gate support beam.
Installation tip: for complete sliding gate travel, several sections of toothed rack need to be connected. The total length should correspond to the gate leaf travel range with a margin for pinion engagement.
Technical data
| Material | Steel |
