PSG – external gate buffer with mounting plate 100×80 mm
Description
PSG – external gate buffer with mounting plate 100×80 mm

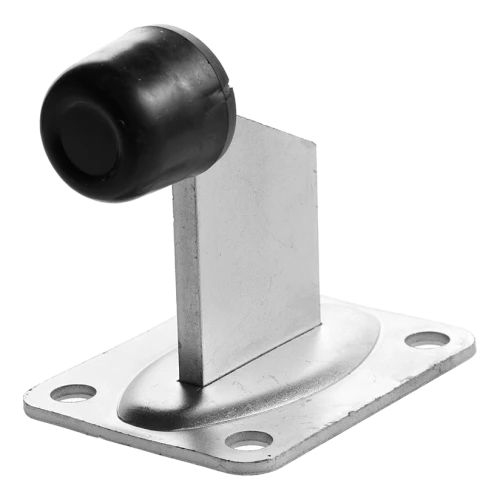

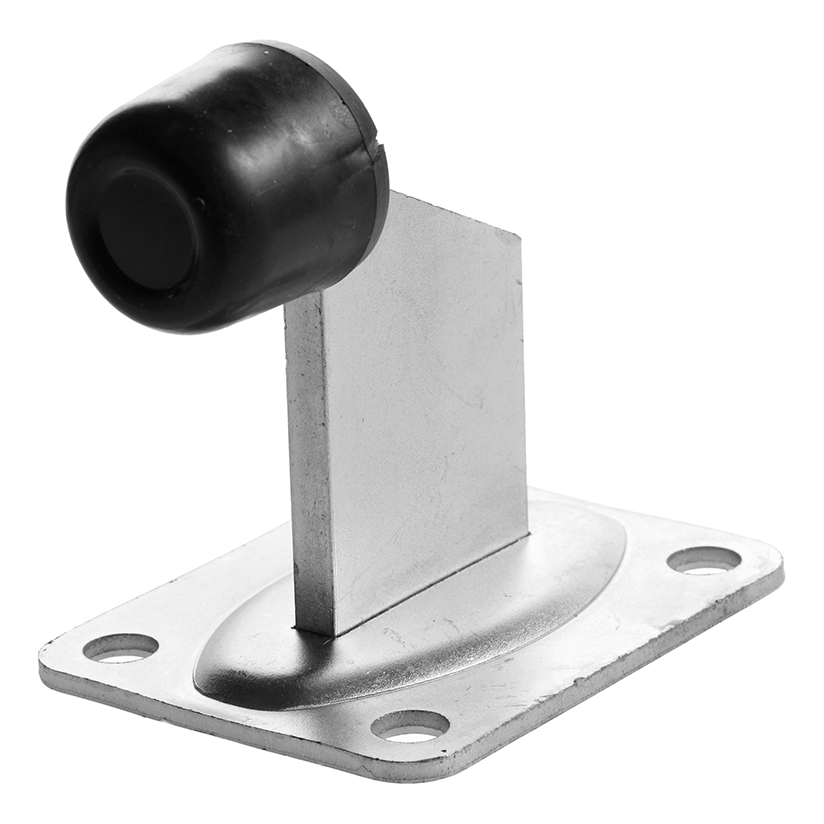

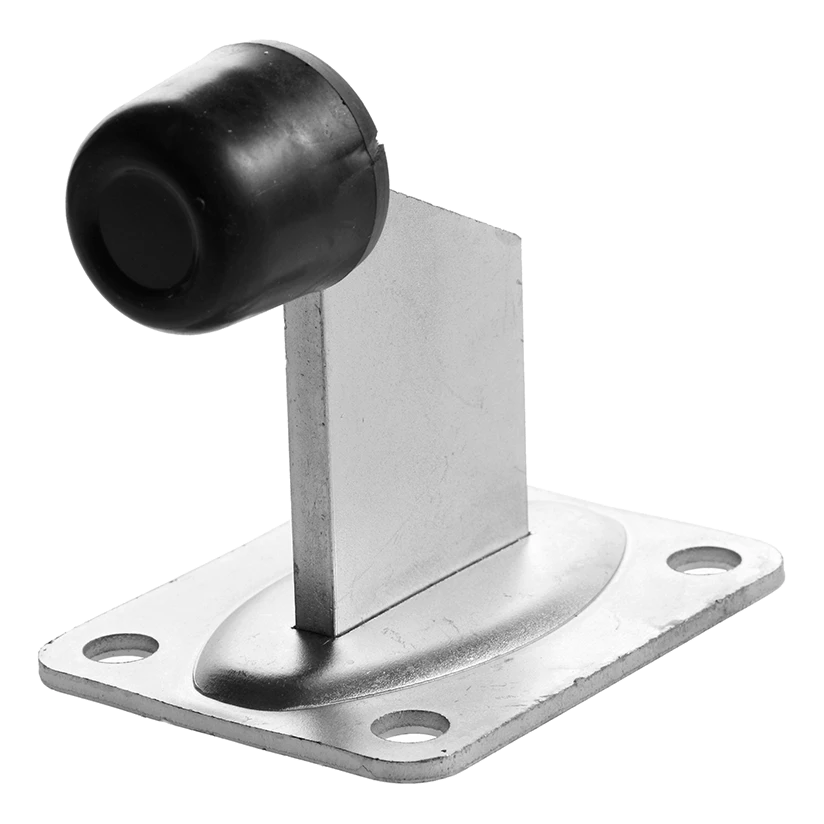

External buffer with mounting plate (bumper, limit stop, stopper) by PSG is a robust safety element protecting gates or pedestrian gates from impact with surrounding elements. Galvanised steel construction with rubber pad effectively absorbs gate wing impacts, protecting both the gate and the ground from mechanical damage.
The buffer is designed for use with sliding gates (cantilever and track-guided), swing gates (double-leaf), suspended gates and pedestrian gates. For double-leaf swing gates, it is recommended to install two buffers — one for each leaf.
Installation is carried out by bolting to the ground using four mounting holes in the plate. Alternatively, the buffer can be welded to steel structures, providing additional installation flexibility.

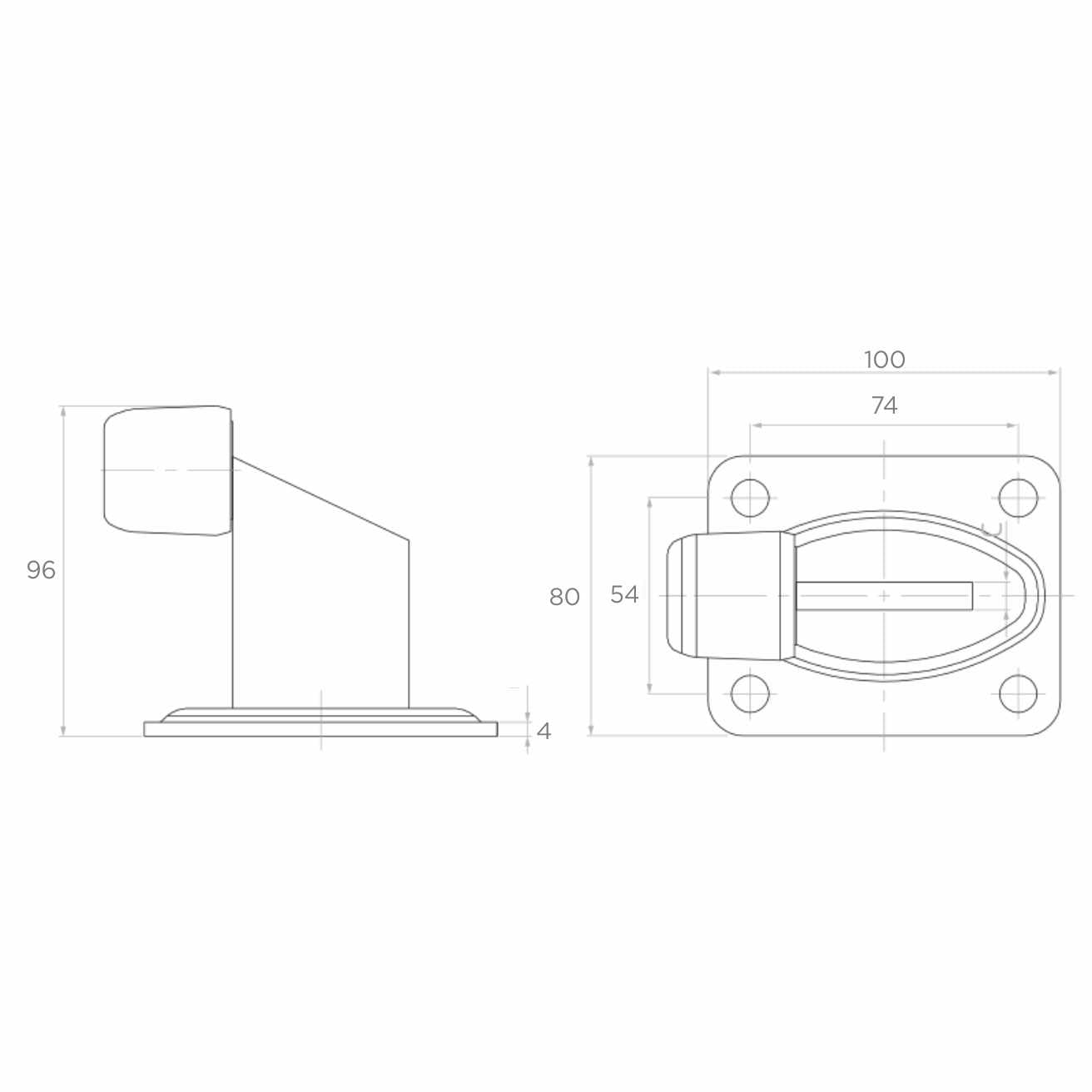

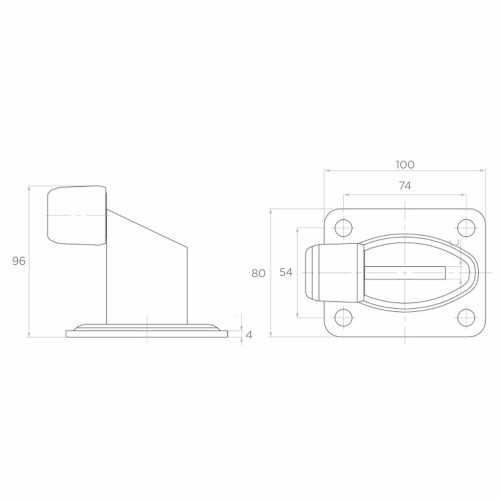

Dimensions and technical data
- Mounting plate dimensions: 100 × 80 mm
- Plate thickness: 4 mm
- Total height (with rubber pad): 96 mm
- Mounting hole spacing: 74 × 54 mm
- Number of mounting holes: 4
- Construction material: galvanised steel
- Cushioning pad: rubber
- Weight: 0.56 kg
- EAN: 5901289674997
Application and benefits
- Versatility — fits sliding, swing, suspended gates and pedestrian gates
- Galvanising provides corrosion resistance and long-term outdoor durability
- Rubber pad protects gate from scratches and dents
- Can be mounted with bolts or welded to structure
- Compact dimensions facilitate installation even in limited space
Technical data
| Material | Steel |
