PSG external gate buffer bolt-on with 100×100 mm plate
Description
PSG external gate buffer bolt-on with 100×100 mm plate
External PSG buffer with 100×100 mm plate is a universal end stop bumper designed for professional protection of sliding gates (cantilever and tracked), swing gates, suspended gates and wickets. The rubber bumper effectively absorbs impacts from the gate leaf, protecting both the gate and fence structure from mechanical damage. The steel, galvanised construction ensures years of corrosion resistance even in harsh weather conditions.
The buffer is mounted to the surface using four mounting holes in the base plate. Alternatively, the element can also be welded directly to the structure — providing flexibility for non-standard installations. For double-leaf swing gates, it is recommended to use two buffers — one for each leaf.

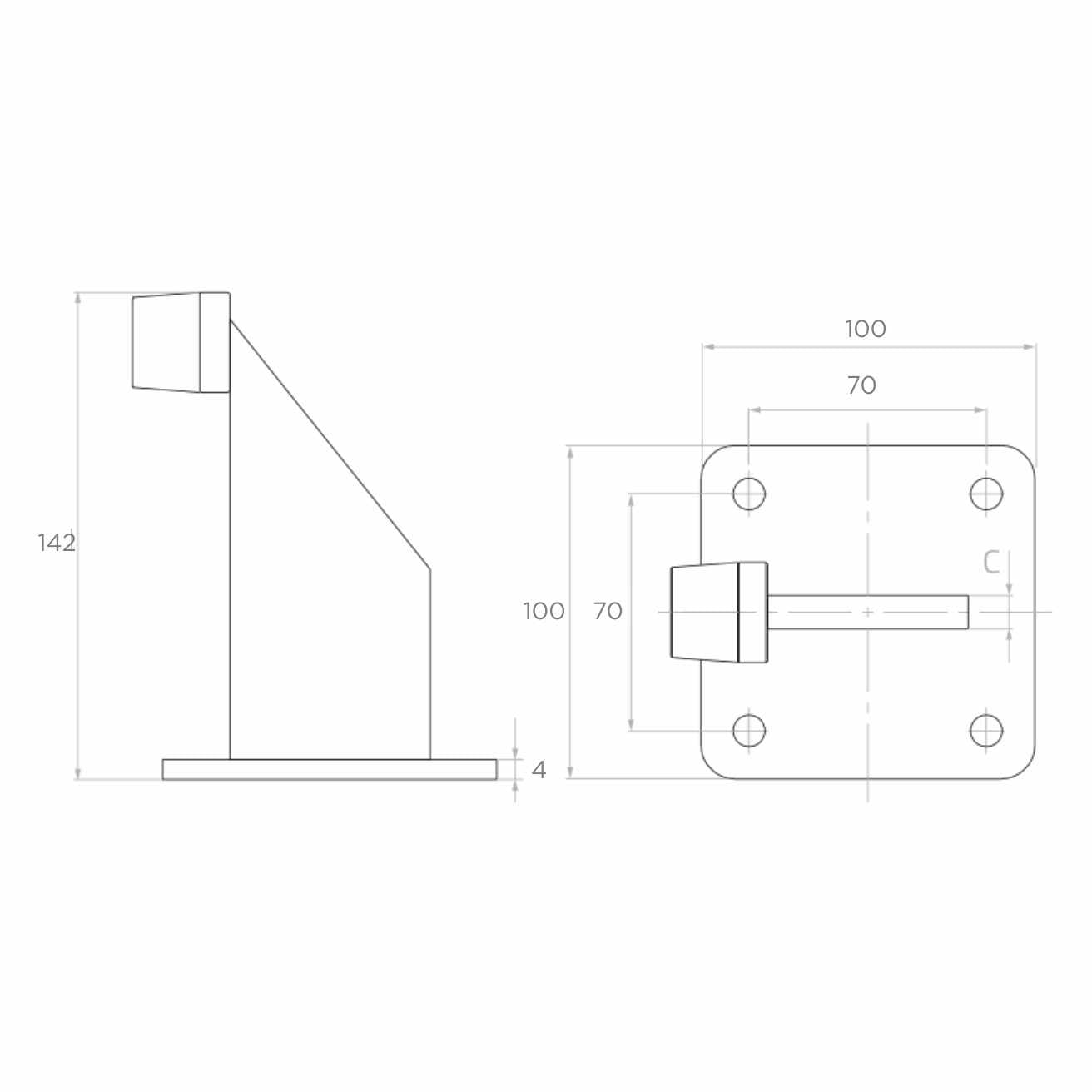

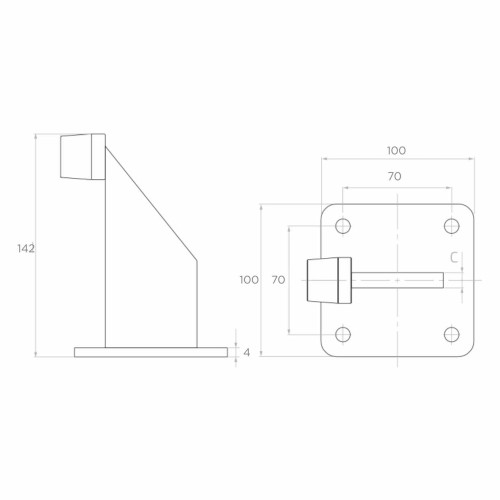

Dimensions and technical data
- Manufacturer: PSG
- Total height: 142 mm
- Mounting plate dimensions: 100 × 100 mm
- Mounting plate thickness: 4 mm
- Mounting hole spacing: 70 × 70 mm
- Number of mounting holes: 4
- Construction material: galvanised steel
- Bumper: rubber
- Weight: 0.98 kg
- EAN: 5901289675017
Application
- Cantilever and tracked sliding gates
- Swing gates — single and double-leaf
- Suspended gates
- Wickets
Technical data
| Material | Steel |
