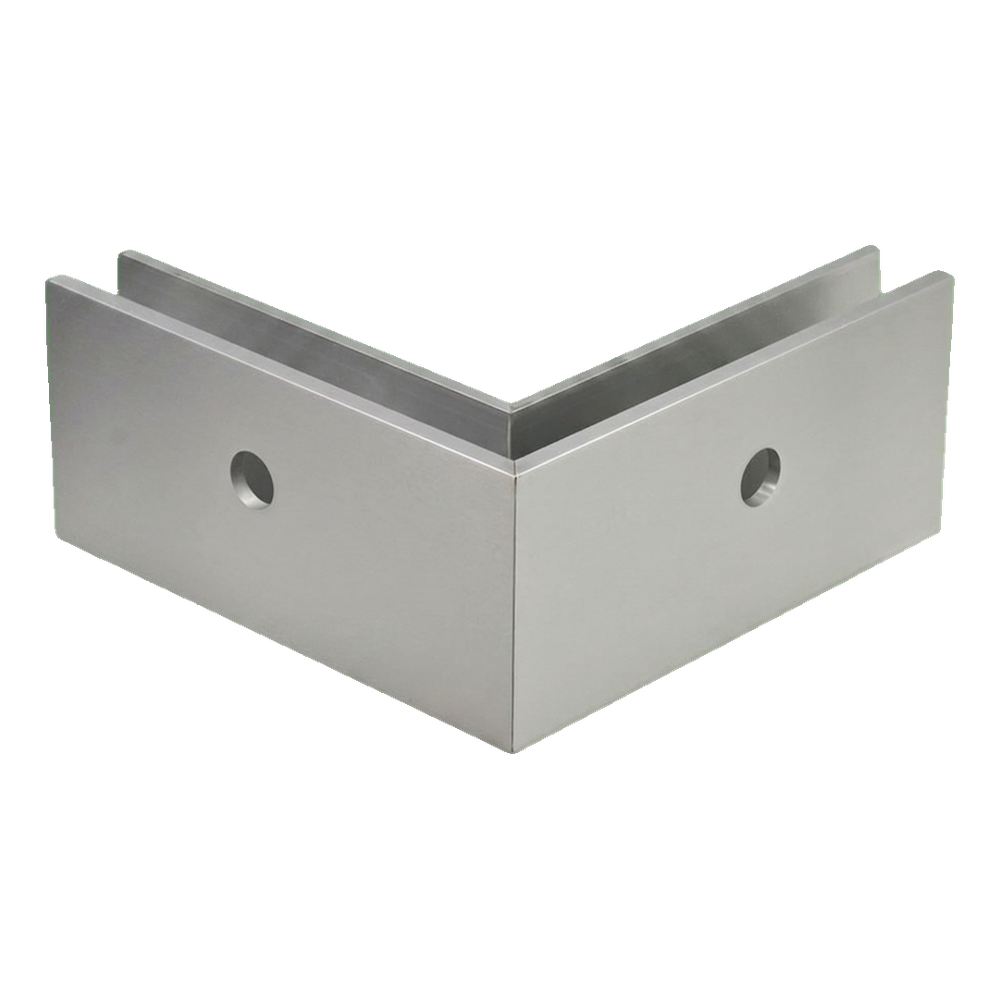

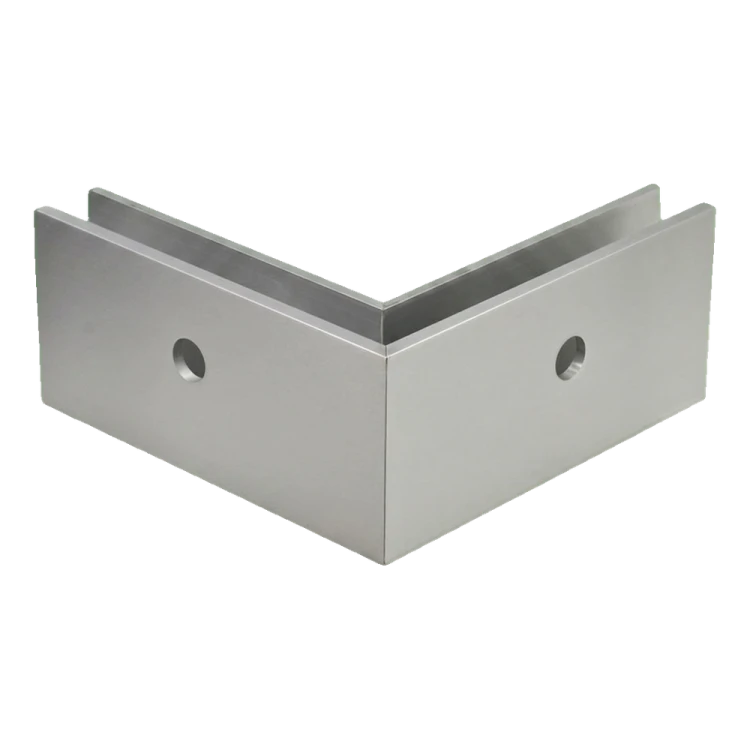

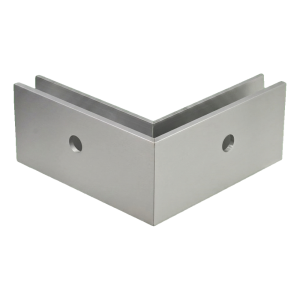

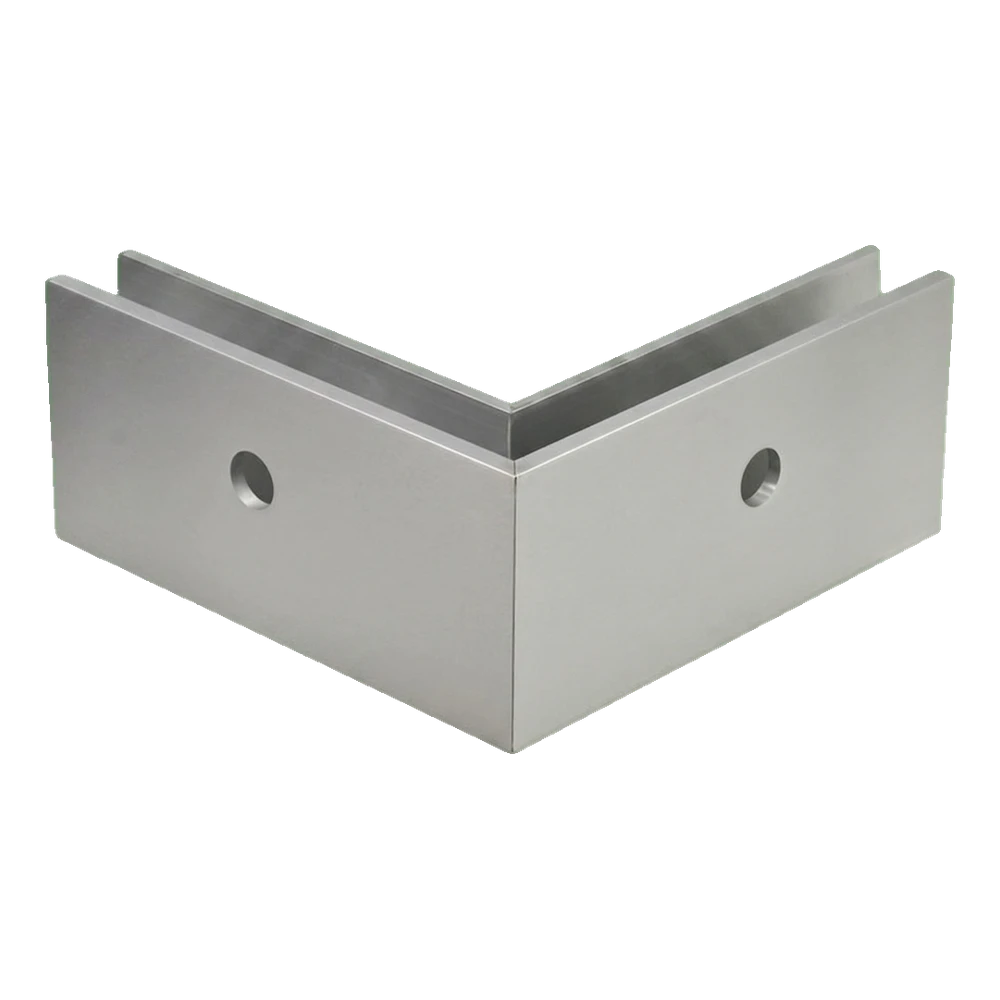

PSG external corner U profile for all-glass balustrades 200×119×47 mm – side mounting
Description
PSG external corner U profile for all-glass balustrades 200×119×47 mm – side mounting
Aluminium external corner profile U-type designed for all-glass balustrades (post-free) with side mounting. Enables easy and aesthetic execution of 90° angles on external corners of balconies, terraces and stairwells. The profile accepts tempered or laminated glass panels mounted from above, providing stable and durable corner connection without the need for posts.
Raw surface finish gives an effect similar to stainless steel — the profile perfectly complements other elements of balustrade systems in satin finish. Side mounting means that the profile is mounted 'to the wall' using mounting and through holes in the side walls. Proper installation requires special anchoring bolts (available separately).
Technical parameters
- Manufacturer: PSG
- Type: external corner U profile, 90° angle
- System: flat, side mounting
- Material: aluminium
- Surface: raw
- Profile dimensions: 200 × 119 × 47 mm (L × H × W)
- Glass thickness: 12–21.52 mm (tempered or laminated)
- Mounting: side – to wall through through holes
- Weight: 2.06 kg
Application and installation
The profile is designed for all-glass balustrade systems where glass panels are mounted from above in the U-profile channel. Thanks to the corner construction, it eliminates the need for cutting and joining straight profiles at corners — provides clean, factory 90° connection without visible joints. Mounting holes in the side walls of the profile enable secure attachment to the building structure using dedicated anchors. The profile works with a wide range of glass thicknesses — from single tempered panels 12 mm to safety laminates 21.52 mm, providing great flexibility in glazing selection depending on design requirements and safety standards.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
