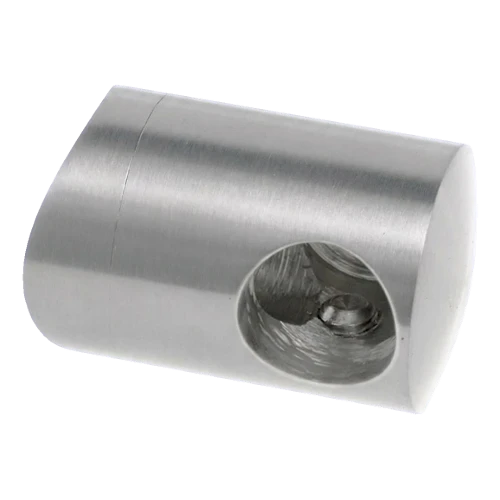

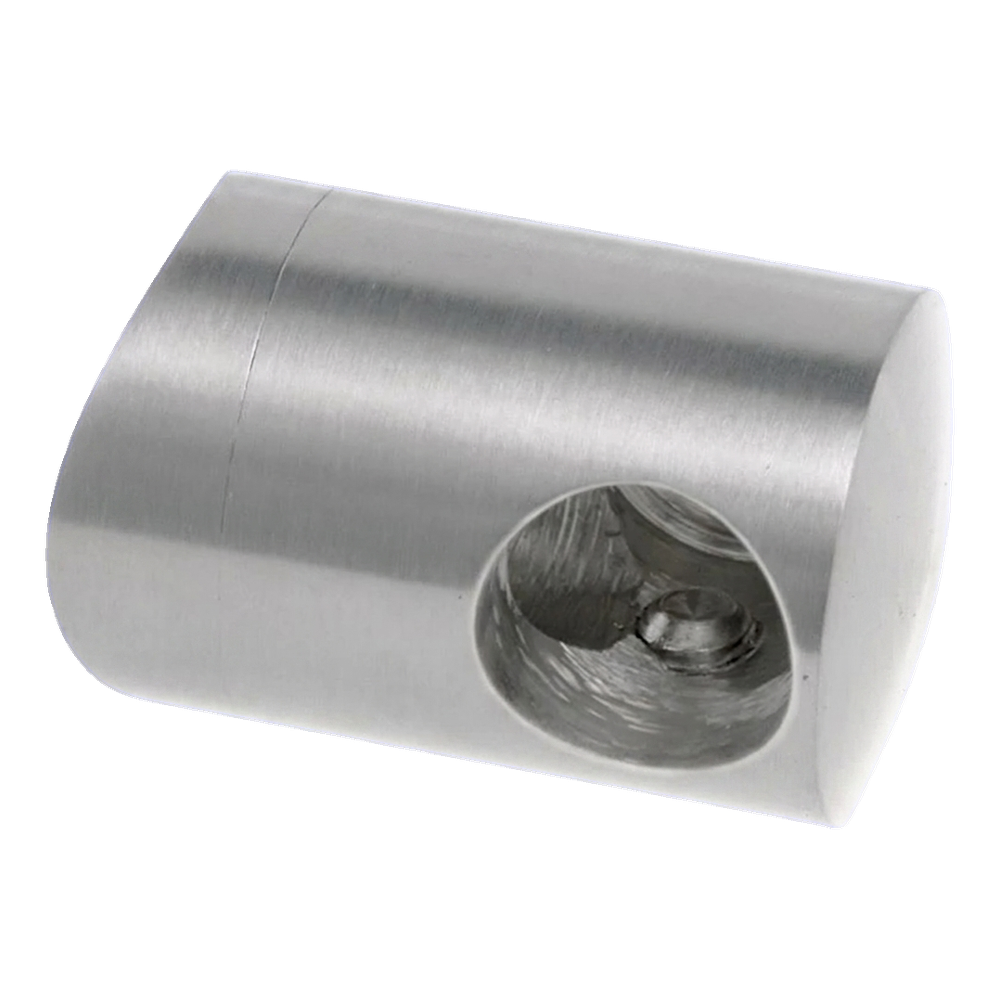

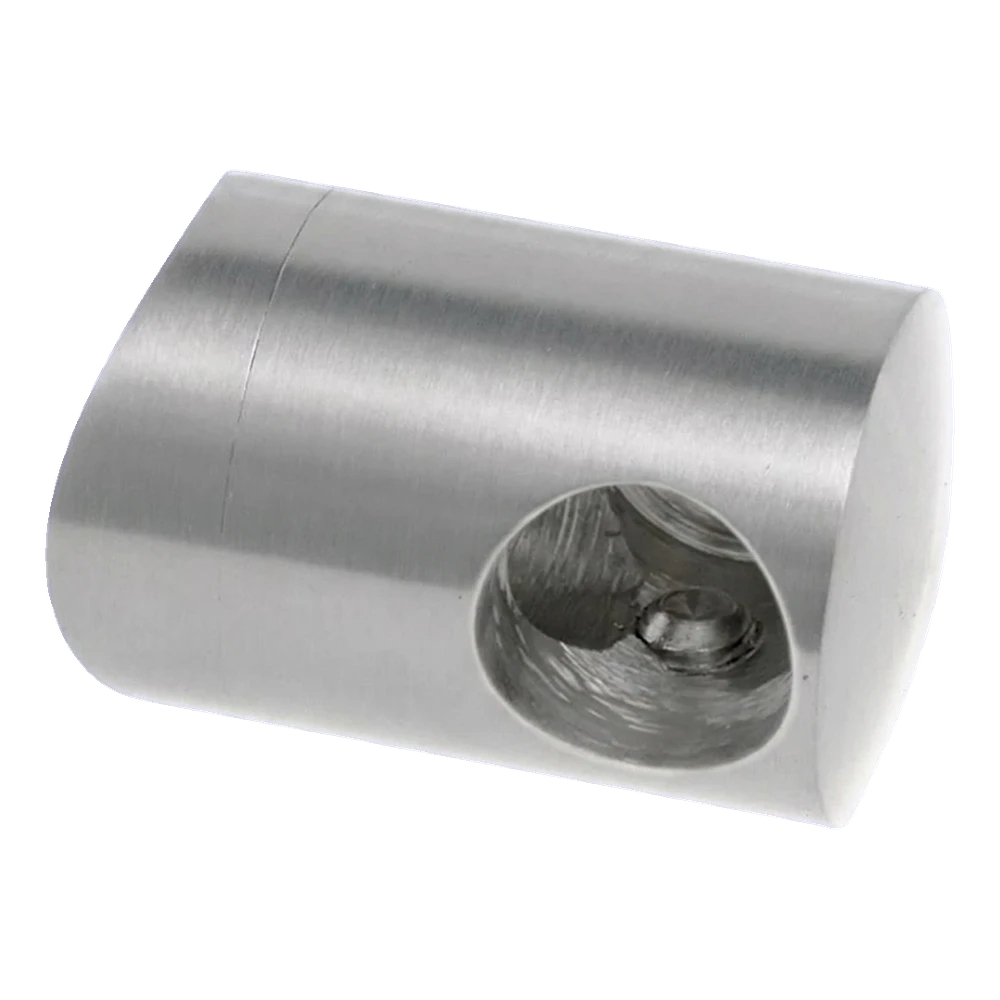

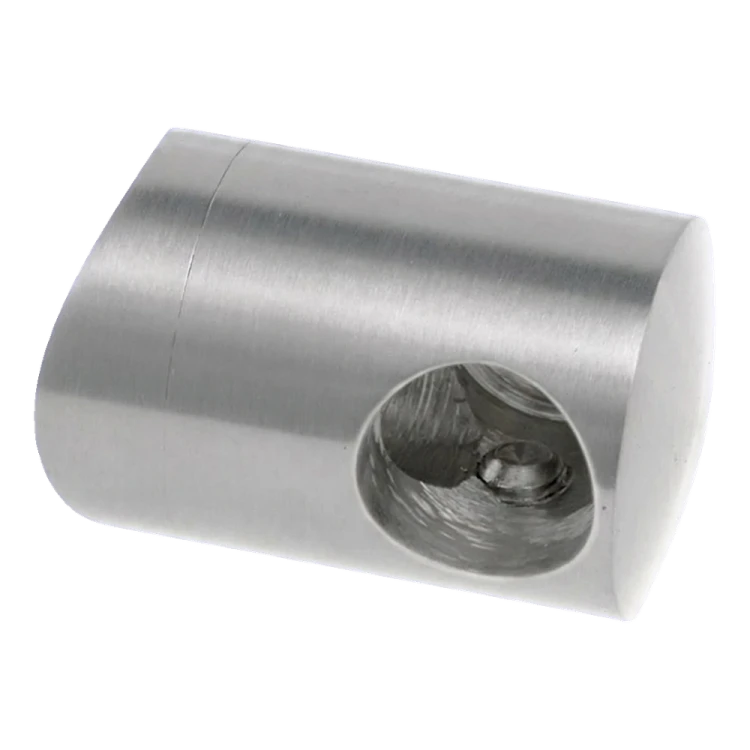

PSG end balustrade bracket left for rod Ø 12 mm on tube Ø 42.4 mm – AISI 304 stainless steel satin
Description
PSG end balustrade bracket left for rod Ø 12 mm on tube Ø 42.4 mm – AISI 304 stainless steel satin
End left bracket (start bracket) for rod with diameter Ø 12 mm, designed for mounting on balustrade post made of tube Ø 42.4 mm. The element serves to connect balustrade infills with posts — providing the construction with required rigidity and ensuring an aesthetic, durable connection. Made of AISI 304 stainless steel with satin finish, which guarantees high corrosion resistance and an elegant, matt appearance that perfectly complements modern balustrade systems.
The profiled base of the bracket is precisely matched to the curvature of the tube with diameter 42.4 mm, so that the element fits tightly to the post and can be securely fastened. The compact, cylindrical form with external diameter 22 mm ensures a discreet appearance and does not visually dominate the balustrade construction. The side hole with diameter 12 mm accepts the infill rod, and the mounting hole Ø 6.5 mm enables stable connection to the post.

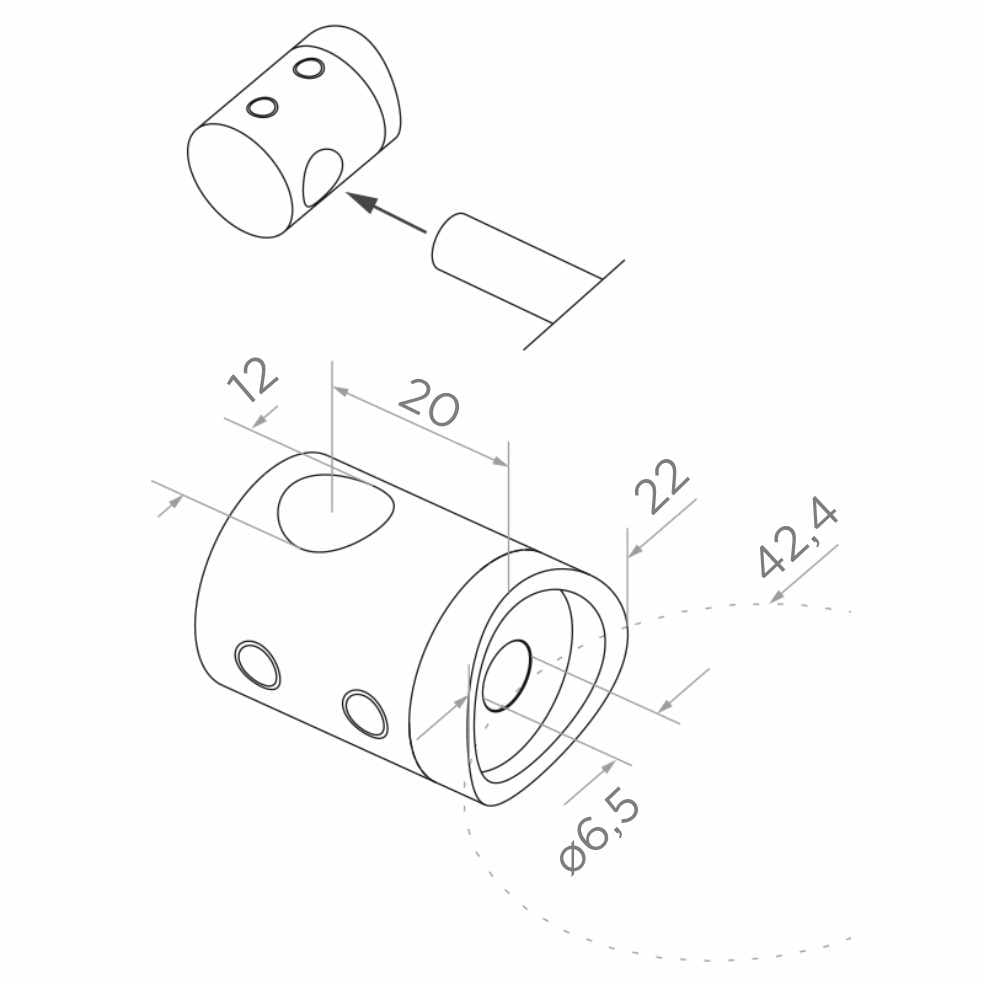

Dimensions and technical data
- Type: end bracket left (start bracket)
- Rod hole diameter: Ø 12 mm
- Mounting tube diameter (post): Ø 42.4 mm
- External body diameter: 22 mm
- Distance of side hole axis from edge: 20 mm
- Mounting hole diameter: Ø 6.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.06 kg
- Balustrade system: 42.4 mm
- EAN: 5901289671330
Application and mounting
The bracket is mounted directly on the balustrade post and serves as a start (end) element for the sequence of infill rods. The profiled socket matched to tube Ø 42.4 mm ensures stable fitting to the post without the need for additional machining. Two screw holes visible on the body enable secure immobilisation of the rod in the bracket. The product is dedicated to professional stainless steel balustrade systems — ideal for stair, balcony and terrace balustrades.
Manufacturer: PSG. AISI 304 stainless steel ensures durability in external and internal conditions, and the satin finish minimises the visibility of fingerprints and facilitates cleaning.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
