PSG double through balustrade bracket for 12 mm rod – AISI 304 satin stainless steel
Description

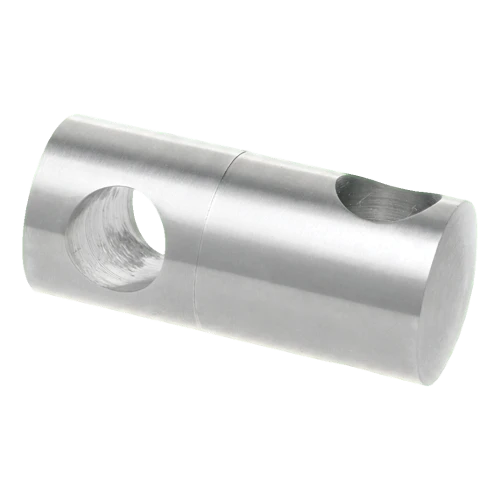

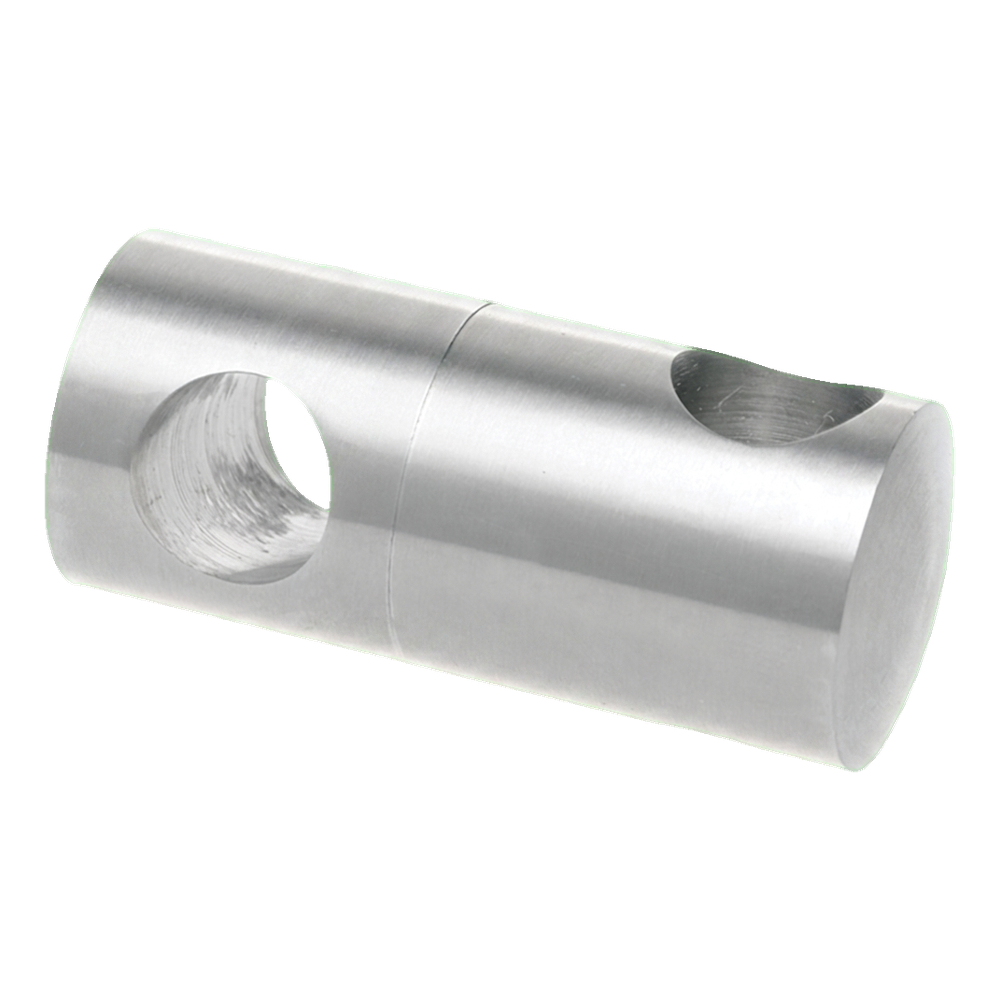

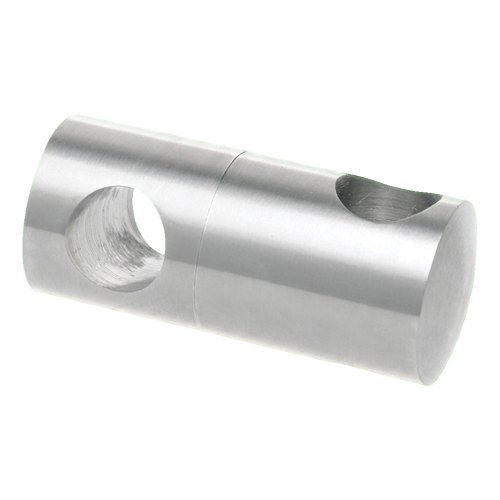

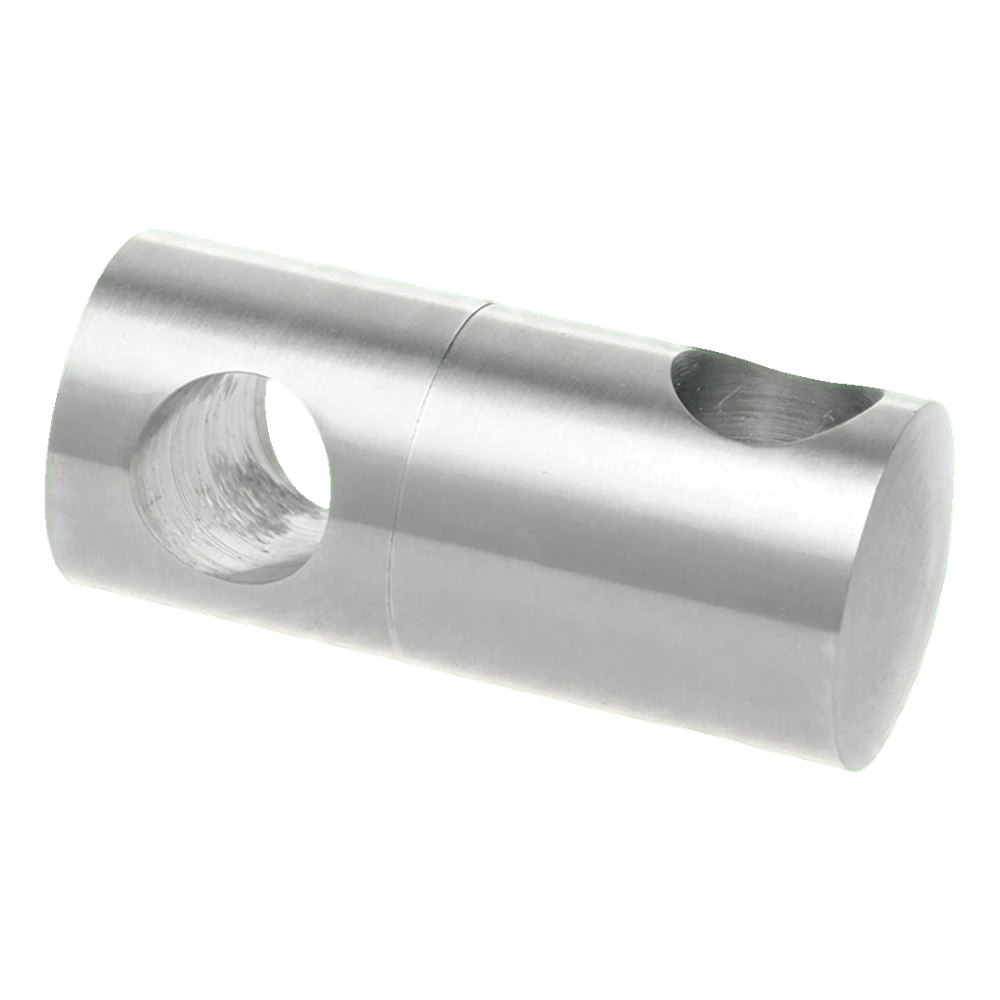

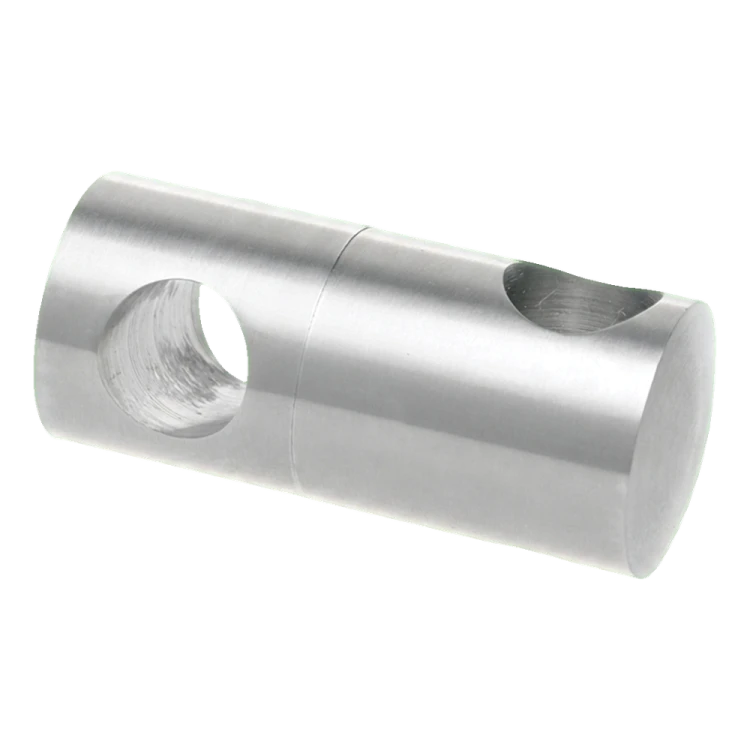

PSG double through balustrade bracket for 12 mm rod – AISI 304 satin stainless steel
Universal double through bracket designed for mounting two tubes or rods with a diameter of 12 mm between balustrade posts. Thanks to its compact, cylindrical construction with three grub screws, the element ensures secure and permanent fixing of infills — without the need for welding. An ideal solution for creating modern balustrades with horizontal infill.
The bracket is made from AISI 304 stainless steel with a satin finish, which guarantees high corrosion resistance and an aesthetic, matt appearance. Installation is carried out by screwing the bracket into the post — the universal construction allows for use with both solid rods and tubes with a diameter of 12 mm.

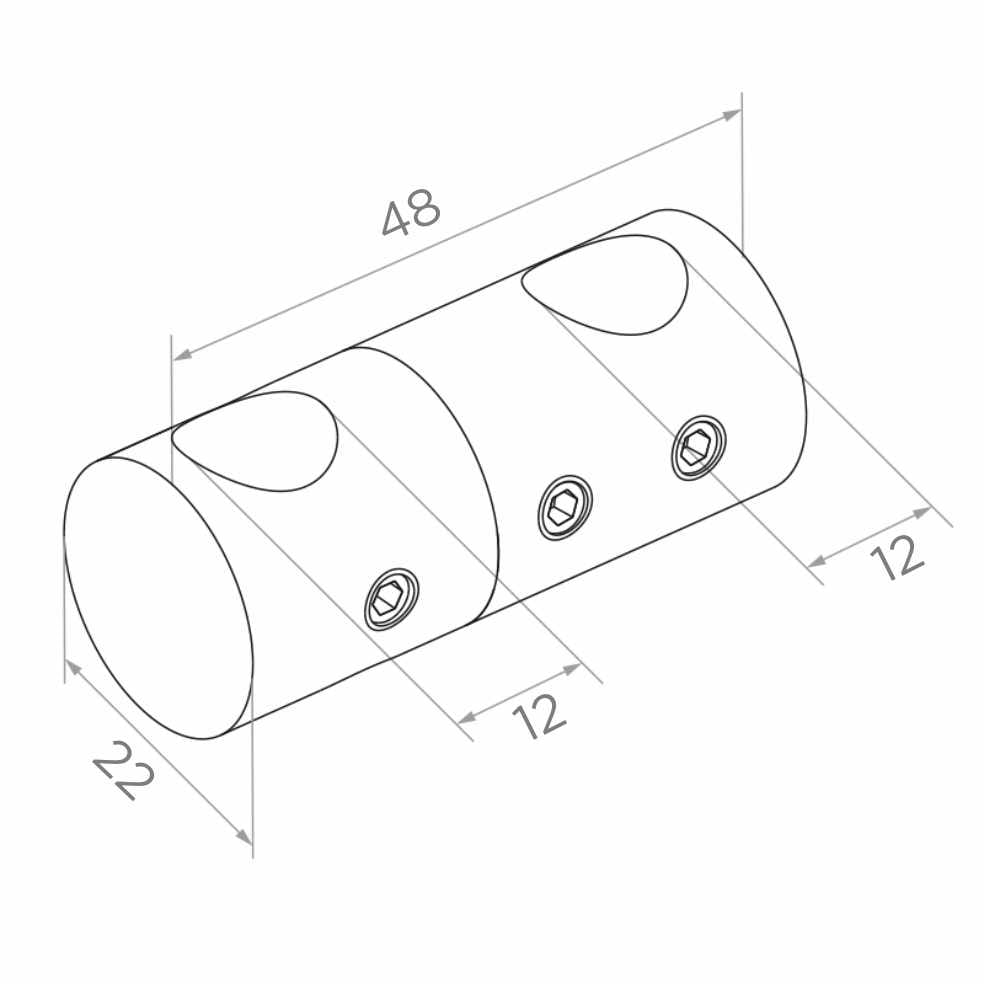

Dimensions and technical data
- Overall length: 48 mm
- External body diameter: 22 mm
- Through hole diameter: 12 / 12 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: universal, vertical through
- Fastening: grub screws (3 pcs)
- Weight: 0.089 kg
- EAN: 5901289671484
Application
The bracket is designed for balustrade systems with horizontal rod or tube infill. Mounted between posts, it enables two parallel rods ⌀ 12 mm to pass through one compact element. It works well in internal and external balustrades — on balconies, staircases, terraces and mezzanines. The universal construction allows for use in both vertical and horizontal arrangements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
