PSG door handle with knob on plate 72mm black – rectangular escutcheon
Leave feedback on the product
PSG door handle with knob on plate, black. Centre distance 72 mm, plate height 247 mm, width 32 mm. Escutcheon and handle made from aluminium, body from zamak. Spring mechanism. For locks with cylinder insert. Weight 0.72 kg.
Product code: 000-691
Product features
[PIM] klamki-galki-szyldy #118
- Material Steel
- Fitting Type Knob-Handle Set
- Finish Painted black
- Brand PSG
Description
PSG door handle with knob on plate 72mm black – rectangular escutcheon

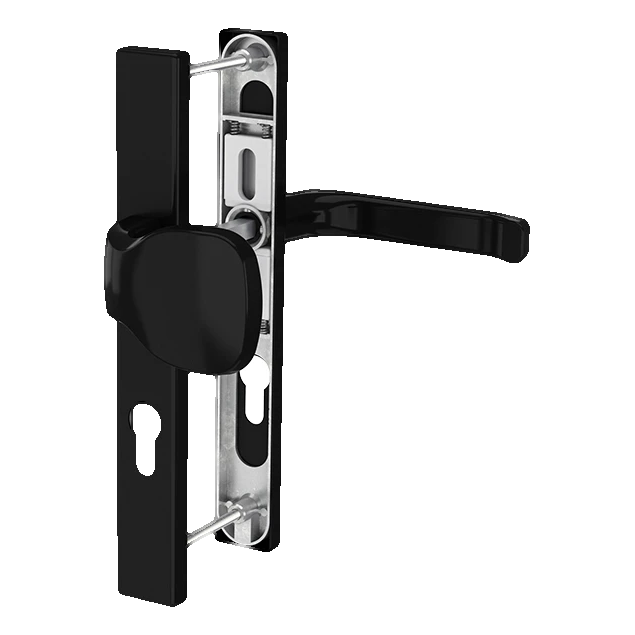

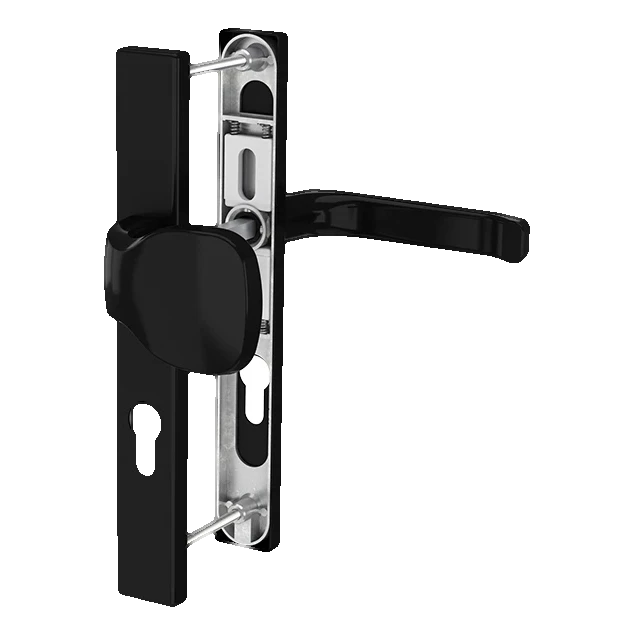

Black handle with knob on PSG plate is a complete set of door hardware designed for entrance doors, gates and gate doors equipped with cylinder insert locks. The handle + knob solution provides convenient operation from the inside (handle) and secure locking from the outside (knob turned only with key). The rectangular escutcheon effectively covers mounting screws, giving doors an aesthetic, modern appearance.
The escutcheon and grip part of the handle are made from aluminium, which ensures lightness and corrosion resistance, whilst the inner body made from zamak (zinc alloy) guarantees mechanical strength. The internal spring mechanism assisting the return of the handle to horizontal position increases durability and comfort of use – the handle does not droop automatically under its own weight.
Technical parameters
- Type: handle with knob on plate
- Centre distance handle – cylinder insert: 72 mm
- Total plate height: 247 mm
- Plate width: 32 mm
- Spindle length: 96 mm
- Colour: black
- Escutcheon and handle material: aluminium
- Body material: zamak (zinc alloy)
- Escutcheon: rectangular – covers mounting screws
- Spring mechanism: yes – handle position assistance
- Weight: 0.72 kg
- Package dimensions (LxWxH): 270 × 32 × 145 mm

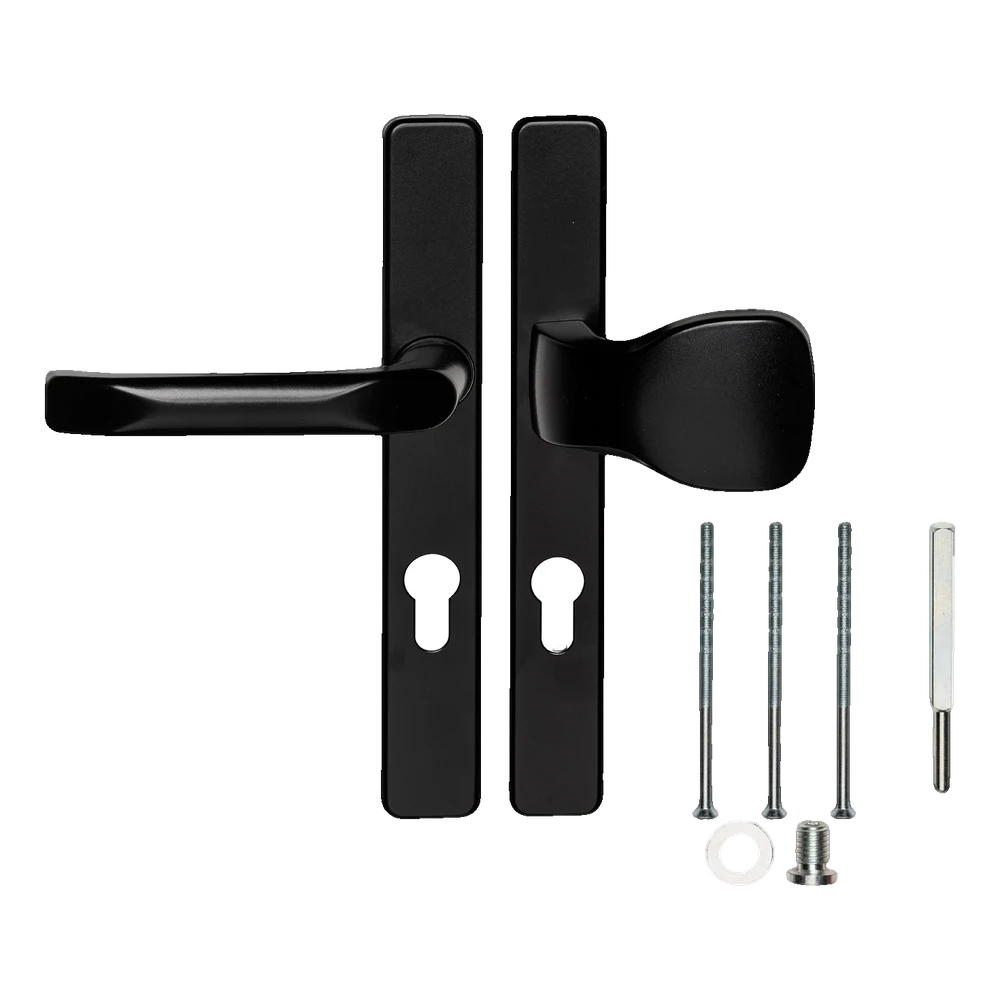

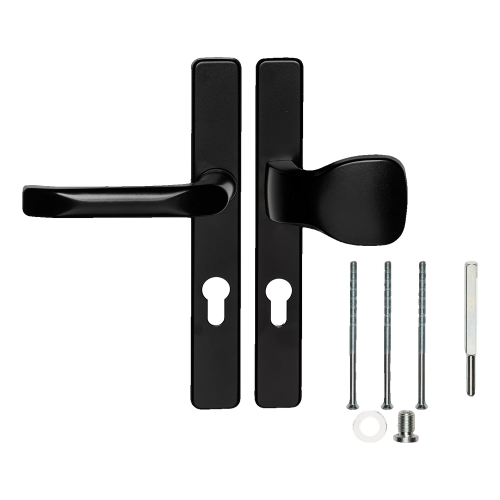

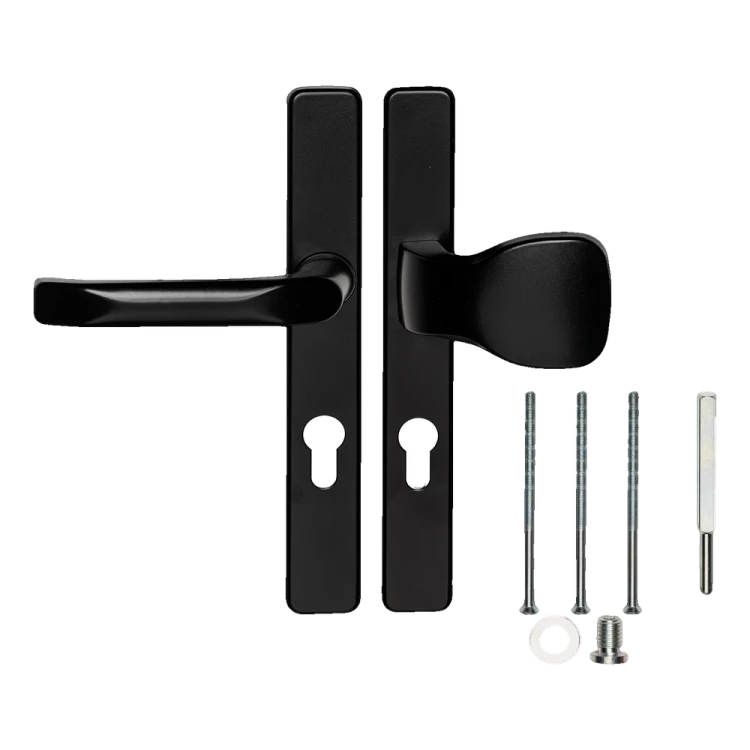

Set contents
- Plate with handle (inside) – 1 pc.
- Plate with knob (outside) – 1 pc.
- Square spindle – 1 pc.
- Through mounting screws – 2 pcs.
- Screw with washer for knob fixing – 1 set
The set is supplied complete with all mounting elements — through screws and spindle — which eliminates the need to order additional accessories and speeds up installation. The universal centre distance of 72 mm ensures compatibility with most popular door locks used in entrance doors, gates and gate doors.
