PSG decorative turned steel hinge H146 × Ø30 mm for gates and wickets
Description
PSG decorative turned steel hinge H146 × Ø30 mm for gates and wickets
PSG decorative turned hinge is a durable hardware element designed for mounting gates, wickets and doors. Made from high-quality steel, it combines an aesthetic, decorative appearance with solid construction capable of bearing heavy loads. Two-piece design facilitates precise positioning and adjustment before welding — you save time during installation and eliminate the risk of errors.
Solid construction and easy installation

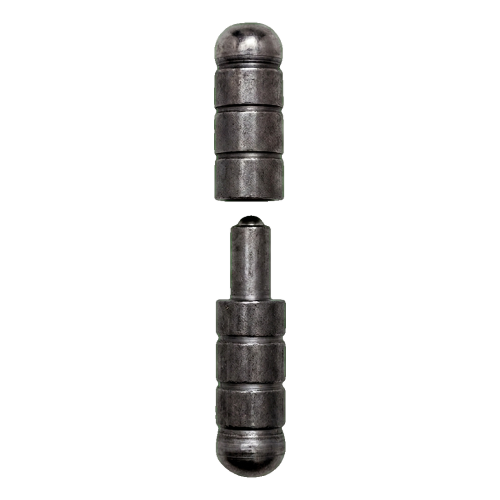

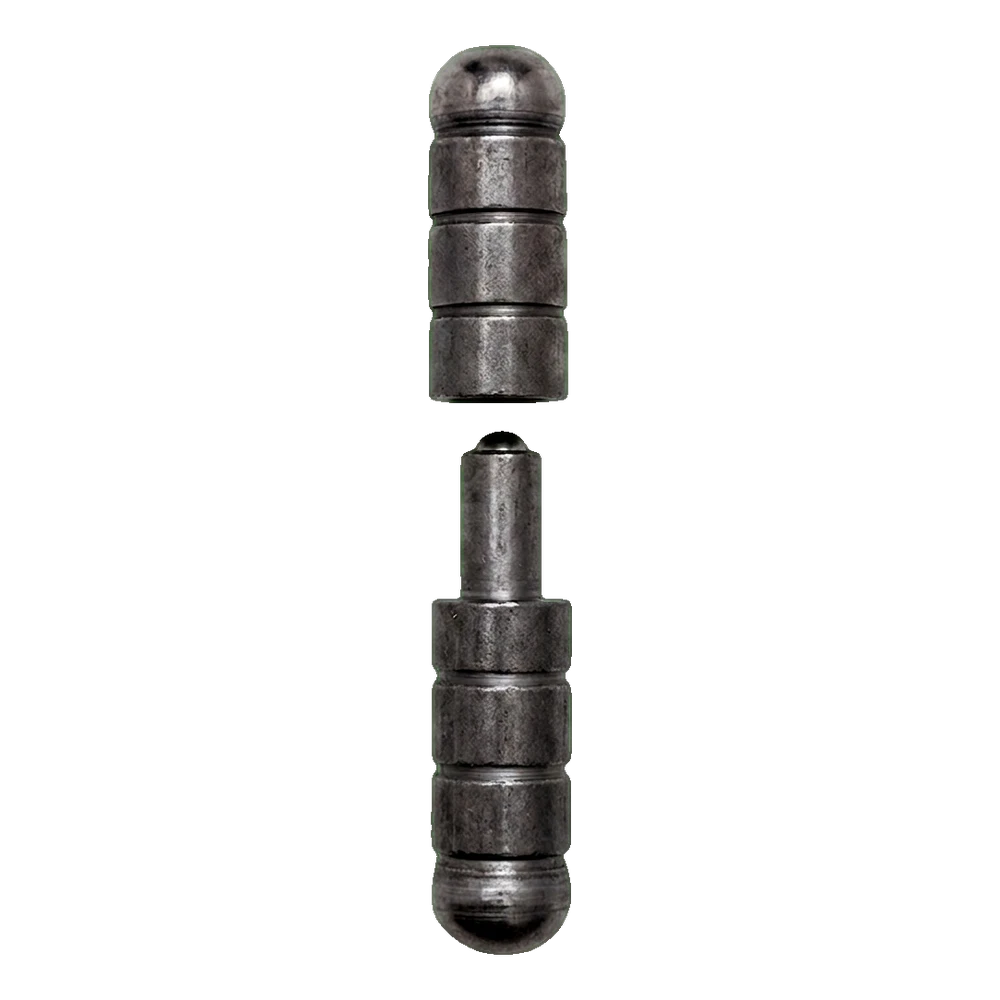

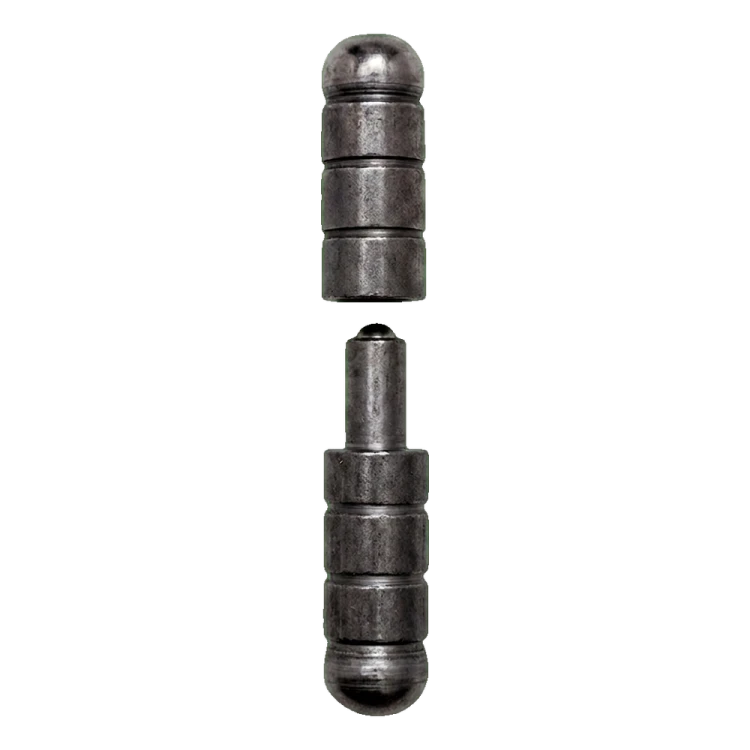

The hinge consists of two parts finished with decorative balls, which after welding to the gate and post are fitted together. The turned shape ensures stable guidance and smooth operation of the leaf. Steel construction guarantees resistance to mechanical damage, deformation and atmospheric factors — the hinge will perform well both in fencing and heavy entrance gates.
Step-by-step installation
- Weld the bottom part of the hinge to the post, and the top part to the gate or wicket leaf
- Before welding precisely adjust and position both parts relative to each other
- After completing the welding, fit one part onto the other — the hinge is ready for operation
Advantages of PSG decorative hinge
- Weather resistance — performs outdoors all year round
- Heavy load capacity — stable turned construction
- Resistance to mechanical damage and deformation
- Smooth operation of gate or wicket leaf
- Decorative appearance — ornamental ball endings
Technical specifications
- Manufacturer: PSG
- Material: steel

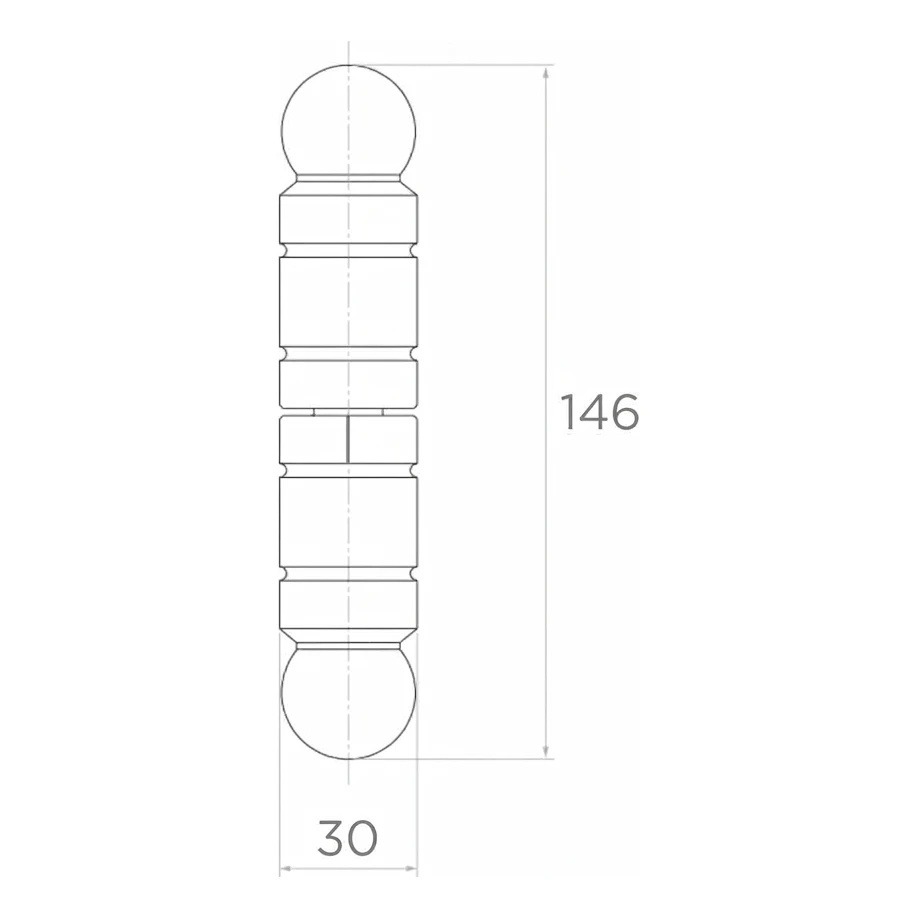

- Total height (H): 146 mm
- Diameter (Ø): 30 mm
- Weight: 0.68 kg
- Volume: 131.4 cm³
- Application: gates, wickets, doors
- Installation: welded
- EAN: 5901289676465
Technical data
| Diameter | 30 |
| Material | Steel |
