PSG decorative turned steel hinge H100 x Ø20 mm for gates and wickets
Description
PSG decorative turned steel hinge H100 x Ø20 mm for gates and wickets

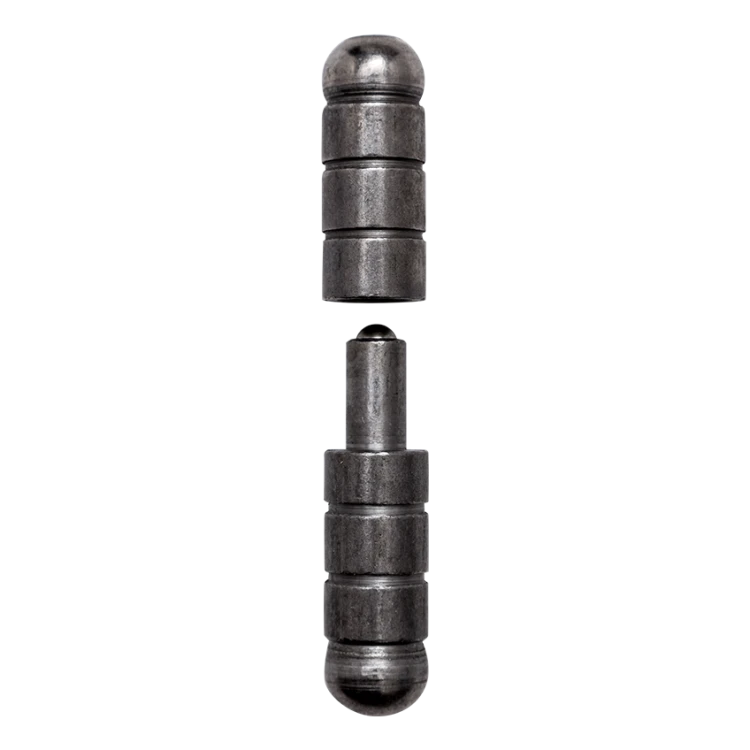

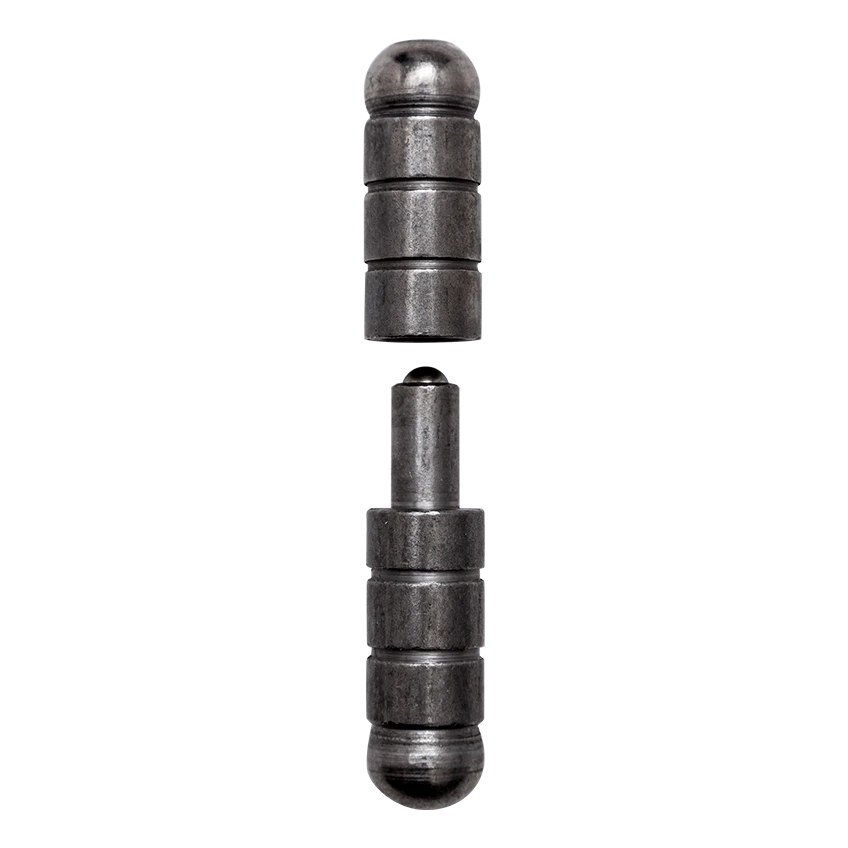

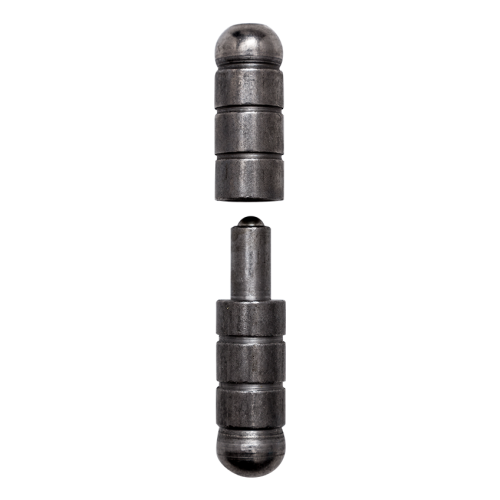

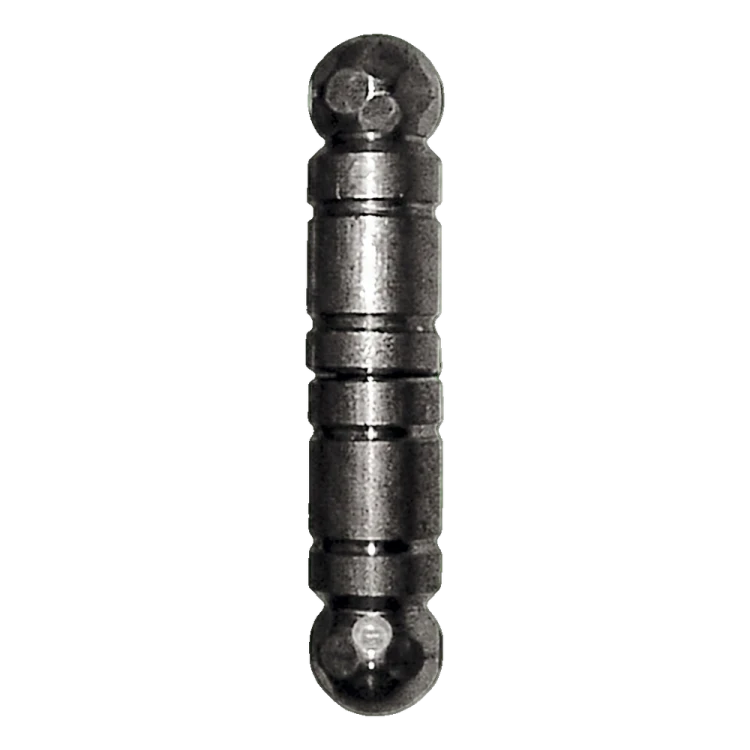

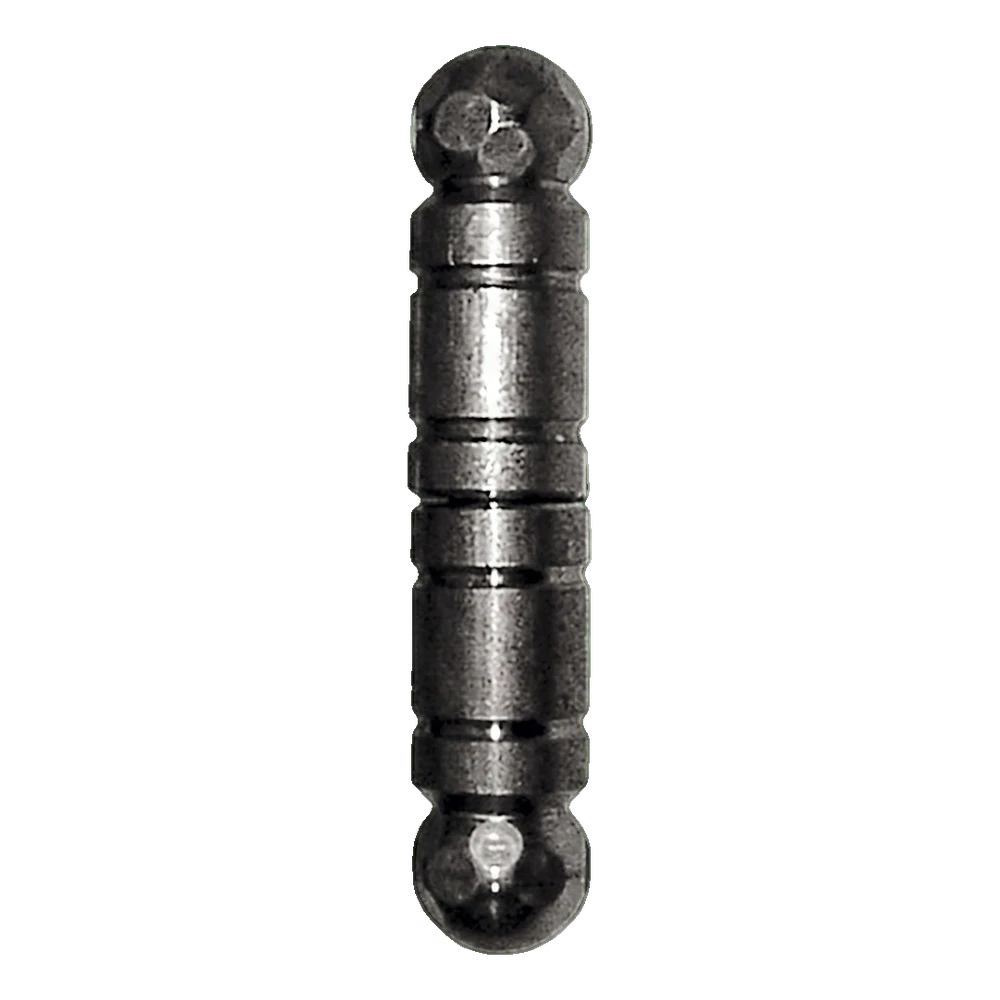

Turned decorative PSG hinge made of high-quality steel, designed for professional installation on gates, wickets and doors. Two-piece construction with decorative ball-shaped ends ensures smooth operation of the leaf and provides an aesthetic, decorative appearance. The hinge is installed by welding both parts to the leaf and post, then placing one part onto the other — this allows for precise adjustment and setting before final welding.
Advantages for installers
- Weather resistance — steel construction adapted for outdoor use
- High mechanical strength — resistant to damage and deformation even under heavy loads
- Simple installation by welding — enables precise adjustment before final fixing
- Stable turned construction — guarantees long-lasting and trouble-free operation

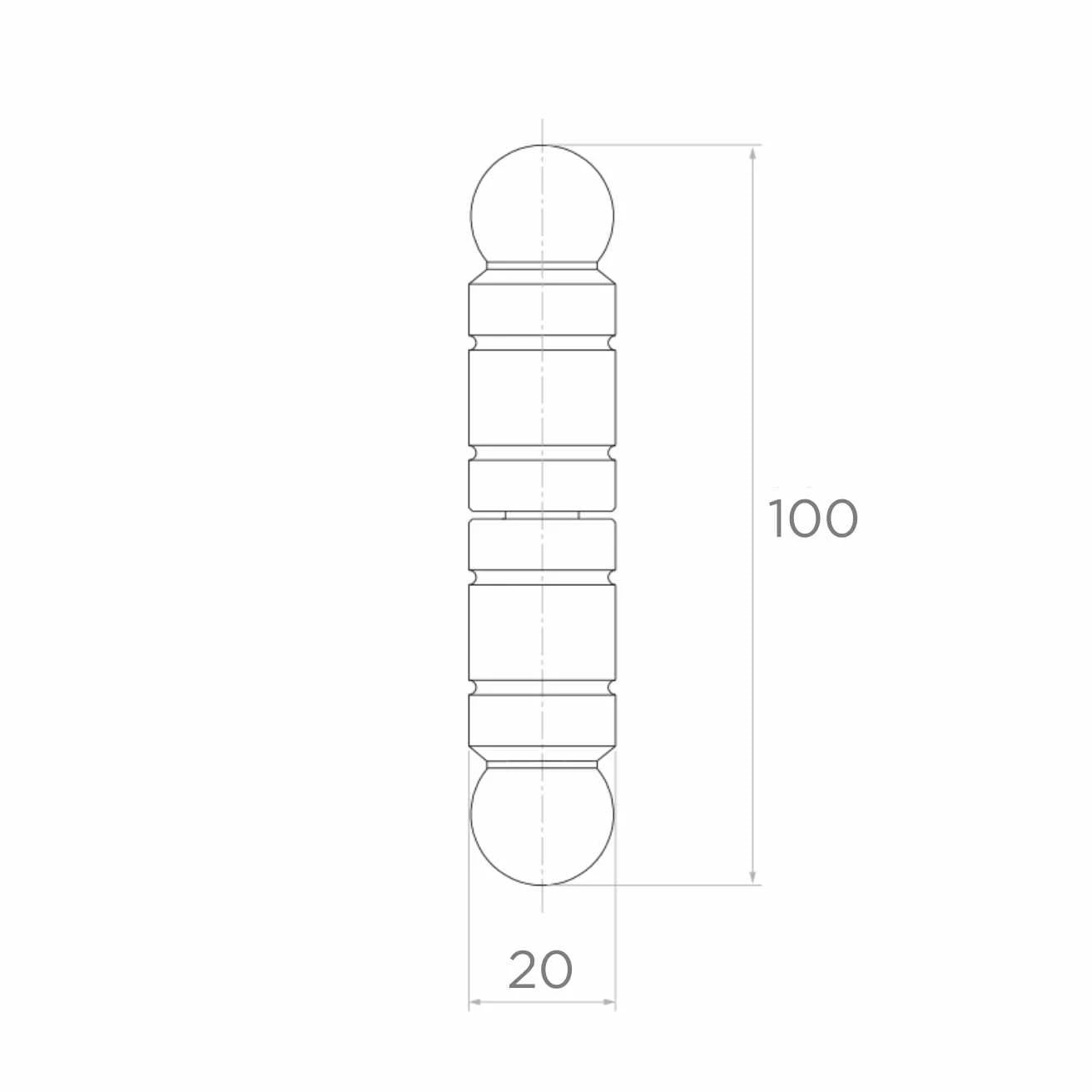

Technical parameters
- Manufacturer: PSG
- Material: steel
- Total height (H): 100 mm
- Diameter (Ø): 20 mm
- Weight: 0.2 kg
- Volume: 40 cm³
- Construction: turned, two-piece
- Ends: ball-shaped, decorative
- Installation: welding
- Application: gates, wickets, doors
- EAN: 5901289676441
The hinge is supplied as a complete set of two cooperating parts. Before welding, it is recommended to carefully level and adjust the leaf — after placing the parts together, full mobility of the hinge is achieved. The turned steel construction ensures high load capacity and stability, which translates to trouble-free operation even of heavy gate leaves.
Technical data
| Diameter | 20 |
| Material | Steel |
