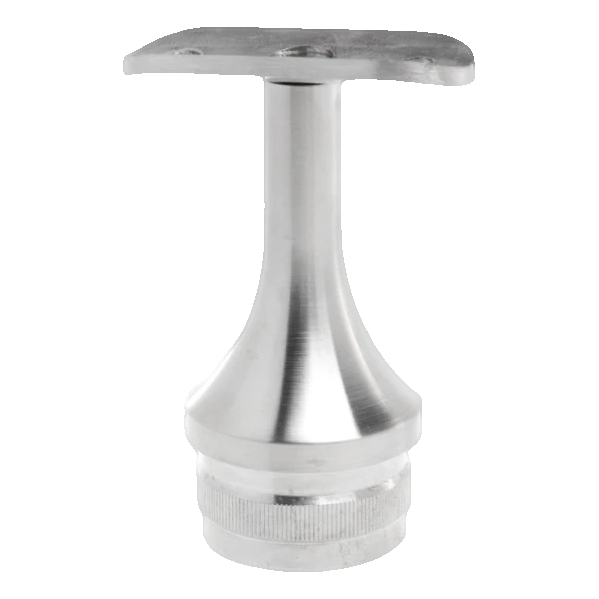

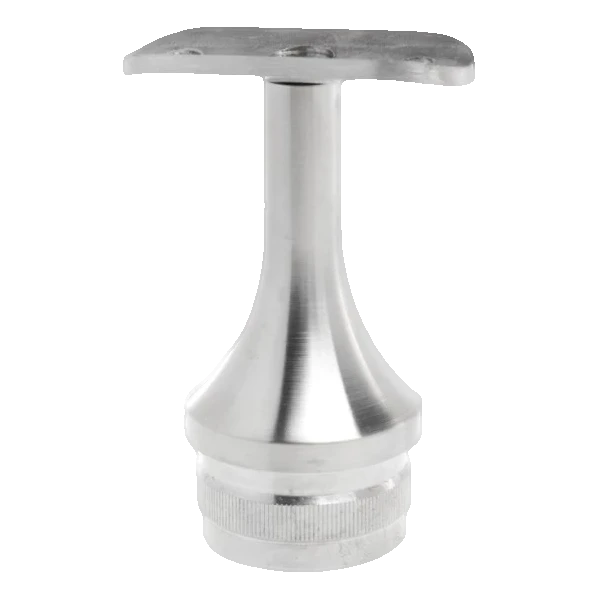

PSG corner handrail bracket drive-in 42.4 mm H68 – stainless steel AISI 304 satin
Description
PSG corner handrail bracket drive-in 42.4 mm H68 – stainless steel AISI 304 satin
Corner handrail bracket designed for balustrade systems with 42.4 mm tube diameter. Element driven directly into the post, which significantly speeds up installation — requires no welding or additional connecting elements. Once installed, it provides a distance of 68 mm between the top edge of the post and the handrail axis, guaranteeing an aesthetic and repeatable effect along the entire length of the balustrade.
The bracket is made of stainless steel AISI 304 with a satin finish, corrosion-resistant and easy to maintain. The elegant, streamlined shape of the stem gives the balustrade a modern character. The product is ideal for internal and external balustrade systems — on staircases, balconies, terraces and in public utility buildings.
Technical specification
- Type: corner handrail bracket, drive-in
- Balustrade system: 42.4 mm
- Post diameter: 42.4 × 2 mm
- Handrail diameter: 42.4 mm
- Mounting height (post–handrail): 68 mm
- Material: stainless steel AISI 304
- Finish: satin
- Weight: 0.19 kg
- EAN: 5901289671996
Drive-in mounting eliminates the need for screws or welds on visible surfaces. Simply insert the bracket stem into the post hole — the connection is permanent, and the visual effect is clean and minimalist. This solution is particularly valued by installers working on projects where speed of installation and repeatability of execution are important.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
