PSG corner balustrade post stainless steel AISI 304 ø42.4 mm H1060 mm with brackets for ø12 mm rods
Description
PSG corner balustrade post steel AISI 304 ø42.4 mm H1060 mm with brackets for tubes ø12 mm

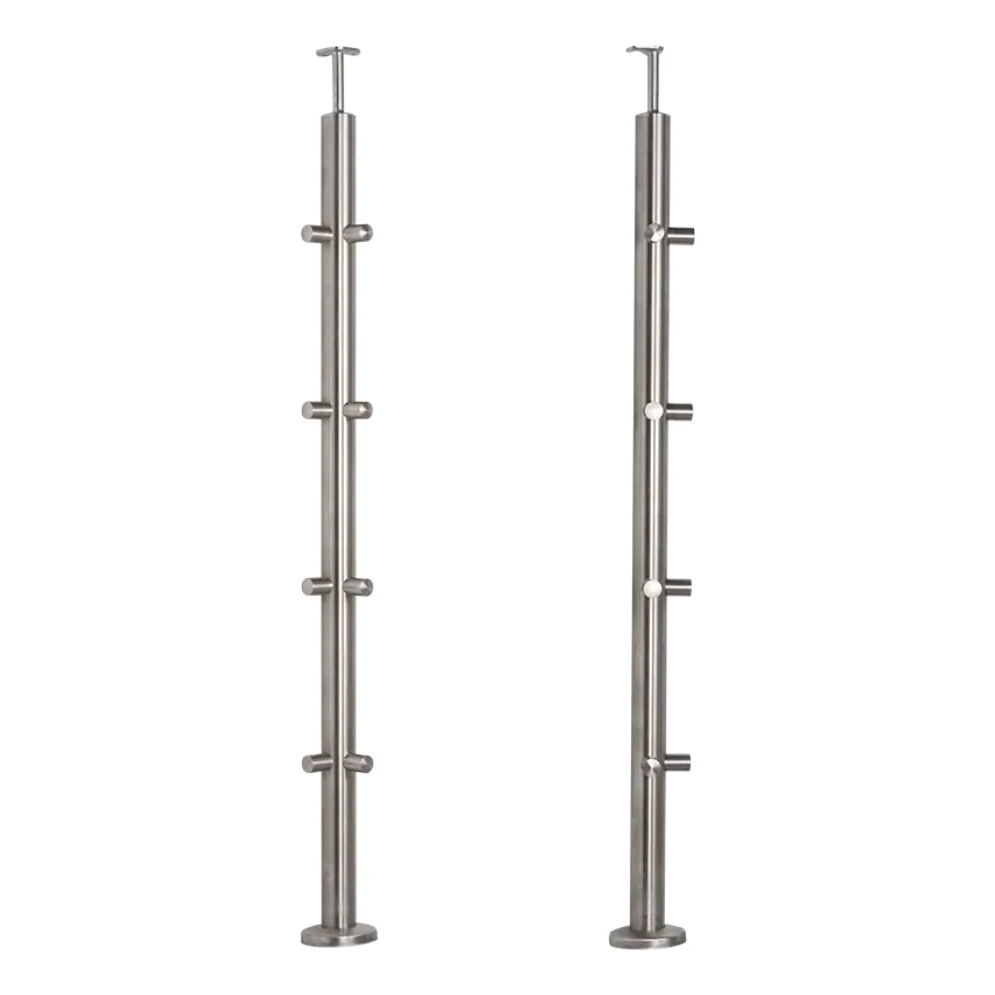

Corner balustrade post PSG made from polished stainless steel AISI 304 is a ready-made structural element designed for constructing internal balcony and stair balustrades. Thanks to 8 starter rod brackets (4 on each side of the corner) it enables routing of 4 infill tubes ø12 mm in two perpendicular directions, making it an ideal solution for corner installation.
The post is mounted in the floor, and the included handrail connectors are not permanently fixed — this allows for adjustment and adaptation to site conditions. The manufacturer recommends securing connections with specialist anaerobic adhesive for stainless steel. Total height with fitted handrail is 1102.4 mm.
Technical parameters of the post
- Manufacturer: PSG
- Material: stainless steel AISI 304, polished (satin)
- Post diameter: ø42.4 mm
- Post height: 1060 mm
- Total height with handrail: 1102.4 mm
- Type: corner (90° angle)
- Mounting: in floor
- Application: for internal use
- Brackets: 8 pcs. (2 × 4) — starter rod brackets for tubes ø12 mm

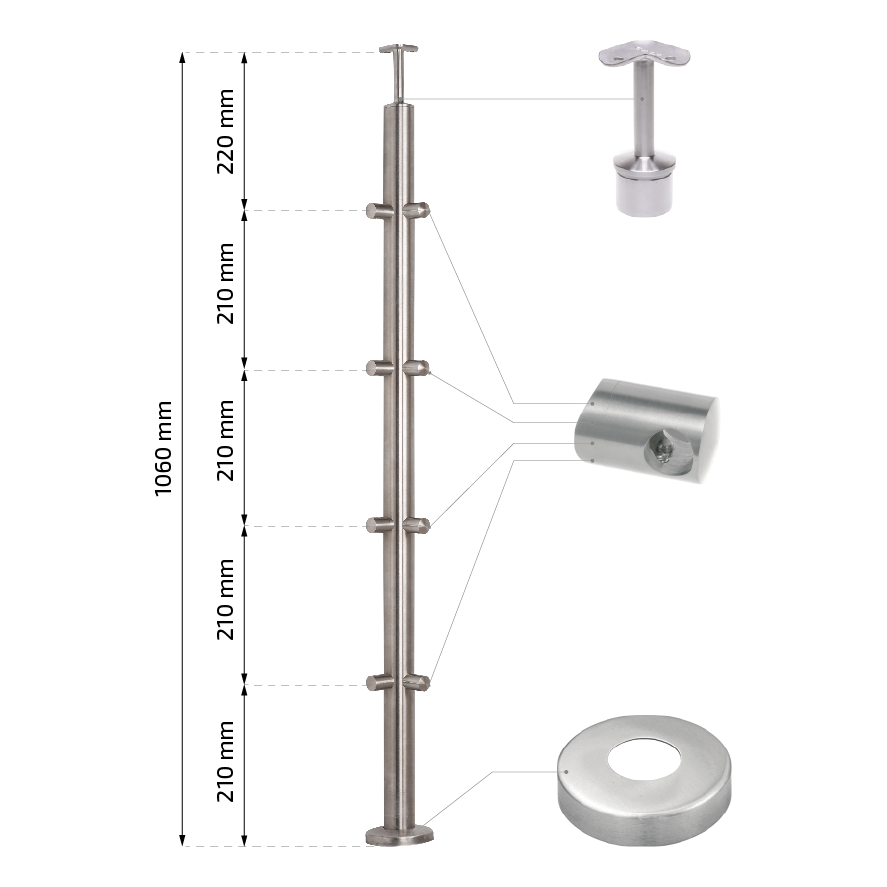

- Bracket spacing: 210 mm (distance between centres)
- Distance from top of post to highest bracket: 220 mm
- Weight: 3.3 kg
- EAN: 5903313202121

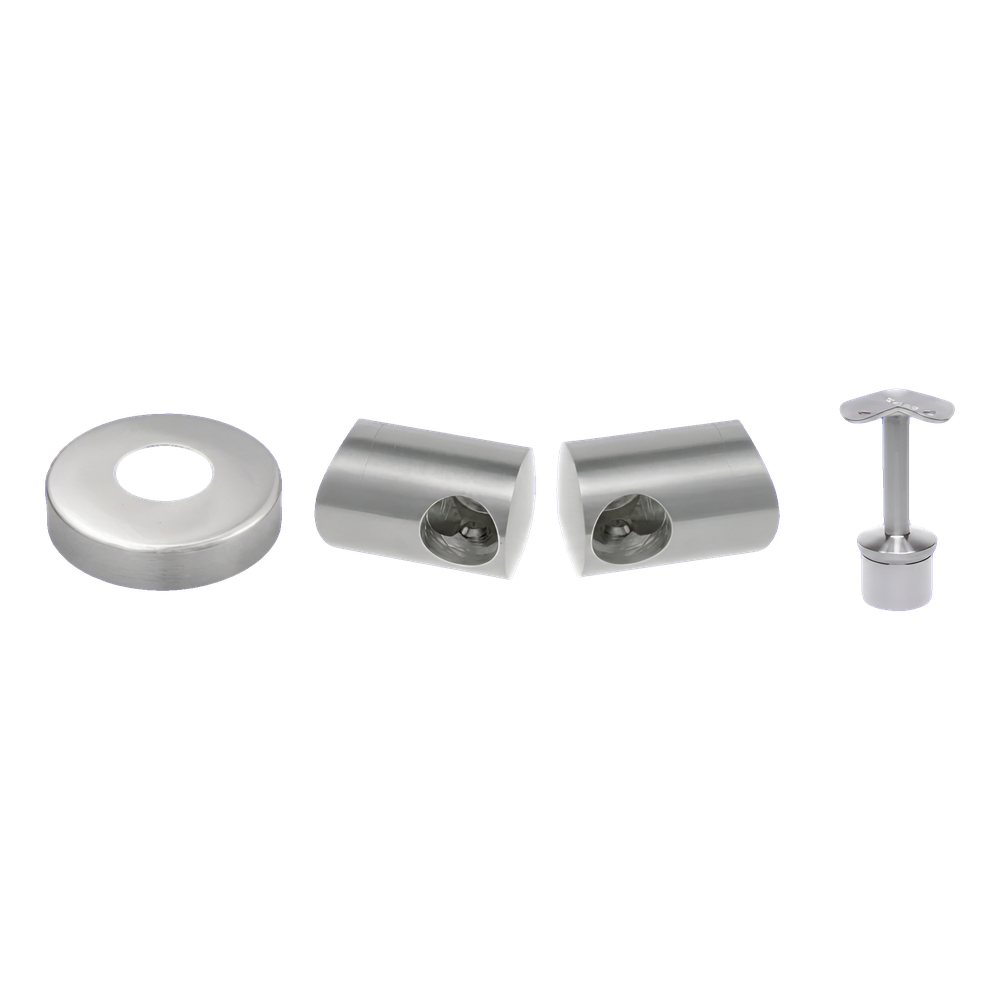

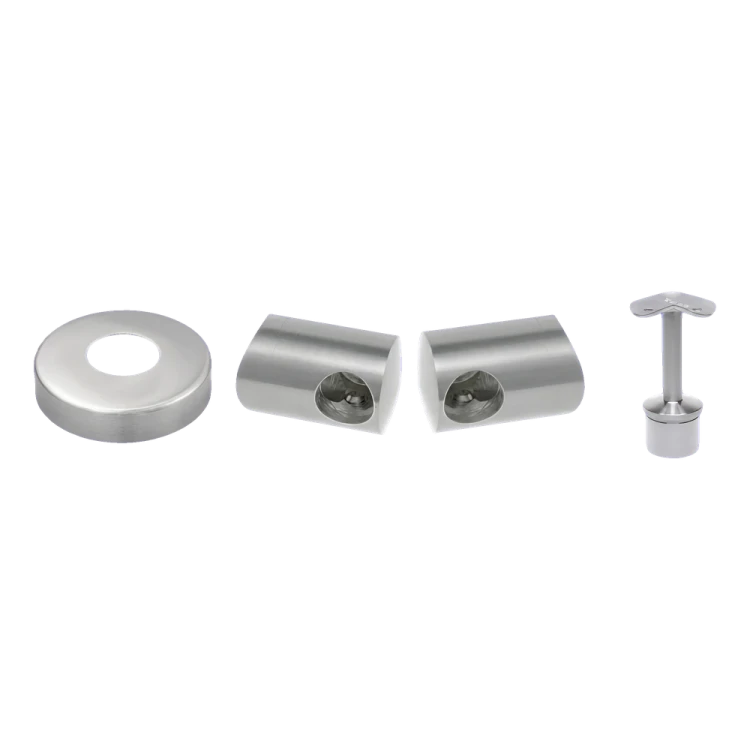

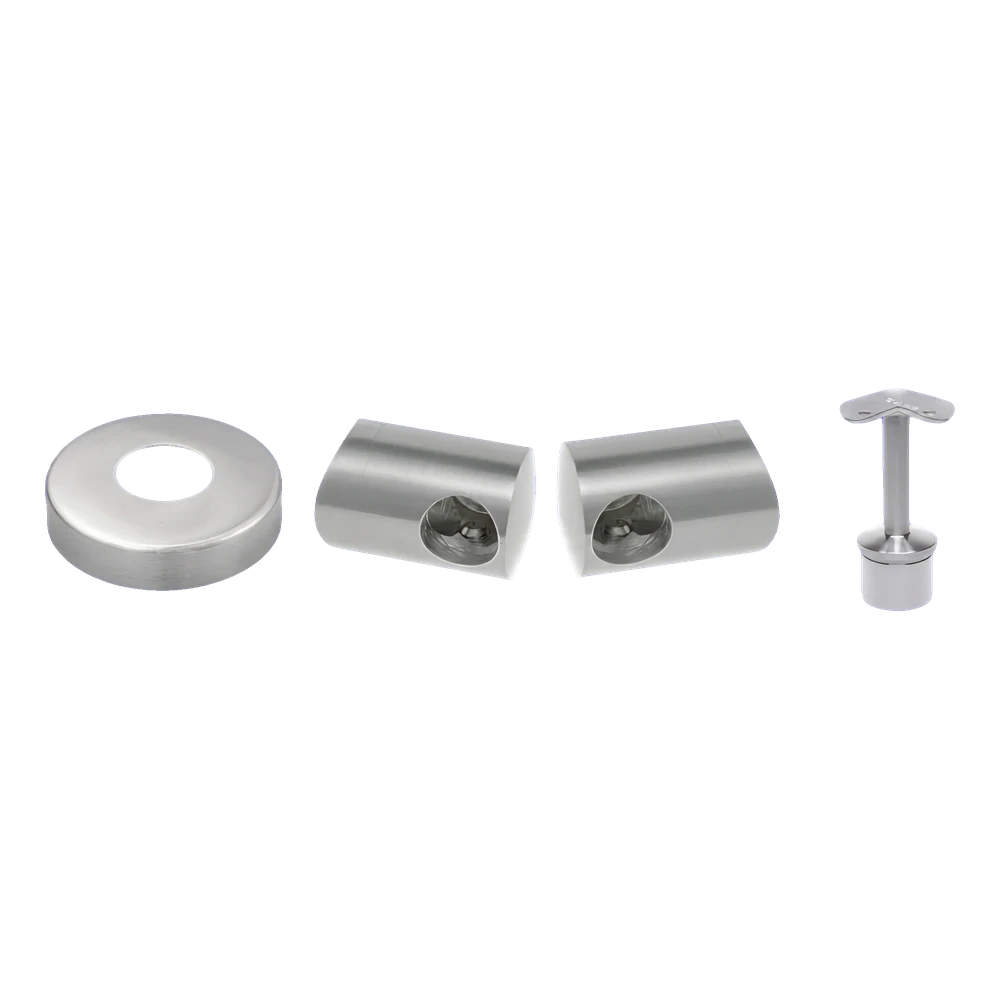

Kit contents
- Corner balustrade post ø42.4 × 1060 mm — 1 pc.
- Base cover plate (rosette) — 1 pc.
- Starter rod brackets ø12 mm — 2 × 4 pcs. (8 pcs.)
- Corner handrail connector — 1 pc.
Component dimensions

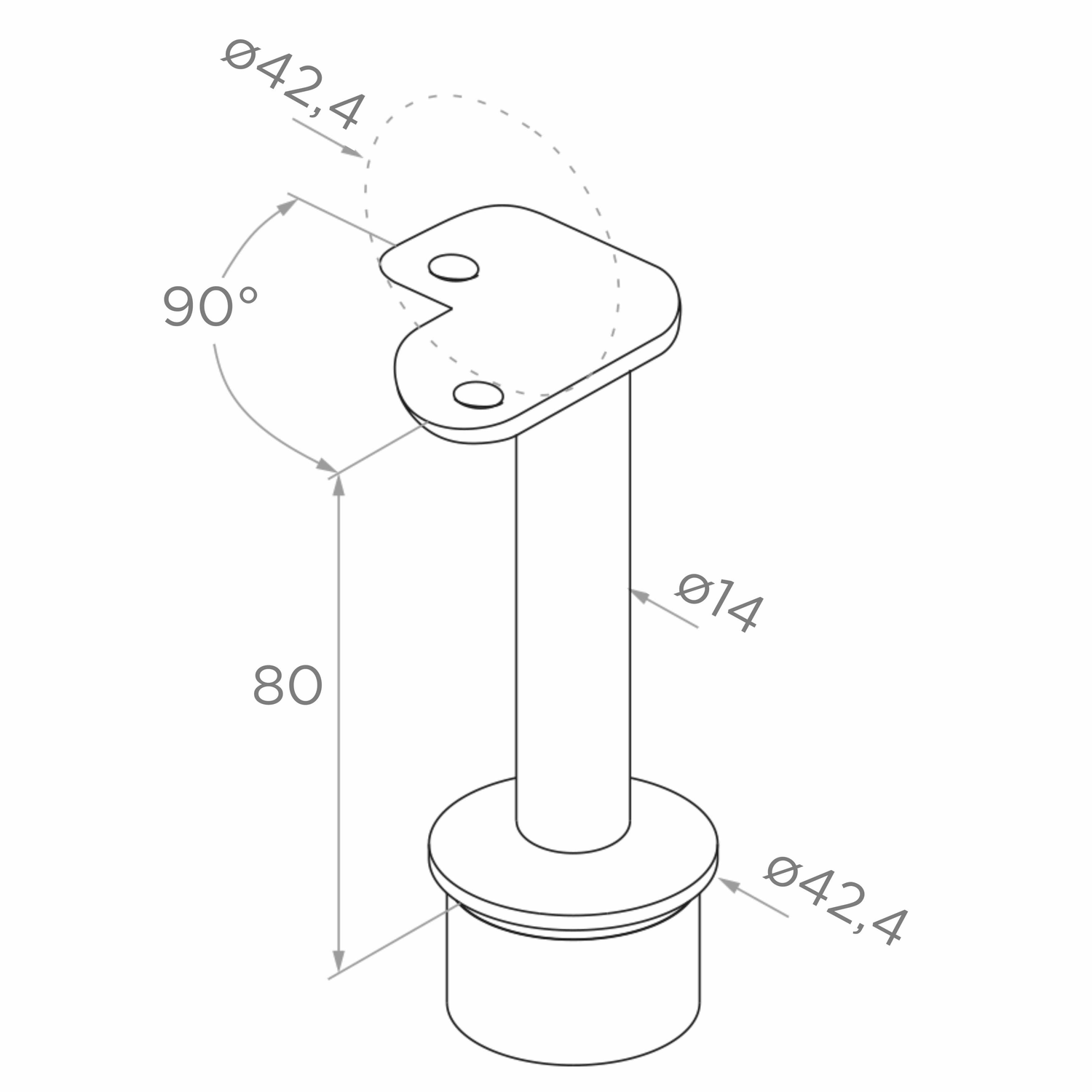

Handrail connector (corner): spigot height 80 mm, spigot diameter ø14 mm, base diameter ø42.4 mm, working angle 90°, suits handrail ø42.4 mm.

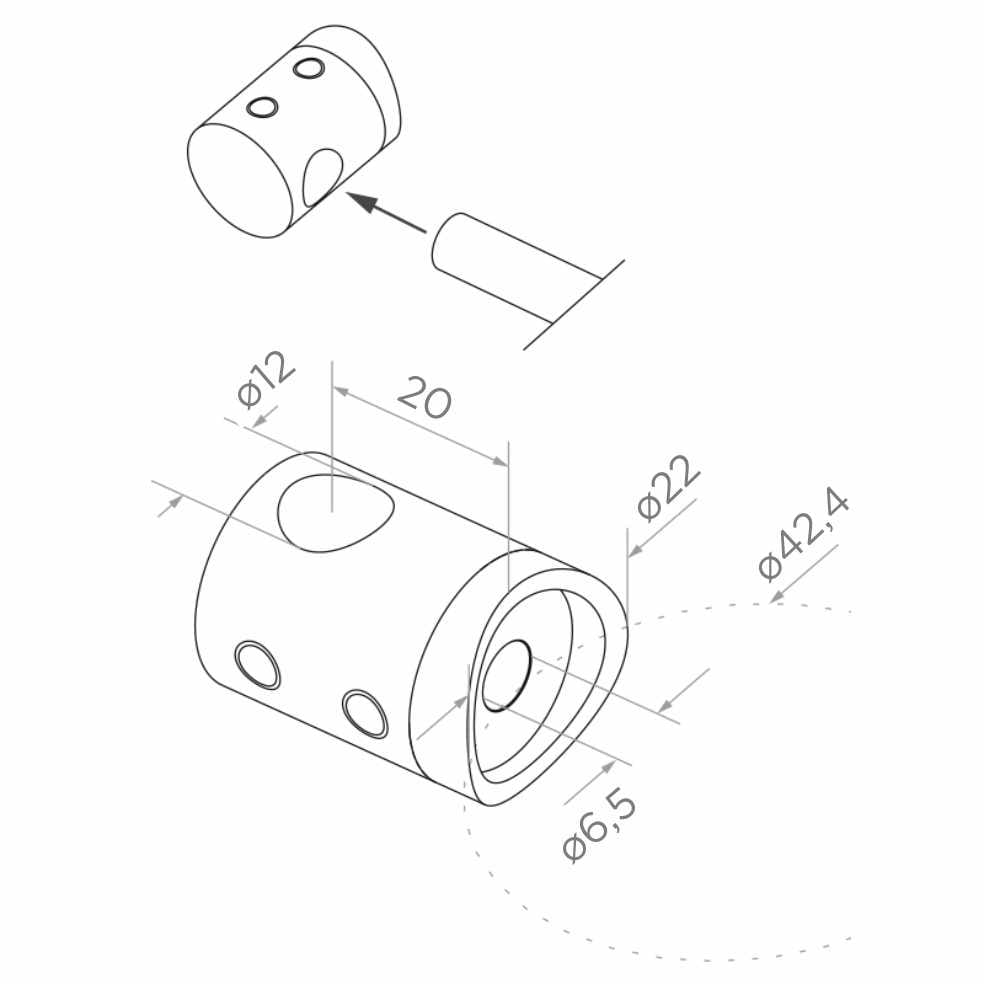

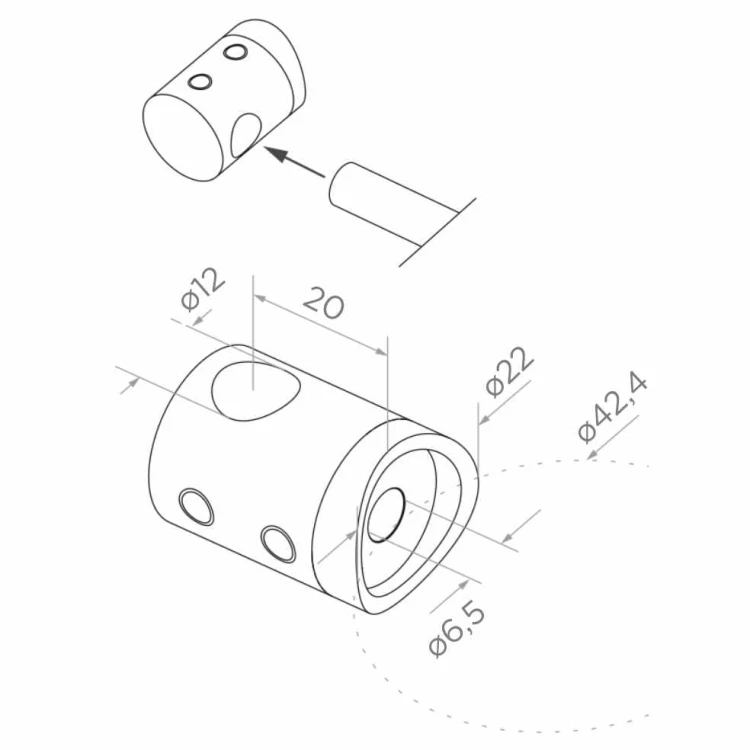

Rod bracket: tube hole ø12 mm, external body diameter ø22 mm, reach from post centre 20 mm, mounting hole ø6.5 mm, fits post ø42.4 mm.

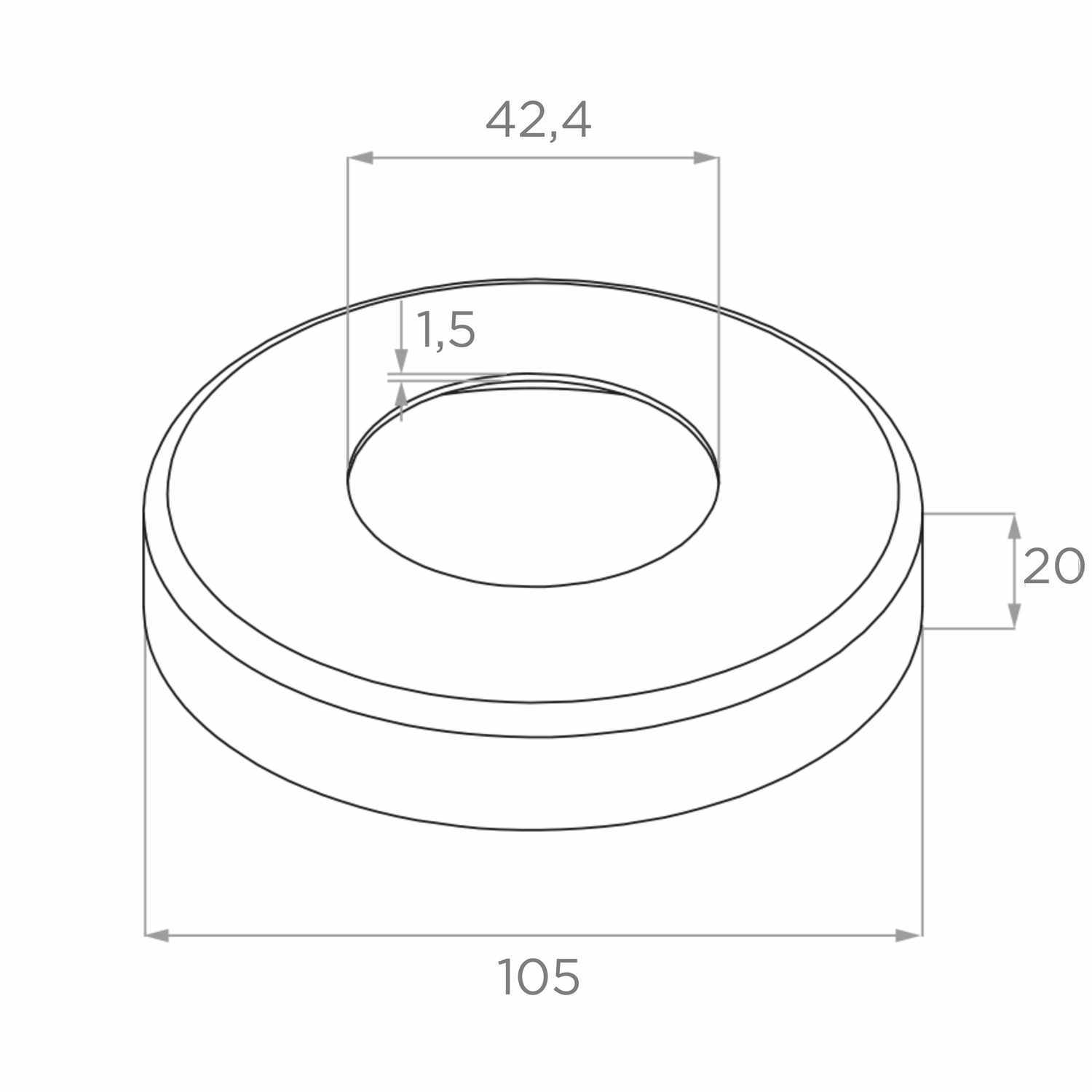

Base cover plate: external diameter 105 mm, internal hole ø42.4 mm, height 20 mm, wall thickness 1.5 mm.
Installation advantages
- Handrail connectors are not permanently fixed — possibility of adjustment and adaptation to site conditions
- In case of uneven floor the post can be shortened to required height
- Universal design — post suits various architectural projects
- AISI 304 stainless steel guarantees high resistance to corrosion and mechanical damage
- Polished finish (satin) ensures elegant, modern appearance
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
