PSG corner balustrade post in AISI 304 stainless steel ø 42.4 mm H960 - floor mounting
Description

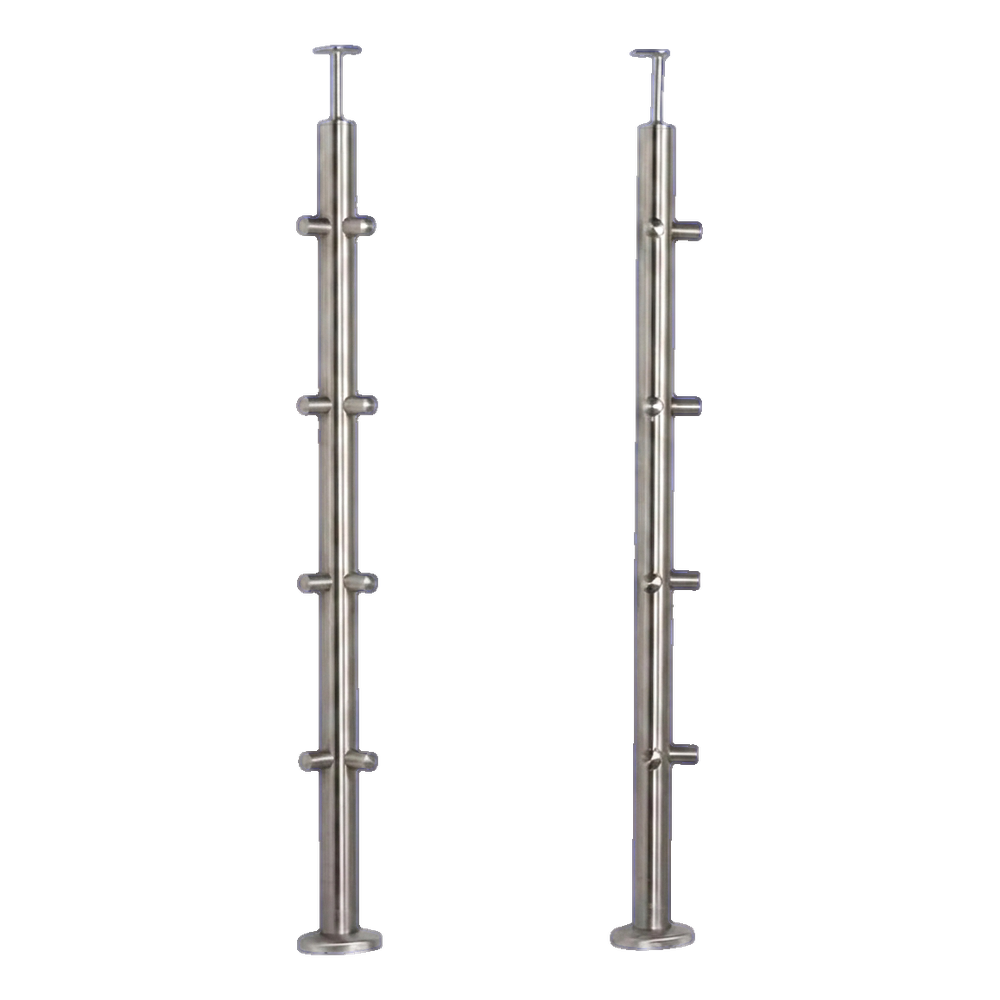

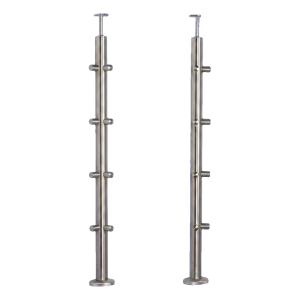

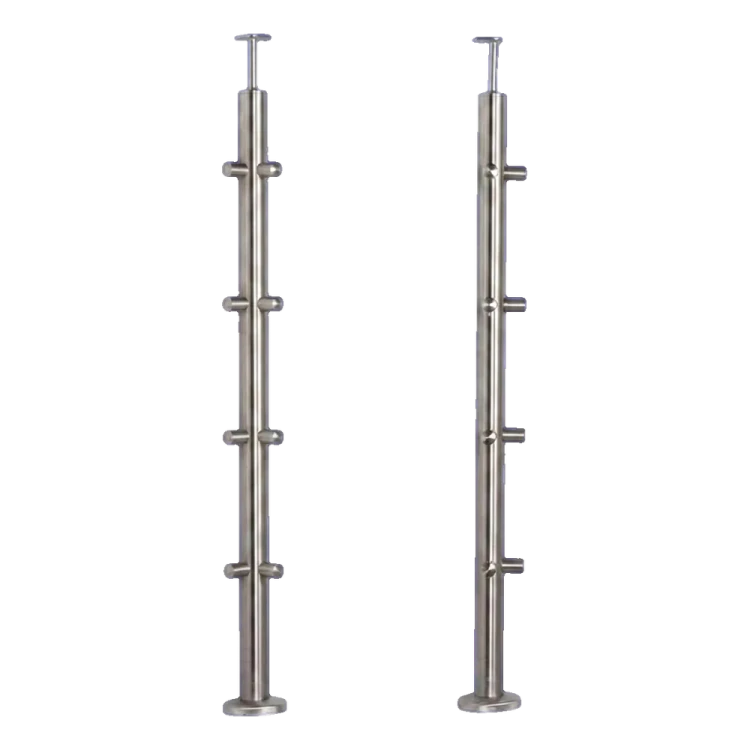

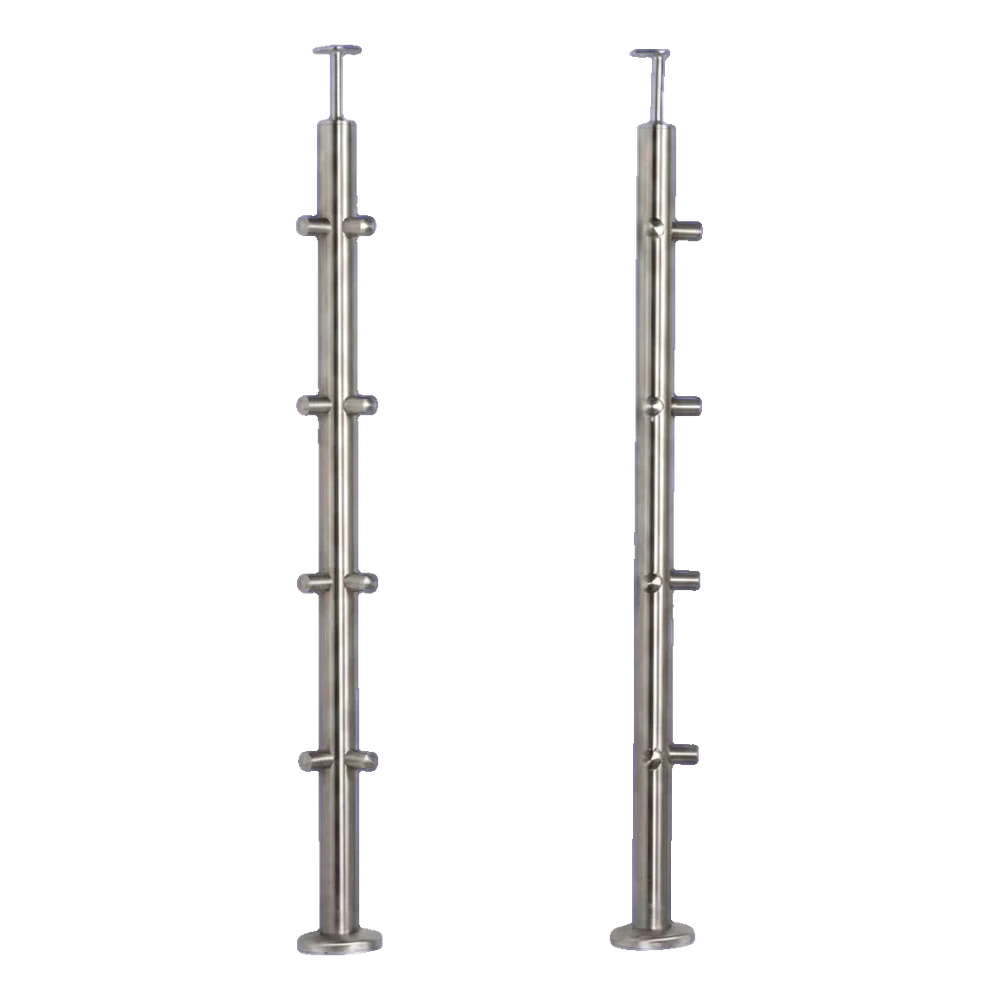

PSG corner balustrade post in AISI 304 stainless steel ø 42.4 mm H960 - floor mounting
Corner balustrade post PSG made from brushed AISI 304 stainless steel is a solid and aesthetic foundation for modern balcony and stair balustrades. Thanks to the corner construction with 8 brackets (4 on each side) designed for infill tubes ø 12 mm, the post forms a complete corner point of the ø 42.4 mm balustrade system. Floor mounting ensures stability, whilst the satin finish gives the whole assembly an elegant, professional appearance.
The handrail connectors and fixings included in the set are not permanently assembled - it is recommended to bond them with anaerobic adhesive for stainless steel. This gives the installer the ability to adjust and adapt the post to site conditions, and if necessary - to shorten the post, for example due to uneven flooring.
Technical parameters of the post
- Material: AISI 304 stainless steel, satin finish (brushed)
- Post diameter: ø 42.4 mm
- Wall thickness: 2 mm
- Post height: 960 mm
- Total height with handrail: 1002.4 mm
- Mounting hole spacing: 190 mm (4 levels, every 190 mm)
- Distance of lowest hole from base: 200 mm
- Threaded holes: 2 × M6 at each level, arranged at 90°
- Number of brackets: 8 pcs. (4 + 4, on both sides of the corner)
- Infill tube diameter: ø 12 mm
- Mounting: floor mounting
- Weight: 3.16 kg
- EAN: 5903313202107

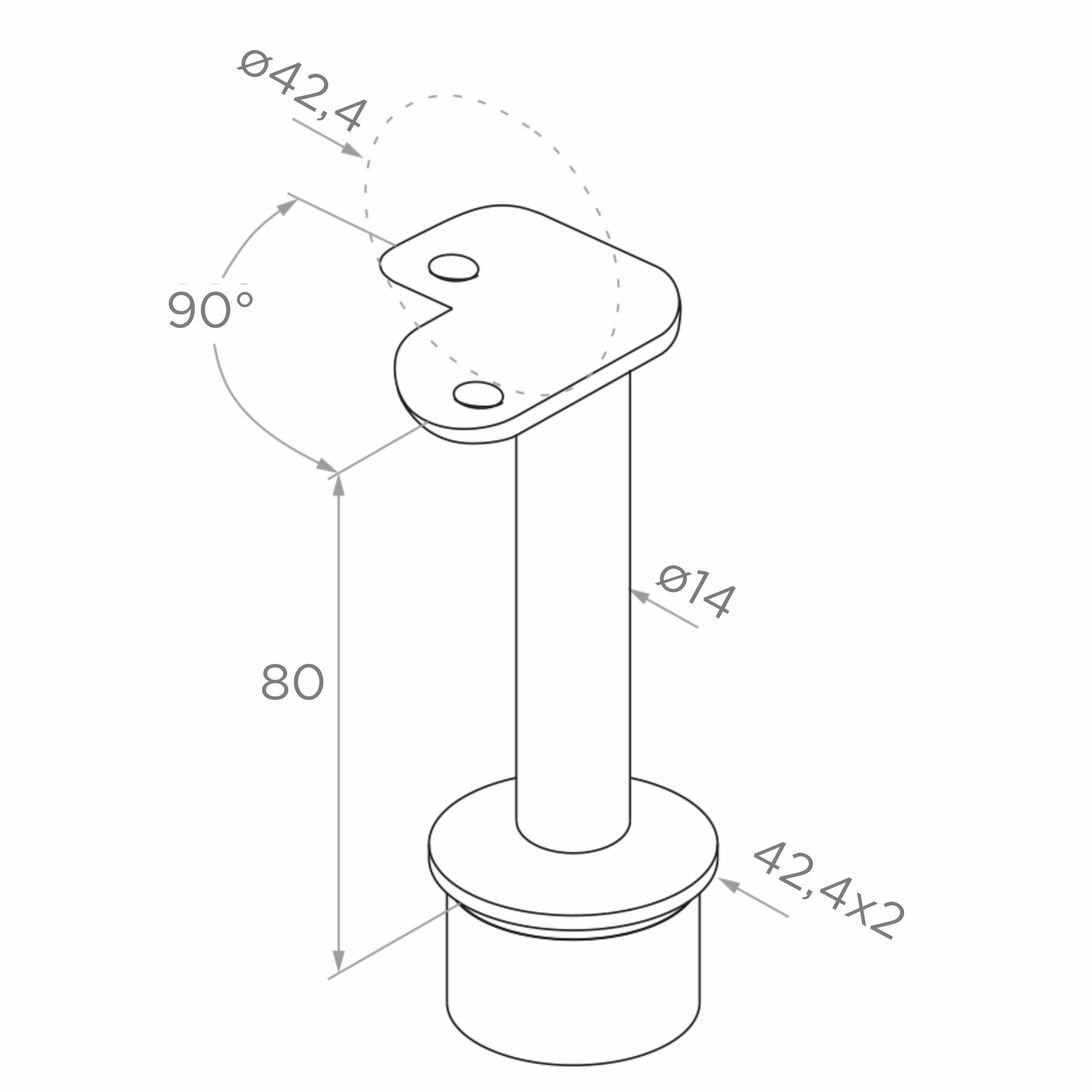

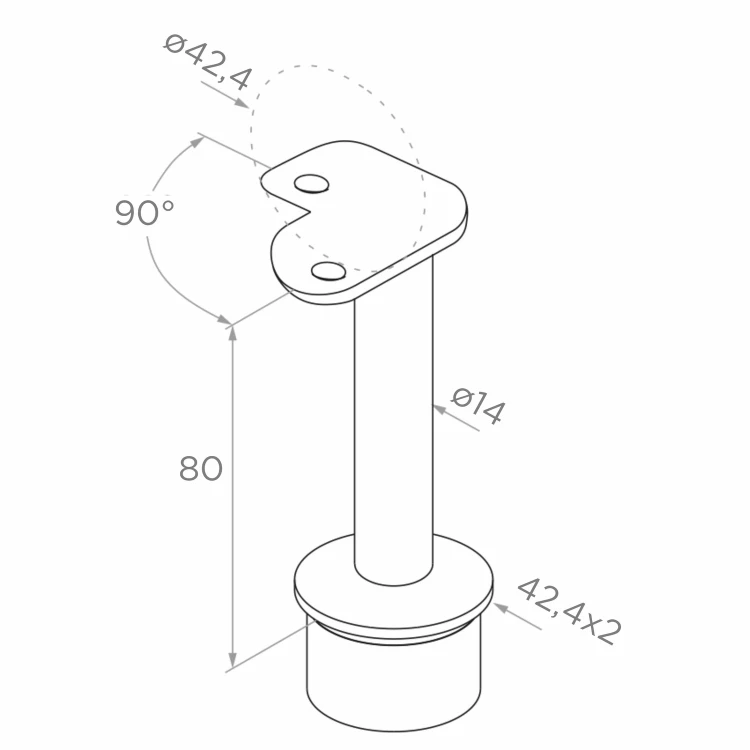

Corner handrail bracket
Bracket mounted on top of the post, equipped with a corner plate bent at 90°, enabling support of the handrail at the balustrade corner.
- Stem height: 80 mm
- Stem diameter: ø 14 mm
- Base diameter (fits tube): ø 42.4 × 2 mm
- Handrail diameter: ø 42.4 mm
- Mounting plate angle: 90°

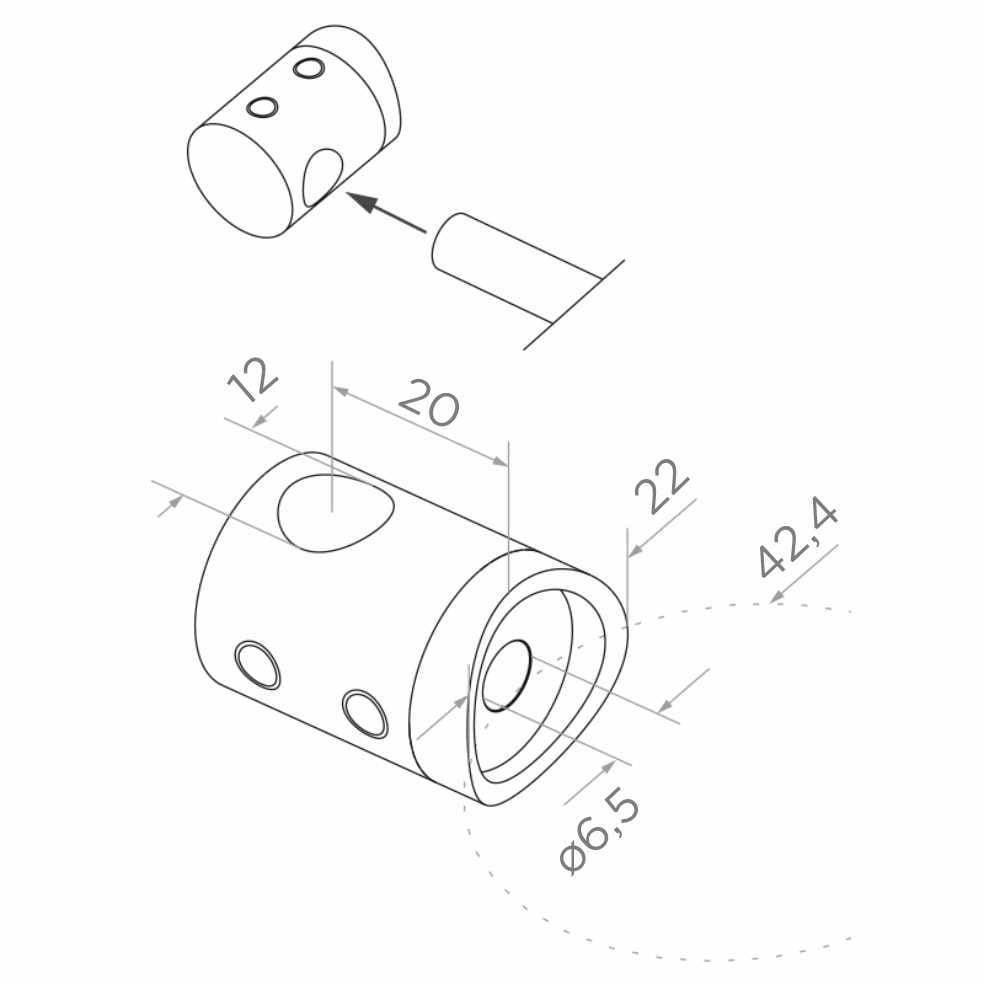

Through bracket for infill tube
Bracket with undercut adapted to the post tube, fixed with a screw through the mounting hole. Allows through routing of infill tubes.
- Tube hole diameter: ø 12 mm
- External bracket diameter: ø 22 mm
- Depth (distance to hole axis): 20 mm
- Mounting hole diameter: ø 6.5 mm
- Tube adaptation: ø 42.4 mm

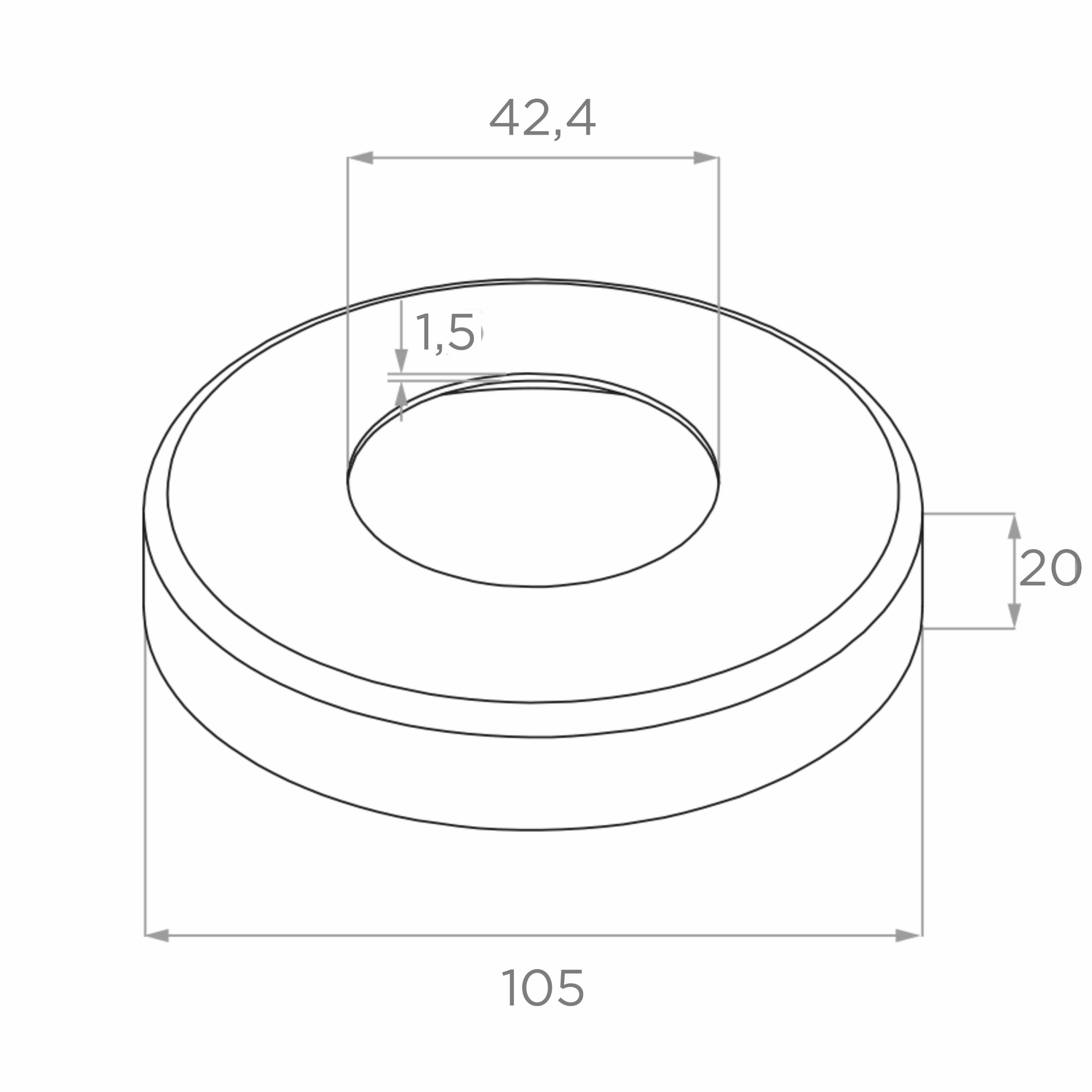

Base cover (rosette)
Cover fitted to the bottom of the post, concealing the floor mounting point and giving the finish a professional appearance.
- External diameter: 105 mm
- Internal hole diameter: ø 42.4 mm
- Height: 20 mm
- Sheet thickness: 1.5 mm

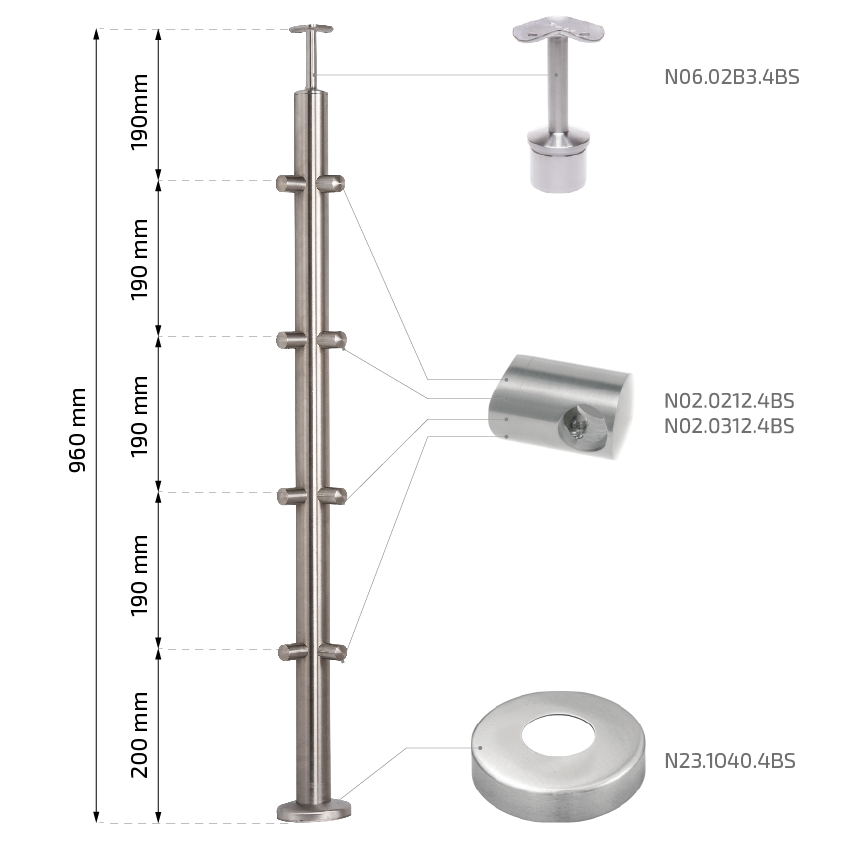

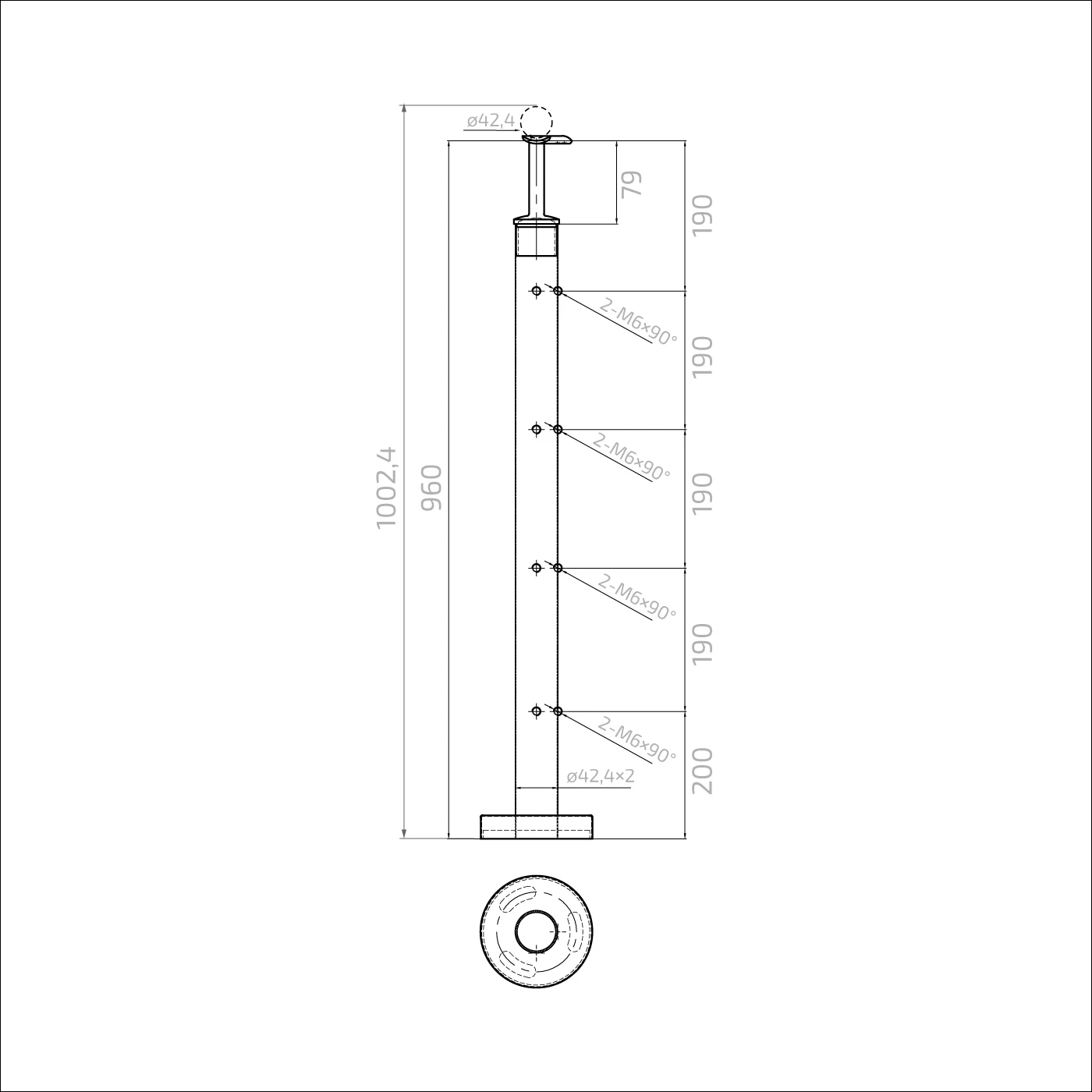

Post dimensional diagram

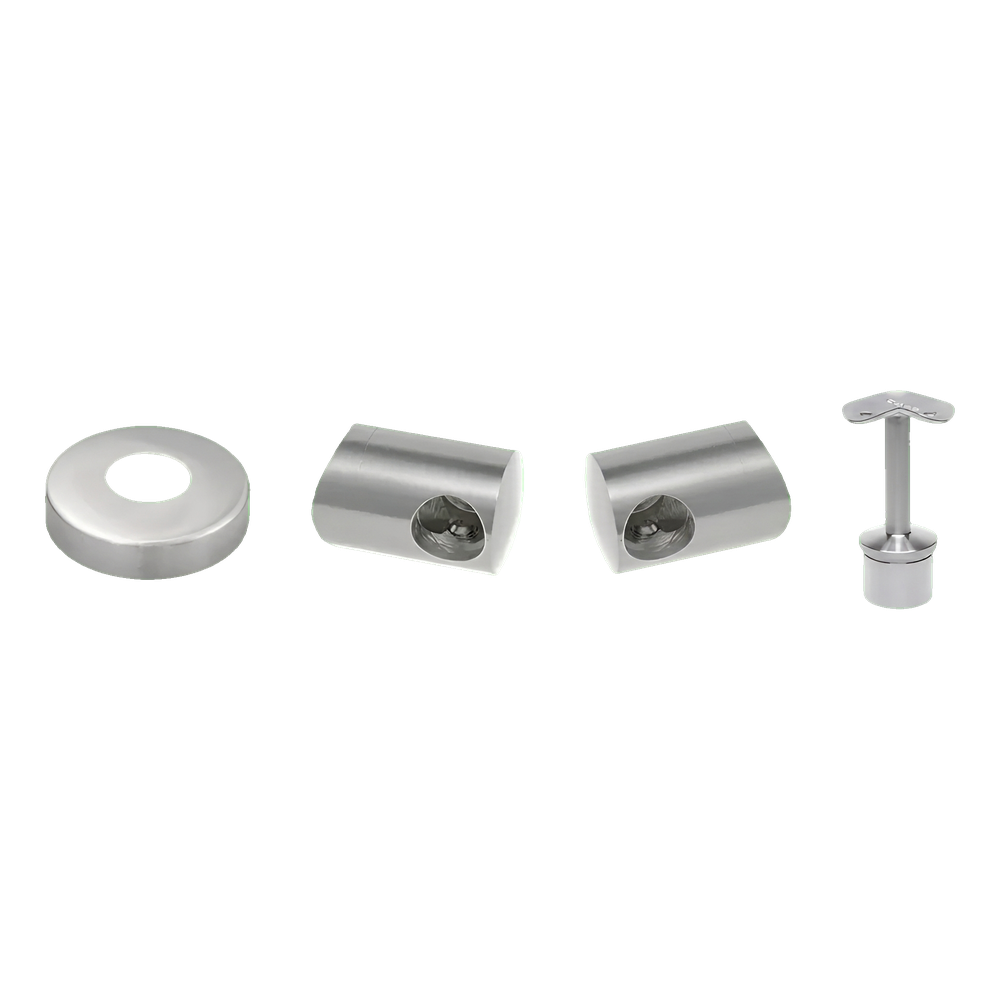

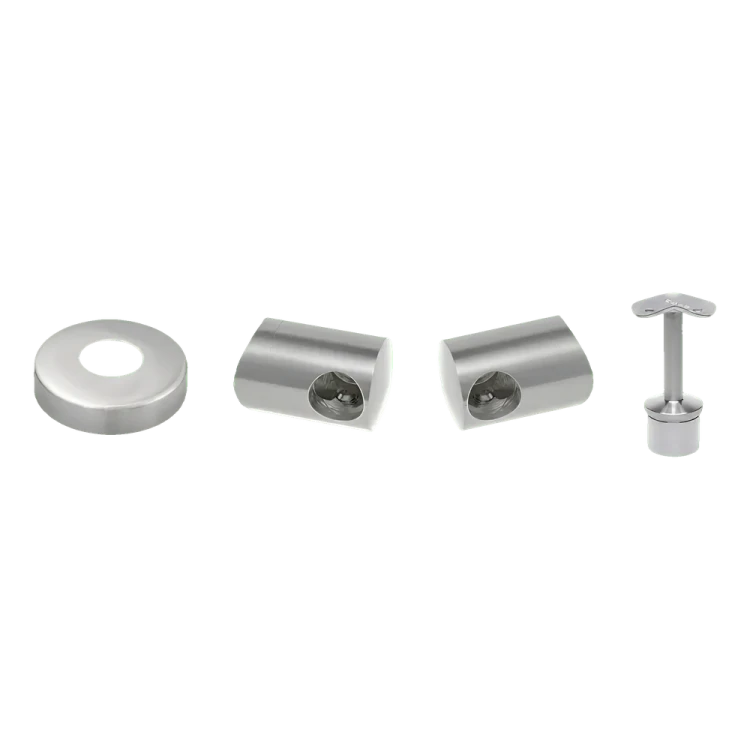

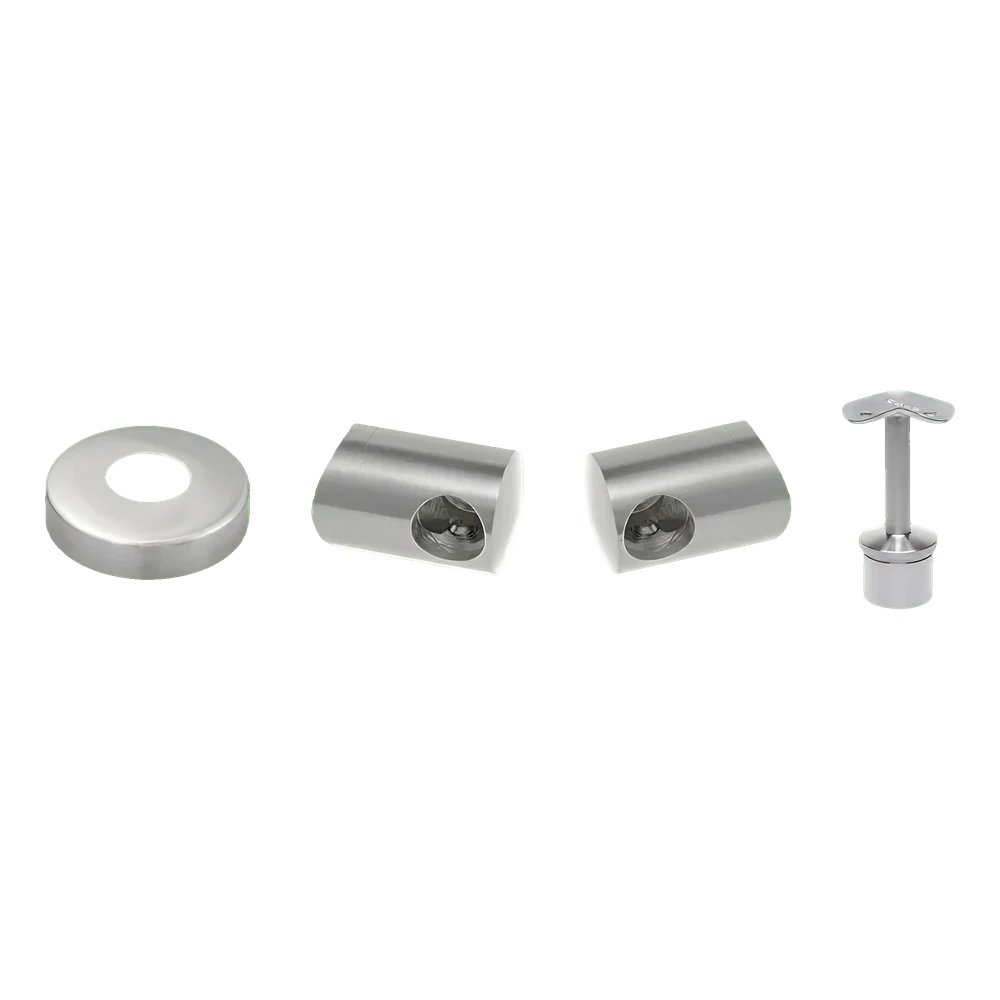

Set contents
- Corner post ø 42.4 × 960 mm — 1 pc.
- Base cover (rosette) — 1 pc.
- Through brackets for ø 12 mm tube — 2 × 4 pcs. (8 pcs. total)
- Corner handrail bracket — 1 pc.
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Material | AISI 304 |
