PSG brass bottom guide for suspended gates 110 mm
Leave feedback on the product

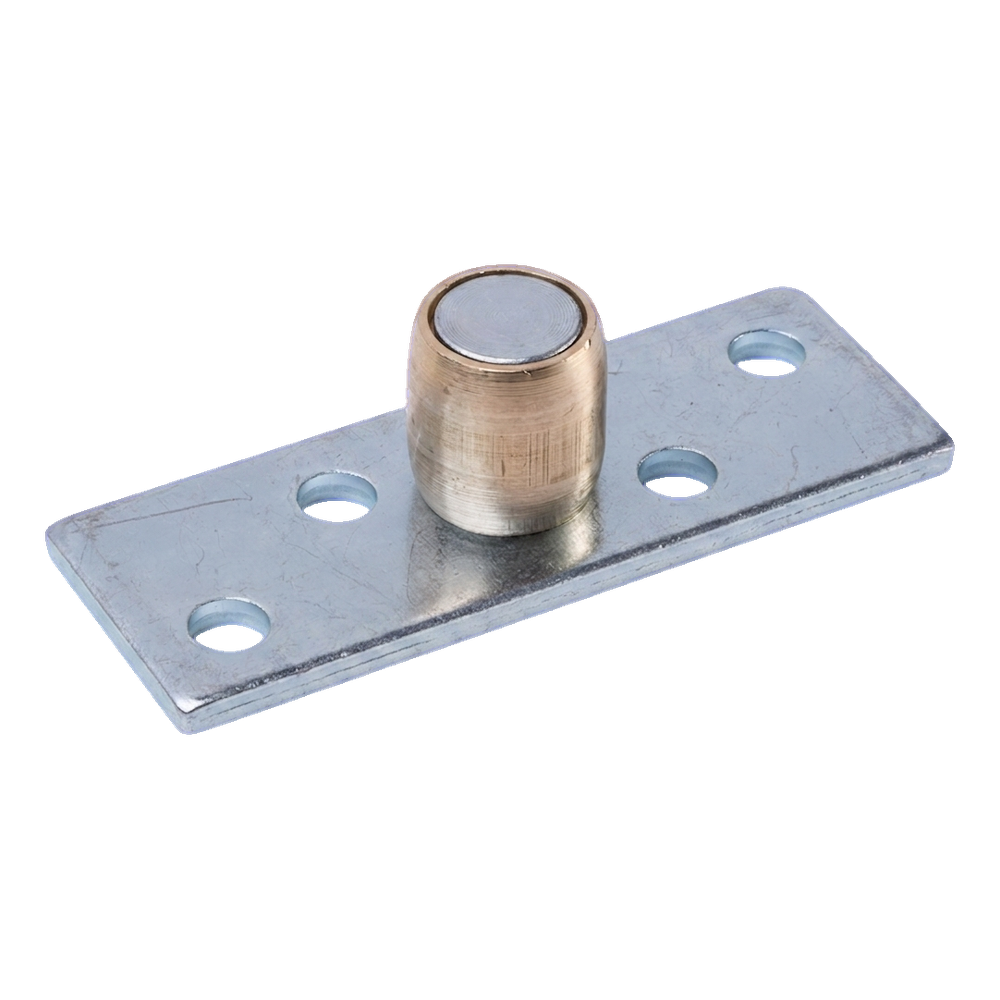

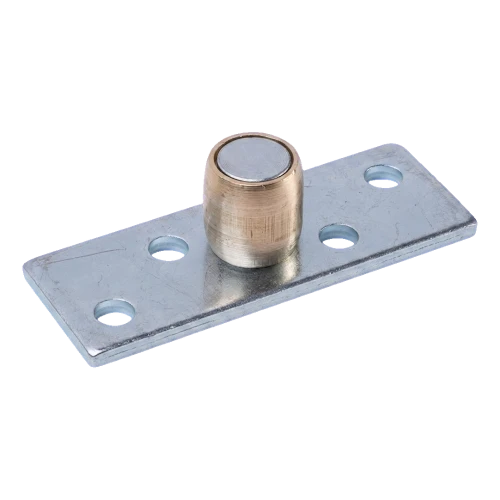

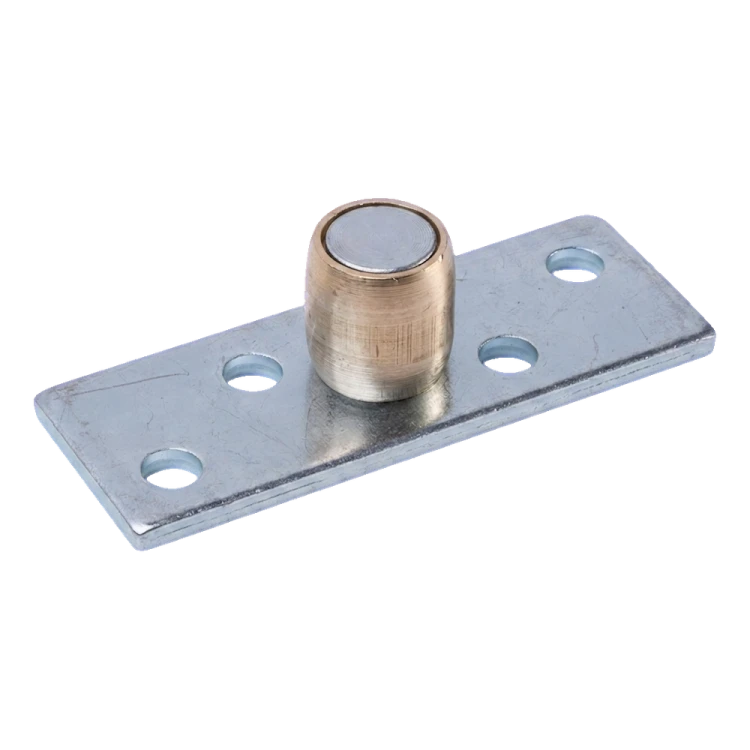

PSG brass bottom guide for suspended gates. Brass pin on galvanised steel plate. Plate length 110 mm, 4 mounting holes. Weight 0.25 kg. Corrosion resistant.
Product code: 001-334
Description
PSG brass bottom guide for suspended gates 110 mm
PSG brass bottom guide is a robust guiding element designed for suspended gates. The brass pin mounted on a galvanised mounting plate ensures smooth and quiet operation of sliding gates, minimising friction and mechanical wear. Thanks to the use of brass, the element is corrosion resistant and characterised by long service life — even in outdoor conditions exposed to moisture and varying temperatures.
The rectangular plate with four mounting holes enables secure and quick fixing to the substrate using standard screws. The compact construction and universal hole spacing ensure the guide fits most popular suspended gate systems.
Technical specification
- Manufacturer: PSG
- Application: suspended gates — bottom guide
- Pin material: brass
- Plate material: galvanised steel
- Plate length (L): 110 mm
- Number of mounting holes: 4
- Weight: 0.25 kg
- EAN: 5901289675680
Advantages for the installer
- Brass — self-lubricating material, reduces friction and noise during gate operation
- Corrosion resistance — years of operation without the need for replacement
- Quick installation — 4 holes in the plate allow secure fastening to the floor or threshold
- Universality — compatibility with popular suspended gate systems
