PSG bottom gate hinge with bearing ø 40 mm steel
Description
PSG bottom gate hinge with bearing ø 40 mm steel

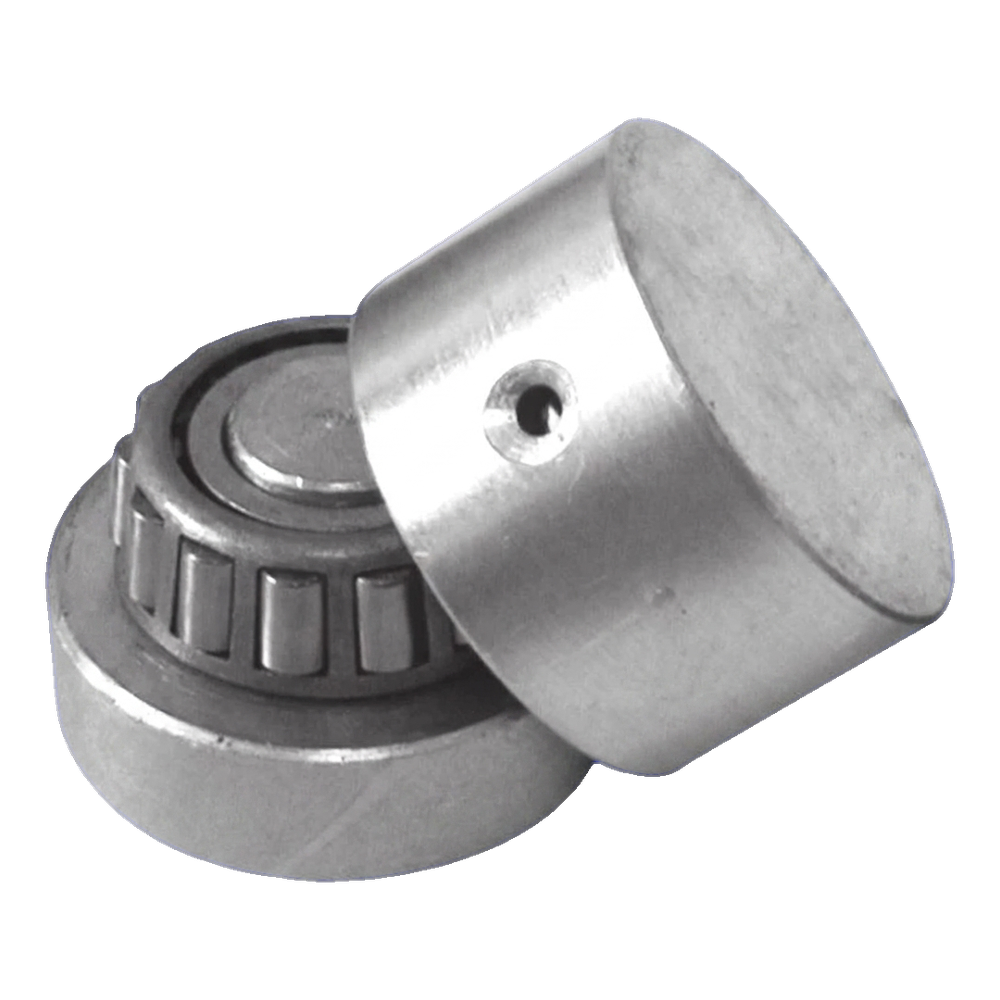

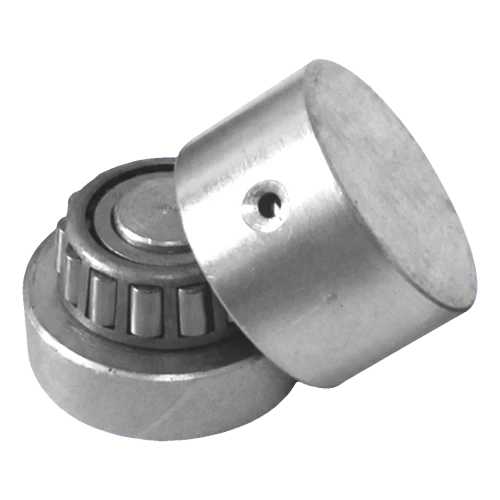

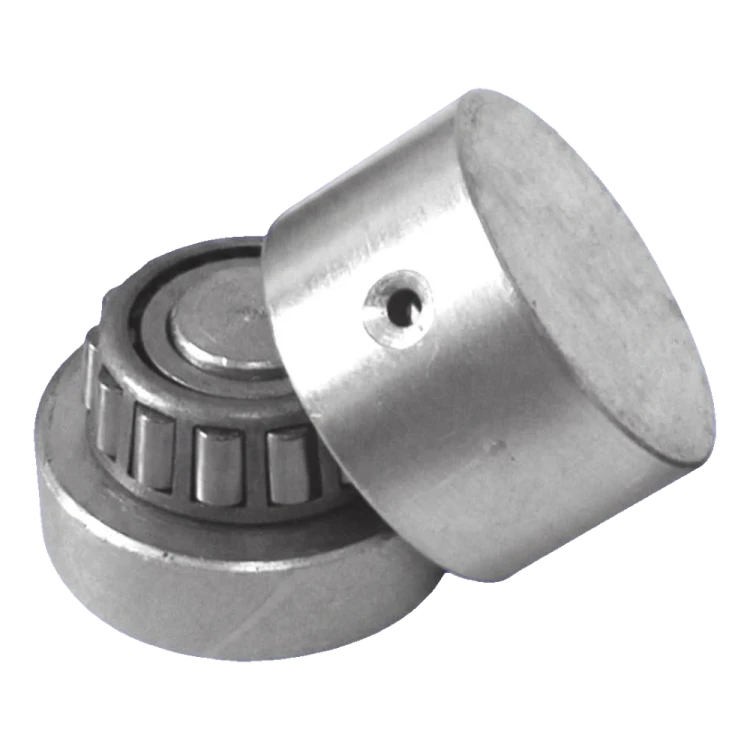

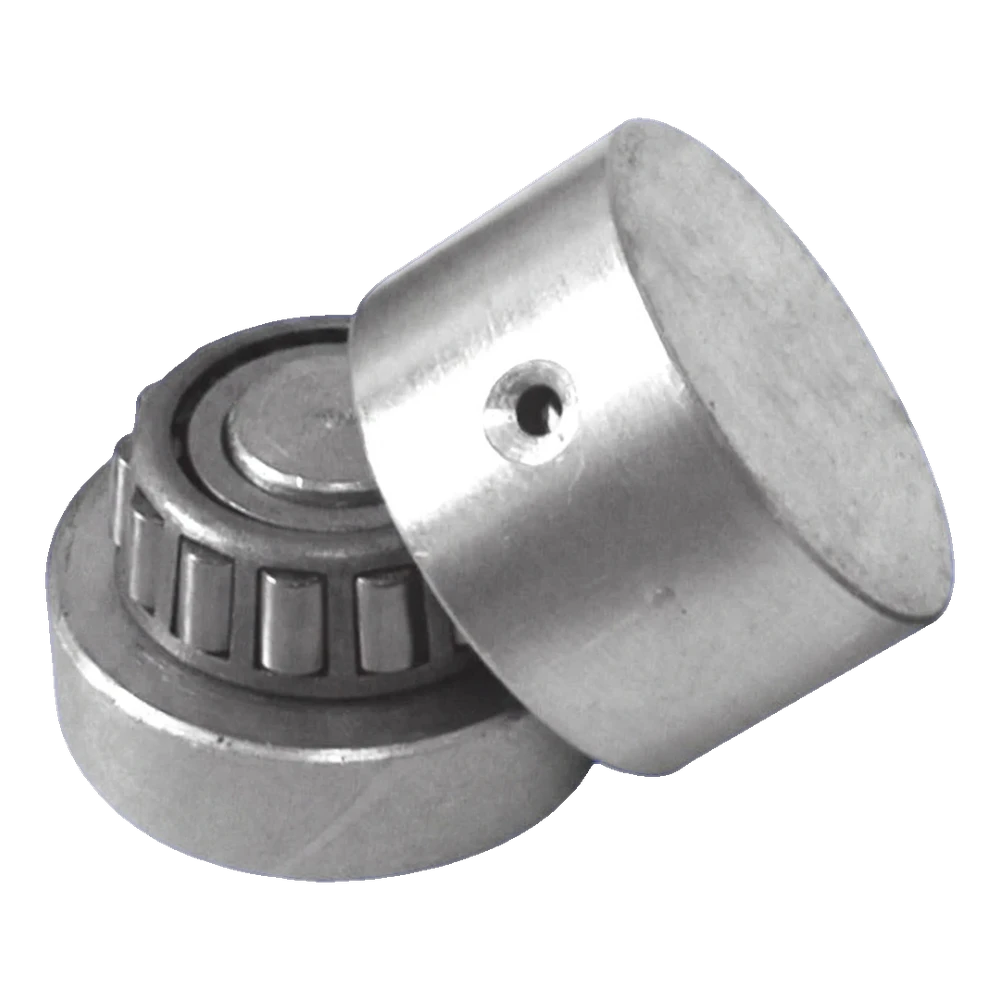

Steel bottom hinge ø 40 mm by PSG is a robust, bearing-equipped mounting element designed for professional hanging of swing gates and wicket gates. The use of tapered roller bearing ensures smooth leaf operation even under heavy loads — the allowable load for a pair of hinges on a 2 m leaf is as much as 160 kg.

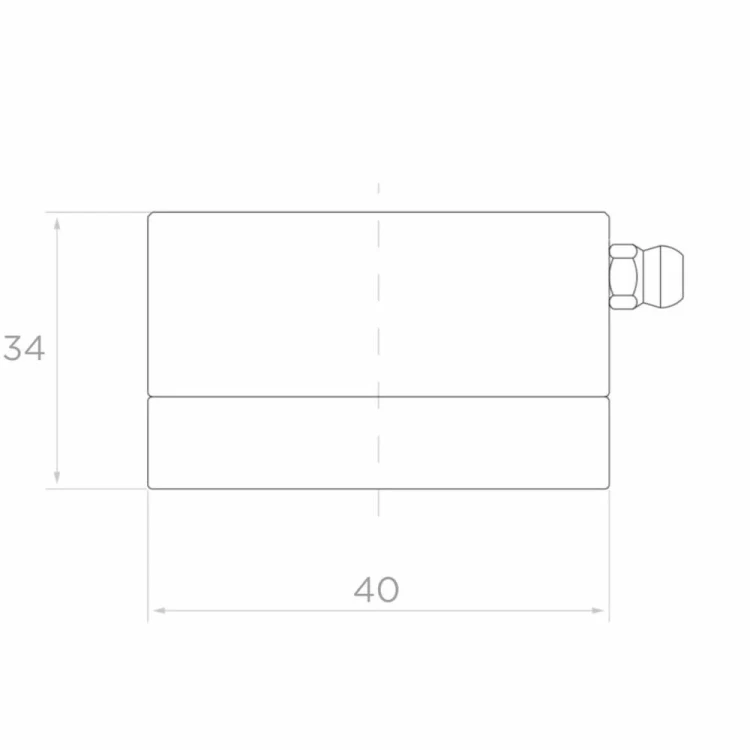

The hinge is equipped with a grease nipple, which enables easy lubrication of the internal bearing without dismantling — this extends the component's service life and minimises maintenance costs. The compact construction with a diameter of 40 mm and height of just 34 mm allows installation even in limited space of a post or gate frame.
Technical specifications
- Type: bottom hinge for swing gate / wicket gate
- Pin diameter: ø 40 mm
- Overall height: 34 mm
- Material: steel
- Bearing: tapered roller bearing
- Grease nipple: yes — enables maintenance without dismantling
- Allowable load for hinge pair (2 m leaf): 160 kg
- Weight: 0.28 kg
- EAN: 5901289676342
Application and installation
The hinge is designed for installation as the bottom element of a gate hinge pair. Used in swing gates and garden wicket gates where reliable operation with cyclical opening and closing is required. The tapered roller bearing effectively transfers both axial loads (leaf weight) and radial loads (lateral forces), which translates into long-term, trouble-free operation. Regular access to the grease nipple allows optimal hinge operation to be maintained for many years even in outdoor conditions.
Technical data
| Diameter | 40 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
