PSG bottom bearing gate hinge for swing gate fi 50 mm steel
Description

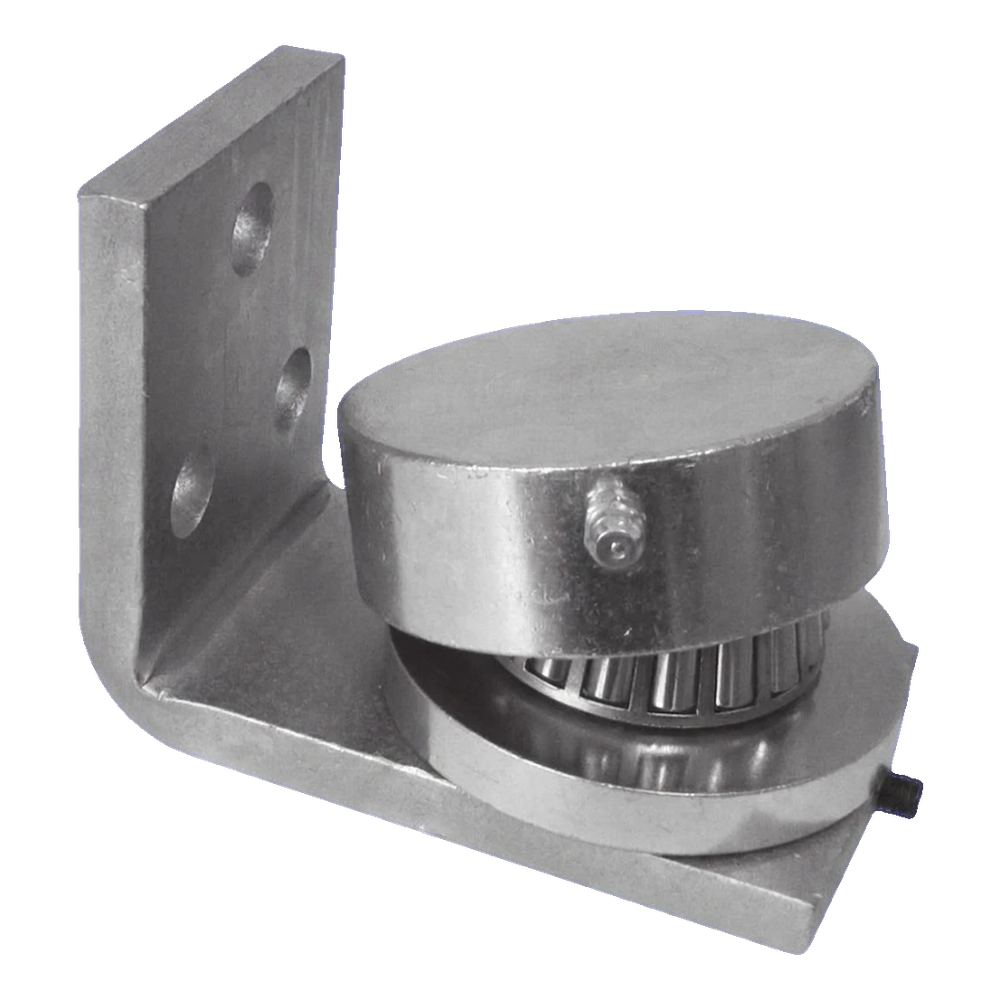

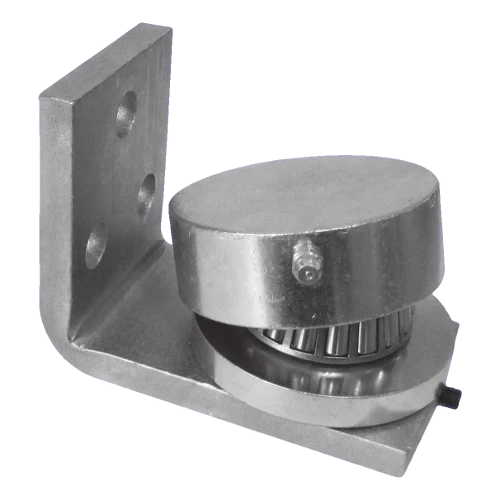

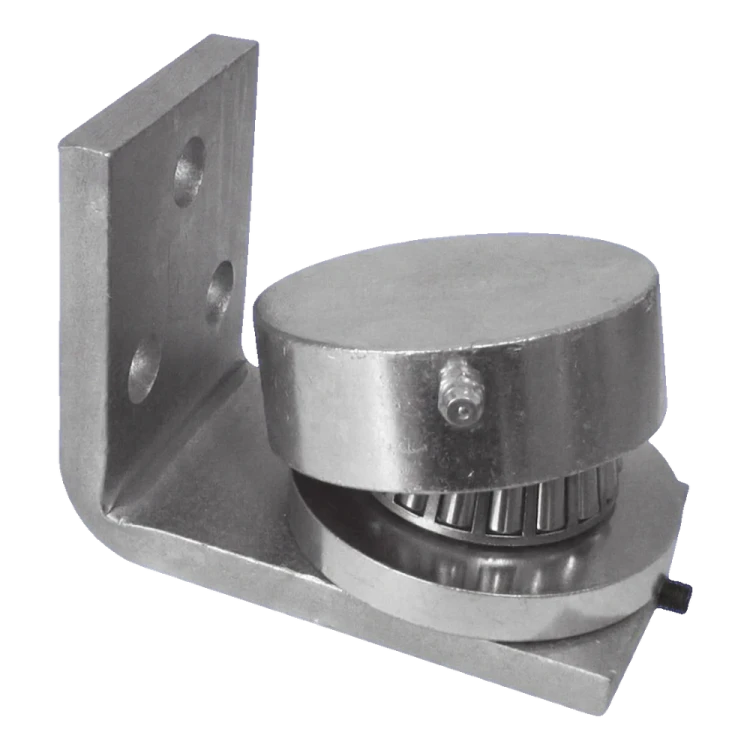

PSG bottom bearing gate hinge for swing gate fi 50 mm steel
Steel bottom bearing hinge fi 50 mm by PSG is a robust gate leaf suspension element for gates or wickets. Thanks to the use of tapered bearings, it ensures smooth and quiet operation even under heavy load — a pair of hinges can support a gate leaf weighing up to 250 kg with a length of 2 m. This solution is aimed at professional installation teams looking for reliable components for swing gates and wickets in property fencing.
The hinge is equipped with a mounting plate with four mounting holes, enabling stable and quick bolting to a post or gate frame. Steel construction guarantees high mechanical resistance and durability in outdoor conditions. The element is designed for bottom mounting — it works with the corresponding top hinge, forming a complete gate leaf suspension pair.
Technical parameters
- Manufacturer: PSG
- Type: bottom bearing hinge
- Pin diameter: fi 50 mm
- Material: steel
- Length (L): 83 mm
- Height (H): 39 mm
- Weight: 0.843 kg
- Allowable load of hinge pair (2 m gate leaf): 250 kg
- Equipment: mounting plate with holes
- Bearing: tapered bearings
- EAN: 5901289676373
Application
The hinge is designed for mounting swing gates and wickets in residential and industrial fencing. The bearing construction performs well wherever smooth gate leaf operation is required with heavy infill mass — steel, wooden or panel. Ideal for projects where durability and reliability are important over years of operation in atmospheric conditions.
Technical data
| Diameter | 50 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
