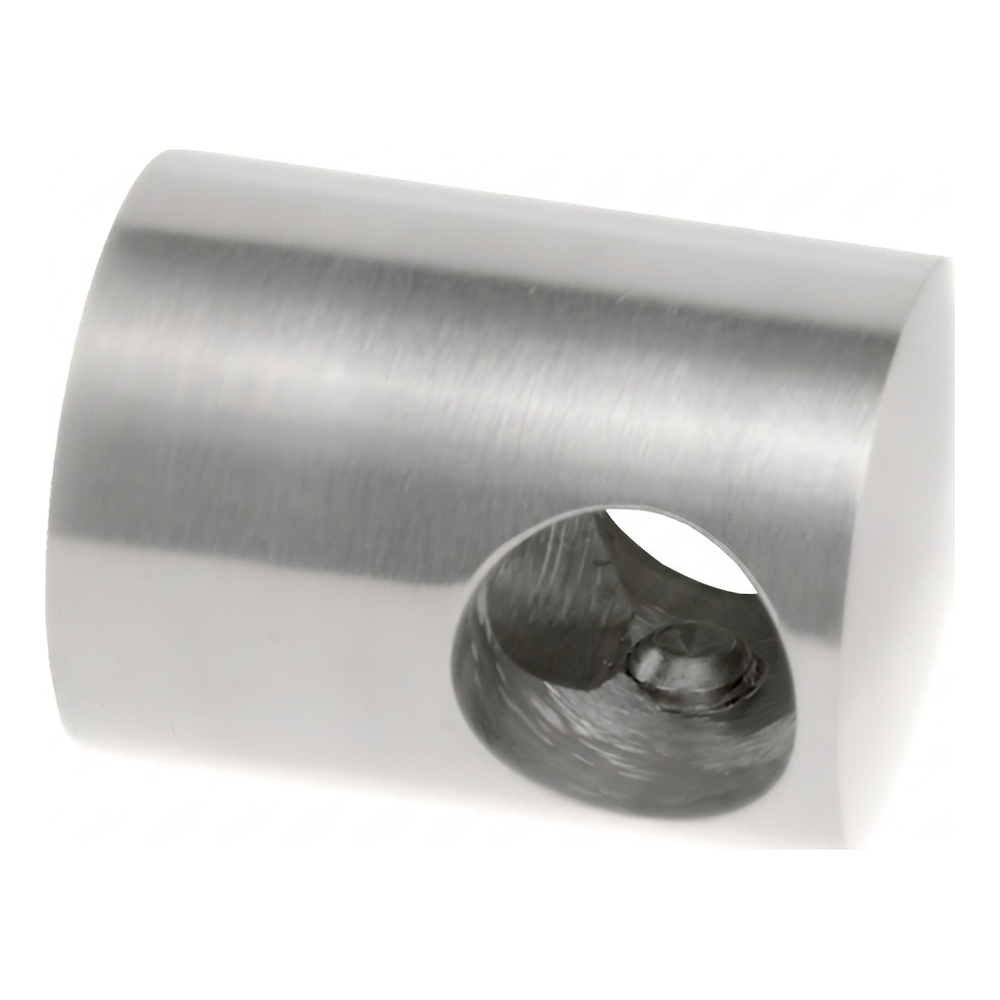

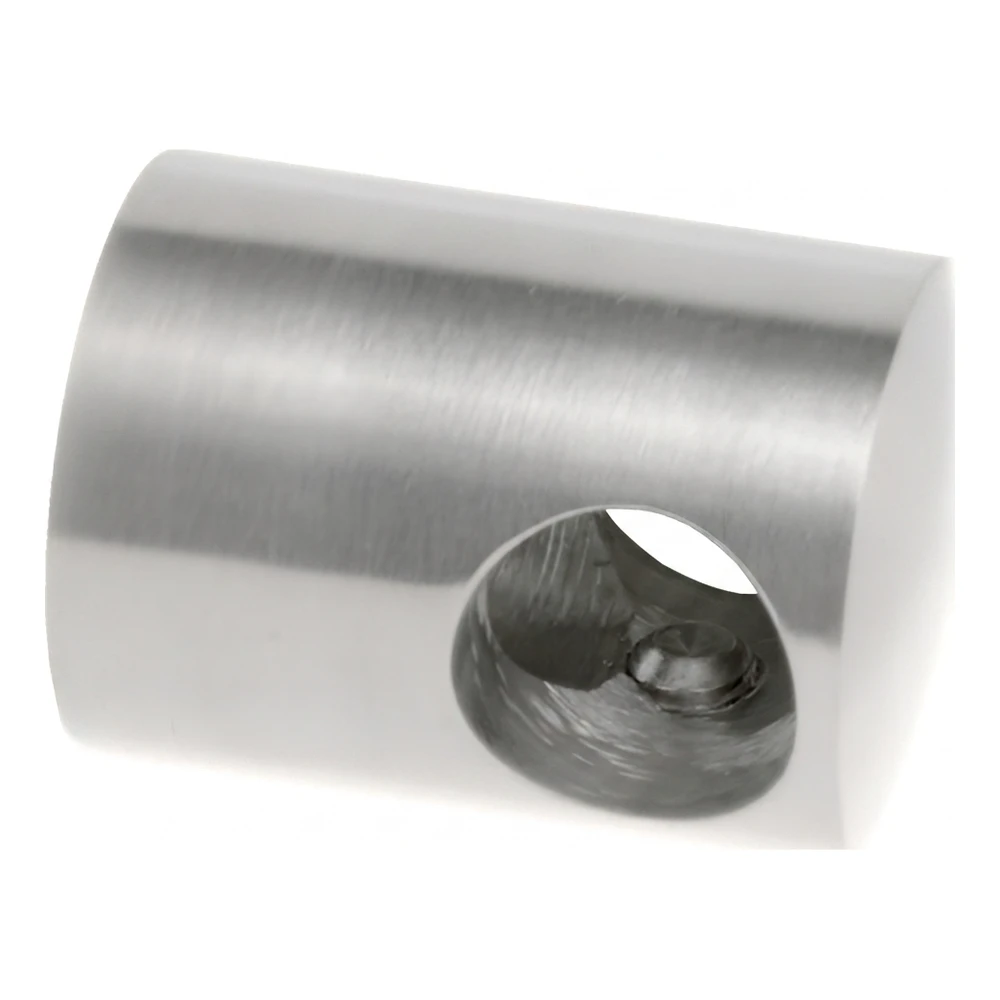

PSG balustrade through-fixing bracket fi 12 mm for flat surface – AISI 304 stainless steel satin finish
Description
PSG balustrade through-fixing bracket fi 12 mm for flat surface – AISI 304 stainless steel satin finish
Through-fixing bracket for fi 12 mm rod designed for mounting on flat surfaces in stainless steel balustrade systems. The component connects horizontal rod infill with posts, ensuring stability and rigidity of the entire balustrade structure. Thanks to its satin finish, the bracket harmoniously complements other elements of the flat system.
Body manufactured from AISI 304 stainless steel guarantees high corrosion resistance — both for interior applications and outdoor building use. The cylindrical shape with through hole enables smooth passage of rod or tube through the bracket, which accelerates installation and facilitates precise positioning of the infill.

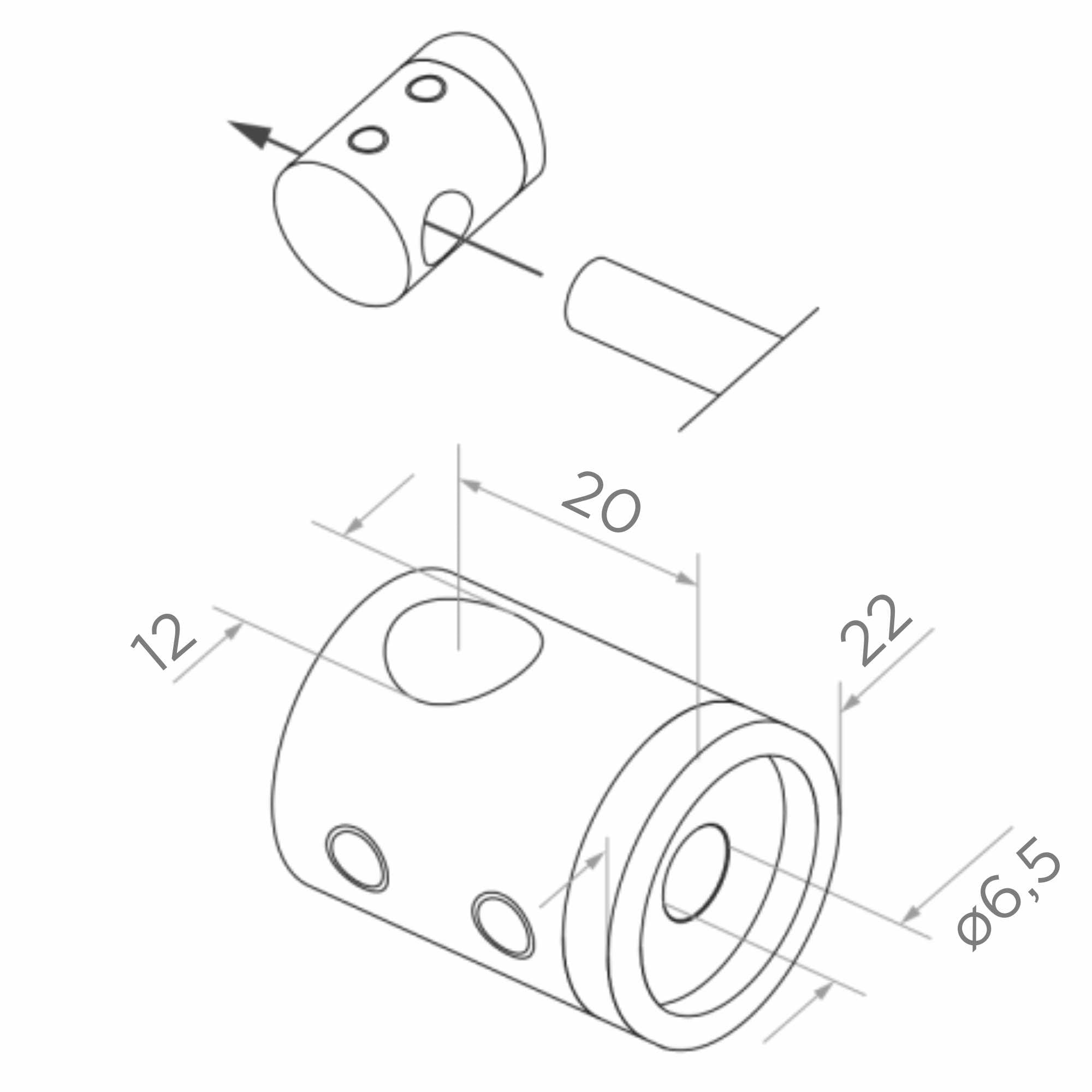

Dimensions and technical data
- Through hole diameter (fi rod/tube): 12 mm
- External body diameter: 22 mm
- Axis distance from mounting surface: 20 mm
- Base mounting hole diameter: ø 6.5 mm
- Material: AISI 304 stainless steel
- Finish: satin
- System: flat (surface mounting)
- Fixing method: screwing
- Weight: 0.052 kg
- EAN: 5901289671231
Application and installation
The bracket is mounted directly to the balustrade post or other flat surface. The rod with 12 mm diameter passes through the through hole and is stabilised by a grub screw located in the side wall of the body. This solution allows for quick assembly and possible adjustment of infill element spacing without requiring additional specialist tools — an Allen key is sufficient.
Product dedicated to professional stainless steel balustrade systems — ideal as a rod infill element for stair, balcony and terrace balustrades.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
