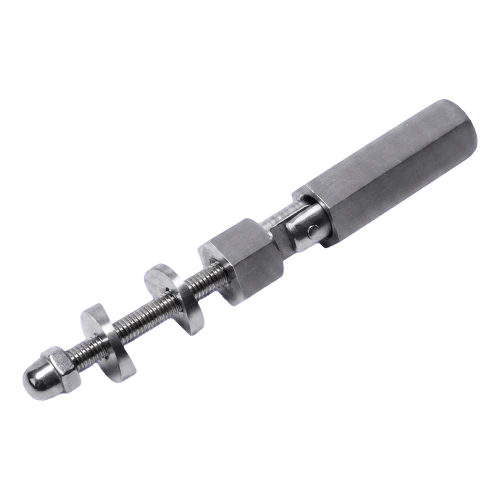

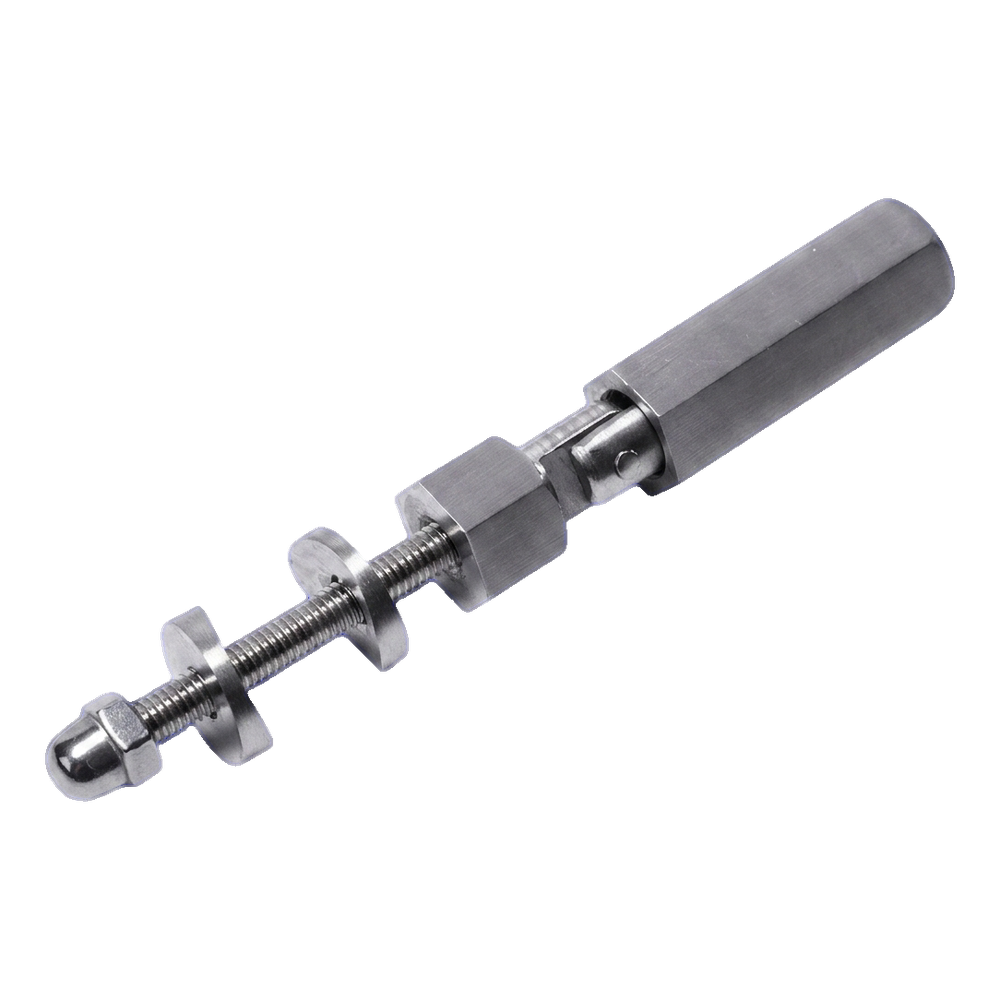

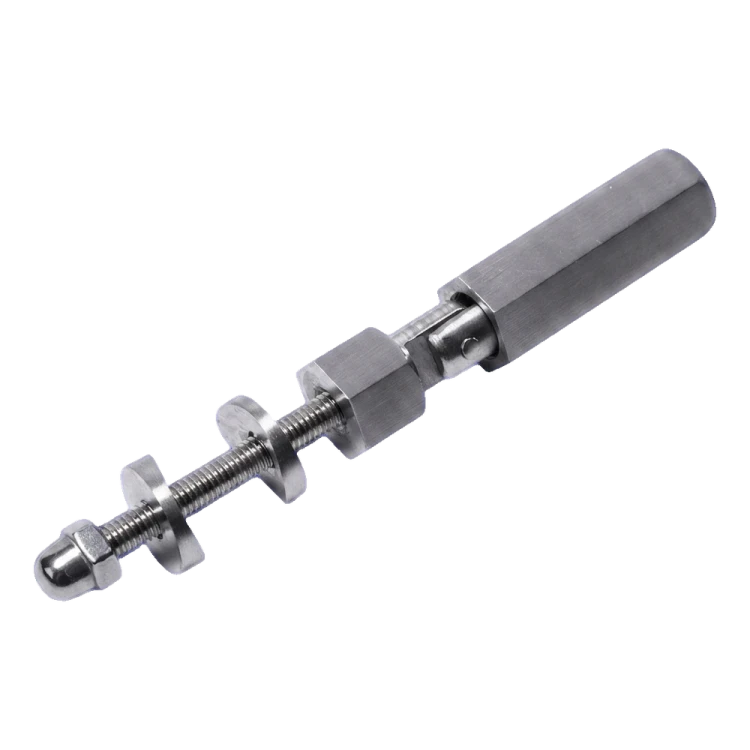

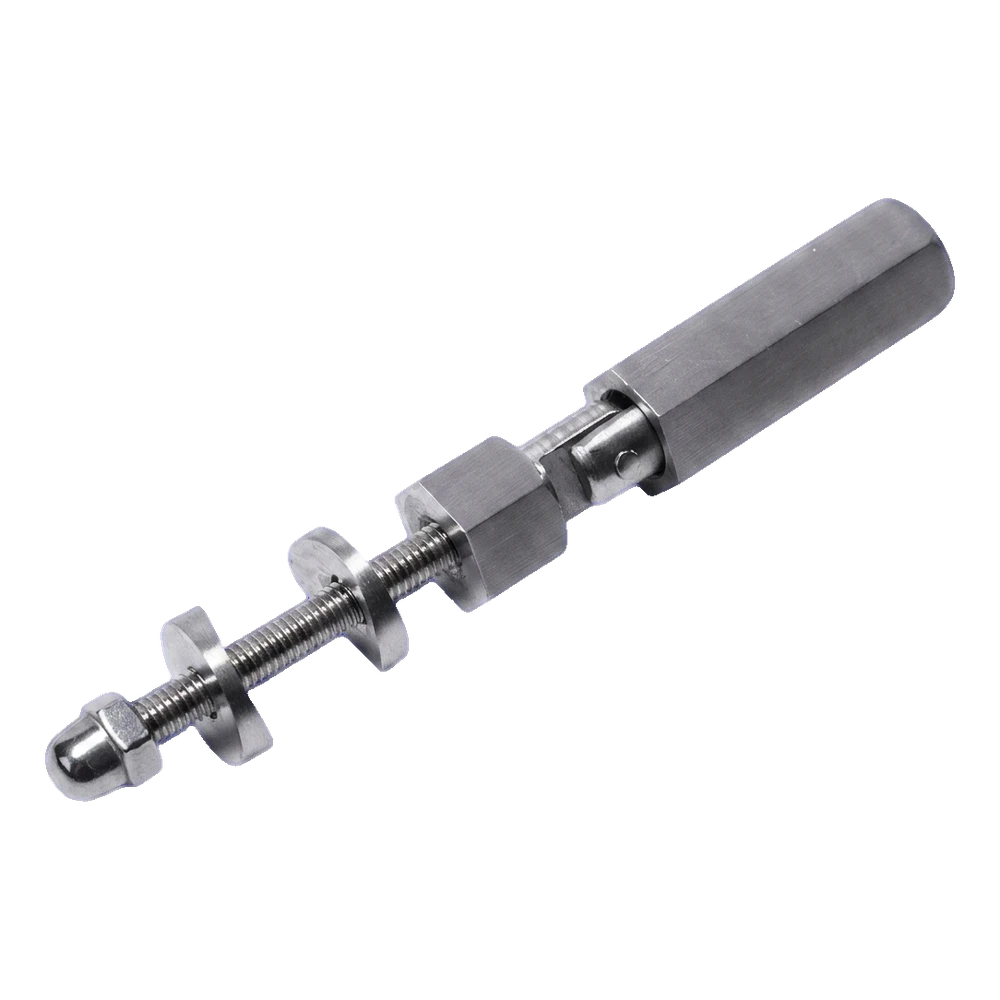

PSG articulated bracket for 6mm cable – mounting to 42.4mm tube or surface, AISI 304 satin
Description
PSG articulated bracket for 6mm cable – mounting to 42.4mm tube or surface, AISI 304 satin
Articulated bracket for cable designed for mounting in cable balustrade systems. Enables securing a cable with 6mm diameter to a balustrade post with 42.4mm diameter or directly to a surface. The articulated construction provides free adjustment of cable angle, facilitating installation on stairs, ramps and balustrades with non-standard geometry.
The bracket requires no welding — mounting is done by screwing in, which significantly reduces installation time and eliminates the need for surface treatment after welding. This is an ideal solution for installation teams who value speed and repeatability when working with steel balustrade systems.

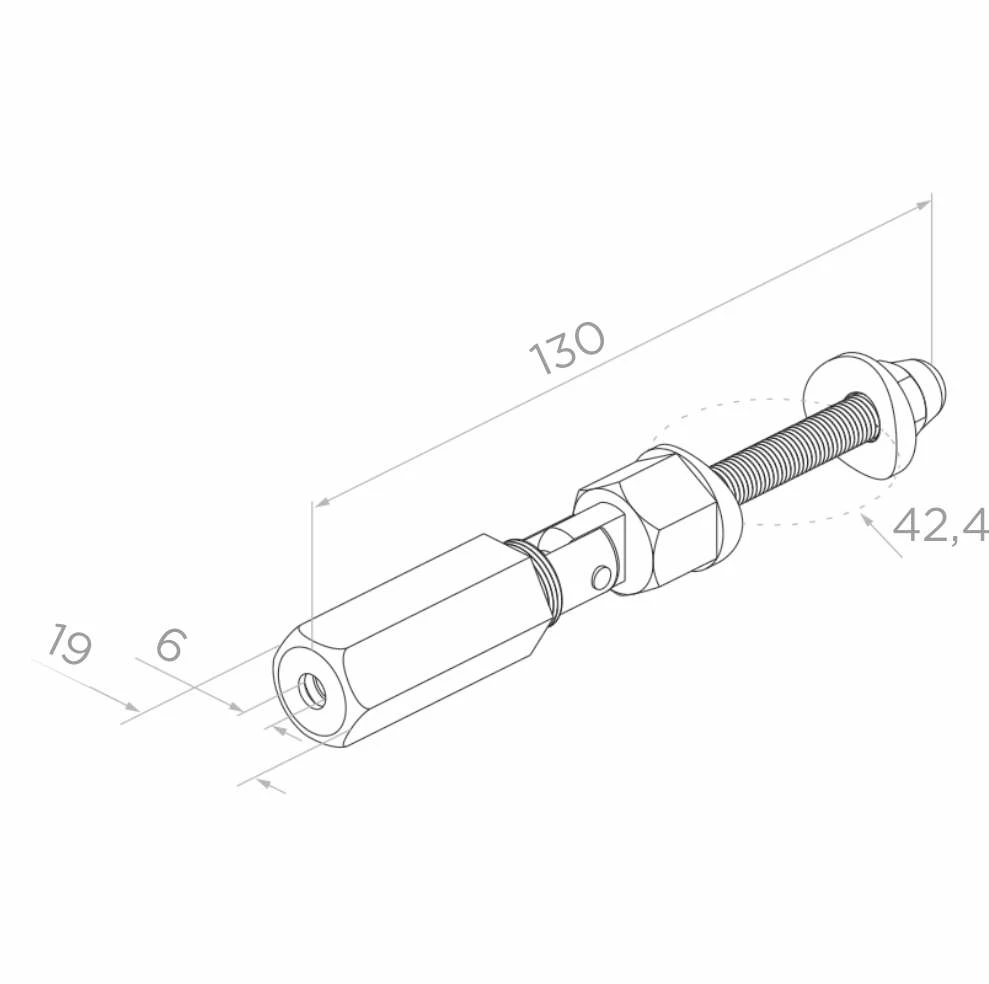

Dimensions and technical data
- Overall length: 130mm
- Cable diameter: 6mm
- Mounting tube diameter: 42.4mm
- Body size (hex): 19mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.13kg
- Mounting type: universal — tube or surface
- Mounting: threaded (without welding)
Application and compatibility
The bracket serves as a cable starting element in the balustrade infill system. It works with balustrade posts with 42.4mm diameter — the most popular standard in stainless steel balustrade systems. The ability to mount to surfaces makes it a universal solution both in applications with load-bearing tubes and in configurations where the cable is mounted directly to walls, posts or structural elements.
Made from AISI 304 stainless steel with satin finish ensures high corrosion resistance and an aesthetic, matt appearance consistent with other stainless steel balustrade system components. This makes the bracket suitable for both internal and external installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
