PSG adjustable welding hinge M20 steel for gates and wickets
Description
PSG adjustable welding hinge M20 steel for gates and wickets
Adjustable welding hinge M20 from PSG is a durable mounting element designed for swing gates and wickets. Steel construction with M20 thread ensures high load capacity — a pair of hinges will support a leaf weighing up to 105 kg at 2 m length. Height adjustment using a nut allows precise gate positioning without dismantling, which translates to faster job completion and convenient on-site servicing.

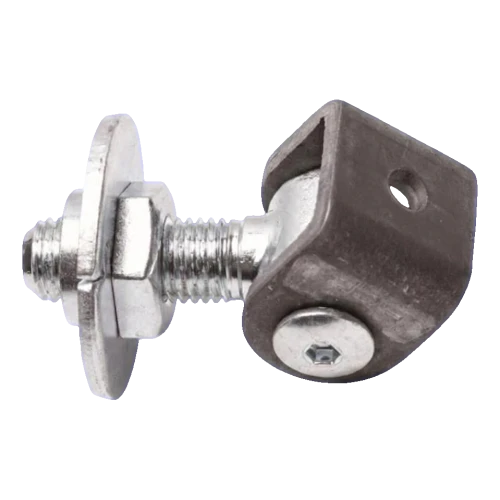

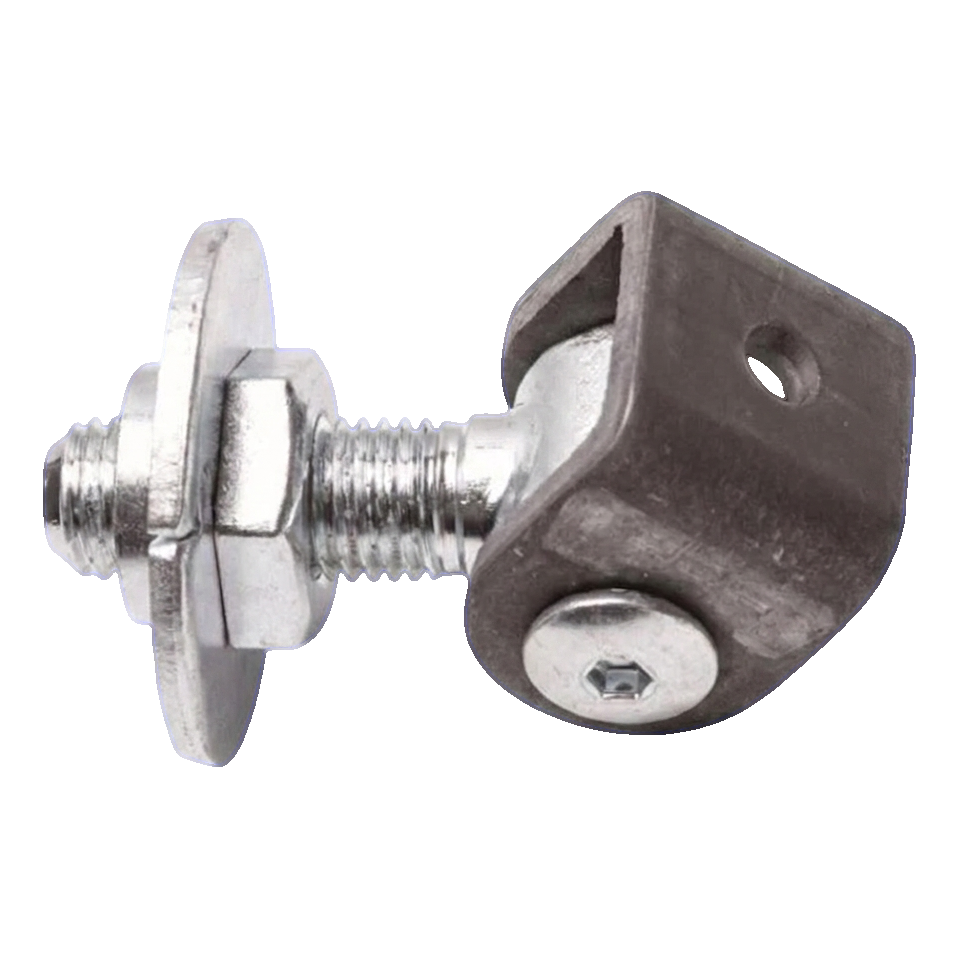

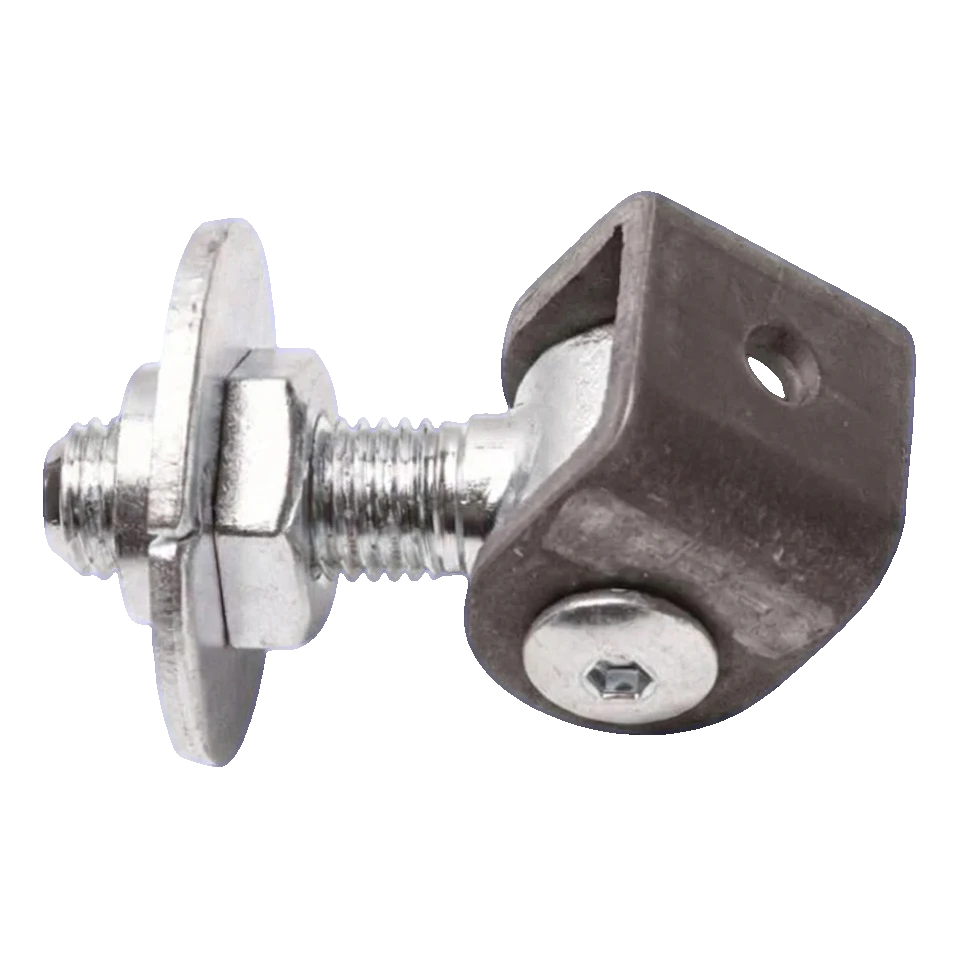

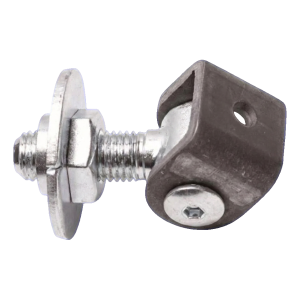

The hinge consists of a black ear for welding into the gate leaf and a galvanised bolt with thrust washer, which is mounted in the post. Thanks to threaded adjustment, compensation for leaf sagging or thermal deformation is possible at any time — without the need for welding or component replacement.
Application and installation
The hinge is designed for welding — the ear is mounted directly in the gate or wicket leaf structure, and the bolt is fitted in the post. Universal design means the product suits various types of swing gates and wickets. The construction has been designed to work in changing weather conditions, making it suitable for year-round external applications.

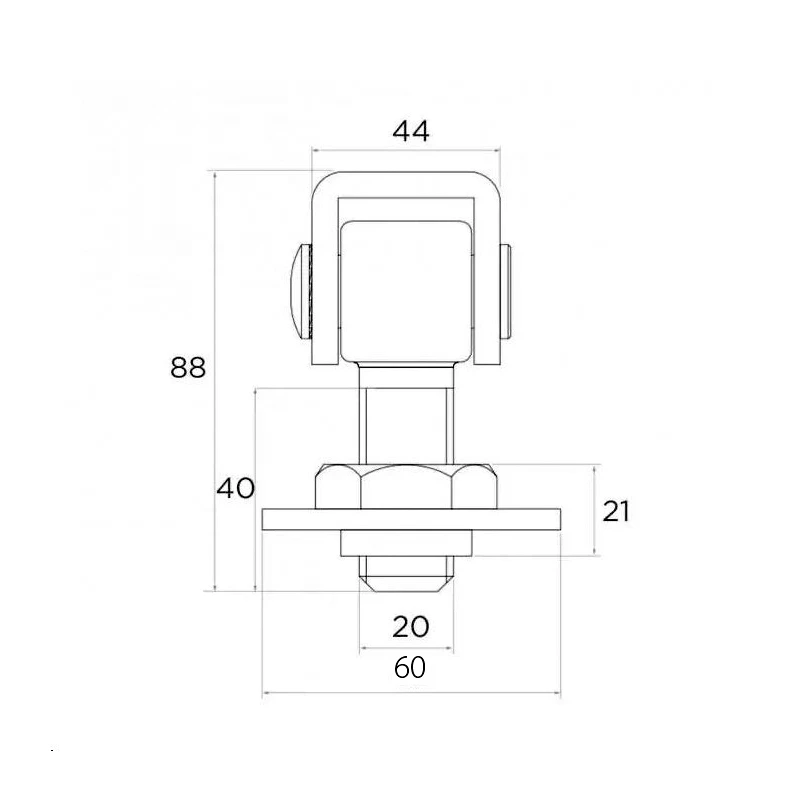

Dimensions and technical parameters
- Manufacturer: PSG
- Material: steel
- Corrosion protection: galvanised (ear black)
- Thread: M20
- Total length: 88 mm
- Bolt length: 40 mm
- Ear width: 44 mm
- Thrust washer diameter: 60 mm
- Adjustment assembly height: 21 mm
- Permissible load of hinge pair (2 m leaf): 105 kg
- Weight: 0.48 kg
- EAN: 5901289675925
Benefits for installers
- Adjustment without dismantling — precise gate positioning with M20 thread nut reduces service time and eliminates costly corrections
- Load capacity up to 105 kg per pair of hinges with 2 m leaf — secure mounting even for heavier swing gates
- Weather resistance — galvanised bolt and steel construction ensure years of durability outdoors
- Universal mounting — suits various types of swing gates and wickets, reducing stock keeping requirements
Technical data
| Thread type | M20 |
| Mounting Method | Weld-On |
| Material | Steel |
