PSG adjustable welding hinge M20 galvanised steel
Description

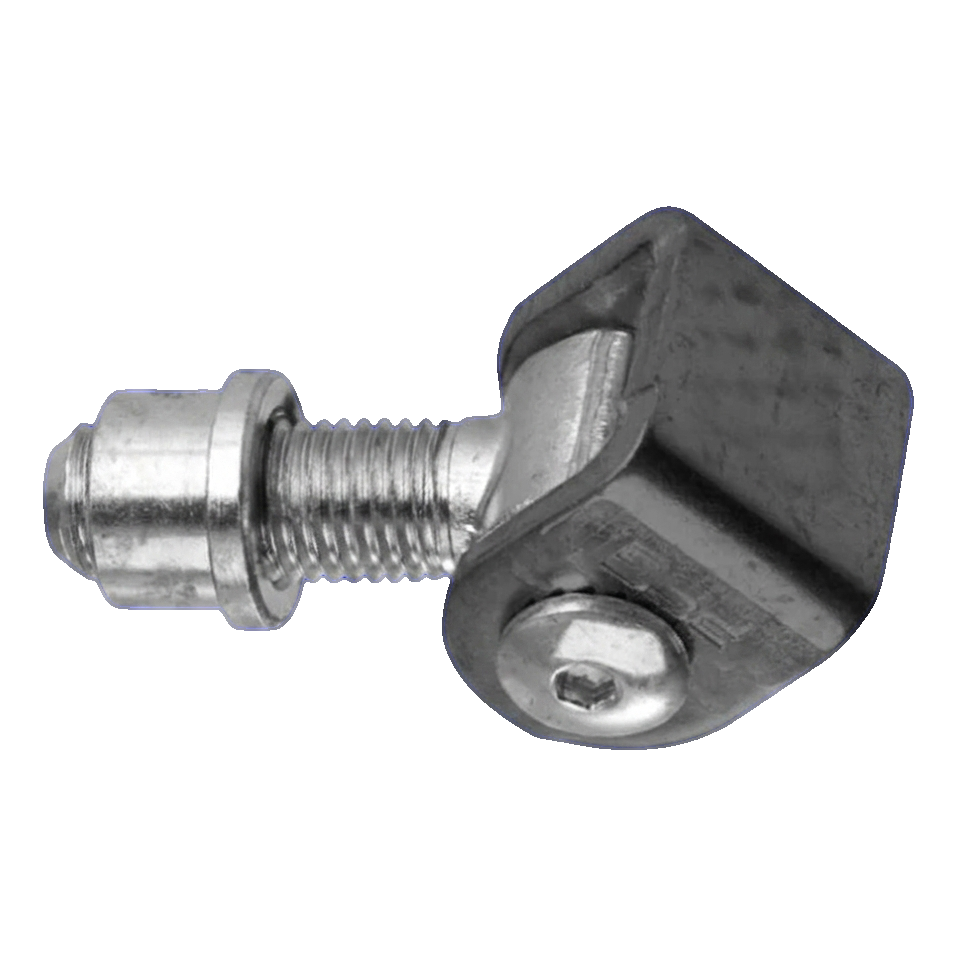

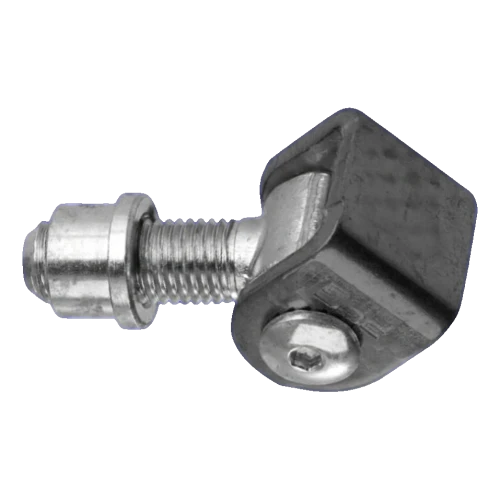

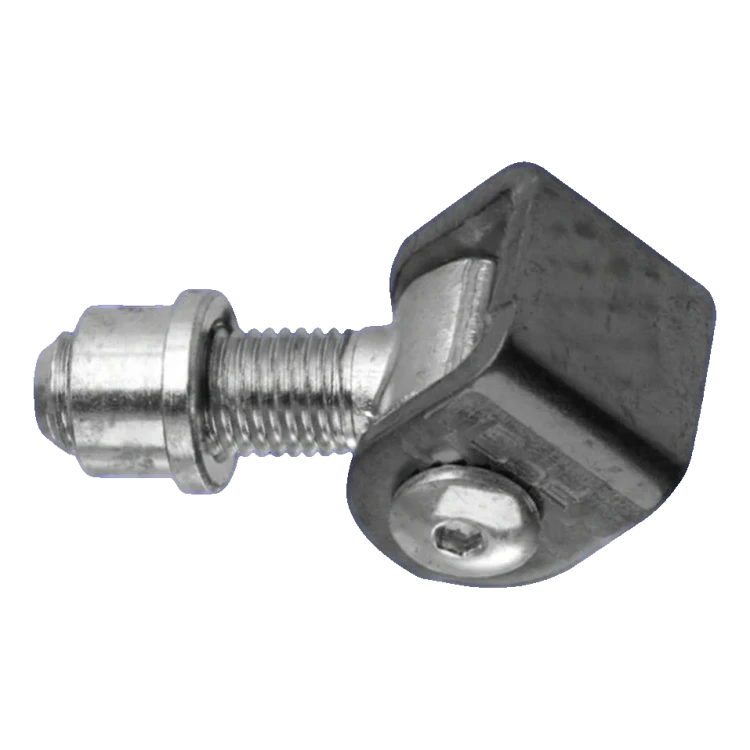

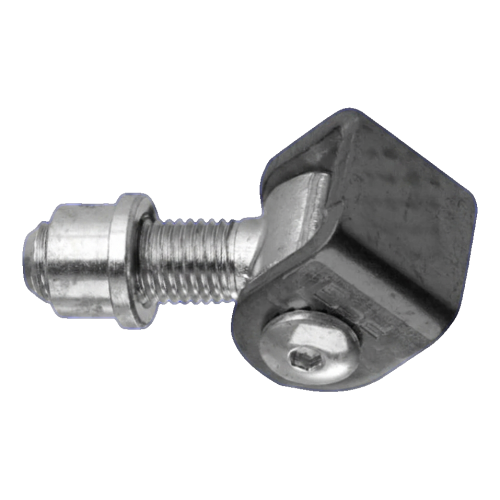

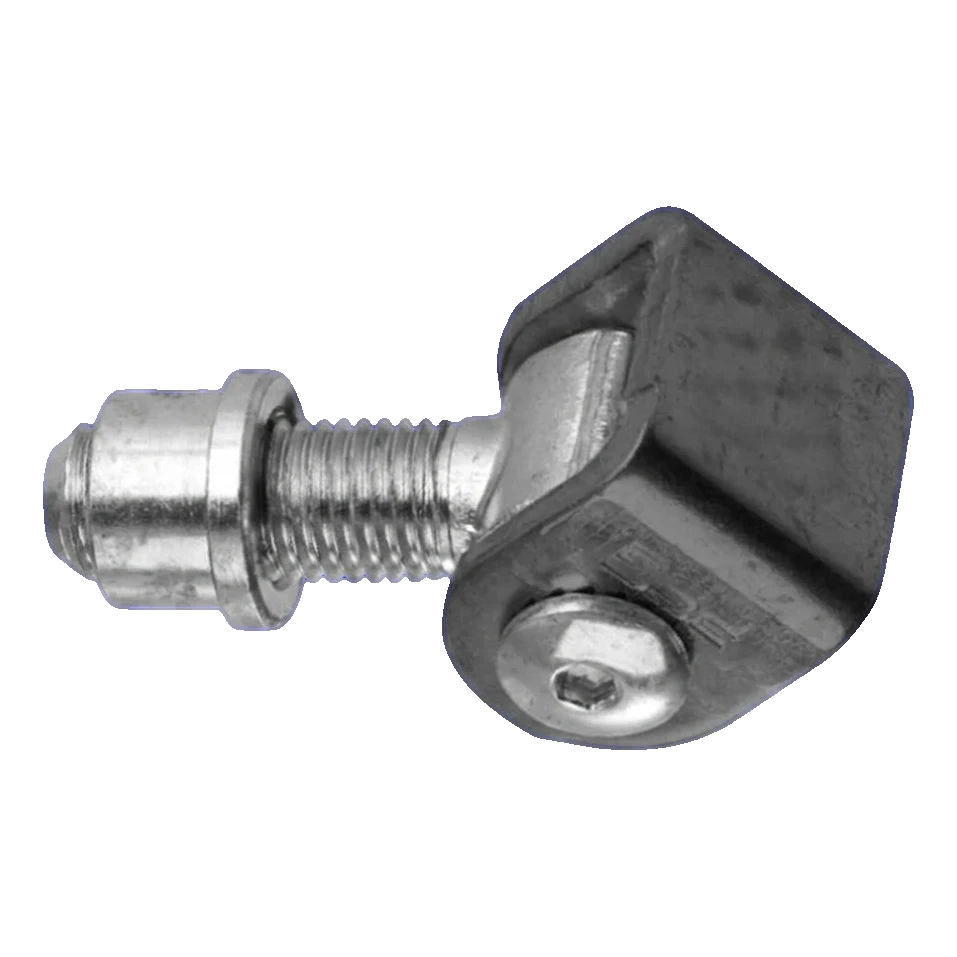

PSG adjustable welding hinge M20 galvanised steel
The adjustable welding hinge M20 by PSG is a robust, steel component designed for mounting leaf gates. Thanks to the M20 thread and adjustment nut, it enables precise adjustment of the gate leaf position — both directly after installation and during operation, e.g. when the structure sags or due to thermal deformation in winter.
The hinge body is galvanised, and the ear is black, which ensures high corrosion resistance and an aesthetic appearance. The product is designed for outdoor use and performs well in professional fencing and gate installations where durability and easy adjustment over time are important.
The permissible load for a pair of hinges on a 2 m leaf is 105 kg, which allows safe mounting of standard gate leaves.
Advantages of the adjustable hinge M20
- Post-installation adjustment — ability to tighten or loosen the hinge with a nut at any time, without dismounting the leaf
- Anti-corrosion protection — galvanised body with black ear provides years of protection in outdoor conditions
- High mechanical strength and wear resistance
- Aesthetic, professional appearance

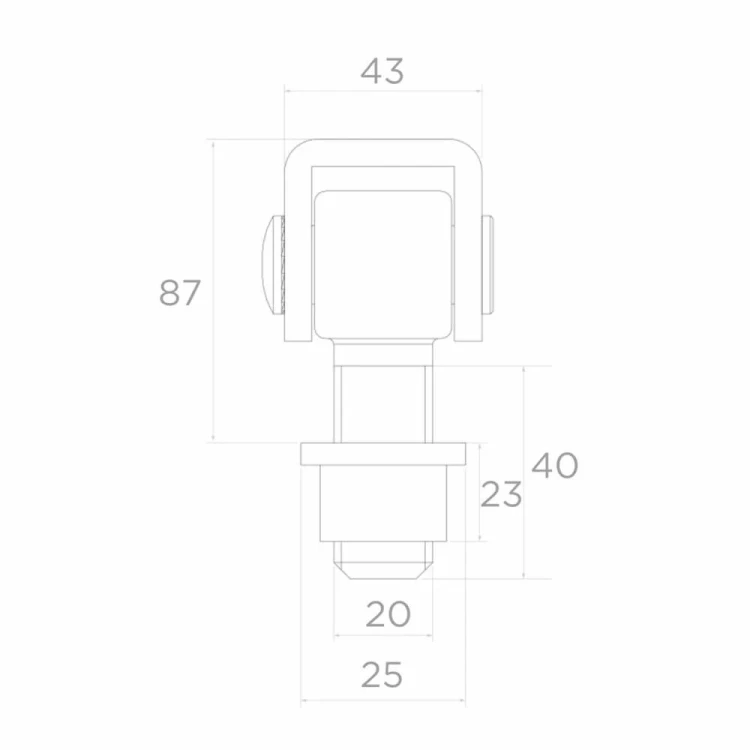

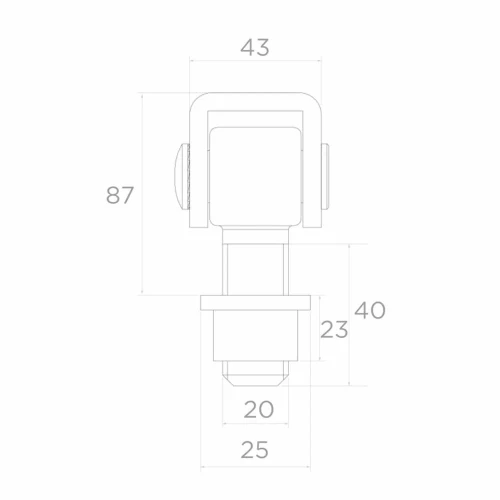

Dimensions and technical data
- Thread: M20
- Total height (with ear): 87 mm
- Ear width: 43 mm
- Bolt length (under collar): 40 mm
- Welding sleeve height: 23 mm
- Pin diameter: 20 mm
- Welding sleeve diameter: 25 mm
- Material: steel
- Anti-corrosion protection: galvanised (black ear)
- Weight: 0.44 kg
- Permissible load for pair of hinges (2 m leaf): 105 kg
- EAN: 5901289675772
Technical data
| Thread type | M20 |
| Mounting Method | Weld-On |
| Material | Steel |
