PSG adjustable welding hinge M20 galvanised 88 mm
Leave feedback on the product
PSG adjustable welding hinge M20 made of galvanised steel. Length 88 mm, M20 thread, ear width 44 mm. Height adjustment with nut without disassembly. Load capacity of hinge pair 105 kg for 2 m gate leaf. For gates and wicket gates.
Product code: 001-362
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Weld-On
- Material Steel
Description
PSG adjustable welding hinge M20 galvanised 88 mm
Adjustable welding hinge M20 by PSG is a durable hardware element designed for mounting swing gates and wicket gates. Made from galvanised steel, it provides high corrosion resistance and long-term trouble-free operation even in harsh weather conditions. Thanks to adjustment via nut, it allows for precise gate leaf positioning without the need for disassembly — an ideal solution for correcting sagging leaves or compensating for thermal deformations of the structure.
Solid construction and easy installation
The hinge consists of an ear with pivot axis and a threaded pin M20 with adjustment nut and washer. Installation involves welding the pin to the fence post, which guarantees stable and permanent fixing eliminating the risk of loosening during operation. A pair of hinges carries a load of up to 105 kg on a gate leaf 2 m long, making them suitable for both light wicket gates and heavy industrial gates.
Adjustment without disassembly
The height adjustment function using the nut allows for quick correction of the gate leaf position at any time. This is particularly important during seasonal temperature changes when steel elements expand and contract. All corrections can be made without hinge disassembly, which translates to time and cost savings during installation servicing.

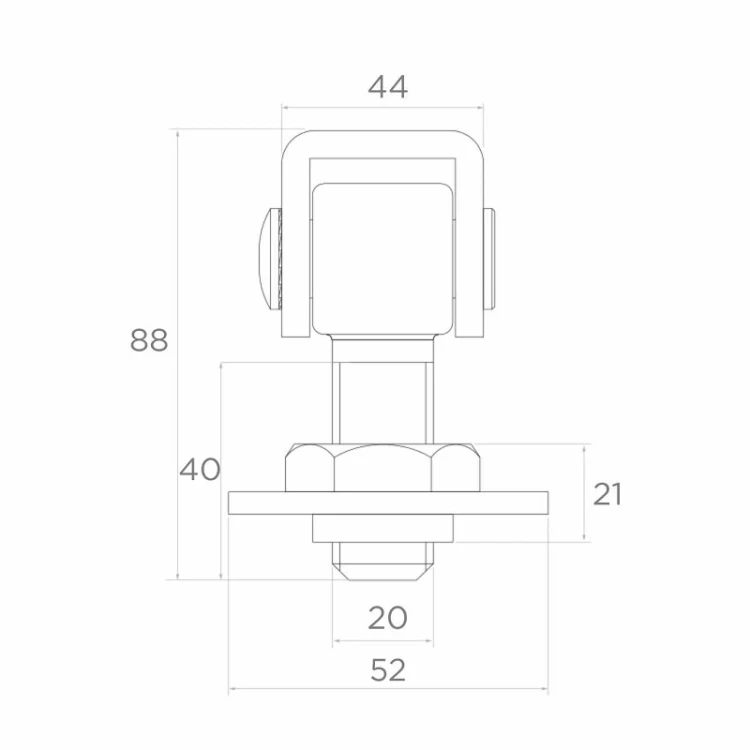

Dimensions and technical parameters
- Manufacturer: PSG
- Material: galvanised steel
- Pin thread: M20
- Total length: 88 mm
- Screw (pin) length: 40 mm
- Ear width: 44 mm
- Base (washer) width: 52 mm
- Adjustment assembly height: 21 mm
- Permissible load of hinge pair (2 m gate leaf): 105 kg
- Weight: 0.455 kg
- Anti-corrosion protection: galvanising
- EAN: 5903313206518
Universal application
The M20 adjustable hinge works perfectly for mounting swing gates, garden and industrial wicket gates, and other fence structures requiring pivotal suspension. The universal design enables adaptation to various fencing systems regardless of gate leaf material type. The galvanised surface ensures aesthetic appearance and years of rust protection — even with intensive outdoor use.
