PSG adjustable welding hinge M18 galvanised steel
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.31 kg
Description

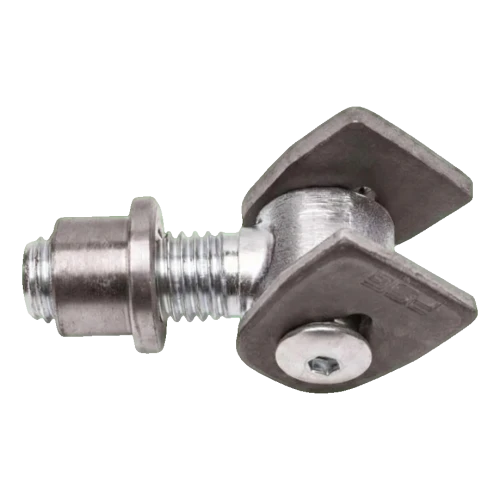

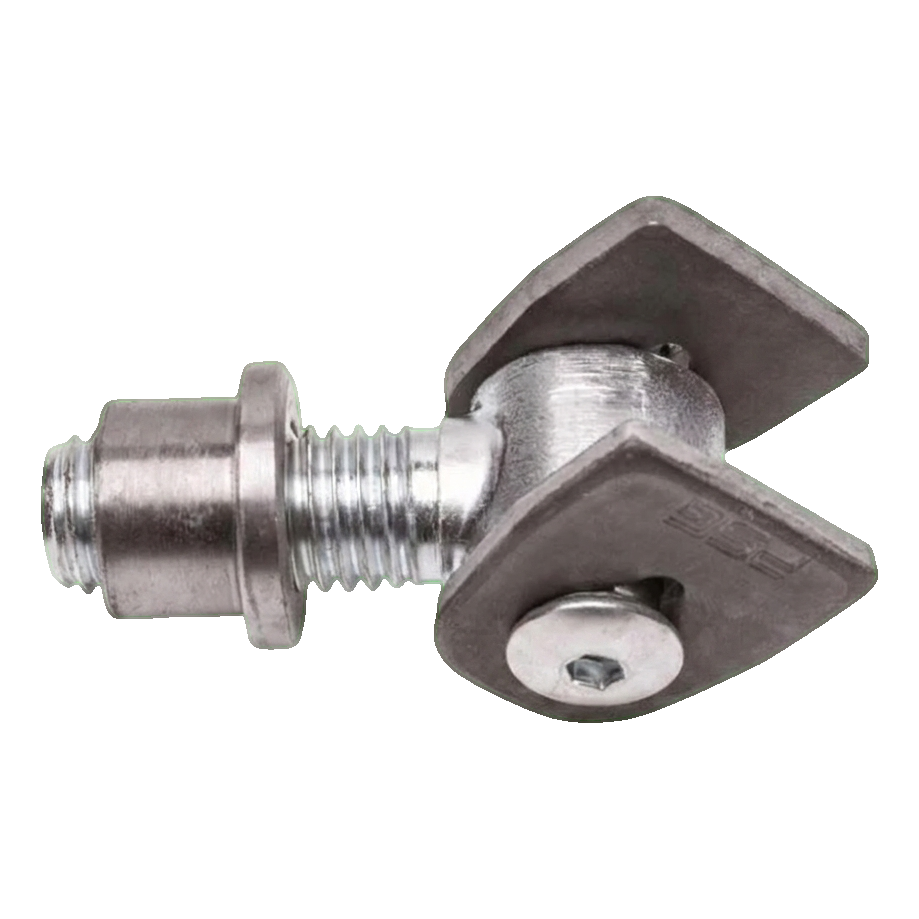

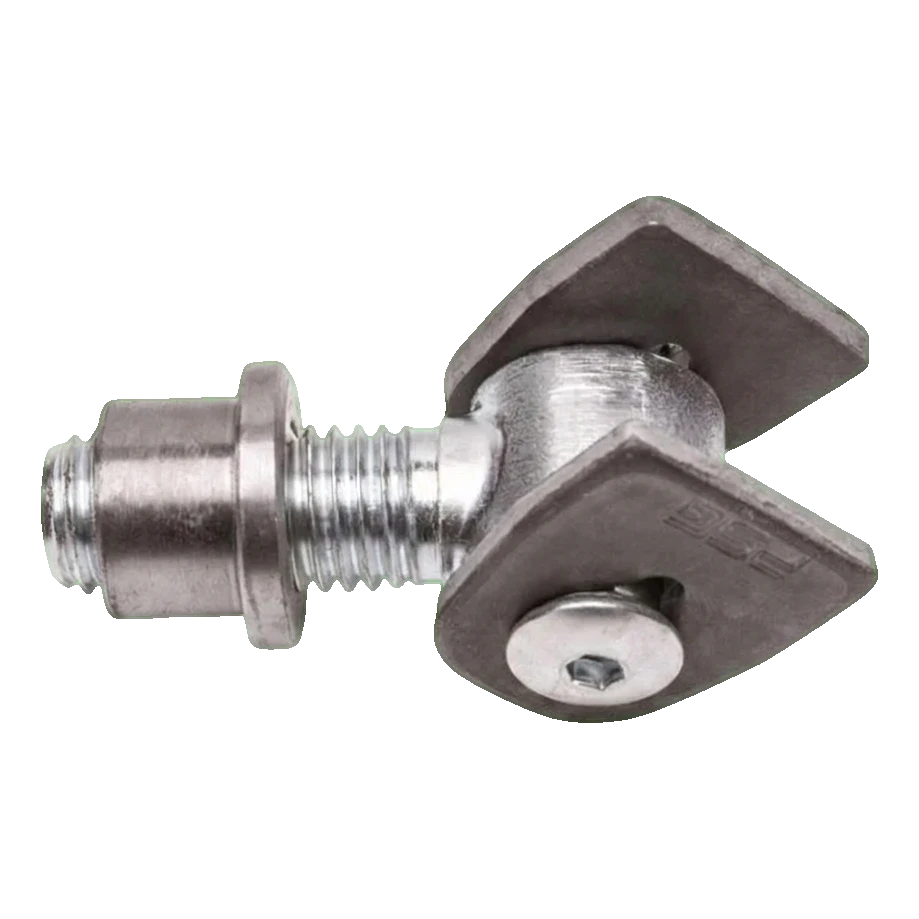

PSG adjustable welding hinge M18 galvanised steel
Steel adjustable hinge with M18 screw designed for welding — a reliable solution for mounting swing gates and wickets. Thanks to its galvanised anti-corrosion coating, it performs well in outdoor conditions, maintaining durability and aesthetics for many years. The threaded adjustment construction allows for precise positioning of the gate leaf both during installation and during operation — which is particularly important in changing thermal conditions, when metal expands or contracts.
The permissible load for a pair of hinges on a 2-metre long leaf is 80 kg, which provides adequate strength reserve for typical wickets and single-leaf gates.
Advantages for installers
- Post-installation adjustment — ability to tighten or loosen with a nut at any time, e.g. after structural sagging or in extreme temperatures
- Galvanised + black ear — long-term anti-corrosion protection whilst maintaining aesthetic appearance
- High mechanical resistance — durable steel resistant to wear and damage
- Welding installation — permanent, non-detachable connection with steel gate or wicket structure

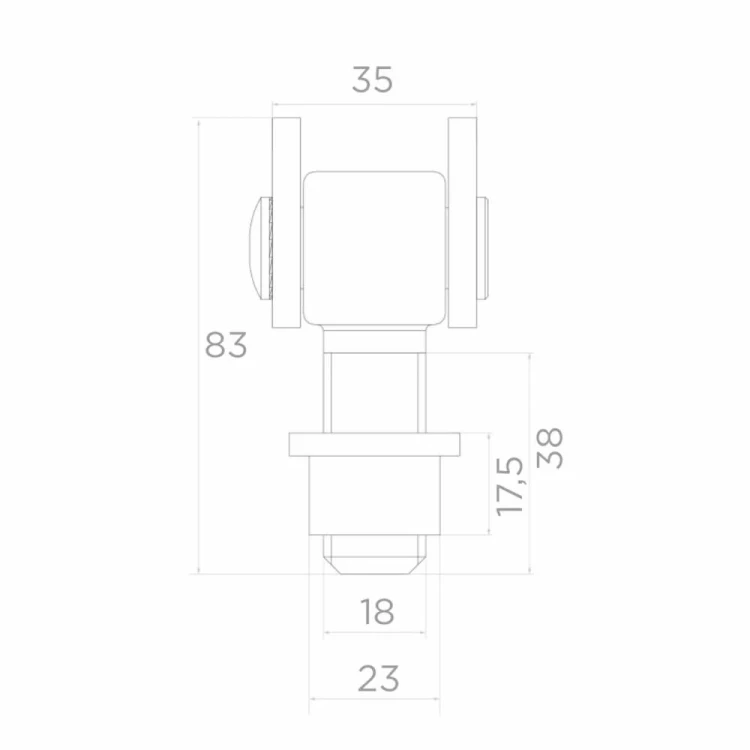

Dimensions and technical data
- Manufacturer: PSG
- Material: steel
- Anti-corrosion protection: galvanised (ear black)
- Thread: M18
- Total length: 83 mm
- Screw length: 38 mm
- Ear width: 35 mm
- Adjustment sleeve external diameter: 23 mm
- Adjustment sleeve height: 17.5 mm
- Permissible load for pair (2 m leaf): 80 kg
- Weight: 0.31 kg
- EAN: 5901289675888
Loading...
Technical data
| Thread type | M18 |
| Mounting Method | Weld-On |
| Material | Steel |
