PSG adjustable welding hinge M18 galvanised steel for gates and wickets
Leave feedback on the product
PSG adjustable welding hinge M18 galvanised steel. M18 thread, ∅14 mm pin, ear width 36 mm, adjustment range 43-62 mm. Welding sleeve ∅23 mm. Permissible load for pair of hinges 80 kg on 2 m leaf. For gates and wickets.
Product code: 001-339
Product features
[PIM] zawiasy #113
- Thread type M18
- Mounting Method Weld-On
- Material Steel
Description

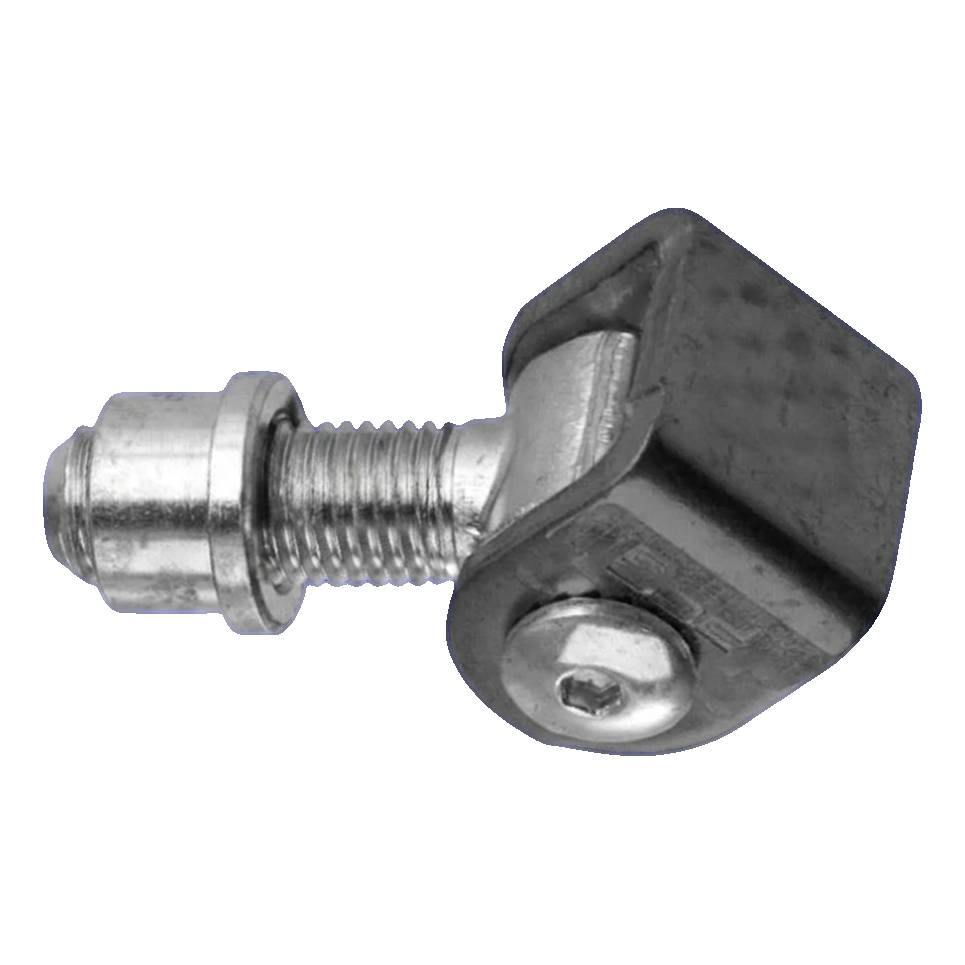

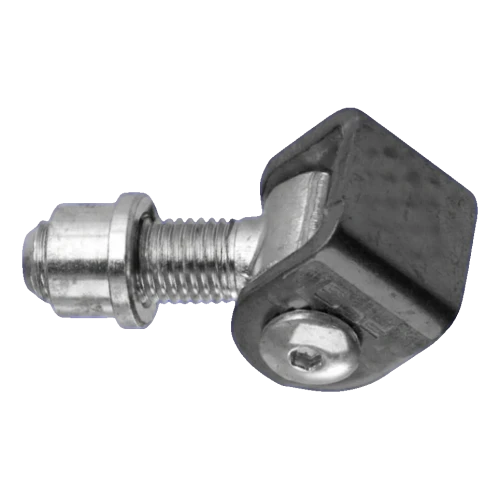

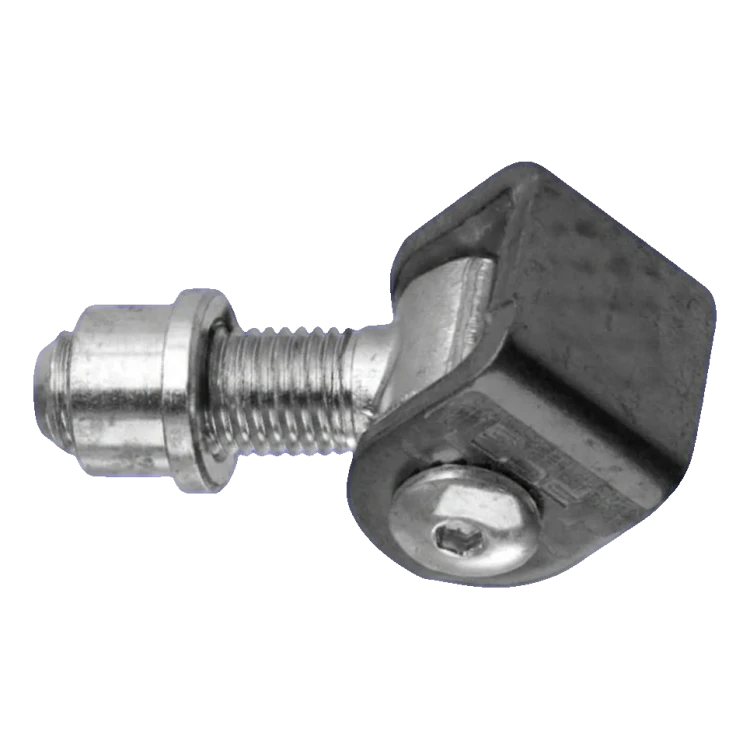

PSG adjustable welding hinge M18 galvanised steel for gates and wickets
Steel adjustable hinge M18 for welding by PSG — reliable solution for mounting wickets and swing gates. Construction with M18 thread enables smooth height adjustment of the leaf using a nut, allowing precise gate positioning both during initial installation and during operation. Galvanised finish with black ear provides years of anti-corrosion protection in outdoor conditions, whilst the aesthetic appearance complements modern fencing perfectly.
Adjustment is particularly useful when the gate structure sags over time or during extreme temperatures — in winter metal contracts, in summer it expands. The hinge can be tightened or loosened at any time, eliminating problems with closing and opening the leaf. Permissible load for a pair of hinges on a 2 m long leaf is 80 kg.
Advantages
- Galvanised surface — high corrosion resistance in outdoor conditions
- Leaf height adjustment without dismantling — quick correction with nut
- High resistance to mechanical loads and wear
- Welding sleeve diameter ∅23 mm — secure and permanent mounting in post
- Aesthetic black ear harmoniously matching the fencing

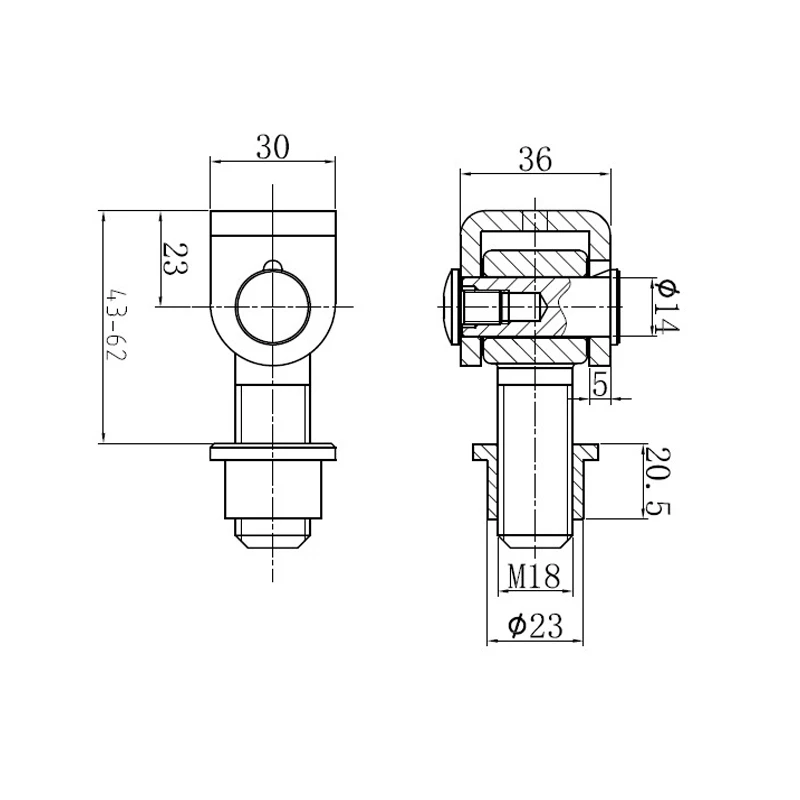

Dimensions and technical parameters
- Bolt thread: M18
- Pin diameter: ∅14 mm
- Ear width: 36 mm
- Body width (frontal projection): 30 mm
- Ear wall thickness: 5 mm
- Adjustment range (L): 43–62 mm
- Total length (L): 81 mm
- Bolt length: 40 mm
- Welding sleeve diameter: ∅23 mm
- Sleeve height: 20.5 mm
- Material: galvanised steel (black ear)
- Permissible load for pair of hinges (2 m leaf): 80 kg
- Weight: 0.36 kg
- EAN: 5901289675765
