PSG adjustable welding hinge M16 galvanised steel
Description

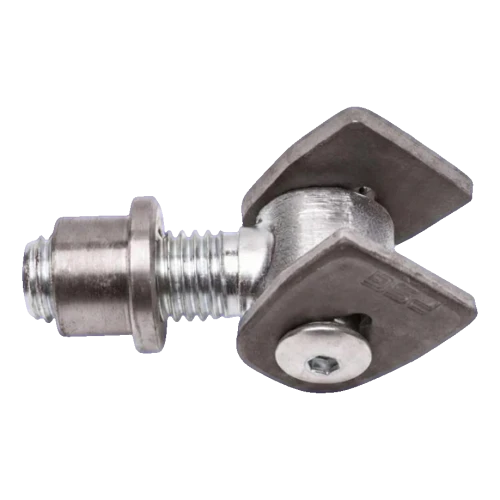

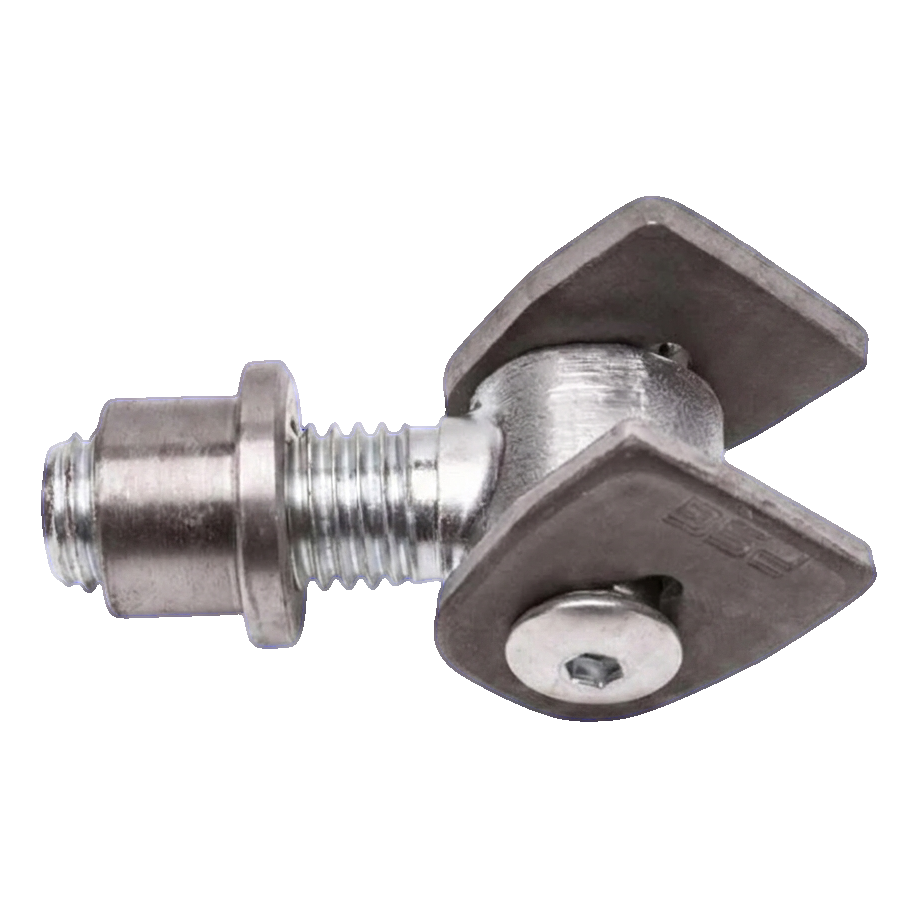

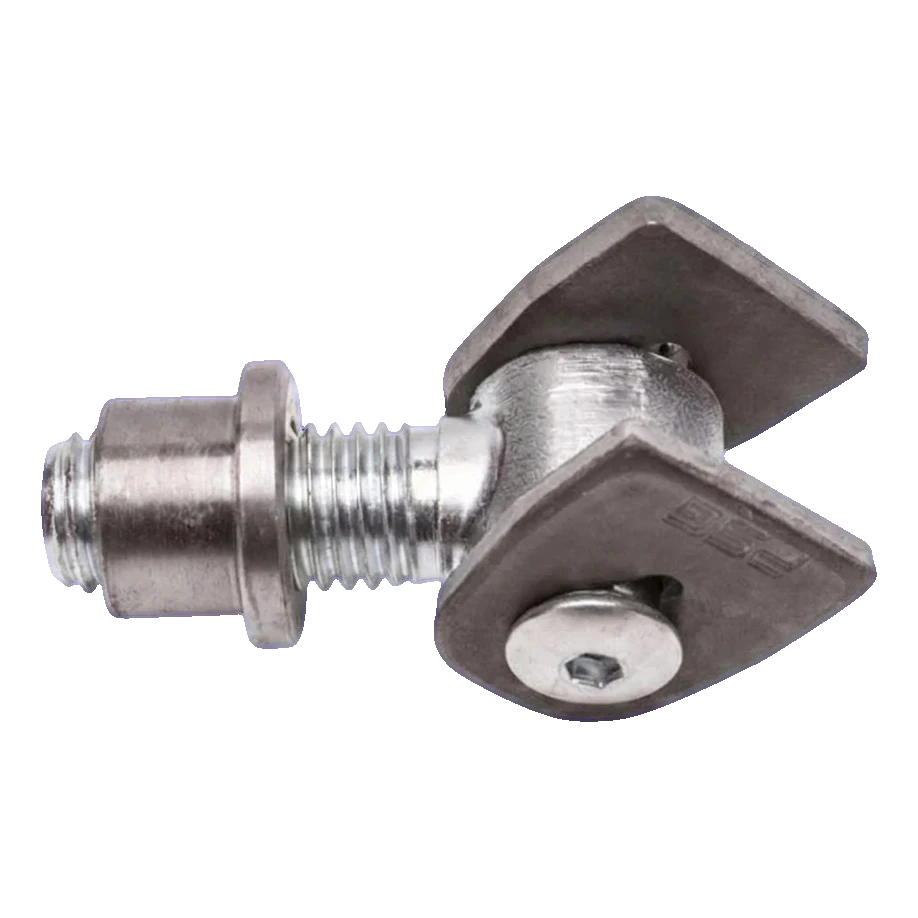

PSG adjustable welding hinge M16 galvanised steel
Steel adjustable hinge with M16 bolt designed for welding, dedicated for mounting swing gates and wicket gates. The PSG brand product provides simple and quick adjustment after installation completion thanks to the built-in adjustment nut. The galvanised surface guarantees multi-year protection against corrosion and enables trouble-free outdoor operation — even in harsh atmospheric conditions.
The ability to adjust the hinge at any time during use is crucial for maintenance work. In case of structure sagging or sudden temperature changes (metal shrinkage and expansion), it's sufficient to tighten or loosen the nut to restore proper gate leaf alignment. The permissible load capacity of a pair of hinges on a leaf with 2 m length is 65 kg.
Advantages
- Galvanised coating — high, multi-year corrosion resistance in outdoor conditions
- High mechanical strength and damage resistance
- Post-installation adjustment — quick leaf alignment correction with nut
- High wear resistance at the rotation point
- Aesthetic, clean appearance after galvanising

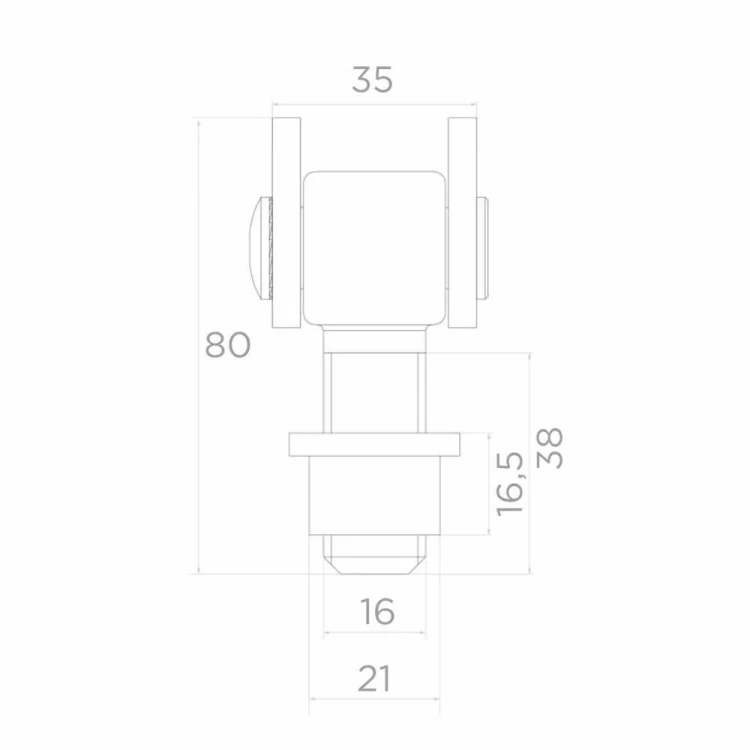

Dimensions and technical data
- Material: steel
- Anti-corrosion protection: galvanised (black lug)
- Thread: M16
- Total length: 80 mm
- Lug width: 35 mm
- Bolt length: 38 mm
- Pin diameter: 16 mm
- External diameter of welding sleeve: 21 mm
- Height of welding sleeve: 16.5 mm
- Permissible load capacity of hinge pair (2 m leaf): 65 kg
- Weight: 0.265 kg
- EAN: 5901289675895
Technical data
| Thread type | M16 |
| Mounting Method | Weld-On |
| Material | Steel |
