PSG adjustable welding gate hinge M16 – galvanised
Leave feedback on the product

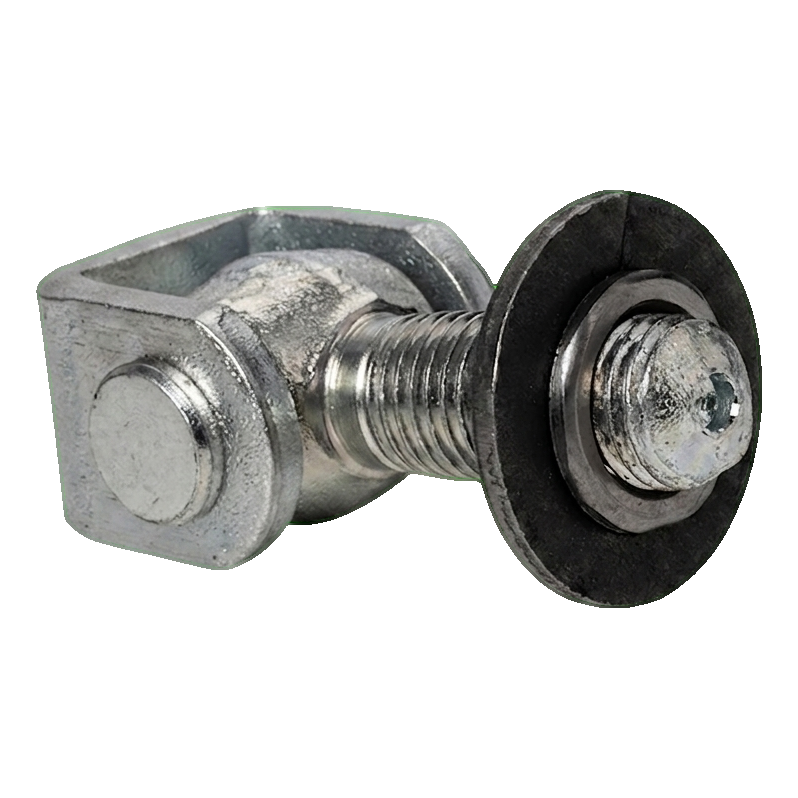

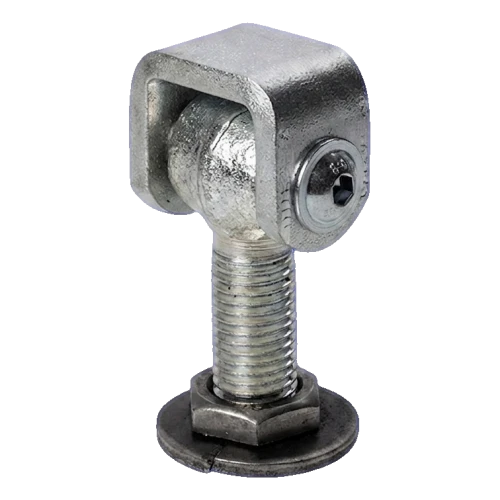

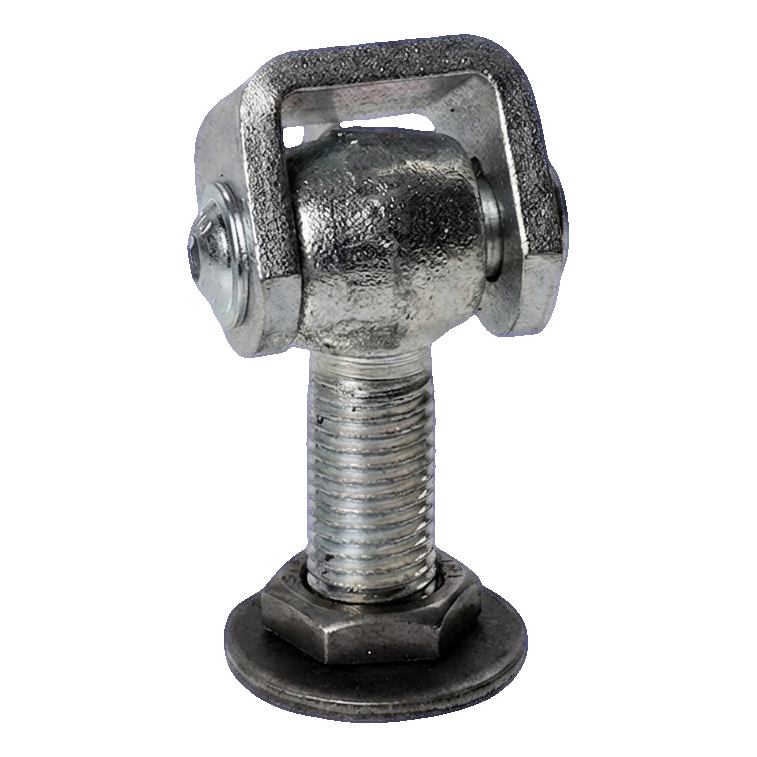

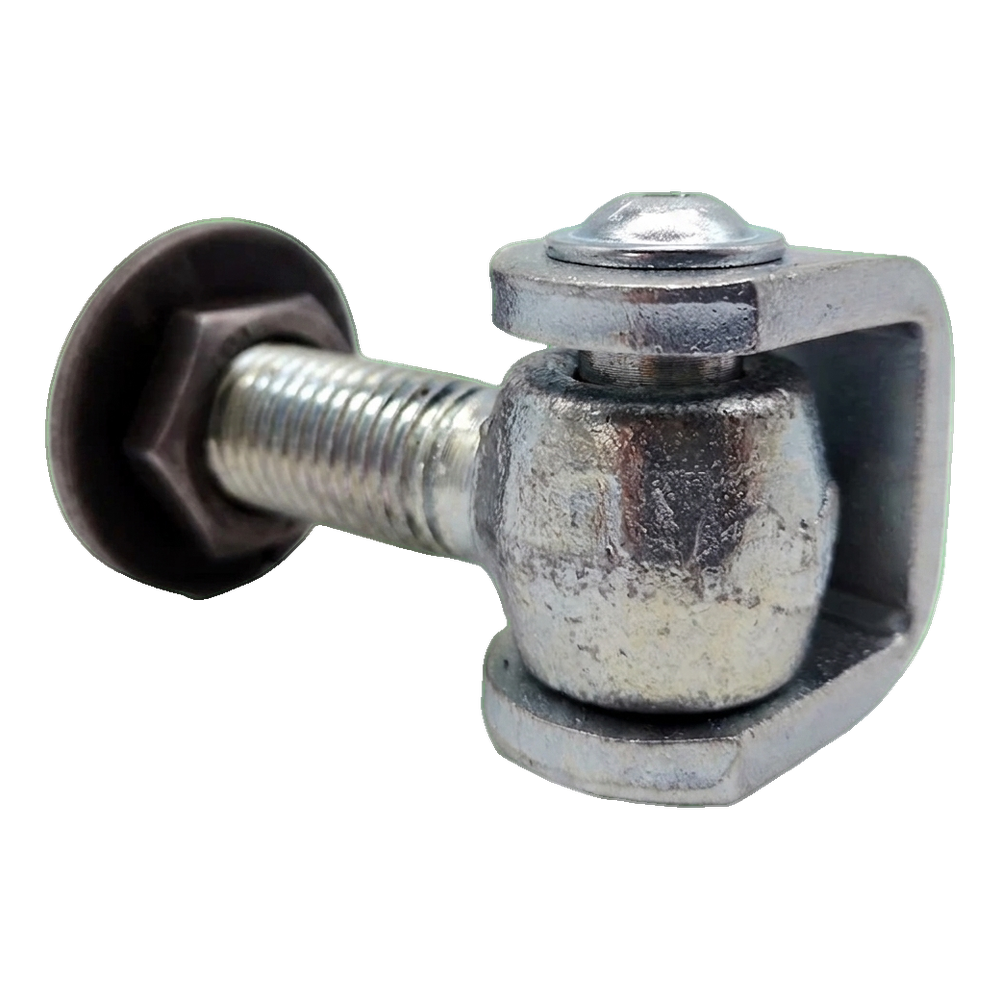

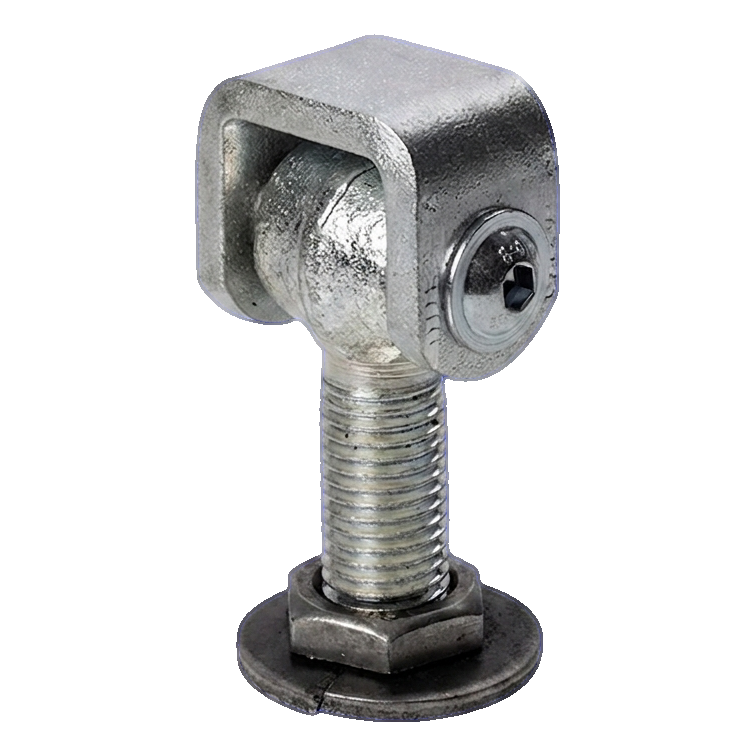

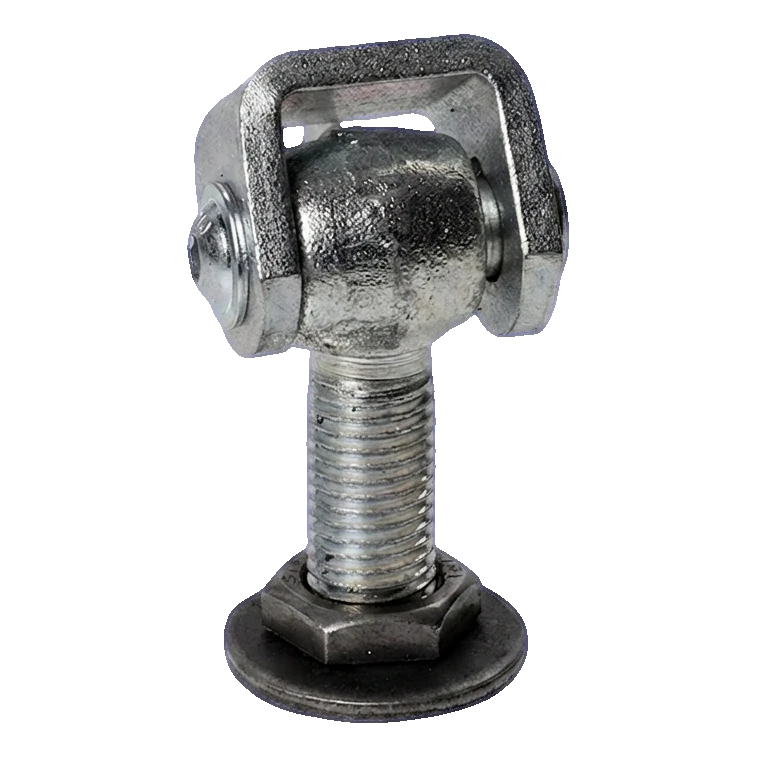

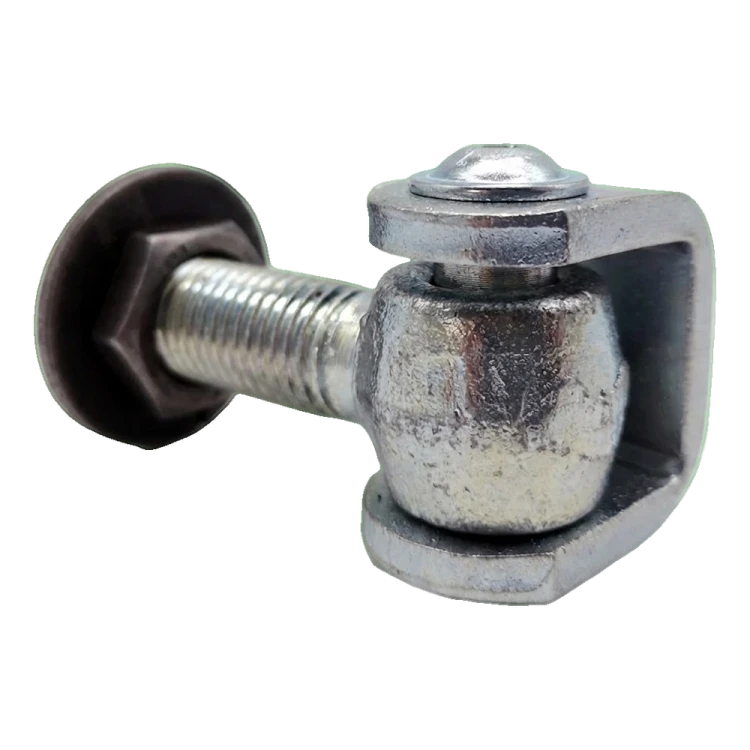

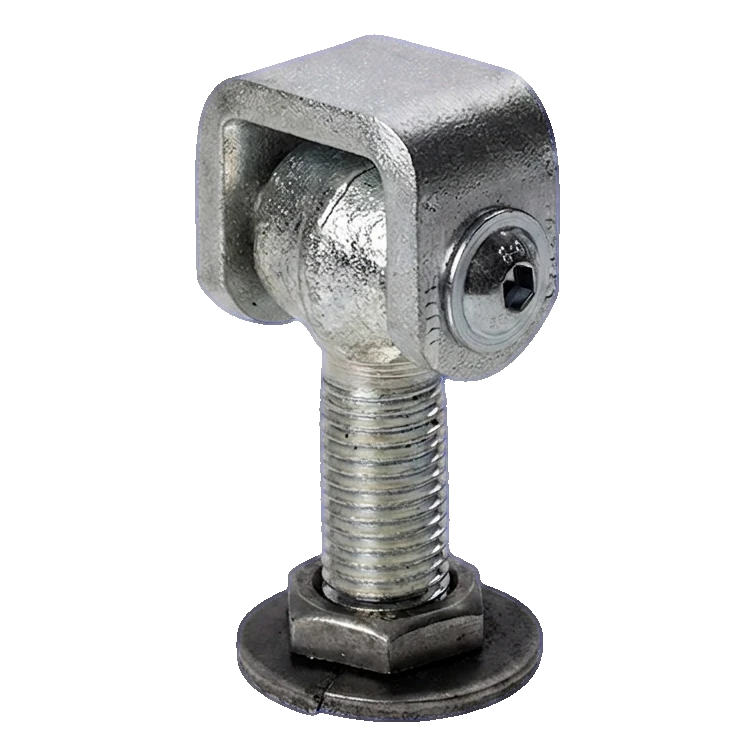

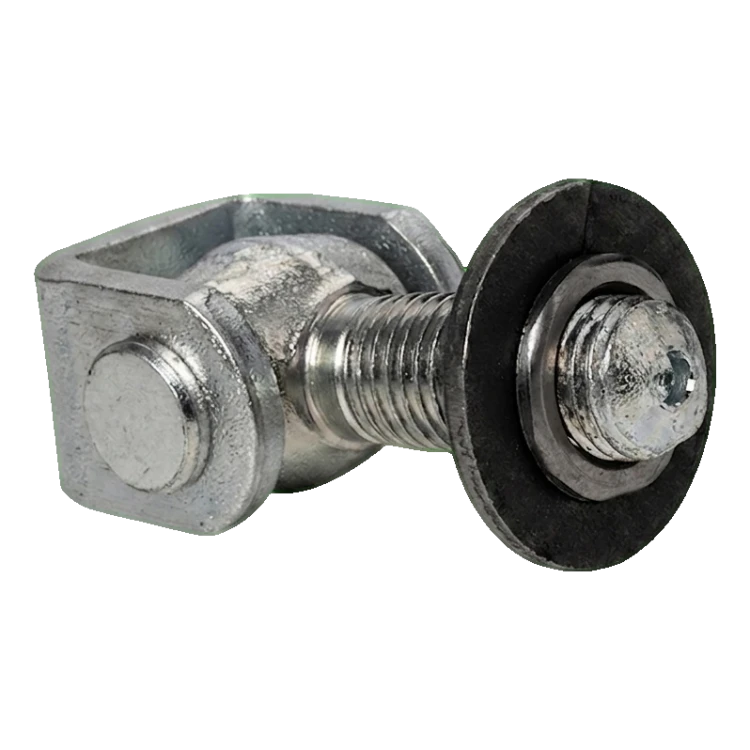

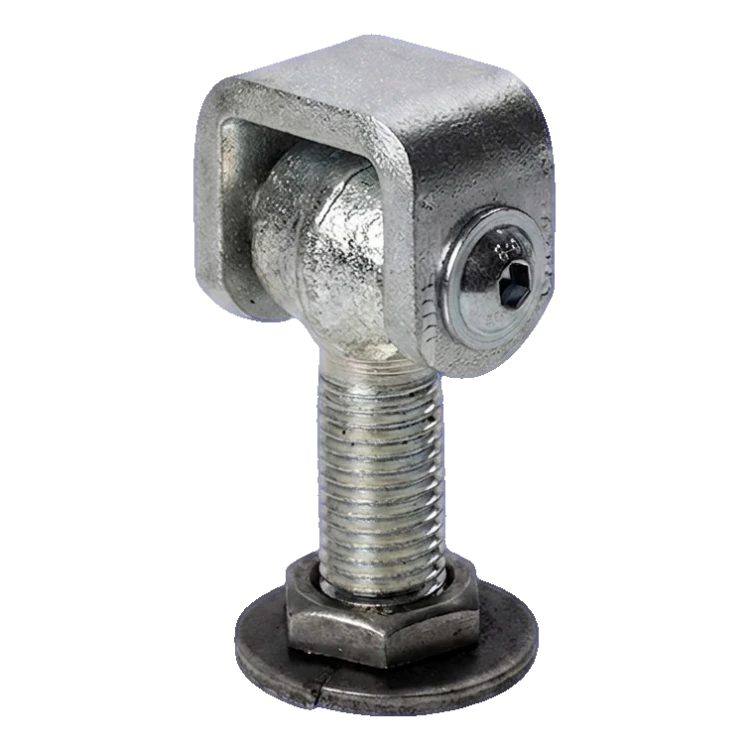

PSG adjustable gate hinge M16 made from galvanised steel. For welding into swing gates and wicket gates. Length 78 mm, ear width 36 mm, M16 thread. Weight 0.25 kg. Load capacity of hinge pair 65 kg for 2 m wing. Post-installation adjustment.
Product code: 001-360
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Weld-On
- Material Steel
Description
PSG adjustable welding gate hinge M16 – galvanised
Adjustable M16 welding hinge from PSG is a durable and practical mounting element designed for swing gates and wicket gates. Galvanised steel construction guarantees years of corrosion and mechanical damage resistance — even with intensive outdoor use. The key advantage is post-installation adjustment capability, which allows quick correction of wing position without the need for dismantling.
Permissible load for a pair of hinges is 65 kg for a wing with a length of 2 m, ensuring stable operation in typical fencing and gate applications.
Key features
- Material: galvanised steel — bolt, plate and hinge ear protected by galvanising for high corrosion resistance
- Thread: M16
- Installation: for welding
- Post-installation adjustment: nut enables precise wing position adjustment
- Resistance to wear and mechanical damage thanks to high-quality materials
- Weight: 0.25 kg
- EAN: 5903313206549
Precise post-installation adjustment
One of the most important advantages of the M16 adjustable hinge is the ability to correct wing positioning even after full installation completion. When metal contracts due to low temperatures or the gate wing sags over time — simple nut adjustment is sufficient, without the need for re-welding or dismantling the entire structure. This provides real time and service cost savings for installation teams.

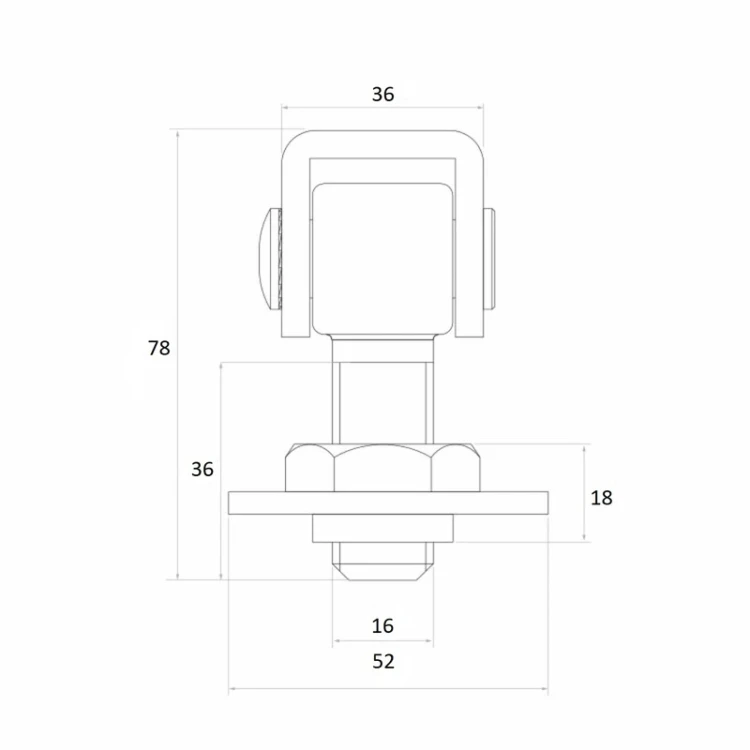

Dimensions
- Total length: 78 mm
- Bolt length (threaded part): 36 mm
- Ear width: 36 mm
- Mounting assembly thickness (nut + washer): 18 mm
- Thread diameter: M16
- Base diameter (washer): 52 mm
Technical specification
PSG M16 adjustable hinge parameters
| Parameter | Value |
|---|---|
| Manufacturer | PSG |
| Material | Steel |
| Corrosion protection | Galvanised |
| Thread | M16 |
| Ear width | 36 mm |
| Total length | 78 mm |
| Bolt length | 36 mm |
| Base diameter | 52 mm |
| Installation type | For welding |
| Permissible load for pair (2 m wing) | 65 kg |
| Weight | 0.25 kg |
