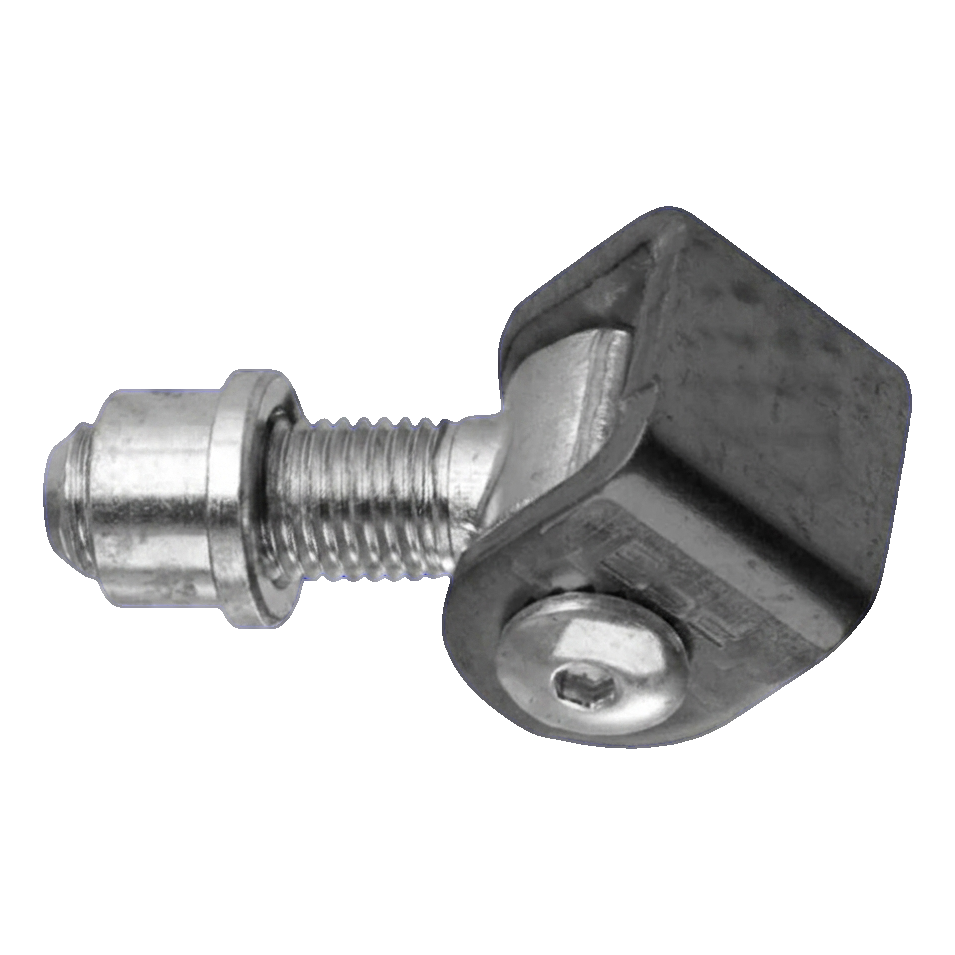

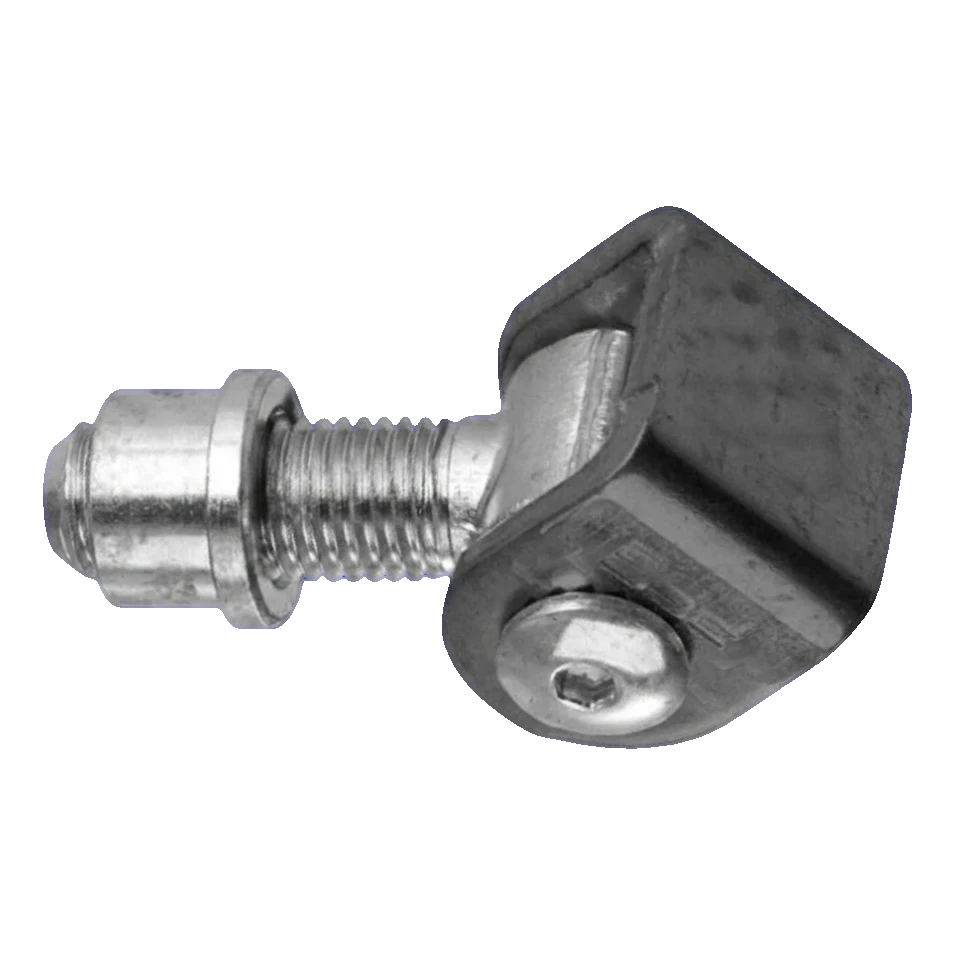

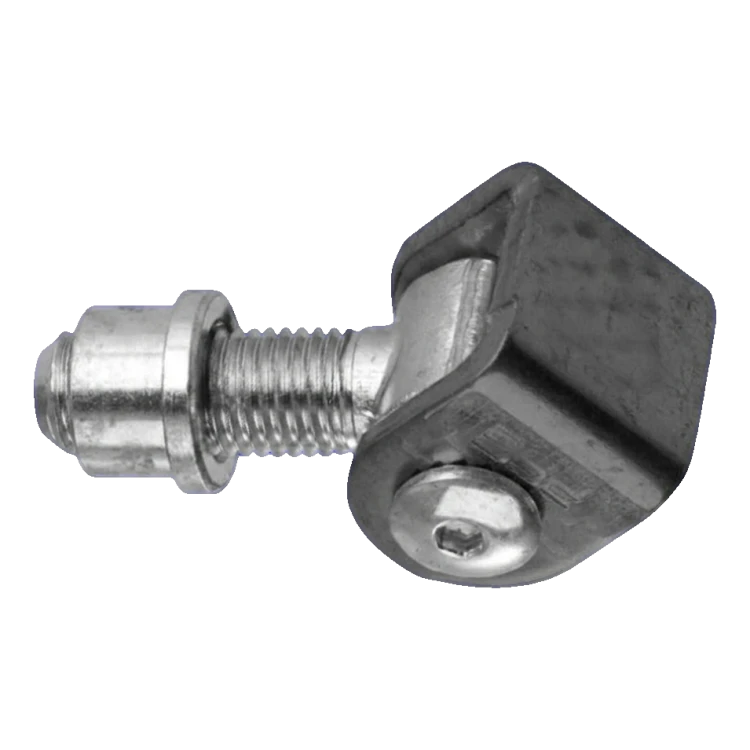

PSG adjustable weldable hinge M14 galvanised steel
Leave feedback on the product
PSG M14 weldable hinge in galvanised steel with black ear. M14 thread, bolt length 40 mm, total height 69 mm. Eye diameter Ø20 mm, weight 0.18 kg. Adjustable after installation. Load capacity for pair of hinges up to 50 kg on 2 m leaf.
Product code: 001-337
Product features
[PIM] zawiasy #113
- Thread type M14
- Mounting Method Weld-On
- Material Steel
Description
PSG adjustable weldable hinge M14 galvanised steel
Steel adjustable weldable hinge with M14 thread from manufacturer PSG — a reliable solution for mounting gates, wickets and fence structures. Thanks to the galvanised surface with black ear, the hinge provides years of corrosion protection and aesthetic appearance, ideal for outdoor applications.
The M14 threaded construction enables hinge adjustment at any time after installation is complete — simply tighten or loosen the nut. This is particularly important when the structure sags under weight or when temperature changes cause metal contraction and expansion. The installer gains full control over leaf positioning without the need for dismantling.
Permissible load for a pair of hinges on a leaf 2 m long is 50 kg.

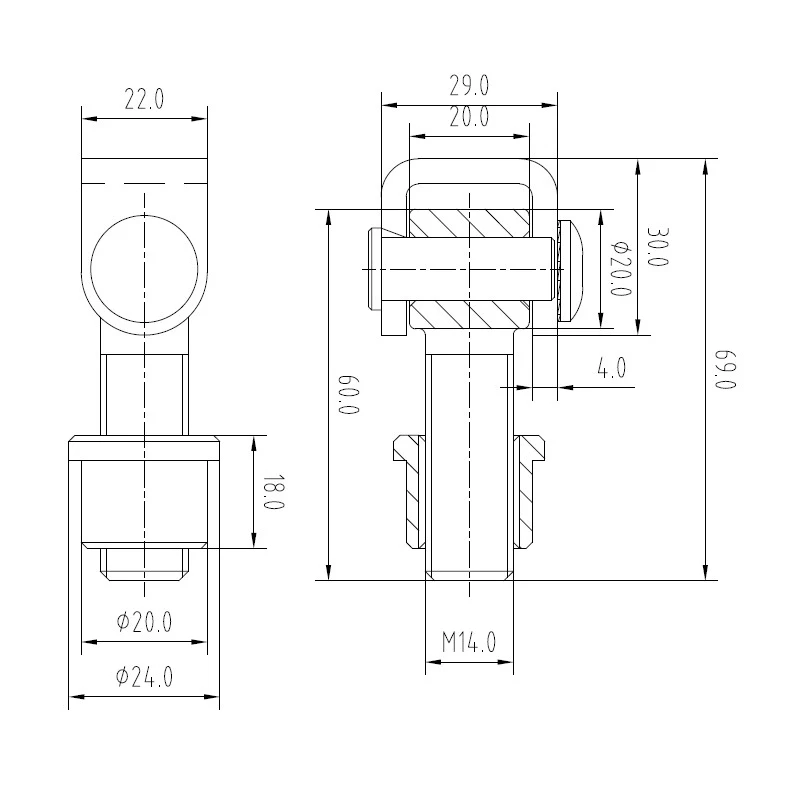

Dimensions and technical data
- Bolt thread: M14
- Bolt length: 40 mm
- Total height: 69 mm
- Distance from pin axis to end of stem: 60 mm
- Ear height: 30 mm
- Ear width (external): 22 mm
- Ear width (internal): 36 mm
- Internal ear spacing: 20 mm
- Ear wall thickness: 4 mm
- Hinge eye diameter: Ø20 mm
- Mounting sleeve diameter: Ø20 mm
- Sleeve collar diameter: Ø24 mm
- Mounting sleeve height: 18 mm
- Pin length: 29 mm
Product specification
- Material: steel
- Anti-corrosion protection: galvanised (black ear)
- Weight: 0.18 kg
- EAN: 5901289674386
Advantages for the installer
- Post-installation adjustment — ability to correct leaf positioning with nut, without dismantling
- High corrosion resistance — galvanised surface designed for outdoor use
- Mechanical strength — steel construction resistant to damage and wear
- Aesthetic appearance — black ear complements modern fencing well
