PSG adjustable weldable gate hinge M20 steel
Description

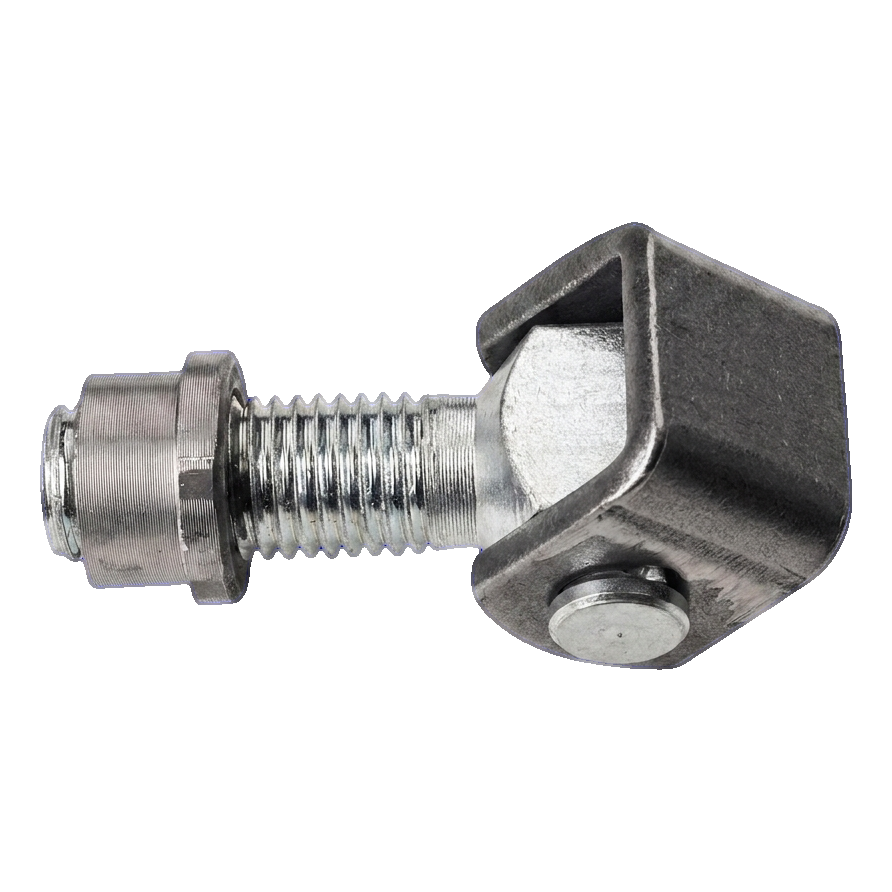

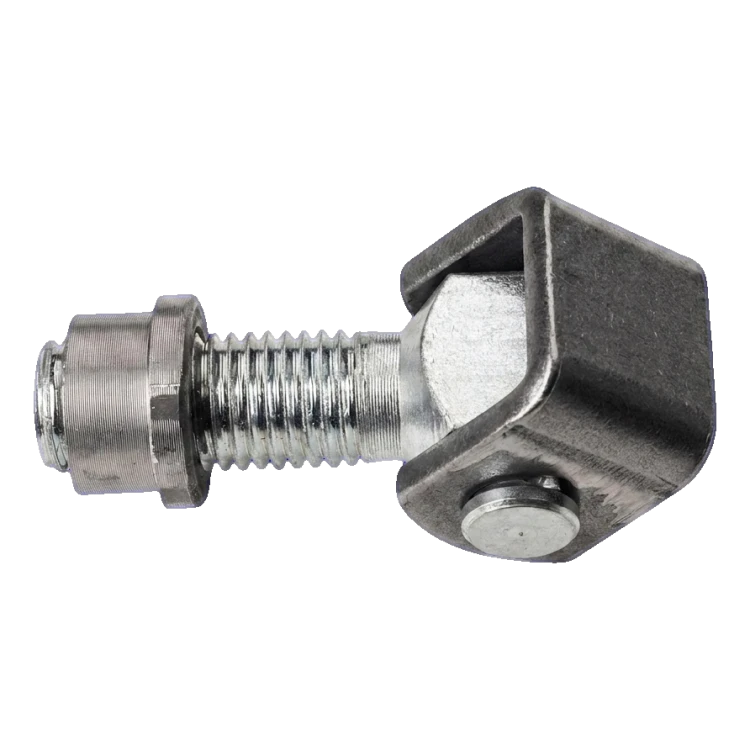

PSG adjustable weldable gate hinge M20 steel
Adjustable weldable hinge M20 from PSG manufacturer is a durable mounting element designed for installation of gates and wickets. Thanks to the construction with weldable sleeve, it ensures permanent and secure connection with steel gate leaf structure, whilst the adjustment capability allows for precise positioning of gate leaves even after installation completion — even on uneven terrain.
Why choose this hinge?
The hinge manufactured from corrosion-resistant steel performs in all weather conditions and is designed for long-term outdoor use. The adjustable construction eliminates the need for perfect positioning of elements during the welding stage — fine corrections can be made quickly after gate leaf installation, which significantly speeds up the installation team's work. A pair of these hinges bears loads up to 120 kg for gate leaves up to 2 m long, allowing their use for both lightweight wickets and medium-loaded gates.

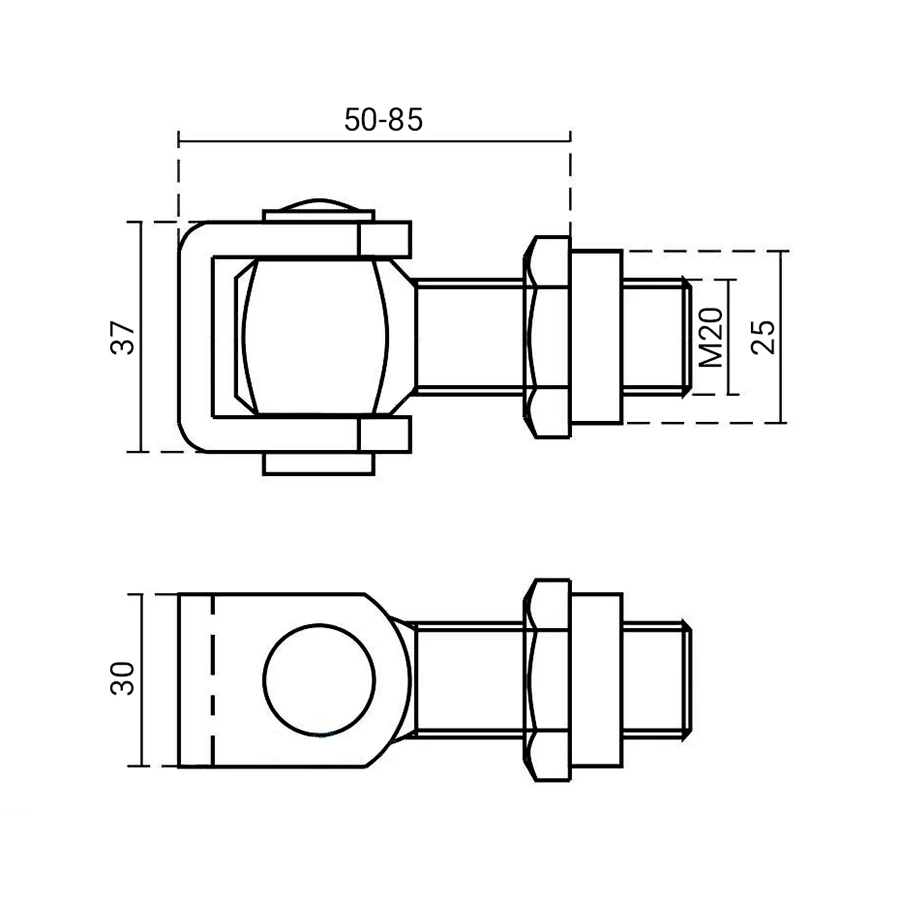

Dimensions and technical parameters
- Material: steel
- Bolt thread: M20
- Hinge length (adjustment range): 50–85 mm
- Eye height: 37 mm
- Eye width: 30 mm
- Sleeve diameter: 25 mm
- Permissible load of hinge pair (2 m gate leaf): 120 kg
- Weight: 0.40 kg
- Purpose: for welding
- Application: gates, wickets — external use
Hinge adjustment — convenience and precision
The adjustment range from 50 to 85 mm gives the installer great flexibility in matching the distance between gate leaf and post. Thanks to this, the hinge compensates for minor welding inaccuracies and ground irregularities without the need for re-dismounting. After setting the optimal position, the M20 bolt ensures rigid and stable gate leaf retention, guaranteeing smooth opening and closing for years of operation.
Technical data
| Thread type | M20 |
| Mounting Method | Weld-On |
| Material | Steel |
