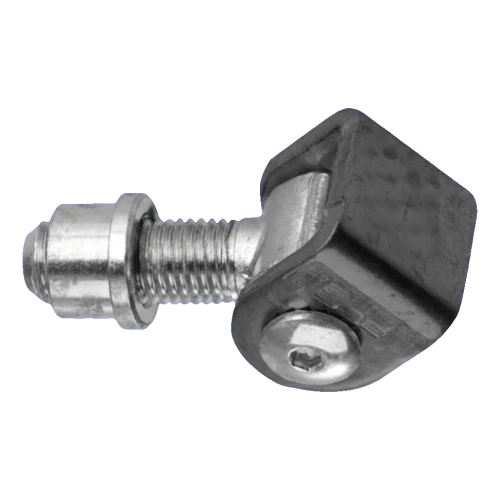

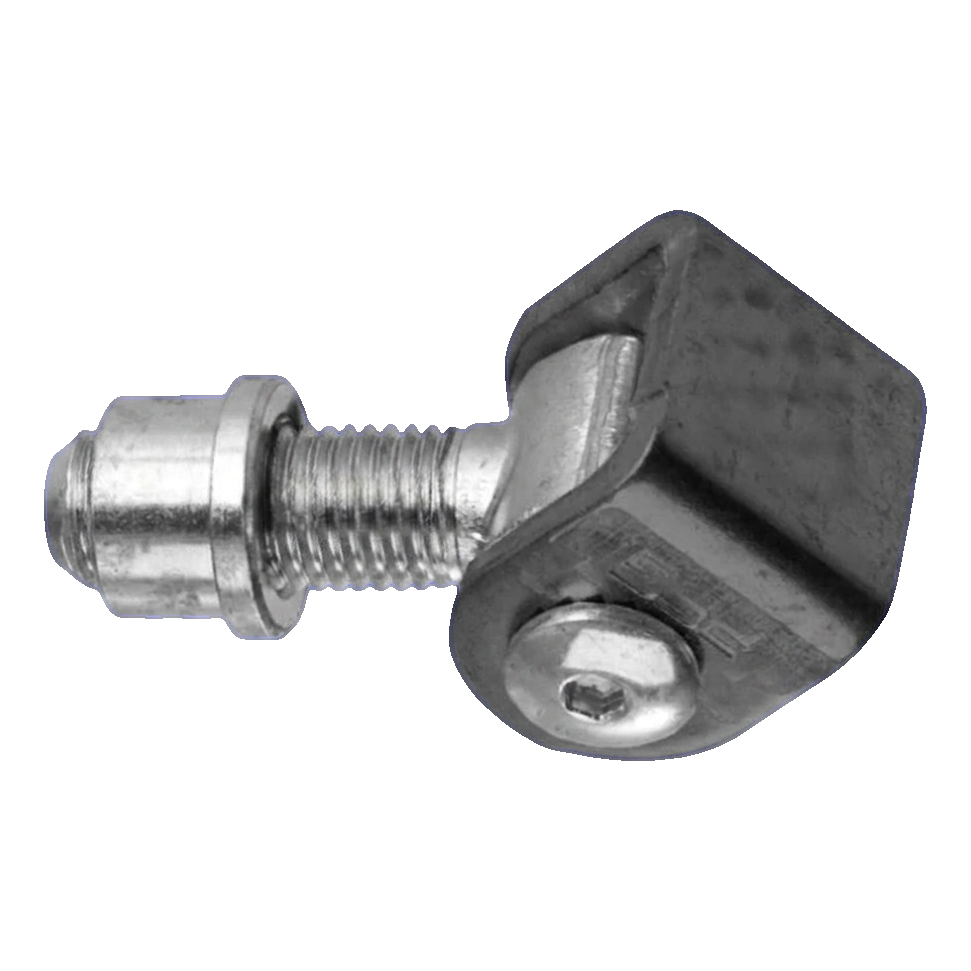

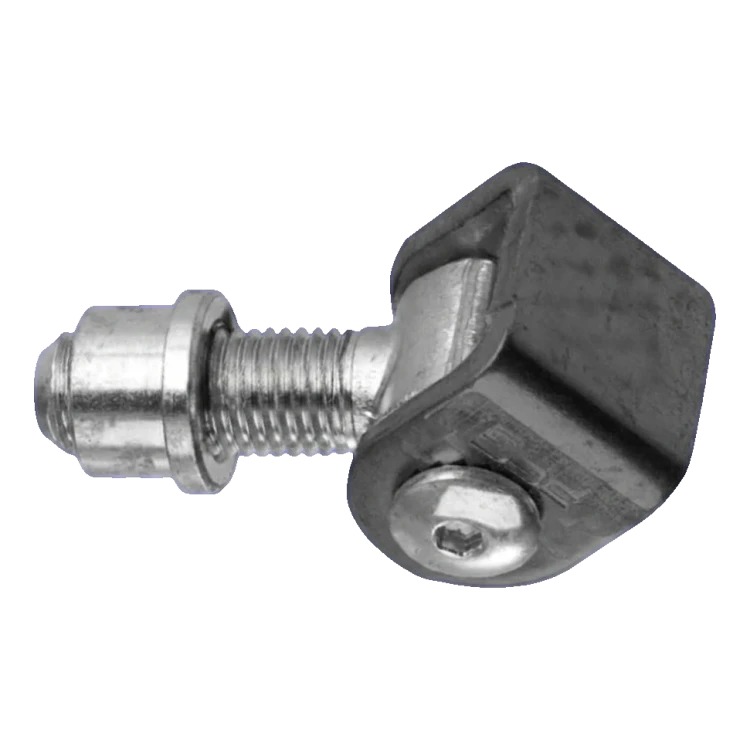

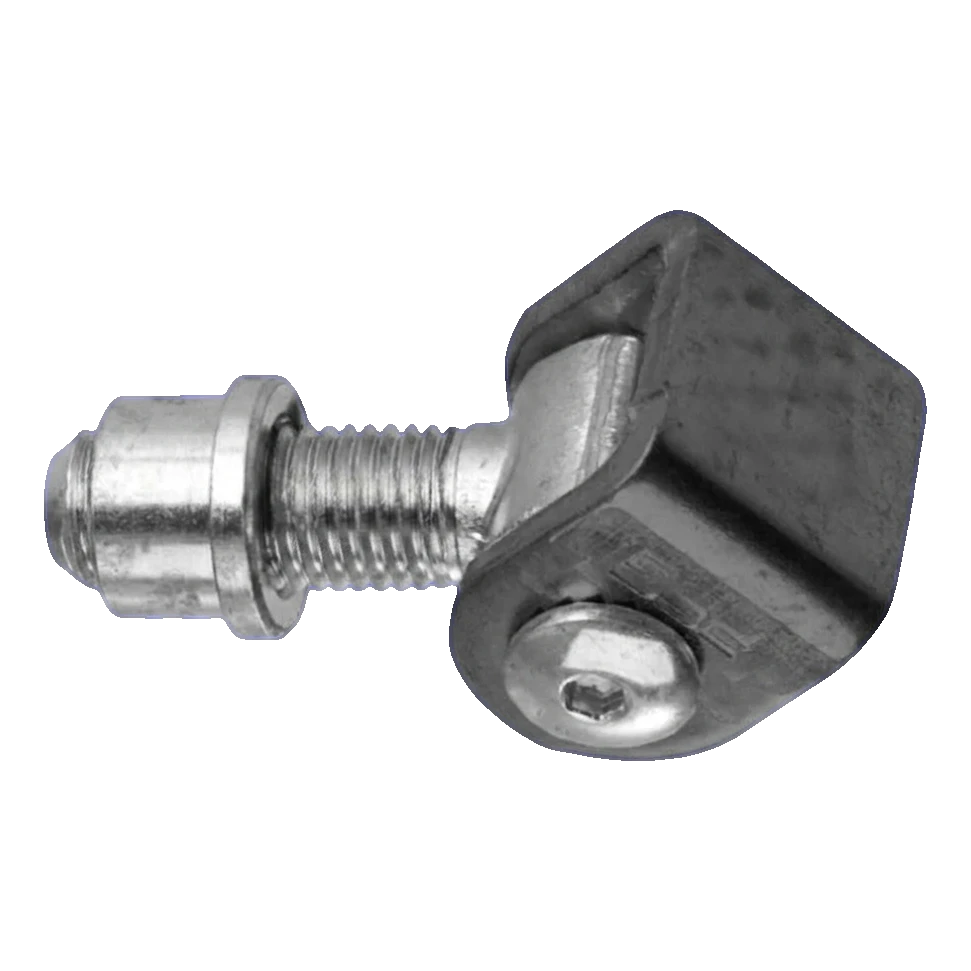

PSG adjustable weld-on gate hinge M12 galvanised steel
Leave feedback on the product
PSG weld-on gate hinge M12 galvanised steel. Adjustable M12 thread, length 64.5 mm, black ear 27x27 mm, sheet thickness 4 mm. Permissible load per pair 40 kg on 2 m gate leaf. For gates and wickets.
Product code: 001-338
Product features
[PIM] zawiasy #113
- Thread type M12
- Mounting Method Weld-On
- Material Steel
Description
PSG adjustable weld-on gate hinge M12 galvanised steel
Steel adjustable weld-on hinge with M12 screw by PSG — proven hardware component for gates, wickets and welded structures. Galvanised screw with black ear ensures multi-year corrosion resistance in outdoor conditions, whilst threaded adjustment allows precise gate leaf positioning at any time during operation.
Thanks to the nut on the M12 spindle, the hinge can be adjusted even after installation completion — e.g. when the structure sags under weight or metal changes dimensions due to extreme temperatures. Simply tighten or loosen the nut to restore proper gate leaf positioning. Permissible load per pair of hinges on a gate leaf of 2 m length is 40 kg.
Advantages for installers
- Post-installation adjustment — ability to correct gate leaf positioning without hinge removal
- Galvanised coating — high, multi-year protection against corrosion in outdoor applications
- High mechanical strength — steel construction resistant to damage and wear
- Aesthetic finish — black ear provides neat appearance to finished structure

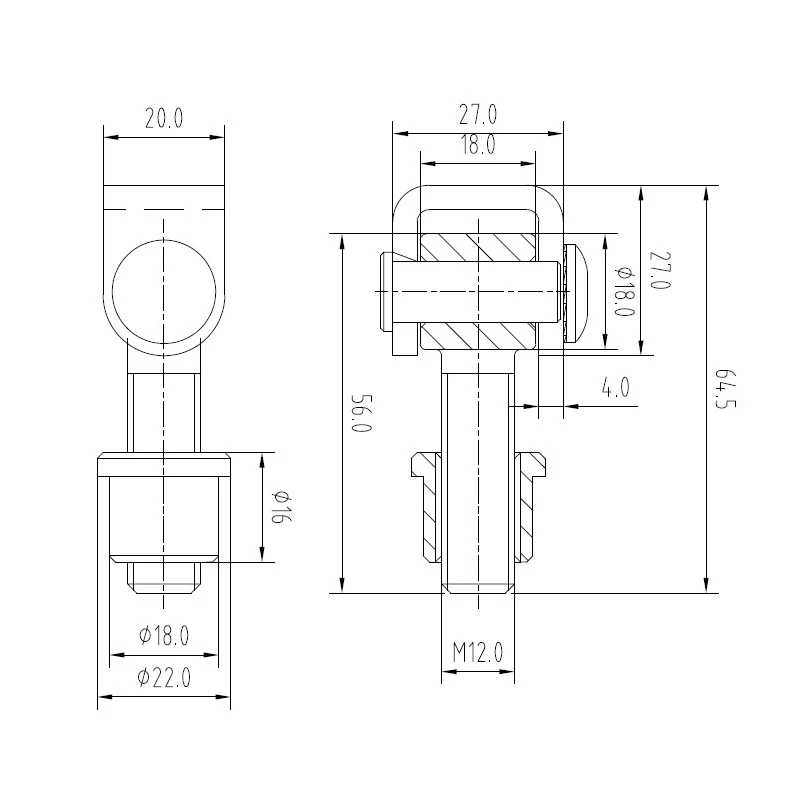

Dimensions and technical parameters
- Screw thread: M12
- Overall length: 64.5 mm
- Working screw length (from pin axis): 56 mm
- Screw length: 40 mm
- External ear width: 27 mm
- Internal ear width: 18 mm
- Ear height: 27 mm
- Ear side width: 20 mm
- Ear sheet thickness: 4 mm
- External eye diameter: Ø18 mm
- External sleeve diameter: Ø18 mm
- Sleeve collar diameter: Ø22 mm
- Material: steel
- Anti-corrosion protection: galvanised (black ear)
- Weight: 0.14 kg
- Permissible load per pair on 2 m gate leaf: 40 kg
- EAN: 5901289679992
