PSG adjustable upper guide for sliding gates – steel with rollers
Leave feedback on the product
PSG adjustable upper guide for sliding gates made from galvanised steel. Roller spacing adjustment 0-195 mm. Profile 310 mm, mounting plate 100x100x4 mm. Plastic rollers Ø42 mm. Weight 1.16 kg.
Product code: 001-260
Description
PSG adjustable upper guide for sliding gates – steel with rollers

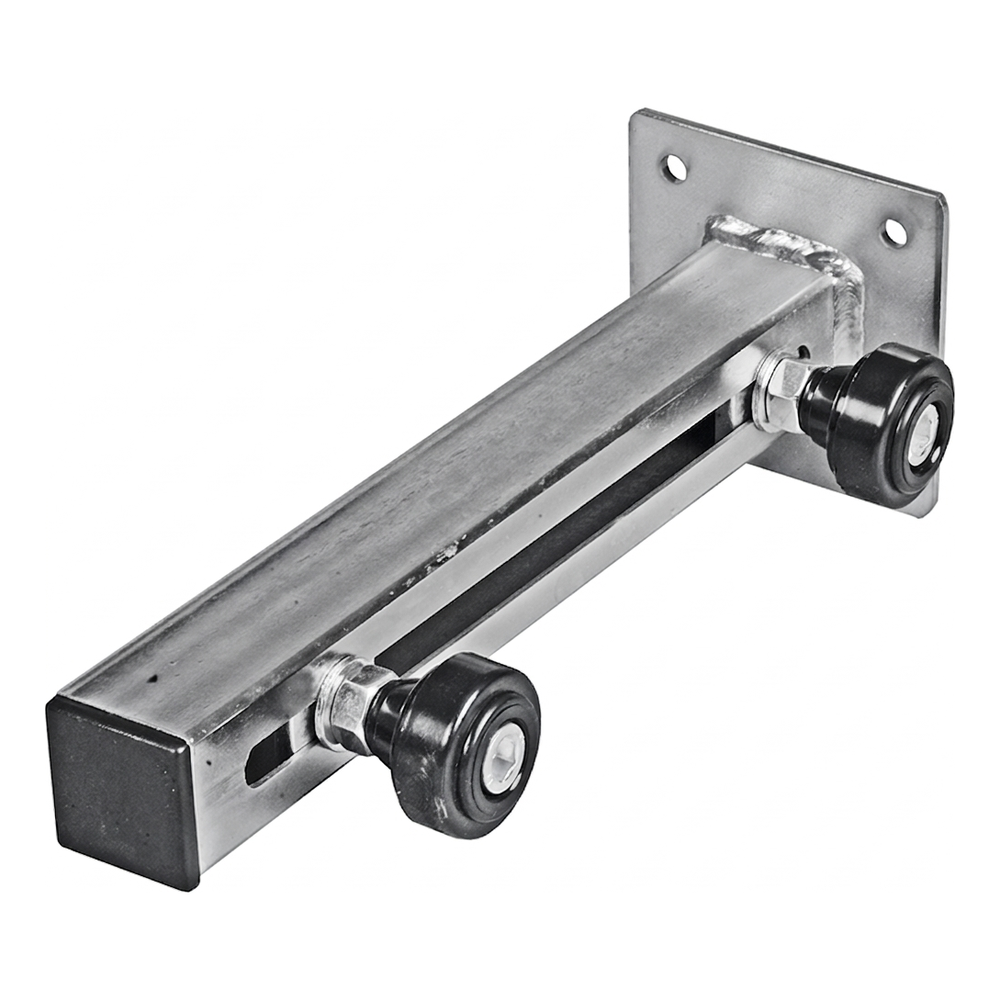

PSG adjustable upper guide is a steel element that stabilises a sliding gate vertically during opening and closing. Two adjustable plastic rollers allow precise adjustment of the spacing to match the thickness of the gate's upper profile — both cantilever and tracked gates. Thanks to its simple construction and adjustment range of 0–195 mm, the installer can quickly adapt the guide to a wide range of gates without the need to replace components.
Construction and application
The guide is designed for gates finished in the upper section with a closed profile of straight shape, without protruding decorative elements. The gate slides between two rollers that keep it vertical and eliminate lateral deflection. The guide profile is welded to a square mounting plate with four holes — the element is fixed directly to a masonry or steel post using screws (not included in the set).
The entire unit is made from galvanised steel, ensuring high corrosion resistance and long service life in outdoor conditions. Guide rollers made from black plastic prevent scratching of the gate surface and operate quietly.

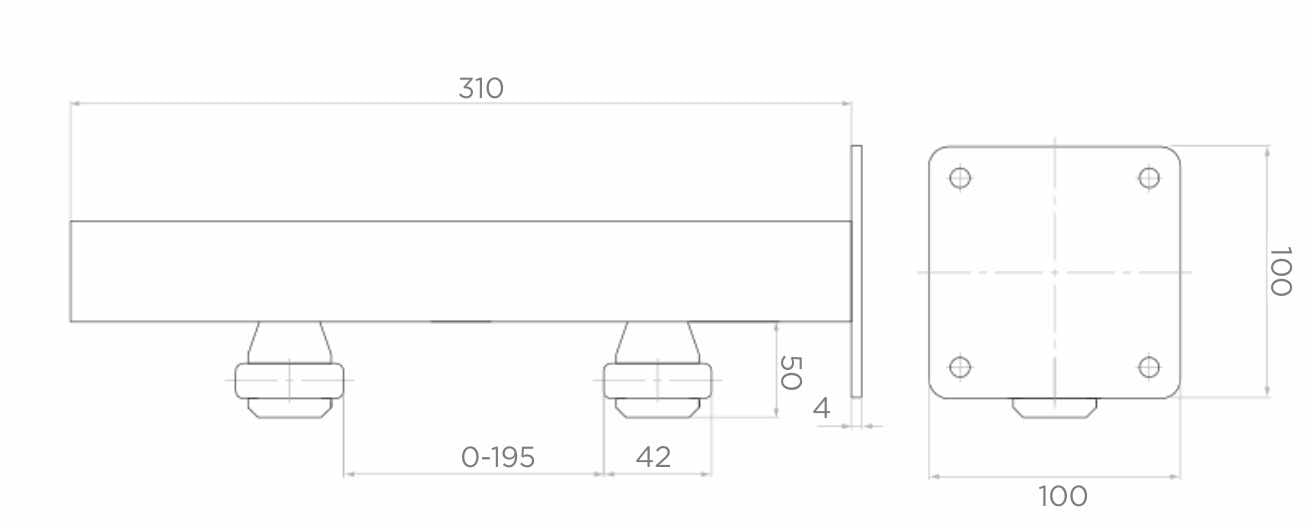

Dimensions and technical parameters
- Guide profile length: 310 mm
- Mounting plate: 100 × 100 mm, thickness 4 mm
- Roller diameter: 42 mm
- Roller height (from lower edge of profile): 50 mm
- Roller spacing adjustment range: 0–195 mm
- Construction material: galvanised steel
- Roller material: plastic (black)
- Weight: 1.16 kg
- Manufacturer: PSG
- EAN: 5901289674942
Key advantages for the installer
- Wide adjustment range (0–195 mm) — one guide fits many types of gates
- Quick installation — plate with four holes for direct fixing to the post
- Galvanised steel — durability and resistance to weather conditions without additional protection
- Plastic rollers — quiet operation and protection of gate surface from scratches
