PSG adjustable upper guide for sliding gates – 4 rollers, galvanised
Description
PSG adjustable upper guide for sliding gates – 4 rollers, galvanised

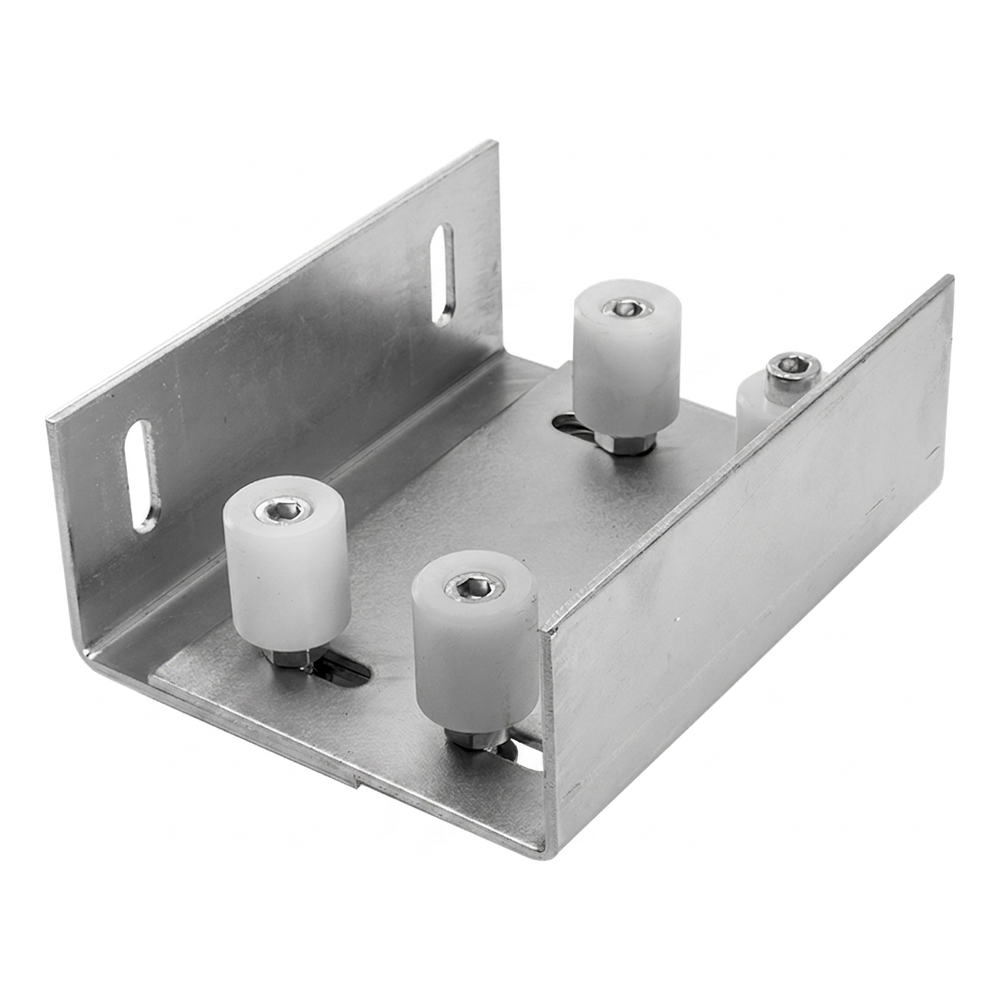

PSG adjustable upper guide is a steel stabilising element for sliding gates that maintains vertical alignment during gate movement. The bracket equipped with four plastic rollers allows for precise adjustment to the thickness of the gate's upper profile thanks to adjustable mounting holes (elongated slots) and the possibility of extending the plates. This solution is designed for both cantilever gates and rail-guided gates, ensuring smooth and quiet operation of the sliding mechanism.
The guide is mounted to the wall above the gate and works with gates finished at the top with a closed profile of straight shape – without protruding decorative elements. The galvanised surface of the steel bracket guarantees high corrosion resistance, which is crucial for outdoor installation on buildings.
Key features
- Manufacturer: PSG
- Bracket material: galvanised steel
- Roller material: plastic (white colour)
- Number of rollers: 4 pcs.
- Roller spacing adjustment: yes – elongated slot type mounting holes
- Plate extension capability: yes
- Application: cantilever and rail-guided sliding gates
- Mounting: bolting to wall
- Weight: 2.73 kg
- EAN: 5901289674935

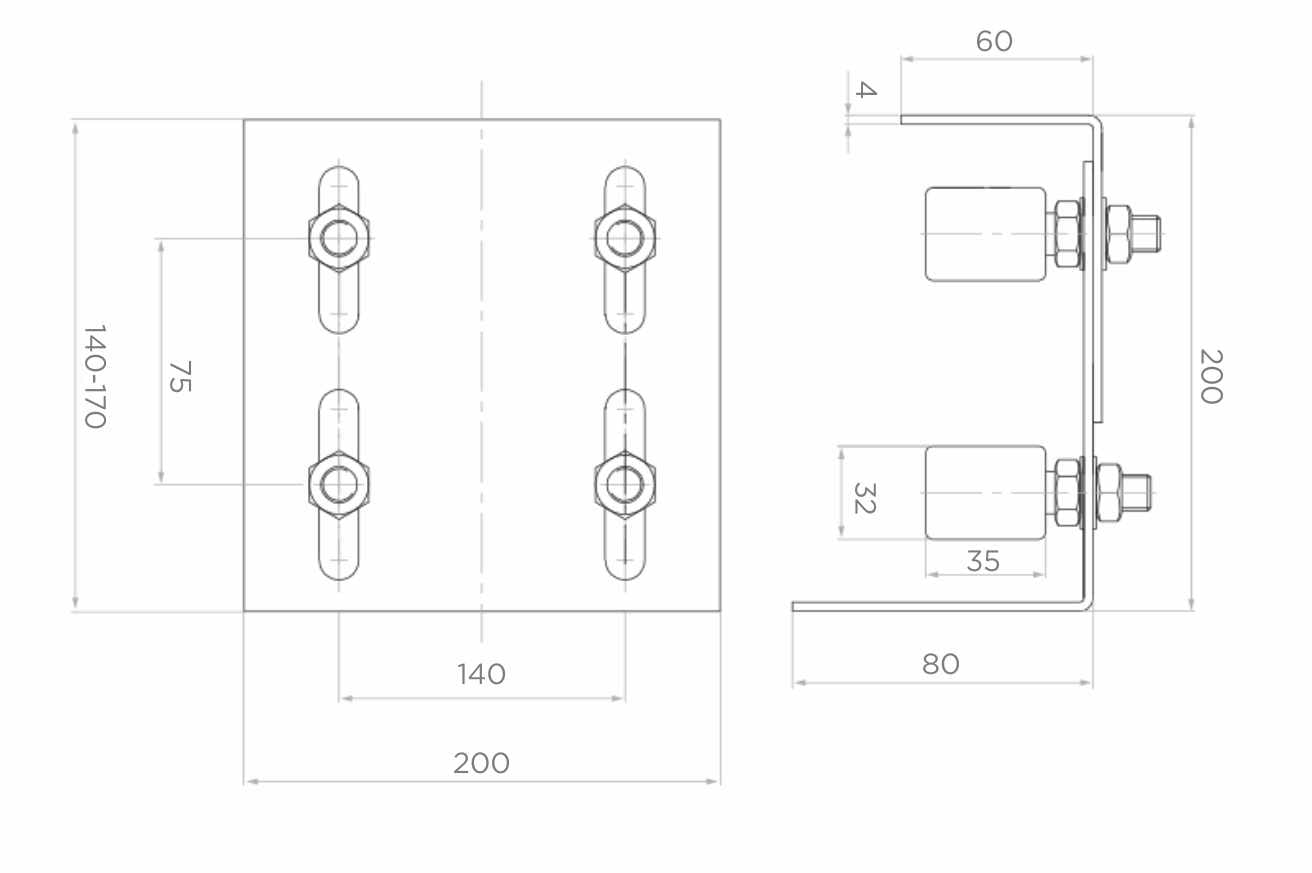

Dimensions and technical data
- Mounting plate dimensions: 200 × 200 mm
- Plate thickness: 4 mm
- Bracket height (H): 80 mm
- Channel flange projection: 60 mm / 80 mm
- Roller centre spacing (along gate): 140 mm
- Roller spacing adjustment range (across): 140–170 mm
- Internal spacing of adjustment holes: 75 mm
- Roller diameter: 32 mm
- Roller height: 35 mm
The adjustable roller spacing range of 140–170 mm enables the guide to be fitted to various thicknesses of the gate's upper profile, making this element a universal solution for many types of sliding gates found on the market. Elongated slot mounting holes provide additional adjustment margin during installation — even with minor inaccuracies in substrate preparation, installation proceeds smoothly and without complications.
