PSG adjustable upper guide for sliding gate – 76 mm roller
Description
PSG adjustable upper guide for sliding gate – 76 mm roller
Adjustable upper guide PSG is an essential mounting element ensuring stability and smooth sliding of the gate. Thanks to the adjustable roller spacing, you can adapt the guide to the gate wing profile without the need to drill additional holes — installation is quick and the result is precise.

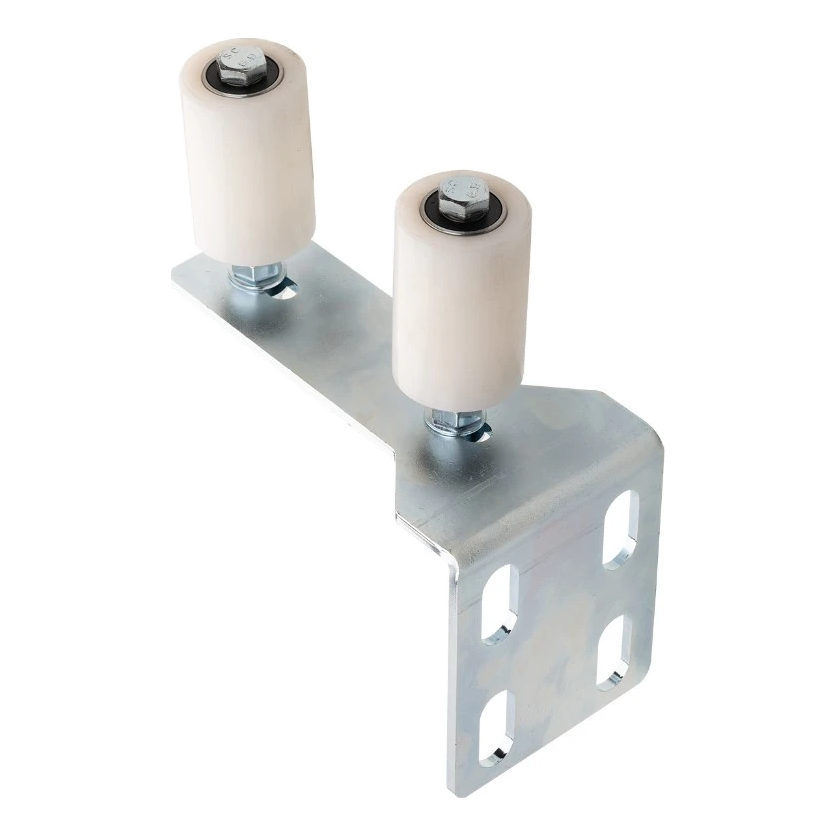

The guide is equipped with two plastic rollers with high wear resistance, which guarantee quiet and smooth gate movement for many seasons. Construction from galvanised steel 5 mm thick ensures durability and effective anti-corrosion protection even in demanding weather conditions. The product is ready to be screwed directly to the wall — no additional adapters required.
The guide is designed for sliding gates with straight closed profiles, without additional decorative elements. Slot-shaped mounting holes enable position correction both vertically and horizontally, which significantly speeds up adjustment on site.
Application and installation

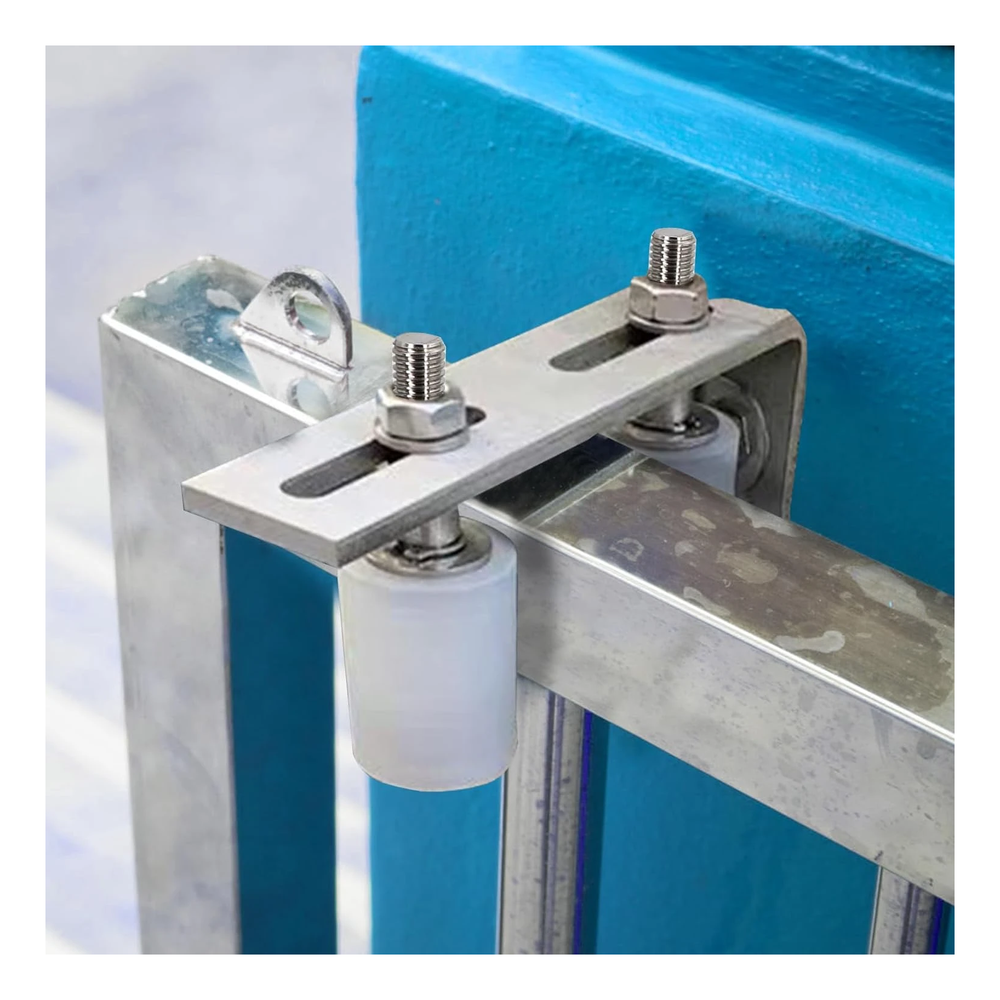

The guide is mounted on the upper part of the fence post or wall, where it encompasses the gate wing with two rollers. Adjustable roller spacing (clearance 49–79 mm) allows adaptation to different closed profiles used in sliding gates. M12 bolts enable secure tightening of rollers, and elongated mounting holes in the wall bracket facilitate precise levelling.

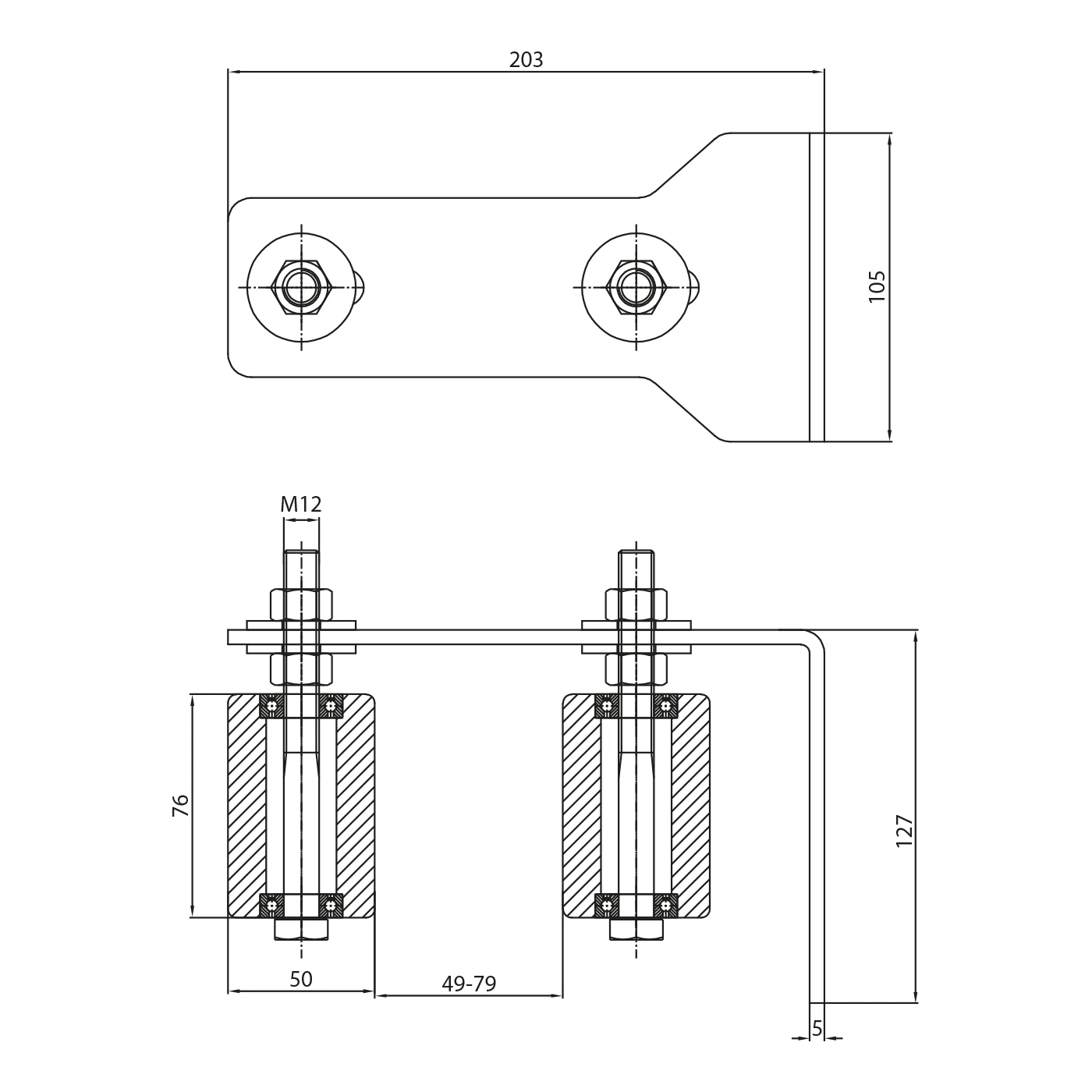

Dimensions and technical data
- Brand: PSG
- Total length (L): 203 mm
- Bracket height (H): 127 mm
- Mounting base width: 105 mm
- Roller height: 76 mm
- Roller diameter: 50 mm
- Adjustable roller spacing (clearance): 49–79 mm
- Roller fixing bolt thread: M12
- Steel plate thickness: 5 mm
- Bracket material: galvanised steel
- Roller material: plastic (high wear resistance)
- Weight: 1.62 kg
- Installation: ready to screw to wall
