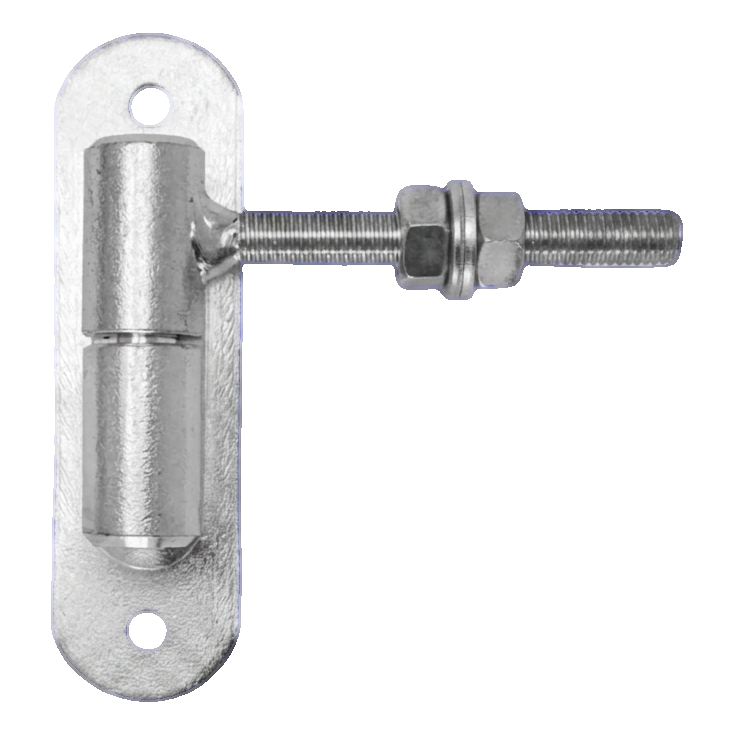

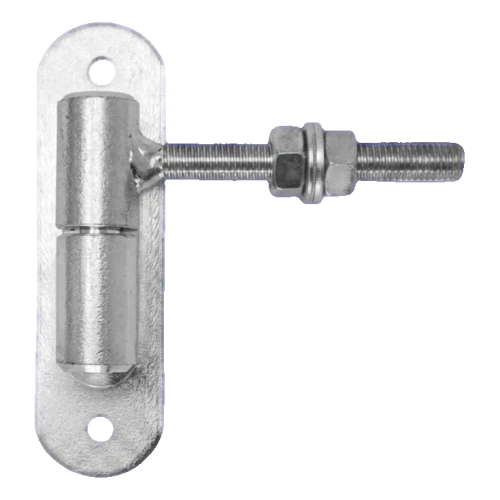

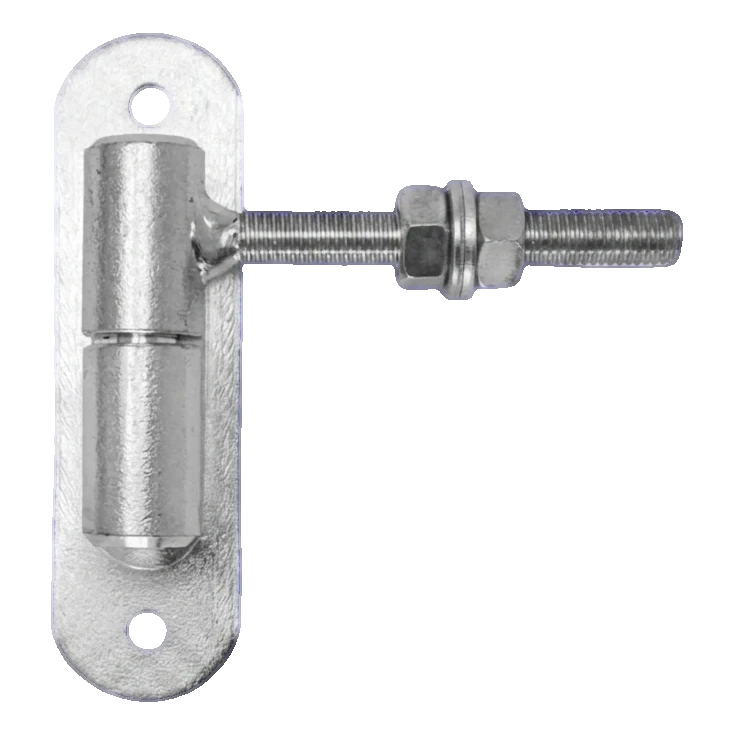

PSG adjustable turned gate hinge fi24 M12 with 150×40 mm plate
Steel adjustable turned hinge with ball and mounting plate – a reliable solution for hanging garden gates. M12 thread with adjustment nut allows precise vertical adjustment of the gate at any time – both immediately after installation and during operation, when the structure sags or thermal conditions change.
Galvanised surface provides long-lasting corrosion protection, making the hinge fully suitable for outdoor conditions. Turned sleeve with diameter fi 24 mm guarantees smooth operation and high resistance to mechanical loads. Two mounting holes in the plate enable quick and secure attachment to the fence post.
Installer advantages
- Adjustment at any time – nut on M12 thread enables tightening or loosening of the hinge without dismantling the gate
- Galvanised – durable anti-corrosion protection for outdoor applications
- Quick installation – plate with two fi 10.5 mm holes allows direct attachment to the post
- High build quality – turned steel sleeve resistant to mechanical damage and heavy loads
Dimensions and technical parameters
- Material: galvanised steel
- Sleeve diameter: fi 24 mm
- Spindle thread: M12

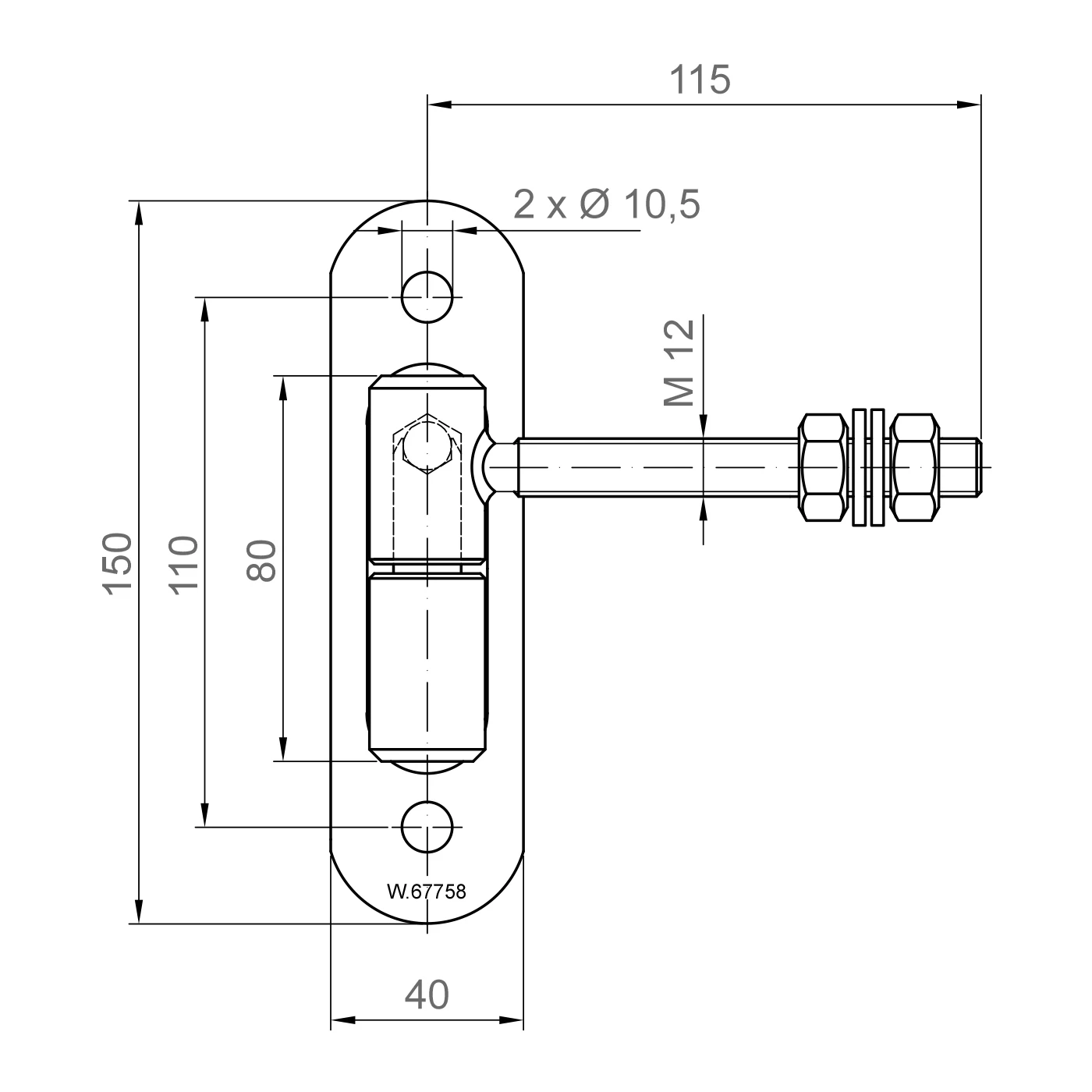

- Plate dimensions (H × width): 150 × 40 mm
- Plate thickness: 4 mm
- Working height of sleeve: 80 mm
- Mounting hole spacing: 110 mm
- Mounting hole diameter: 2 × fi 10.5 mm
- Threaded spindle length (from rotation axis): 115 mm

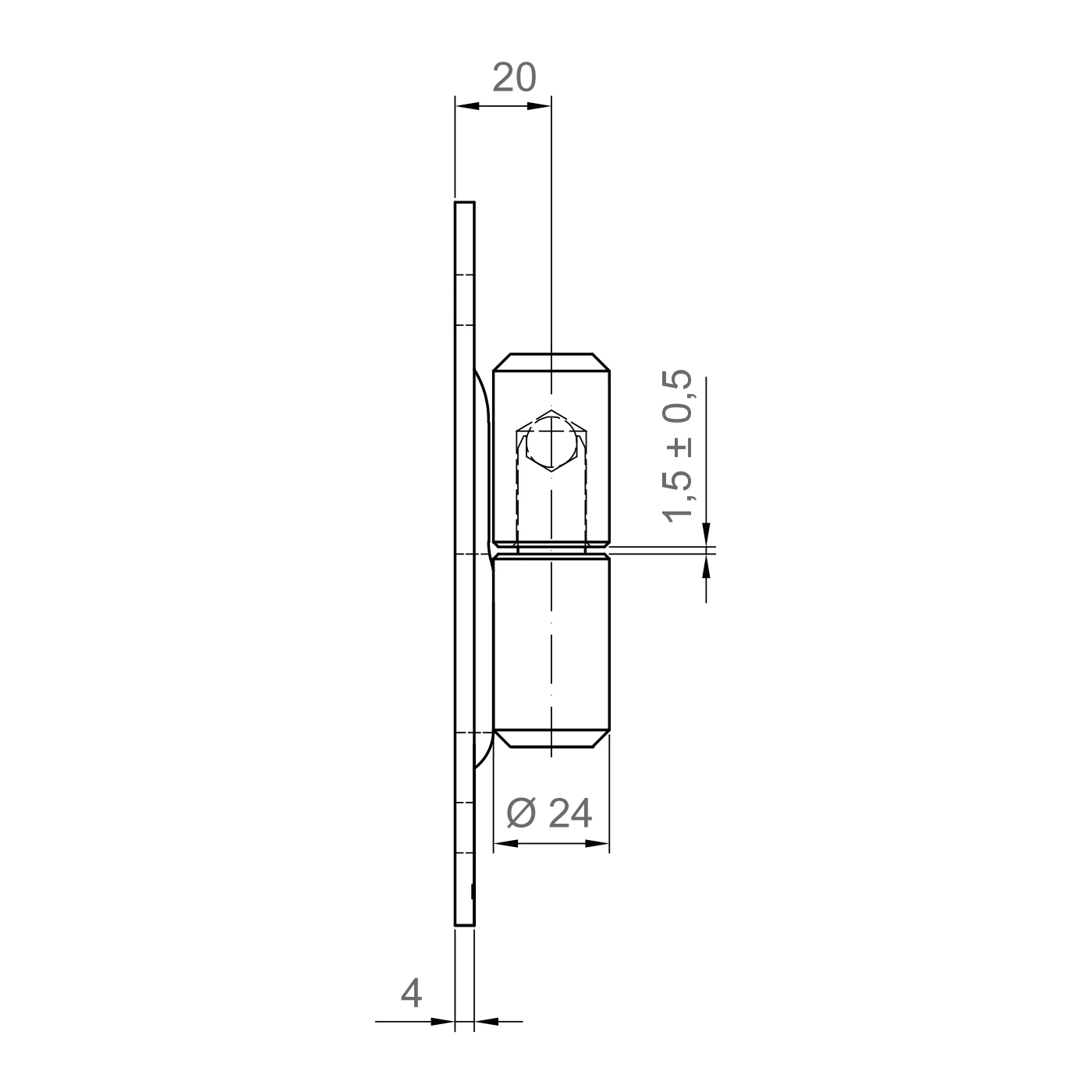

- Distance of rotation axis from mounting surface: 20 mm
- Working clearance between sleeves: 1.5 ± 0.5 mm
- Weight: 0.56 kg
- EAN: 5901431940918
Construction and operating principle
The hinge consists of two turned steel sleeves mounted on a common rotation axis, connected to a mounting plate. The horizontal spindle with M12 thread is terminated with a ball, onto which the appropriate part of the gate is fitted. The adjustment nut on the spindle allows stepless adjustment of the gate hanging height – simply unscrew the nut, set the correct position and retighten. This construction eliminates the need for dismantling when correcting the setting, which is particularly useful after structural sagging or in conditions of large temperature changes, when metal changes its dimensions.
Technical data
| Thread type | M12 |
| Diameter | 24 |
| Mounting Method | With Plate |
| Material | Steel |
