PSG adjustable top guide for sliding gates – double roller 270 mm
Leave feedback on the product
PSG adjustable top guide made from galvanised steel with double plastic roller. Length 270 mm, width 35 mm, thickness 6 mm. Roller spacing adjustment 15-65 mm. White rollers diameter 42 mm. Weight 0.89 kg. For sliding gates.
Product code: 001-262
Description
PSG adjustable top guide for sliding gates – double roller 270 mm
PSG adjustable top guide is a steel mounting element designed for stabilising sliding gates – both self-supporting and rail-mounted types. Equipped with two adjustable plastic rollers, it ensures smooth and quiet vertical guidance of the gate during opening and closing. Thanks to the adjustable roller spacing (15–65 mm), the bracket adapts to the width of the closed profile that finishes the top edge of the gate.
Construction and operating principle

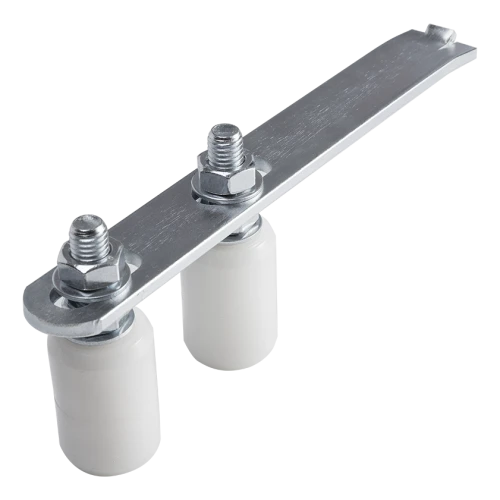

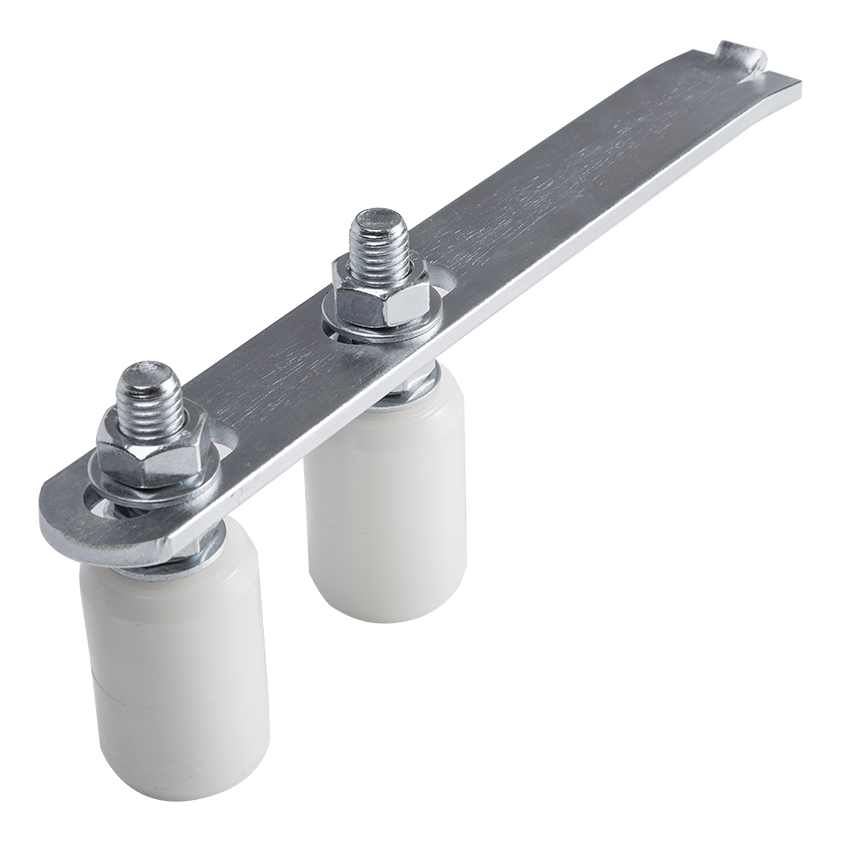

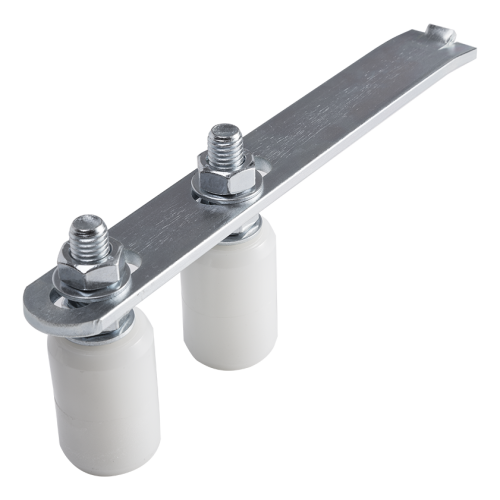

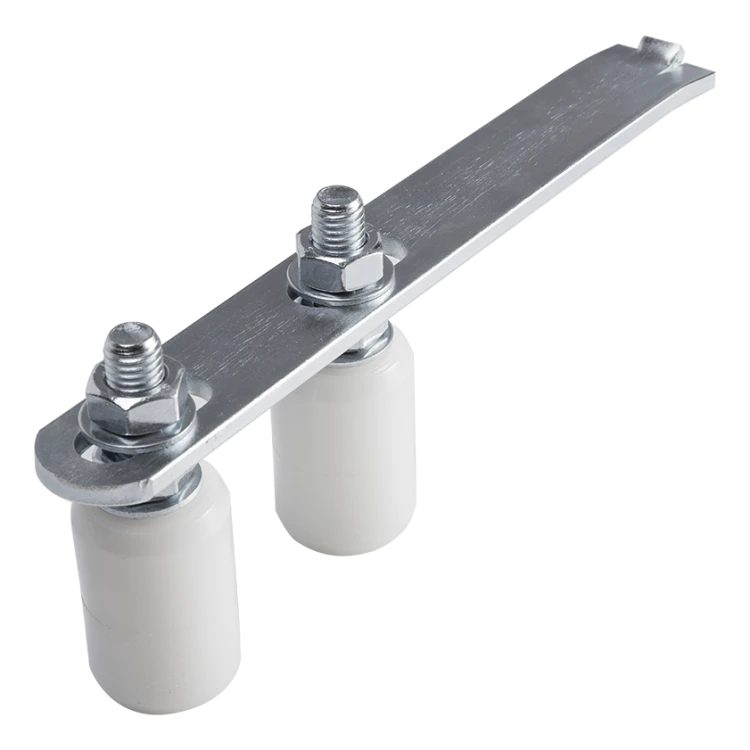

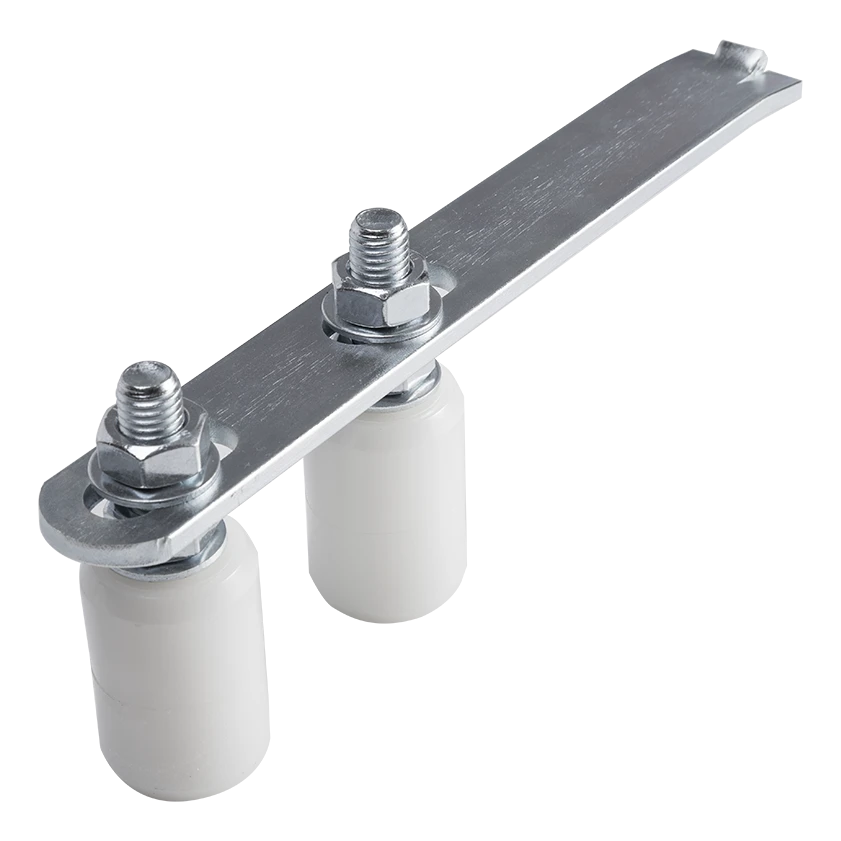

The guide consists of a galvanised steel flat bar with a length of 270 mm, on which two rollers rotating on bolts with nuts are mounted. The gate moves between the rollers, which keep it vertical and eliminate lateral deviation. The element is designed for gates finished at the top with a closed profile of straight shape, without protruding or decorative elements. Installation is carried out by bolting the flat bar directly to the wall or gate post.

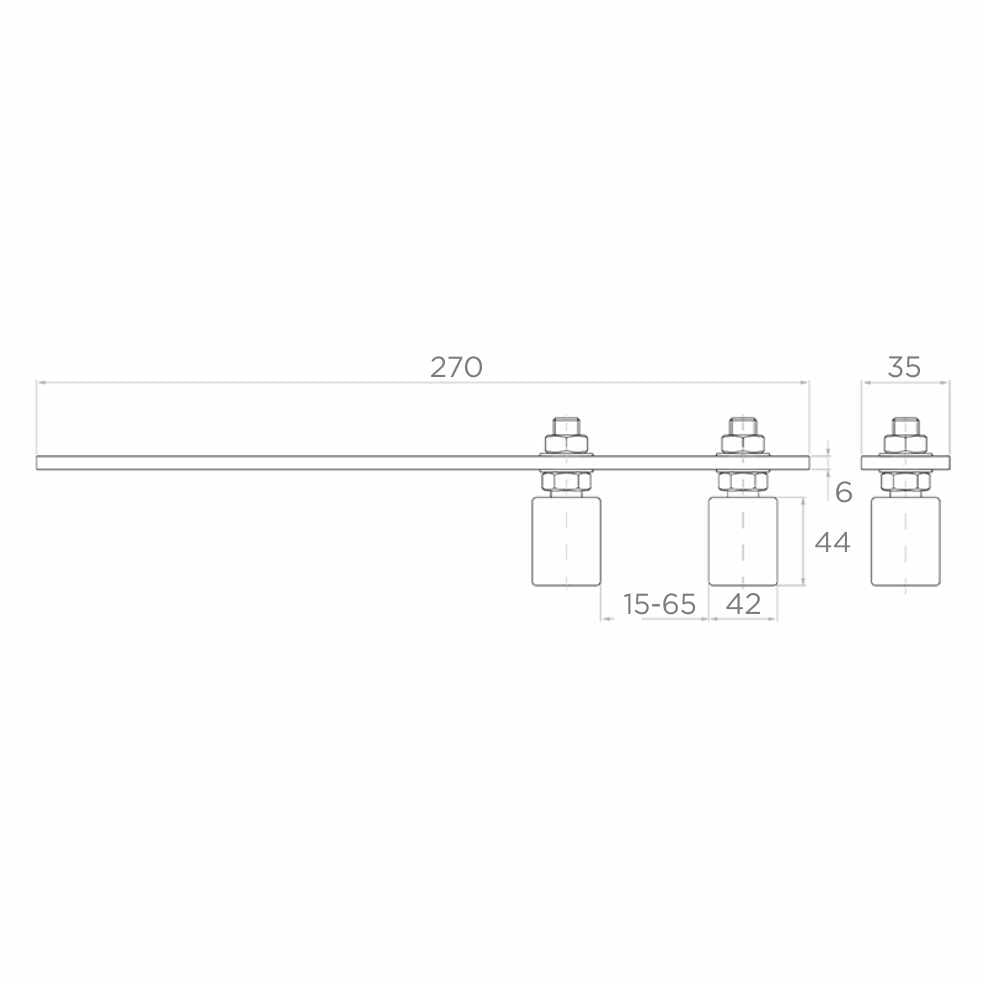

Dimensions and technical parameters
- Flat bar length: 270 mm
- Flat bar width: 35 mm
- Flat bar thickness: 6 mm
- Roller diameter: 42 mm
- Roller height: 44 mm
- Roller spacing adjustment range: 15–65 mm
- Flat bar material: galvanised steel
- Roller material: plastic (white colour)
- Weight: 0.89 kg
- Installation: to be bolted to wall or post
- Manufacturer: PSG
- EAN: 5901289674966
Roller spacing adjustment in the range from 15 to 65 mm allows the guide to be adapted to the specific thickness of the gate's top profile. The galvanised surface of the steel flat bar ensures corrosion resistance and long-term outdoor operation, whilst the plastic rollers guarantee quiet operation and do not scratch the gate surface.
