PSG adjustable top guide for sliding gate with 160 mm rollers
Description
PSG adjustable top guide for sliding gate with 160 mm rollers

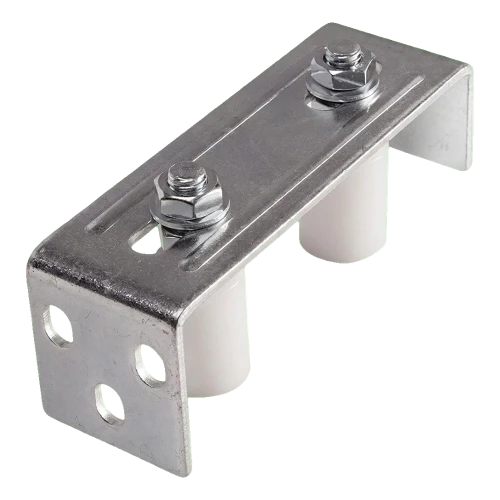

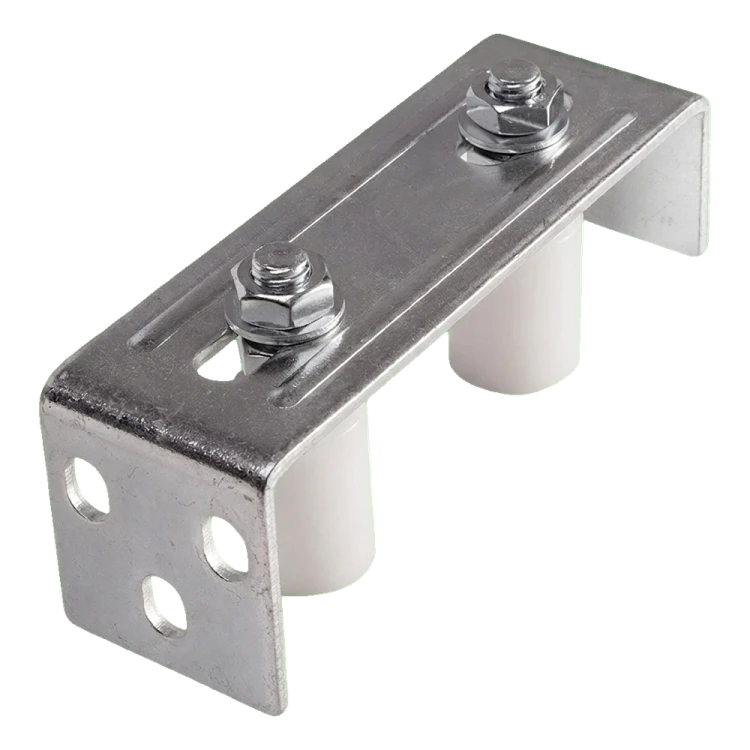

Adjustable top guide PSG is a ready-to-install stabilising element designed for sliding gates. The bracket equipped with two white plastic rollers ensures smooth and quiet guidance of the gate leaf during opening and closing. Thanks to the adjustable roller spacing in the range of 36–83 mm, the guide adapts to closed profiles of different widths, making it a universal solution for many types of gates.
The steel construction subjected to galvanising guarantees high corrosion resistance and years of outdoor operation. The bracket is mounted directly to a post or wall using slotted holes in the mounting plate, which enables precise vertical position adjustment. The product is dedicated to gates finished in the upper part with closed profile of straight shape — without protruding decorative elements.

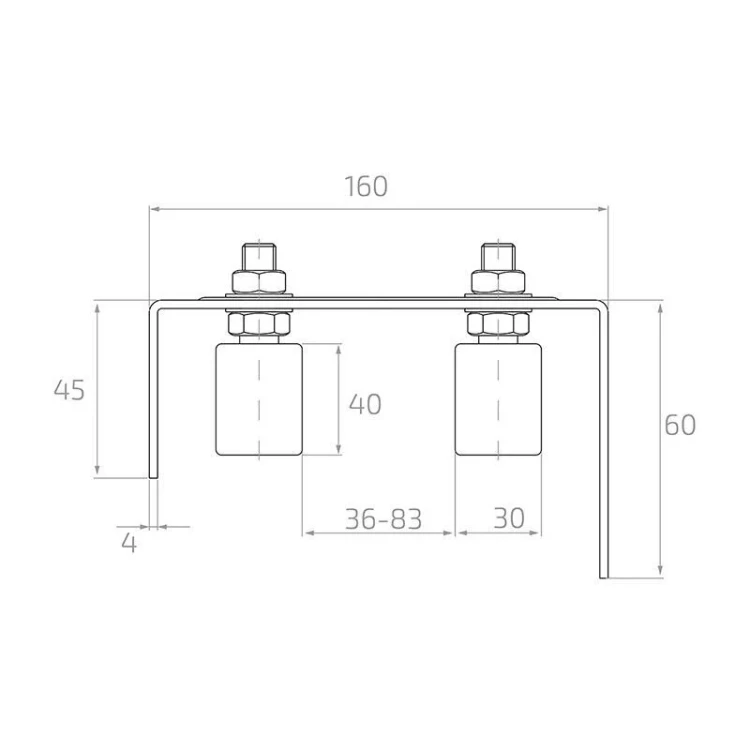

Dimensions and technical parameters
- Total bracket length: 160 mm
- Mounting arm height: 60 mm
- Sheet thickness: 4 mm
- Roller spacing adjustment range: 36–83 mm
- Roller diameter: 30 mm
- Roller height: 40 mm
- Bracket material: galvanised steel
- Roller material: plastic (white colour)
- Weight: 0.82 kg
- EAN: 5901289674959

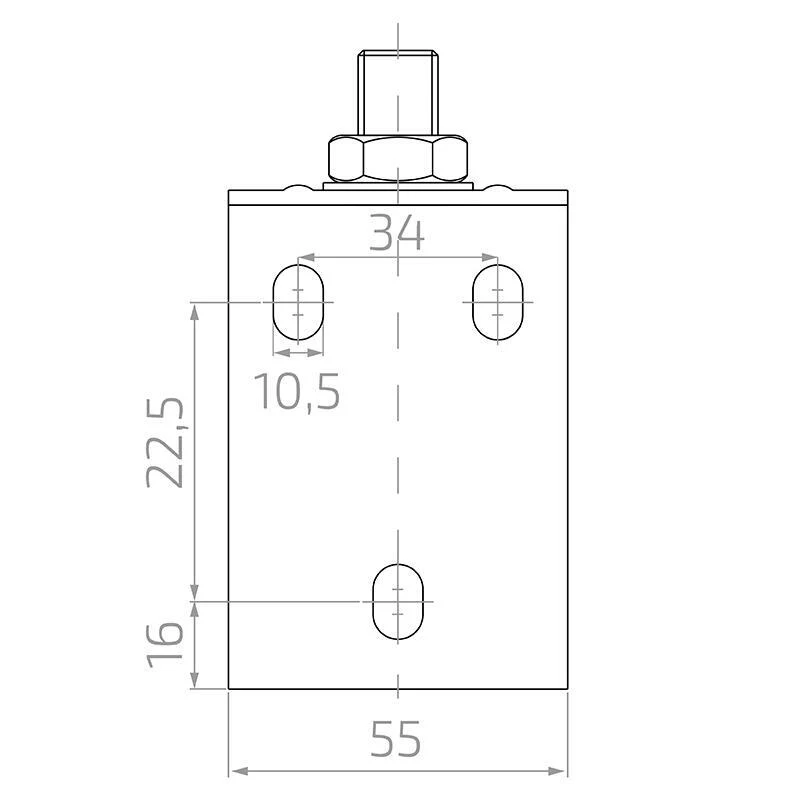

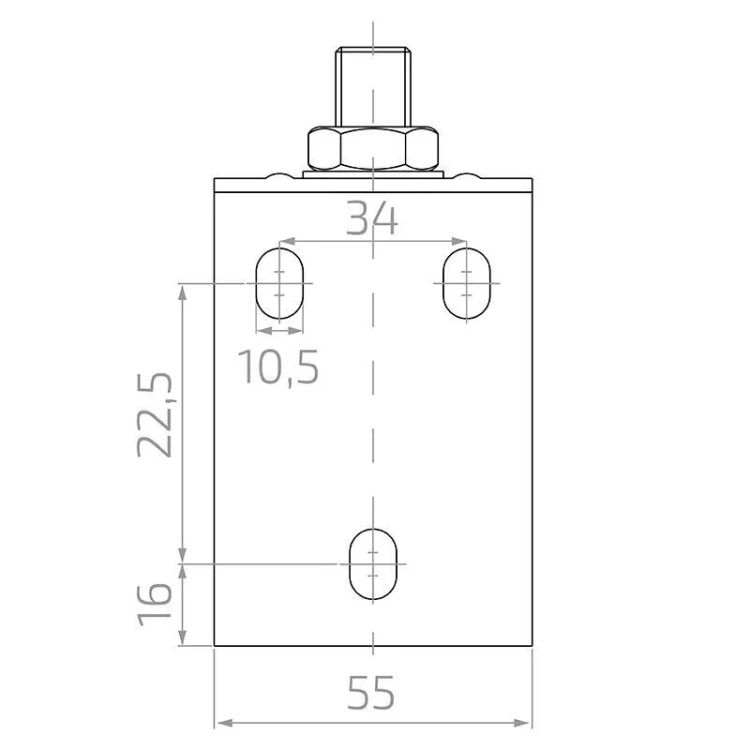

Mounting plate
- Mounting plate dimensions: 55 × 38.5 mm
- Upper hole spacing: 34 mm
- Vertical hole spacing: 22.5 mm
- Slotted holes width: 10.5 mm
- Bottom hole distance from edge: 16 mm
Application and benefits
The PSG top guide is an essential element of every sliding gate installation. Plastic rollers are characterised by high wear resistance, which translates into a long service life without the need for replacement. The adjustable roller spacing allows for quick adaptation to a specific gate profile already at the installation stage, eliminating the need for additional spacer washers. Slotted holes in the mounting plate enable vertical position correction, which is particularly useful when dealing with post or wall irregularities.
