PSG – adjustable sliding gate guide roller FI 30 with angle bracket
Leave feedback on the product

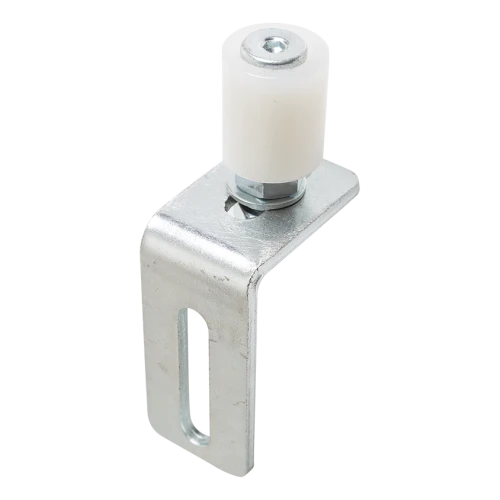

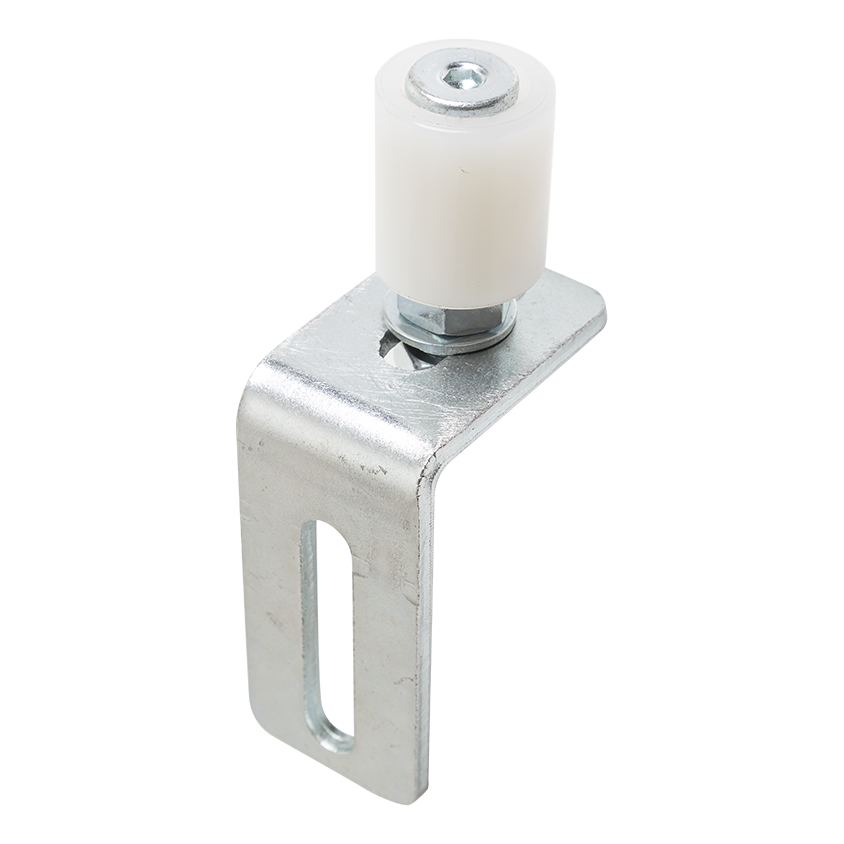

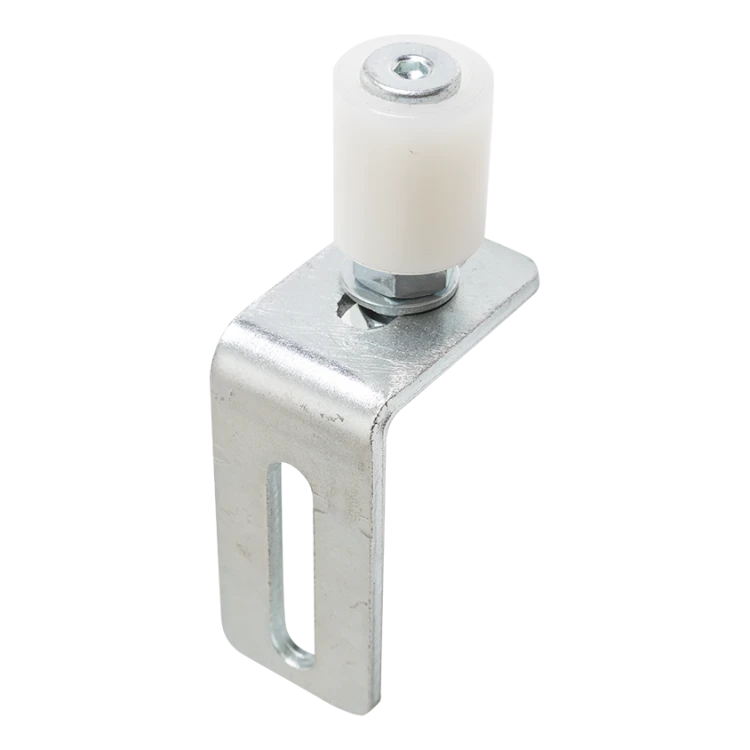

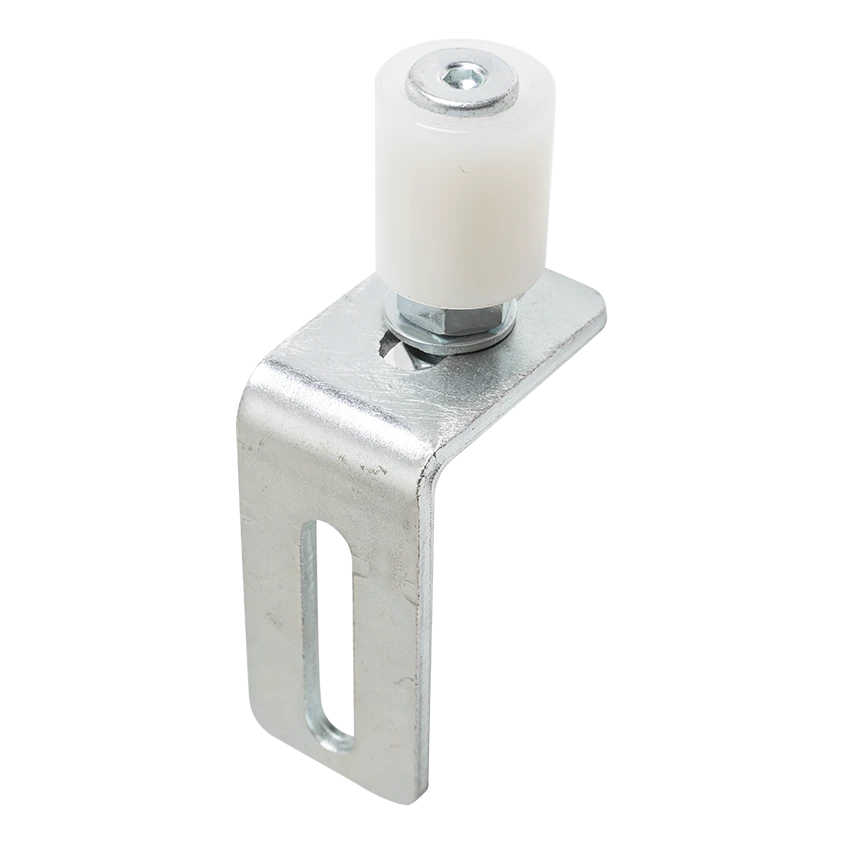

PSG adjustable sliding gate guide roller FI 30 with angle bracket. Diameter 30 mm, height 40 mm. Plastic roller, galvanised steel angle bracket 100x60x40 mm, sheet thickness 5 mm. Position adjustment via elongated hole. Weight 0.3 kg.
Product code: 001-280
Description
PSG – adjustable sliding gate guide roller FI 30 with angle bracket
PSG adjustable guide roller FI 30 is a reliable component of sliding gate guidance systems. Its function is to keep the rail (channel) vertical during gate opening and closing, ensuring smooth and quiet operation of the entire mechanism. Thanks to the ability to adjust the roller position using an elongated mounting hole (slot) in the angle bracket, installers can precisely adjust the guidance to site conditions — even with slight ground unevenness or post irregularities.
The roller is made from plastic, ensuring quiet operation, corrosion resistance and no need for lubrication. The mounting angle bracket made from galvanised steel is included in the set, making the product ready for installation straight from the packaging.

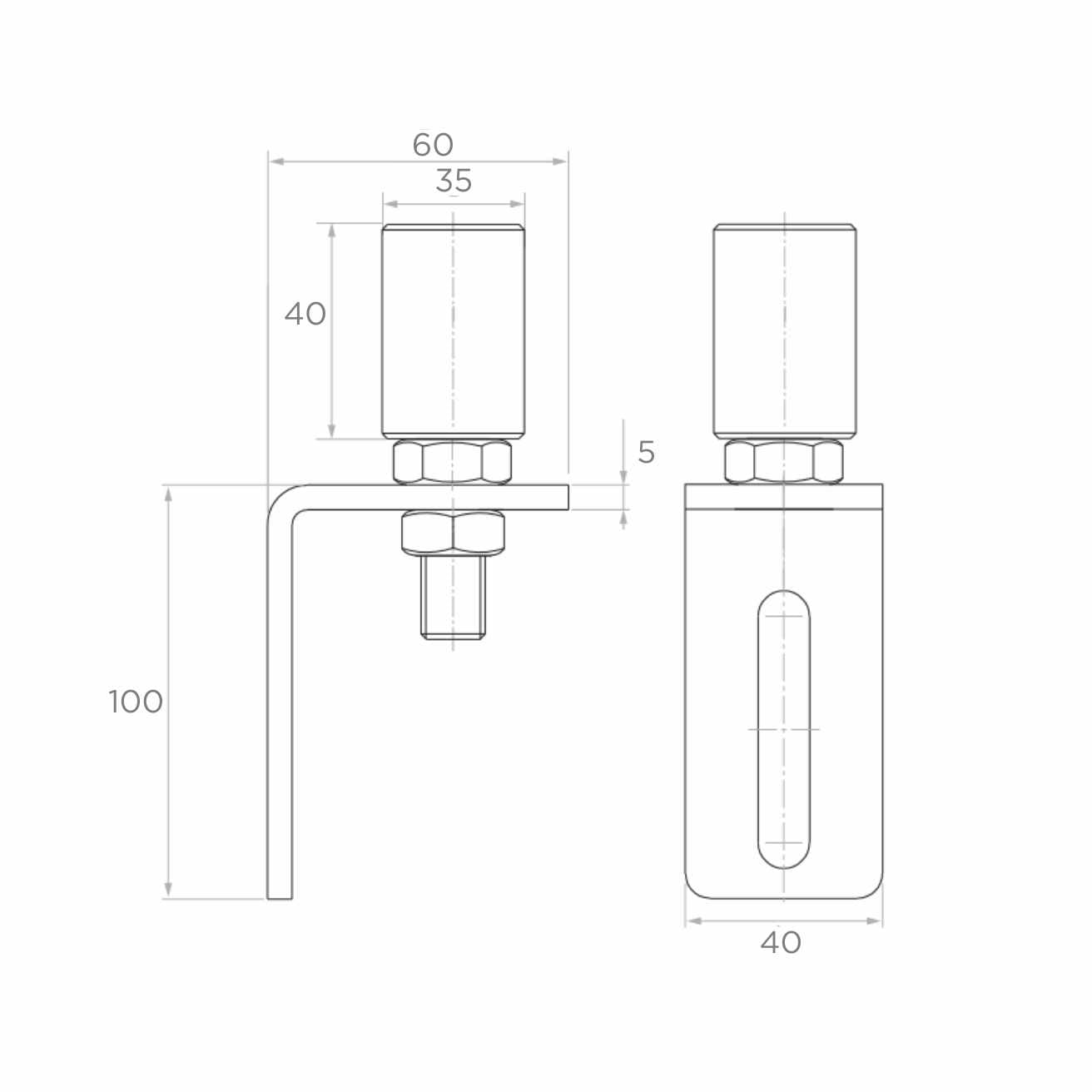

Dimensions and technical data
- Roller diameter: FI 30 mm
- Roller height: 40 mm
- Roller material: plastic
- Angle bracket arm height: 100 mm
- Horizontal arm length: 60 mm
- Angle bracket width: 40 mm
- Angle bracket sheet thickness: 5 mm
- Angle bracket material: galvanised steel
- Weight: 0.3 kg
- EAN: 5901289679404
Set contents and installation
The roller comes complete with a mounting angle bracket featuring an elongated hole (slot), enabling position adjustment of the roller vertically. The adjustment hole allows for adapting the channel guidance height without the need to re-drill holes in the post — a significant convenience during installation and servicing of sliding gates.
