PSG adjustable hinge plate M20 – AISI 304 stainless steel, 100×100 mm
Description
PSG adjustable hinge plate M20 – AISI 304 stainless steel, 100×100 mm

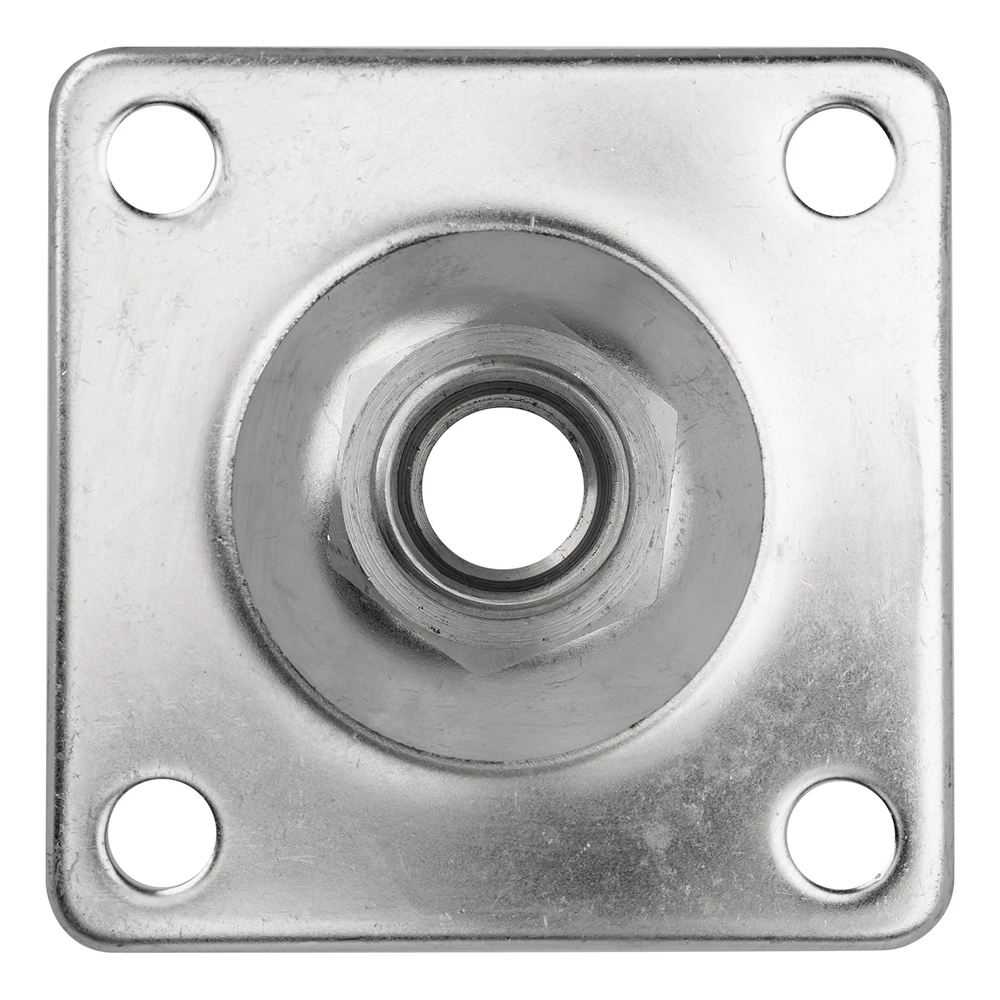

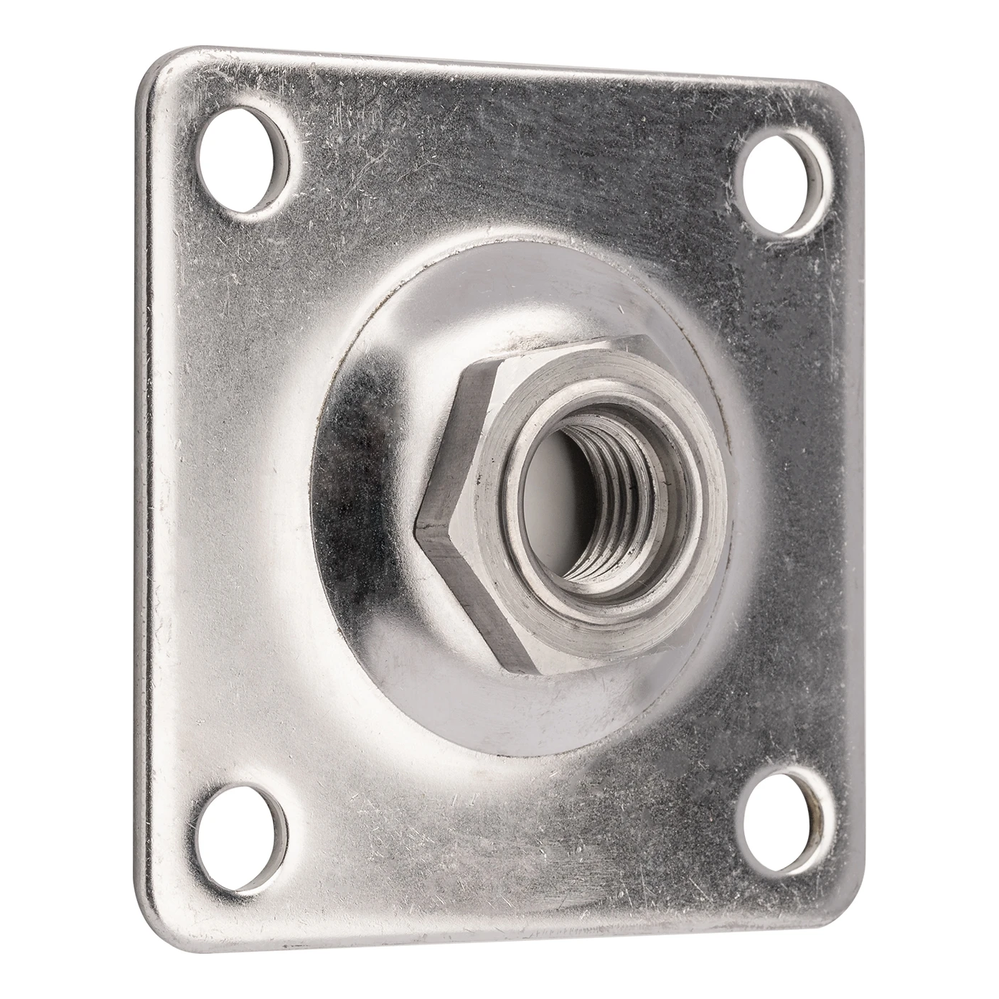

Adjustable hinge plate M20 from PSG is a universal mounting element designed for stable installation of adjustable hinges with M20 screw. Made from AISI 304 stainless steel, it provides high corrosion resistance, making it suitable for both domestic and industrial gates — even in demanding atmospheric conditions and environments exposed to moisture.
The raw surface allows complete freedom for further processing — the plate can be powder coated or painted to match the colour scheme of other gate elements. Four mounting holes with diameter ø11.5 mm and spacing 75×75 mm enable quick and secure fastening to posts or frames, whilst rounded corners (R8) eliminate the risk of sharp edges.

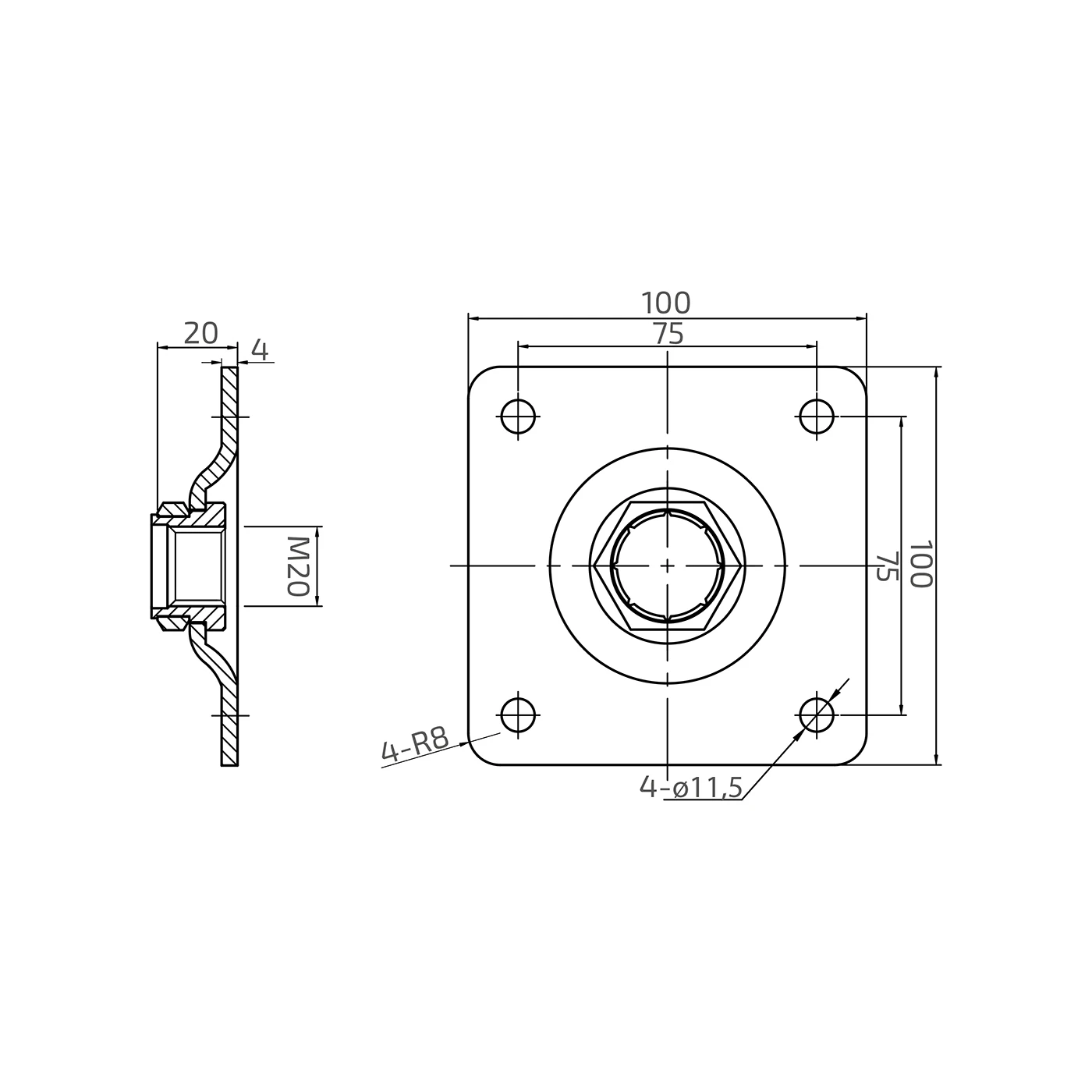

Dimensions and technical data
- Manufacturer: PSG
- Application: adjustable hinge plate M20
- Material: AISI 304 stainless steel
- Surface: raw
- Plate dimensions: 100 × 100 mm
- Sheet thickness: 4 mm
- Total depth (with nut): 20 mm
- Central thread: M20
- Number of mounting holes: 4
- Mounting hole diameter: ø11.5 mm
- Hole spacing: 75 × 75 mm
- Corner radius: R8
- Type: universal
- Weight: 0.25 kg
- EAN: 5903313205825
Corrosion resistance and durability
AISI 304 stainless steel (austenitic chromium-nickel steel) is a material commonly used in gate hardware with enhanced requirements. Thanks to its chromium and nickel content, the plate maintains full strength and aesthetic appearance for years — regardless of weather conditions. For installers, this means no complaints or servicing related to mounting corrosion.
Sheet thickness 4 mm combined with the large plate surface 100 × 100 mm ensures even load distribution, which is particularly important for heavy gate leaves. The universal design allows the plate to be used on both left and right sides, simplifying logistics and minimising the number of stock items.
Technical data
| Mounting Method | Wall-Embedded |
| Thread type | M20 |
| Material | AISI 304 |
