PSG adjustable hinge plate M16 80×80 mm – AISI 304 stainless steel
Description
PSG adjustable hinge plate M16 80×80 mm – AISI 304 stainless steel
Adjustable hinge plate M16 from PSG is a robust mounting element designed for fitting adjustable hinges with M16 thread. Made from AISI 304 stainless steel, it guarantees years of corrosion resistance and weather protection — an ideal solution for entrance gates, garden gates and outdoor fencing installations.

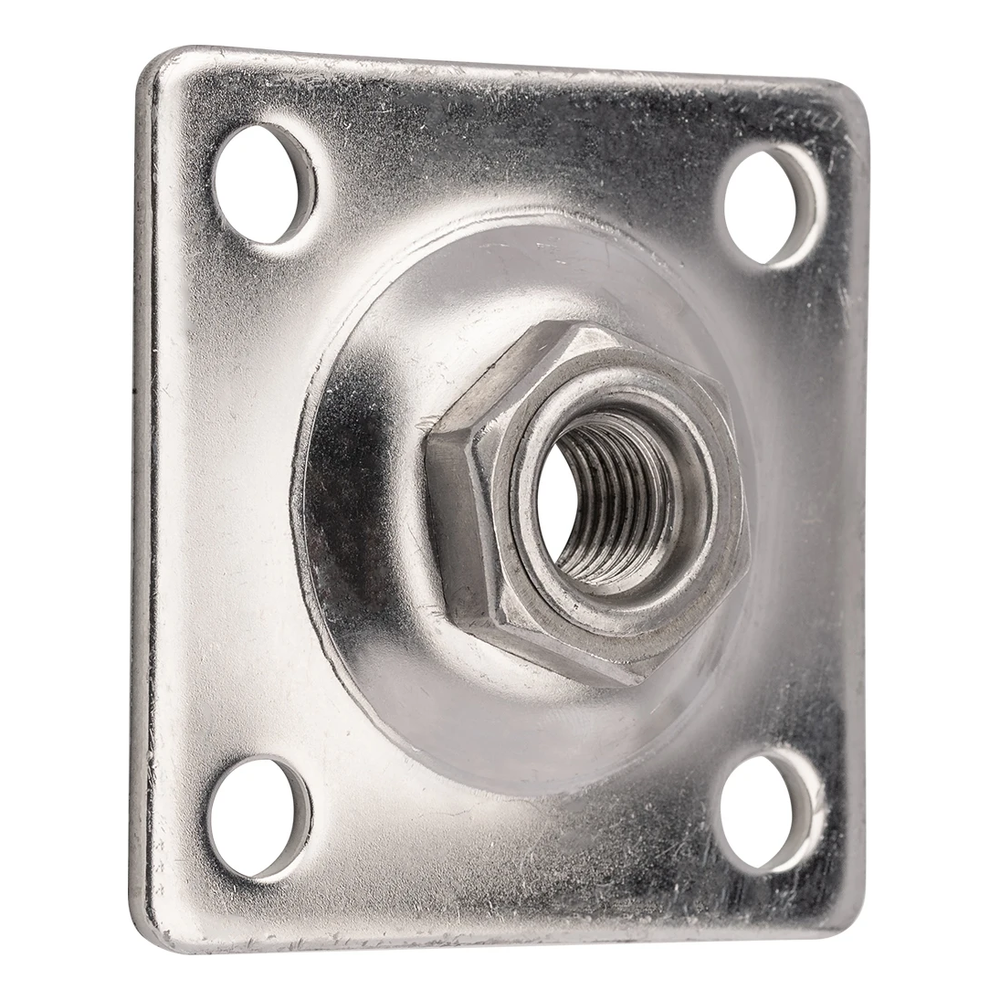

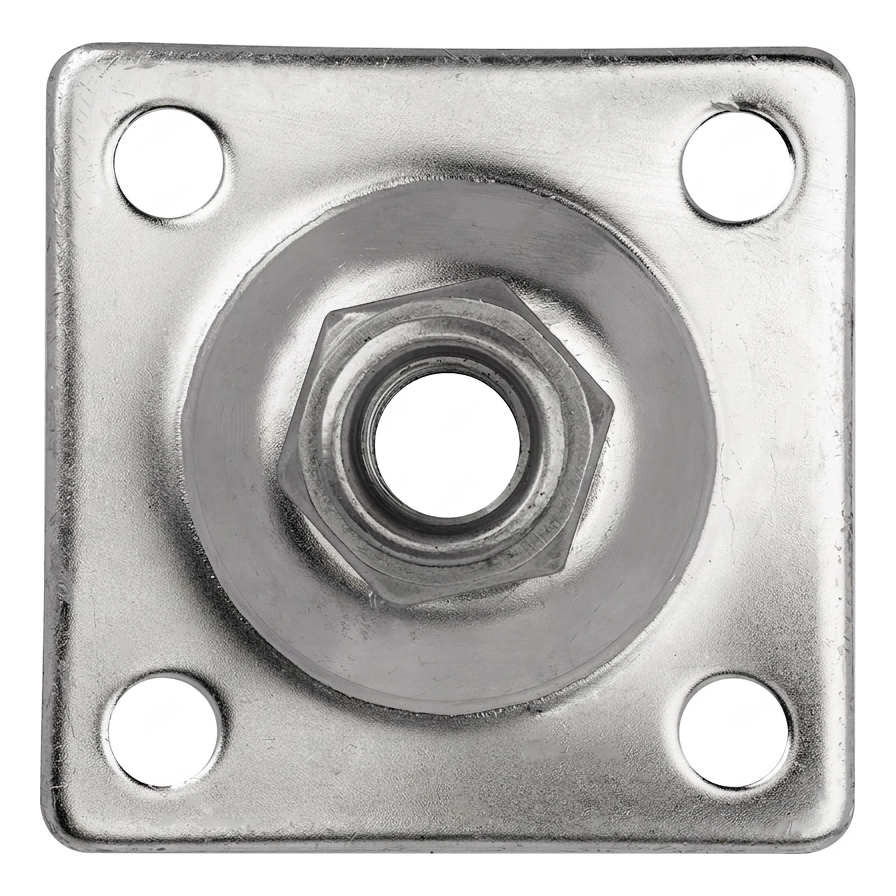

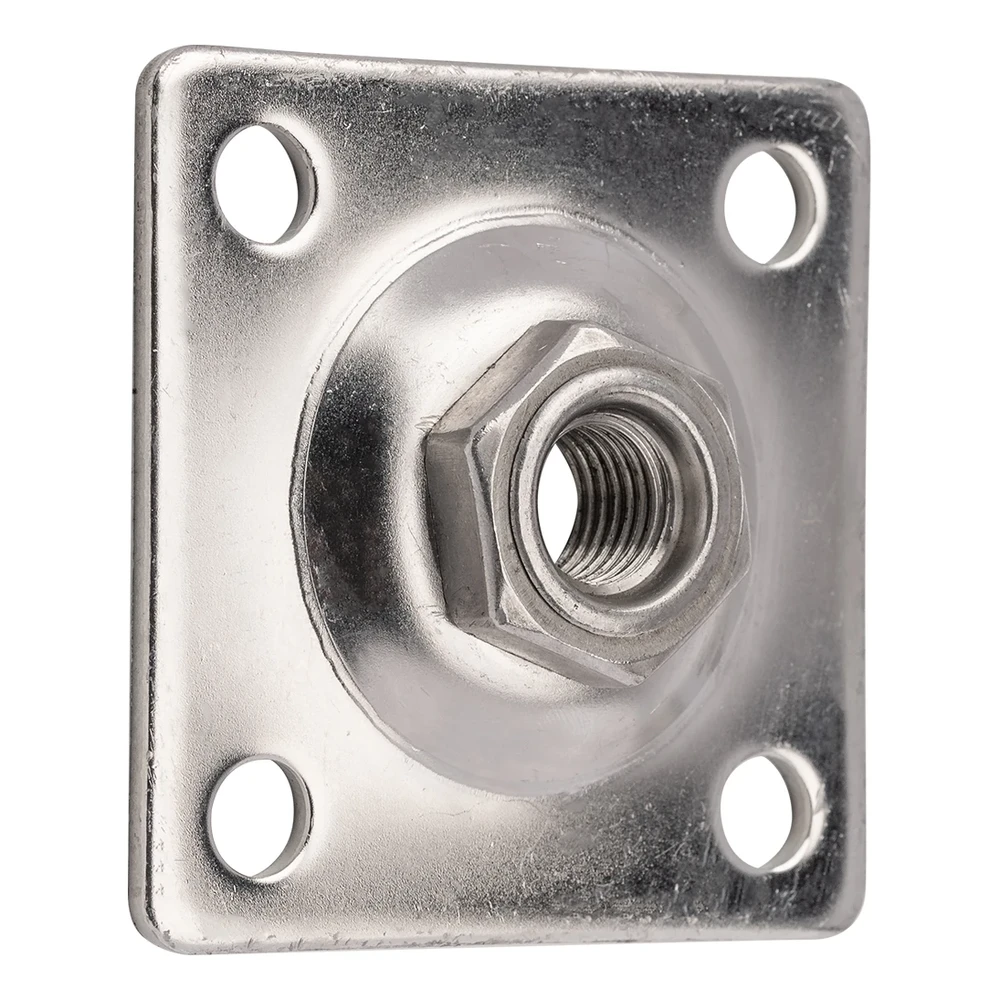

The universal design of the plate with centrally mounted hexagonal nut and four mounting holes ensures secure, stable connection of the hinge to the post or gate frame. The raw steel surface allows for further treatment — powder coating, painting or leaving in natural finish.
Applications
- Entrance gates — single and double leaf
- Garden and entrance gates
- Residential and industrial fencing
- Gate constructions requiring M16 adjustable hinges
Key features
- AISI 304 stainless steel — high corrosion resistance, ideal for outdoor applications
- M16 thread — compatibility with popular adjustable hinges
- Universal design — symmetrical plate suitable for both left and right-hand mounting
- 4 mounting holes with ø10.5 mm diameter — quick and secure installation with bolts
- Raw surface — possibility of painting or coating in chosen colour

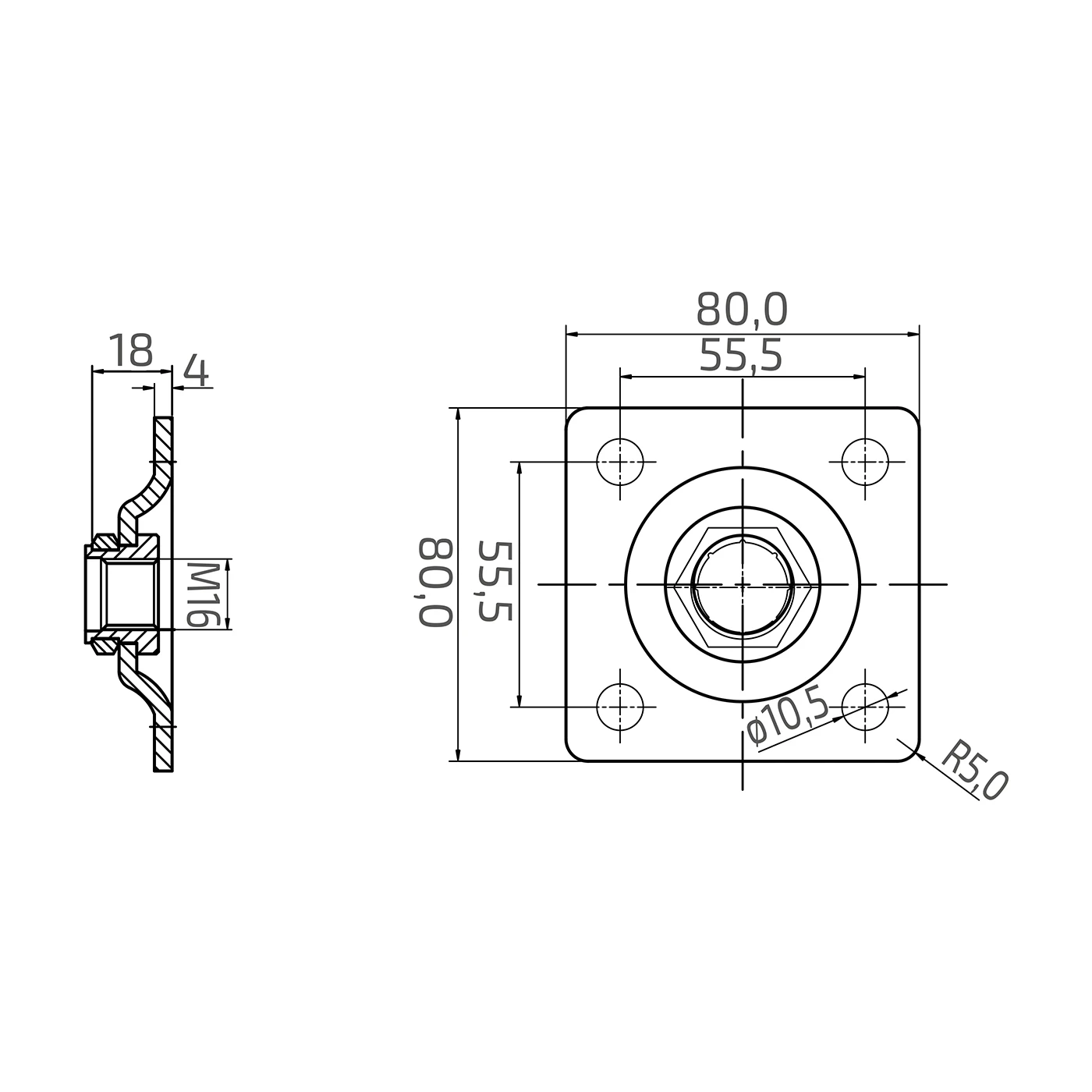

Dimensions and technical parameters
- Plate dimensions: 80 × 80 mm
- Sheet thickness: 4 mm
- Total depth (with nut): 18 mm
- Nut thread: M16
- Mounting hole centres: 55.5 × 55.5 mm
- Mounting hole diameter: ø10.5 mm
- Corner radius: R5.0 mm
- Material: AISI 304 stainless steel
- Surface: raw
- Weight: 0.19 kg
- Brand: PSG
- EAN: 5903313205818
Corrosion resistance
The use of AISI 304 stainless steel guarantees durability even in harsh weather conditions. The material maintains an attractive, metallic appearance for years of use, without rusting under the influence of rain, snow or moisture. For installation companies, this means no warranty claims related to corrosion and fewer maintenance callouts — once fitted, the plate serves maintenance-free for many years.
Installation
The plate is mounted using four bolts (through holes with ø10.5 mm diameter) directly to the gate post or structural frame. The hole centres of 55.5 × 55.5 mm enable stable distribution of forces across the entire connection surface. The adjustable hinge pin with M16 thread is screwed into the central nut, allowing precise adjustment of the gate leaf position after installation.
Technical data
| Thread type | M16 |
| Mounting Method | Wall-Embedded |
| Material | AISI 304 |
