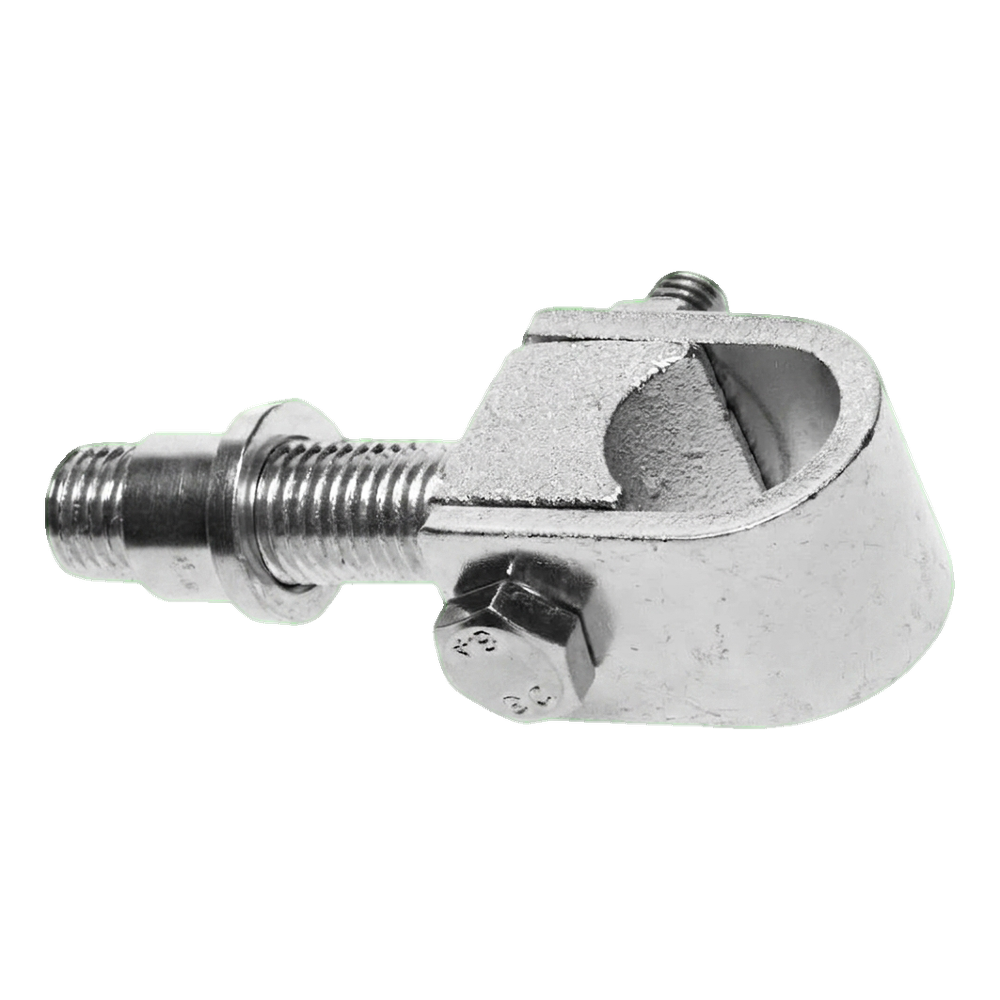

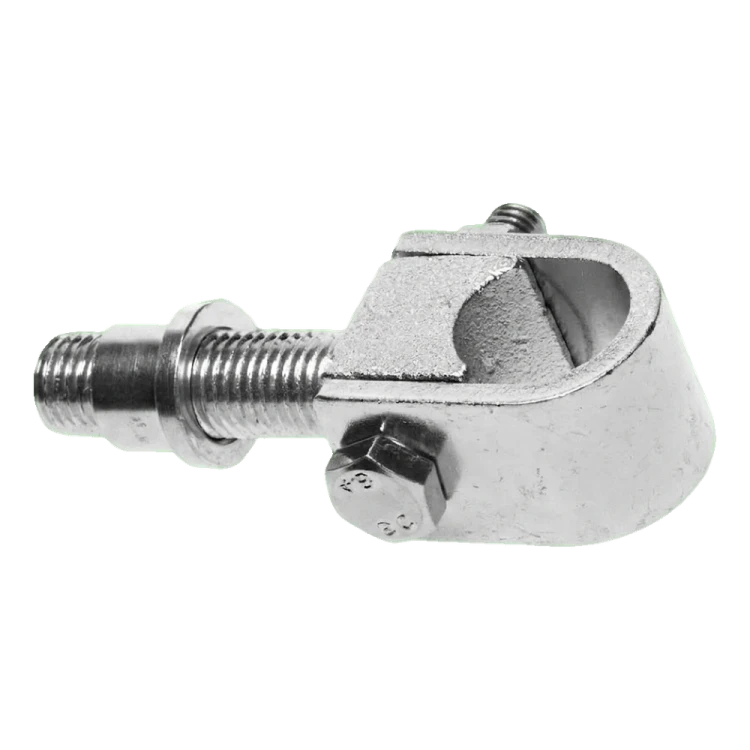

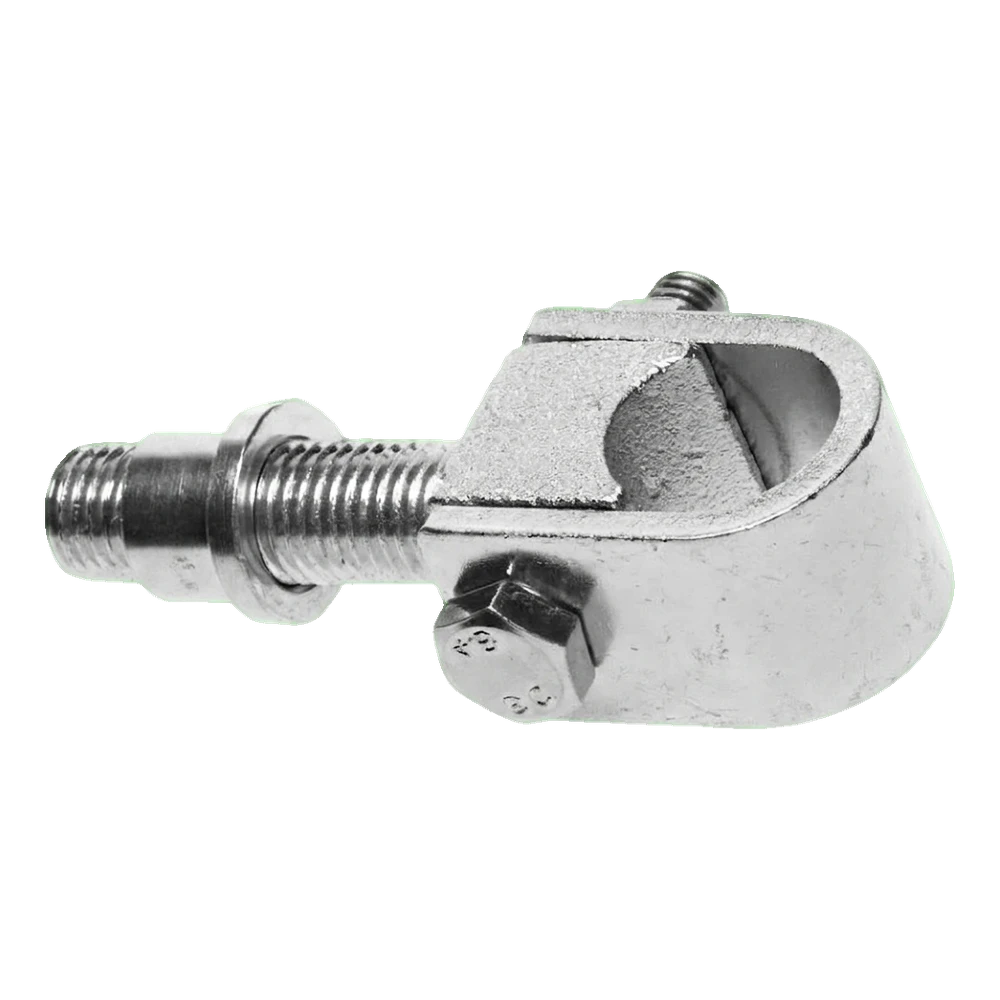

PSG adjustable hinge for swing gate M24 galvanised steel
Leave feedback on the product
Adjustable hinge for gate PSG M24 galvanised steel. M24 thread, 150 mm length, 75 mm bolt, 65 mm pin. 50 mm wide eye, 35 mm clearance. Weight 0.91 kg. Permissible load for pair of hinges 150 kg with 2 m leaf. For welding into swing gate construction.
Product code: 001-386
Product features
[PIM] zawiasy #113
- Thread type M24
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG adjustable hinge for swing gate M24 galvanised steel
Adjustable hinge for gate M24 by PSG is a robust, steel mounting element designed for welding into swing gate construction. Thanks to the M24 thread and adjustment nut, it enables precise correction of gate leaf positioning at any stage of operation — both after installation and during use, e.g. when the structure sags or due to temperature changes.
The galvanised protective coating ensures long-lasting corrosion resistance, making the hinge suitable for outdoor use without additional protection. The permissible load for a pair of hinges on a 2 m long leaf is 150 kg, which confirms the high mechanical strength of the product.
Advantages for the installer
- Adjustment during operation — adjustment nut allows tightening or loosening of the hinge at any time, without dismantling the leaf
- Weather resistance — galvanised eye and steel construction ensure durability for years
- Quick installation — welding hinge, no need to drill additional holes
- High load capacity — pair of hinges carries load up to 150 kg with 2 m leaf

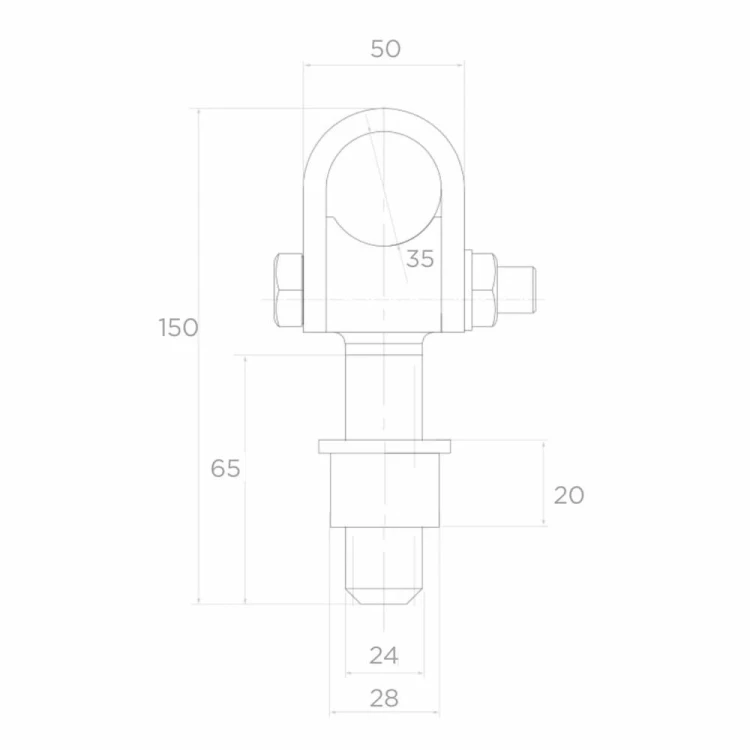

Dimensions and technical data
- Thread: M24
- Overall length: 150 mm
- Bolt length: 75 mm
- Working length of pin: 65 mm
- External width of eye: 50 mm
- Internal clearance of eye: 35 mm
- Pin diameter: 24 mm
- External diameter of adjustment sleeve: 28 mm
- Height of adjustment sleeve: 20 mm
- Material: steel
- Anti-corrosion protection: galvanised (galvanised eye)
- Weight: 0.91 kg
- Permissible load for pair of hinges (2 m leaf): 150 kg
- Manufacturer: PSG
- EAN: 5901289676212
